REFERENCE: 20-0422

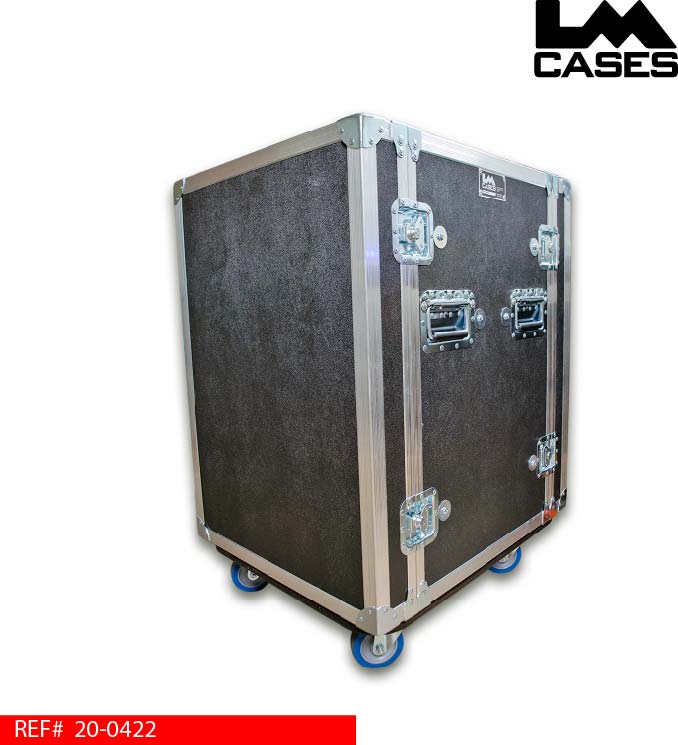

16 Space Shock Mount Rack w/Table Legs In Front & Rear Lids

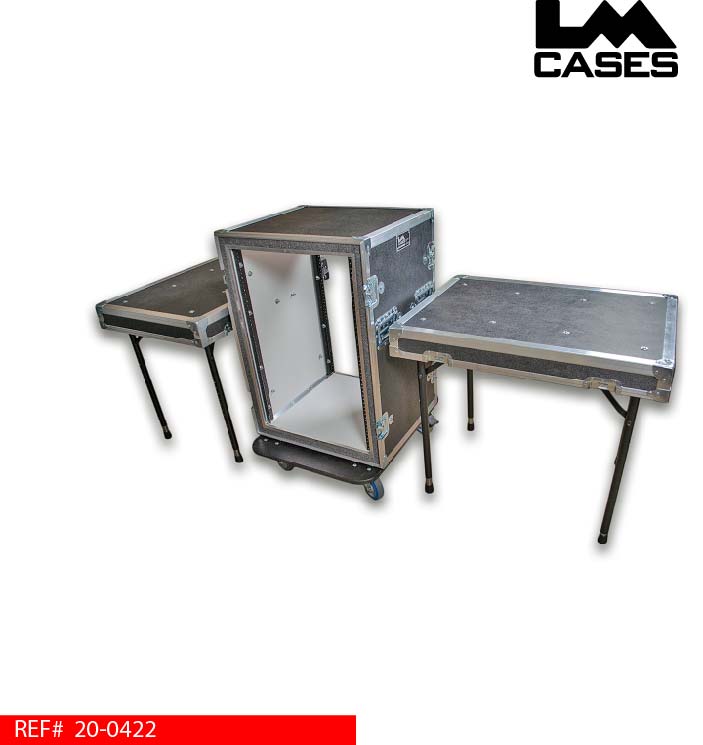

This is a modified version of our standard series 16 space shock mount rack with table legs added to each lid built for T-Mobile.
LM Cases’ standard shock mounted racks are designed with modular systems in mind. Rack heights range from 2U to 20U in the series. Rack heights ranging from 2U – 8U feature stacking feet on the bottom and stacking cups on the top of the case exterior. 10U-20U models feature stacking cups only on the case exterior. These feet and cups allow smaller racks to be stacked interchangeably or stacked on 10U+ cases.

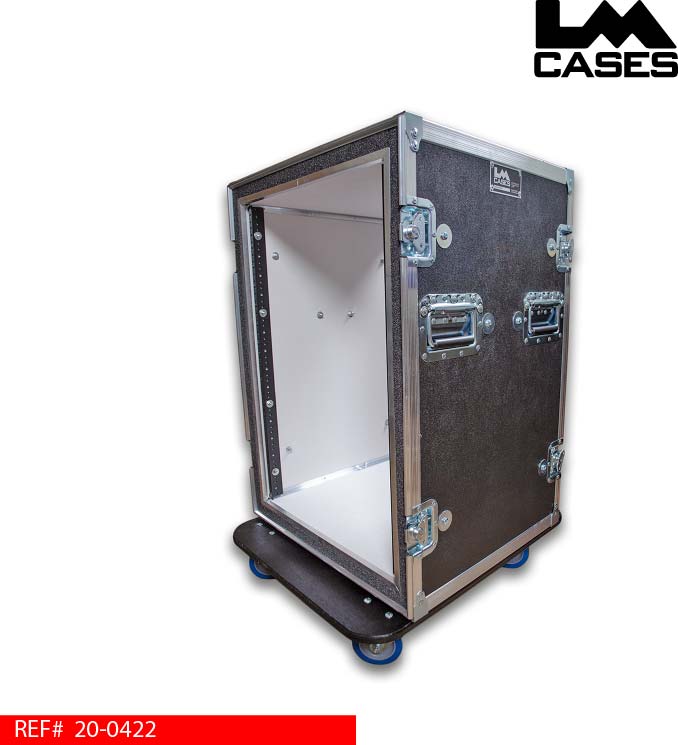

Each case is built with a white inner rack shell. These high visibility shells allow integrators and show technicians to quickly patch or troubleshoot easily. The rack shells are built from 3/8” plywood with frame mitered U-channel aluminum dressing the front and back. We use our standard 10/32” pre-tapped rack rail which prevents the need to use captive cage nuts. The rails are recessed ½” front and rear allowing for a 19” rail – rail dimension.
The case exterior is built from 3/8” plywood laminated with your choice of ABS colors. Racks 10U and taller come with 4” casters, with the front 2 casters locking.
Although many similar looking shock mount racks are available in the industry, LM Cases’ racks are truly a tour grade solution built for daily heavy duty use.
- REFERENCE: 20-0422
- CATEGORY: Audio/Visual
