REFERENCE: 46-401

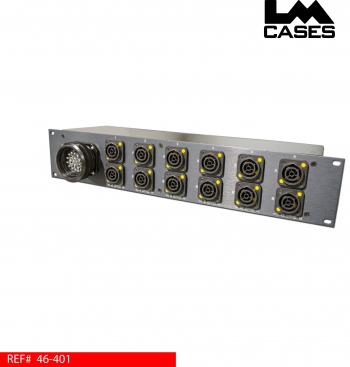

19 Pin - 6 Circuit Socapex / Neutrik True Rack Mount Break Out Box

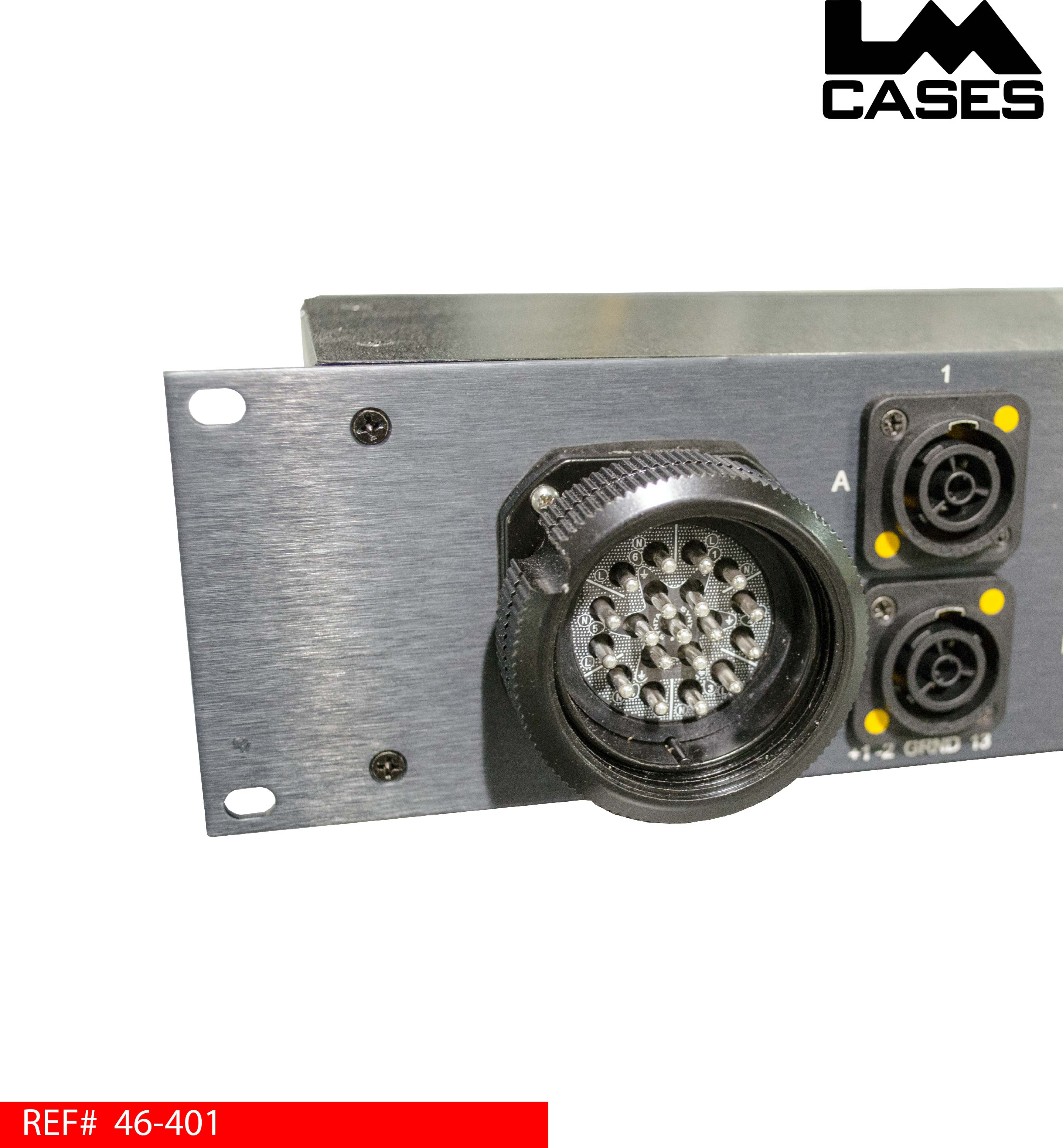

This power distro box is designed to take 6 circuits via Socapex and distribute them into 12 Neutrik True jacks. Each of the 6 circuits are split A & B allowing 2 outlets per circuit. Each circuit is labeled with its corresponding Socapex pin numbers allowing easy troubleshooting. The box is built around a .125” thick front panel plate with a fully enclosed rear box.
To purchase this item from our online store, CLICK HERE.
- REFERENCE: 46-401
- CATEGORY: Custom Integration
