REFERENCE: 52-268

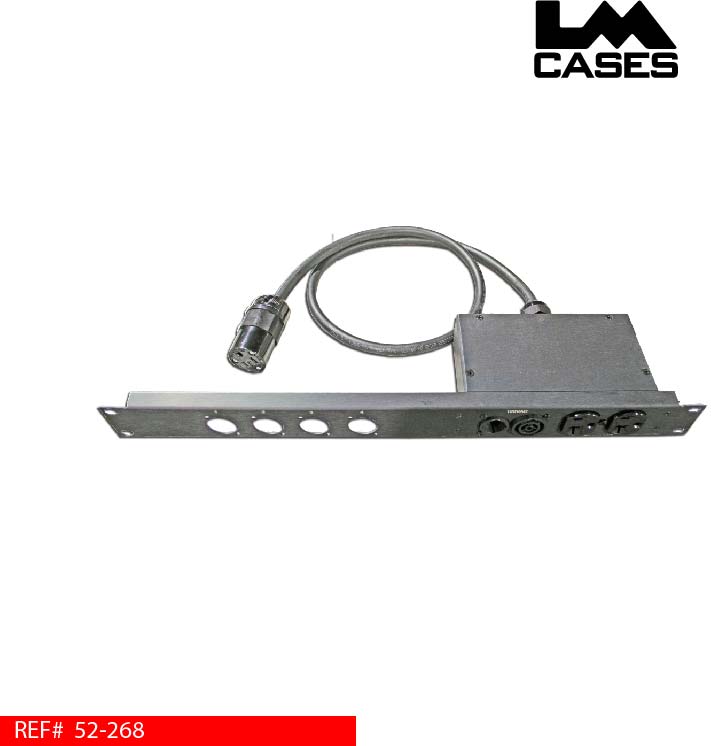

1RU NAC3PX-TOP Power Panel w/Courtesy Outlet & 4 Blank D-Punches
This custom 1RU panel is designed to be a central input source for your rack. Power is brought in through a Neutrik NAC3PX-TOP combo inlet. It is then fed to a front mounted courtesy duplex outlet, a True1 outlet, and a rear mounted tail terminated with a Lex receptacle. 4 blank d-punches are included for any additional connectors to cover basic system i/o. Don't forget to pair a LM Tour Systems True1 power cable!
The panel is built from .063” brushed aluminum that is anodized black. All labels are laser etched.
To purchase this panel from our online store, CLICK HERE.
- REFERENCE: 52-268
- CATEGORY: Custom Integration
