REFERENCE: 52-266

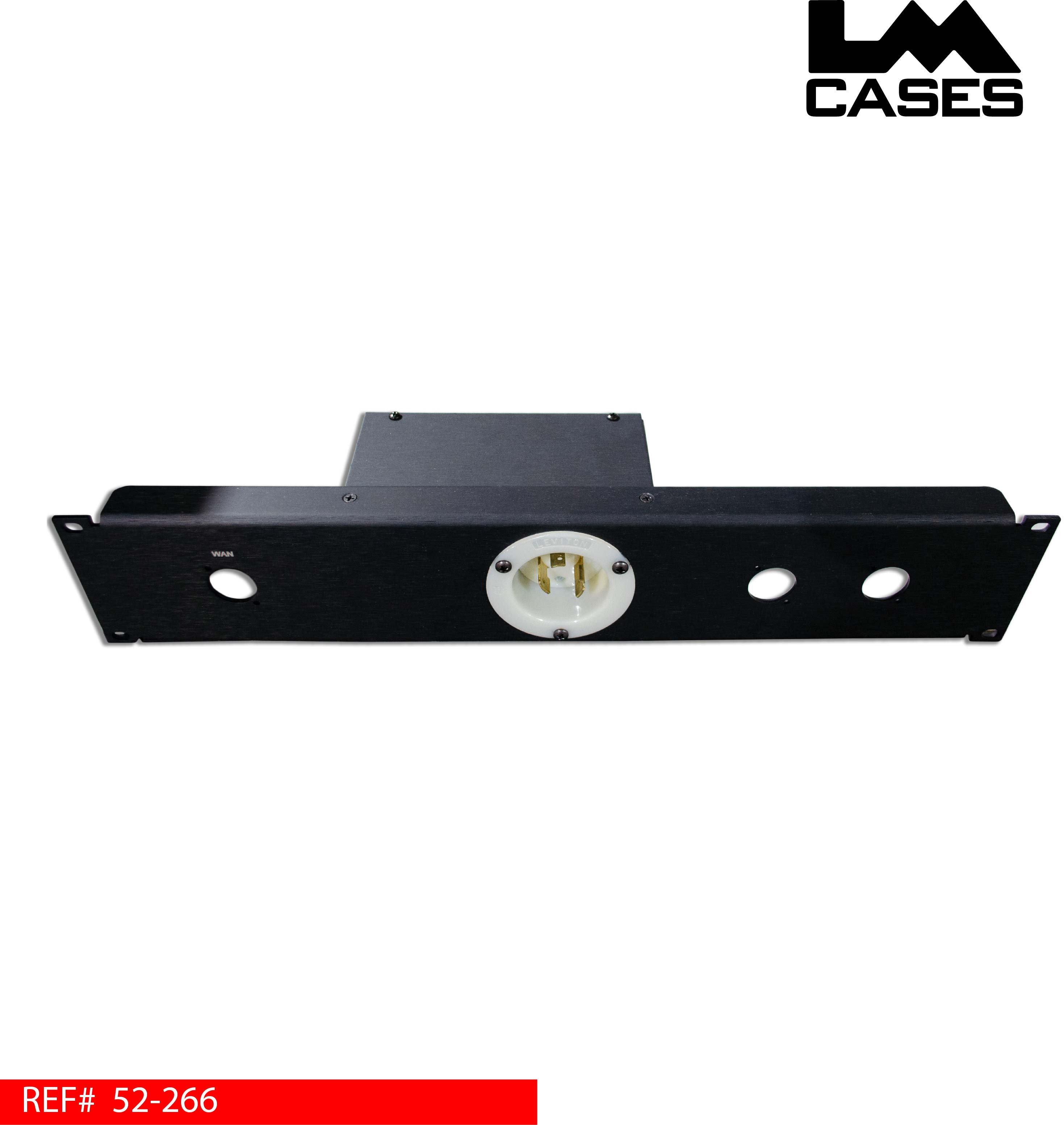

2RU L5-20 Power Inlet Rack Mount Panel w/WAN Port
This panel is designed to be a main power and signal input point for mobile server racks. The panel features a HBL2315 inlet wired to a HBL2316 outlet. The power portion of the panel is enclosed in a back box. The HBL2316 outlet allows users to connect a UPS without the need for hard wiring. A blank D-Punch is provided allowing users to mount the connector of their choice. 2 additional D-Punches are provided for future expansion. The panel is built out of .125” black anodized brushed aluminum and occupies 2 rack units. The LM Tour Systems L5-20 Twist Lock HD 12/3 Power Cable is designed to compliment this panel.
To purchase this panel from our online store, CLICK HERE.
- REFERENCE: 52-266
- CATEGORY: Custom Integration
