8 Capacity Leko Light Case

This custom road case is designed to transport and protect eight Leko theatrical lighting fixtures with their mounting clamps attached. Developed for professional audio-visual rental companies, theatrical productions, and concert touring applications, the case features individual fixture compartments, durable marine-grade plastic dividers, and reinforced foam supports. Its exterior dimensions are optimized for efficient loading into standard 96" touring truck packs.

Custom Fixture Compartments

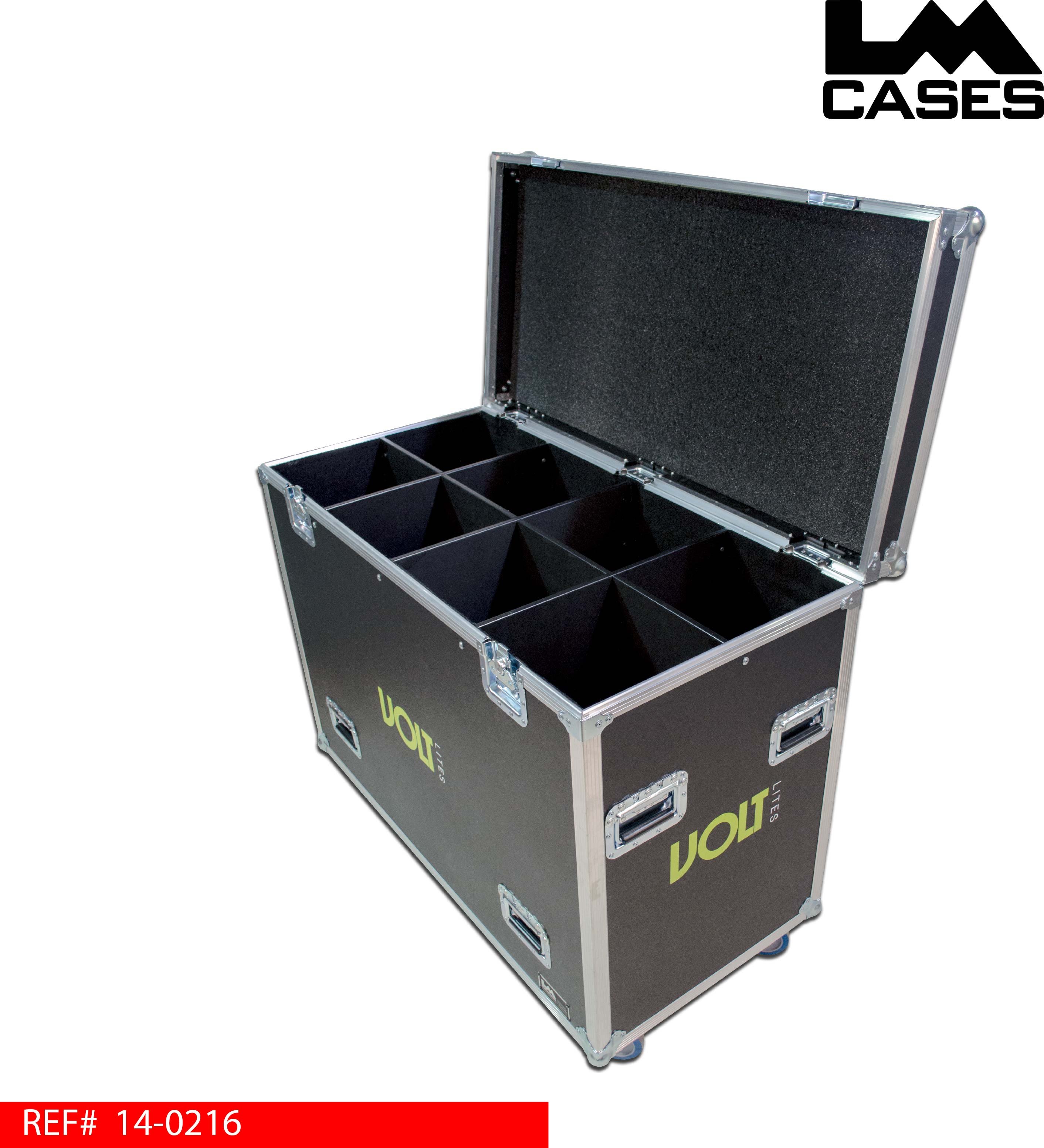

The interior features eight individual compartments, each measuring approximately 10.937" wide x 10.375" deep x 30" tall. This configuration allows each lighting fixture to be stored vertically with its mounting clamp attached, reducing handling and preparation time during setup and teardown.

The compartment network is constructed from 1/2" marine-grade plastic, providing rigid separation between fixtures while resisting the wear associated with repeated loading and unloading. Each compartment is lined with black carpet for additional protection against scratches and cosmetic damage.

Reinforced Foam Fixture Supports

Each fixture rests on a 2" thick polyethylene (PE) foam support with a 1/4" marine-grade plastic top laminate.

Unlike conventional foam supports, which can deteriorate as the weight of a lighting fixture compresses or tears the material, the marine-grade plastic surface distributes the fixture's weight across the underlying foam. This construction prevents the end of the fixture from digging directly into the foam during loading and transport.

The result is a durable support system that maintains the protective benefits of foam while providing a wear-resistant loading surface for repeated use.

Touring Road Case Construction

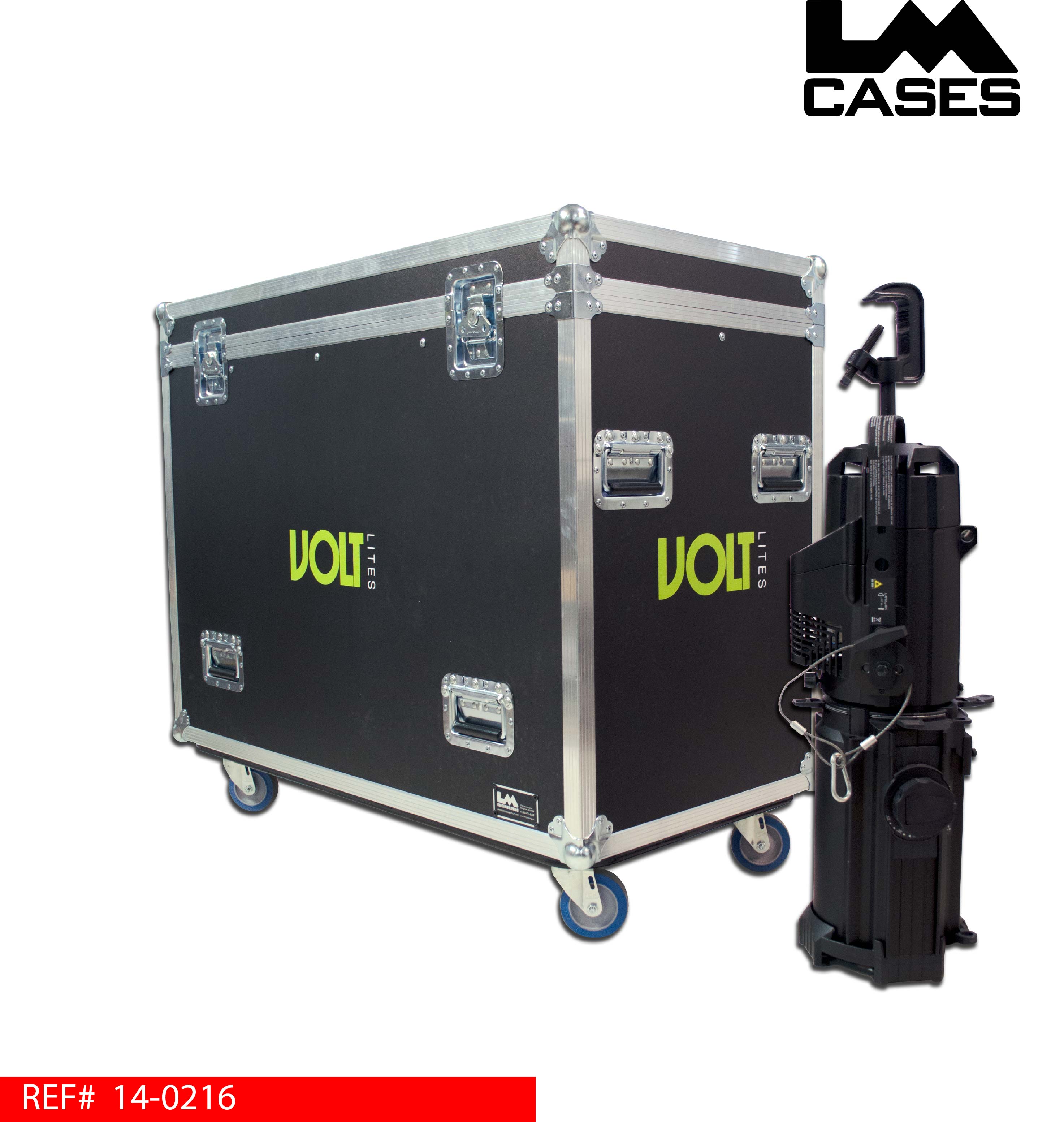

The exterior case is constructed from 3/8" plywood with professional ATA-style road case hardware. The case features four 4" Colson casters mounted to a full 3/4" Birch plywood caster pad, providing additional reinforcement beneath the case.

Recessed stacking caster wells are incorporated into the lid, allowing multiple cases to be securely stacked during transportation and storage. The case is sized for efficient truck packing within standard 96" wide touring trailers.

Eight deep-recessed handles provide multiple lifting and handling points, while a routed recess in the lid accommodates a PAL identification label for inventory management and tracking.
