Custom Workstation For Follow Me Tracking Mouse & Fader Set
This case is designed to be a portable fully wired workstation for Follow Me tracking equipment.
The case lid features a 24” Dell Ultrasharp monitor installed on a tilting Chief FTR1U mount. The LM Cases Custom Integration dept supplied a 3ft HDMI/Locking IEC power cable loom. The lid is supported by gas springs ensuring that it opens easily and can not be accidentally bumped closed during use. 2 Crosslink foam blocks are provided to support the monitor when the lid is closed ensuring even support when the case is transported.

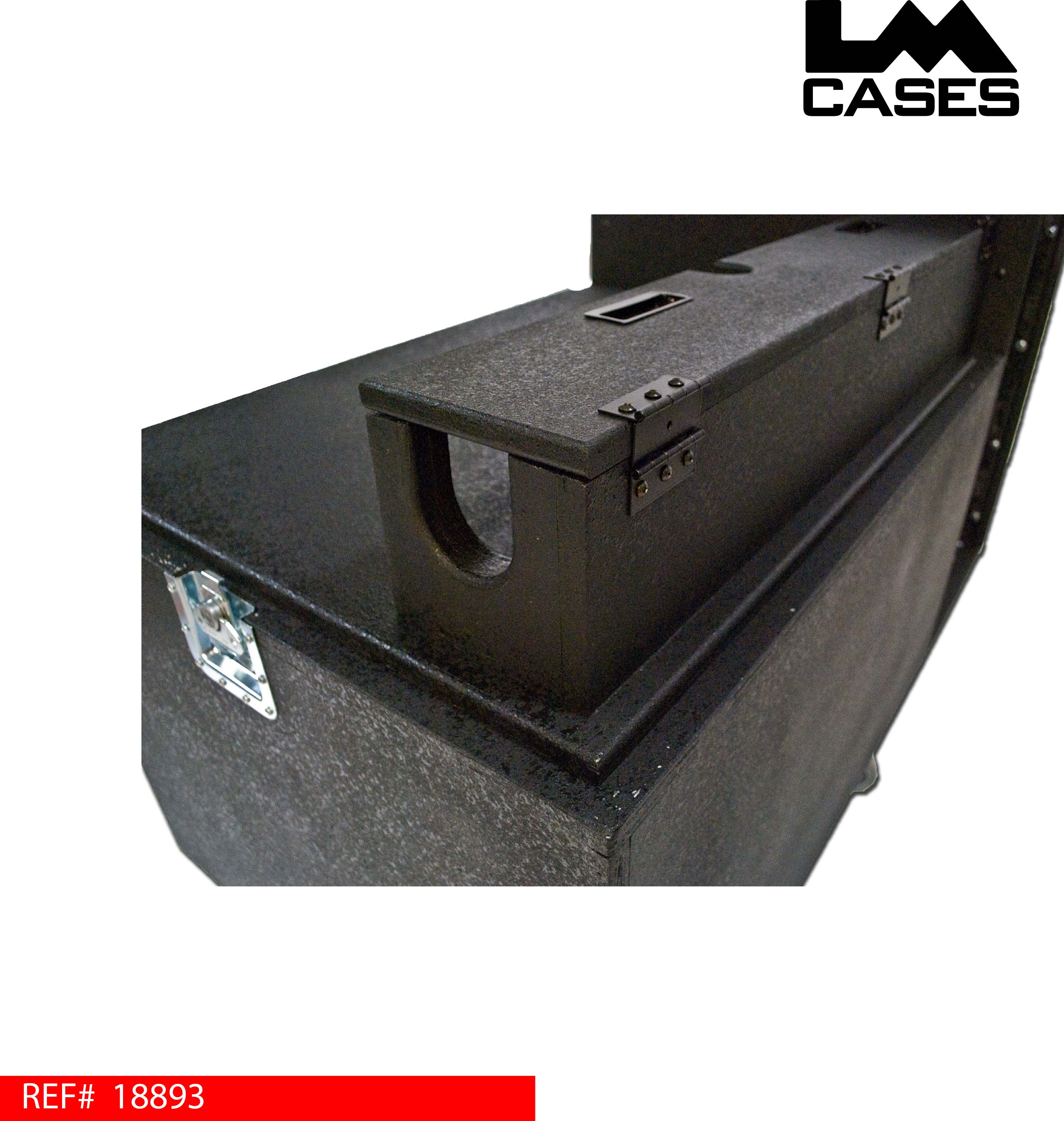

The main section of the case features a doghouse ensuring cabling remains out of sight. The doghouse is built from ½” Baltic Birch plywood finished with black textured coating. The lid is mounted via friction hinges allowing it to remain open when wiring without the need for additional support. These hinges also keep the lid closed during transport. The front of the doghouse structure features a 1U rack section for a custom panel or PDU.
A custom bracket set is included for the Follow Me Mouse & Fader units. The units are held tightly together and supported by side brackets that contour the shapes of their chassis. A 2 gang cut out is provided for additional accessories such as the Clearcom HB-704. A solid cherry wood wrist rest is provided for comfortable operation. A slide out shelf mounted on glides is provided under the Fader & Mouse units.
Connections to and from the case are handled via a trap door on the back. 4U of rack rail is provided for a patch panel should one be required.
The case exterior is built from 3/8” plywood laminated with your choice of ABS plastic colors. ½” marine grade plastic runners are mounted on the top and bottom allowing multiple cases to be stacked with the runners interlocking.
