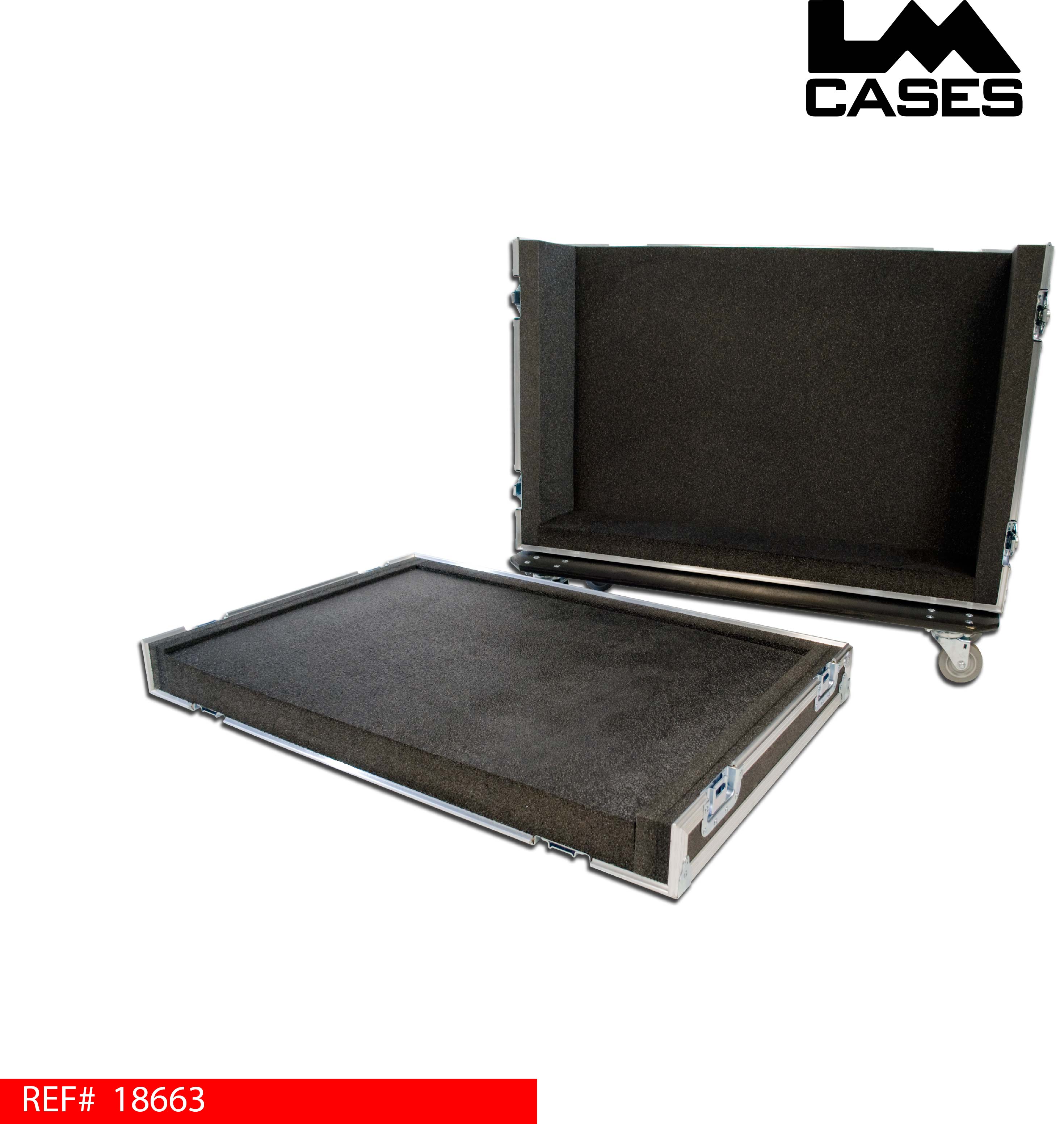

Avid SC48 Compact Road Case
This case was built for Clair Global Systems. The case is designed to be used in an installed application where the console is moved from building to building on a campus. The case is a very compact design allowing for easier moving and storage in campus.
The case interior is lined with 2" PE foam for maximum support. The exterior is a 3 piece shell that allows the console to sit in the case tray while the top and front lids are removed during a show. The exterior case is built out of 3/8" plywood and features 3.5" casters and 12 handles.
Special thanks to Clair Global!
- REFERENCE: 18663
- CATEGORY: Audio/Visual
