Request Info
Are you looking for something like this? We've got you covered. Complete the form below, and we'll get back to you about your project. If you'd rather give us a call at 800-874-8326, be sure to mention the reference number below.
REFERENCE: 19-0903

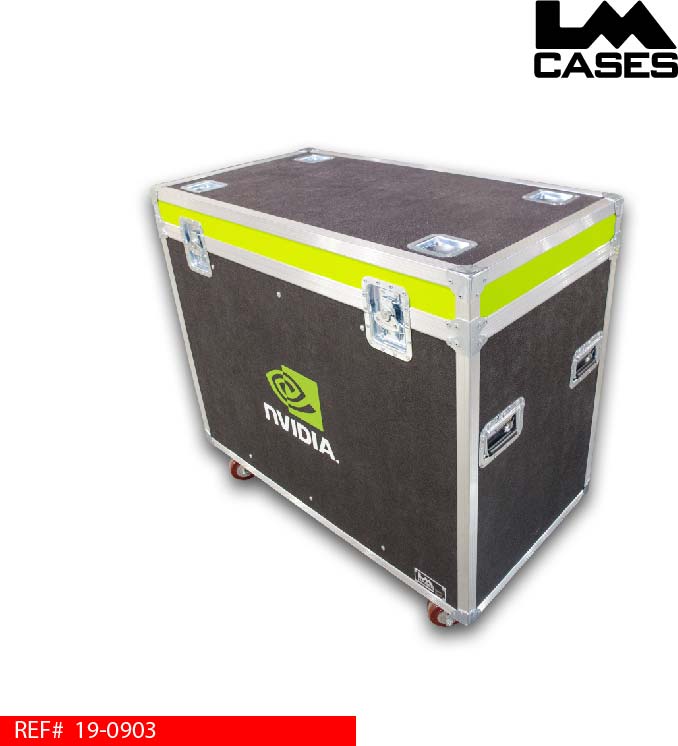

Elation CW Profile HP Ellipsoidal Light Fixture Road Case - 6 Capacity
This case was built for Nvidia. The case is designed to hold 6 Elation CW Profile light fixtures with their clamps attached. Each light compartment features usable dimensions of 10.875” wide x 10.875” deep x 31.75” tall. The lights are held in individual compartments created by a ½” marine grade plastic divider network. 2” Ester foam laminated with .125” thick white HDPE is positioned under each light to provide shock protection for each light. The foam/HDPE combo is soft enough to not damage the gel frame holders. A carpet lined accessory compartment is provided for additional storage.
The exterior case is built from ½” plywood laminated with black ABS plastic, with neon green ABS lid strips. All seams are sealed with caulking, with the aluminum lid groove extrusion fitted with a neoprene gasket to prevent moisture from entering the case. The case features 4 deep recessed handles, 4” x 2” Colson casters with a full sized .75” caster board, deep recessed stacking caster wells, flat triangle corners, and recessed lid stays. 2 prints of the 2 color Nvidia silkscreen are located on the front and rear of the case.
To purchase this case from our online store, CLICK HERE.
- REFERENCE: 19-0903
- CATEGORY: Audio/Visual
