Hockey Athletic Trainers Trunk w/Sonos Roam Speaker And Clock
The LM Cases Compact Athletic Trainer Workstation with Speaker and Clock is a travel-ready medical trunk designed specifically for hockey athletic trainers who need maximum organization in a compact footprint. Built for locker rooms, buses, trucks, and commercial air travel, this workstation combines supply storage, a durable work surface, integrated power, timekeeping, and portable audio into one professional touring case.

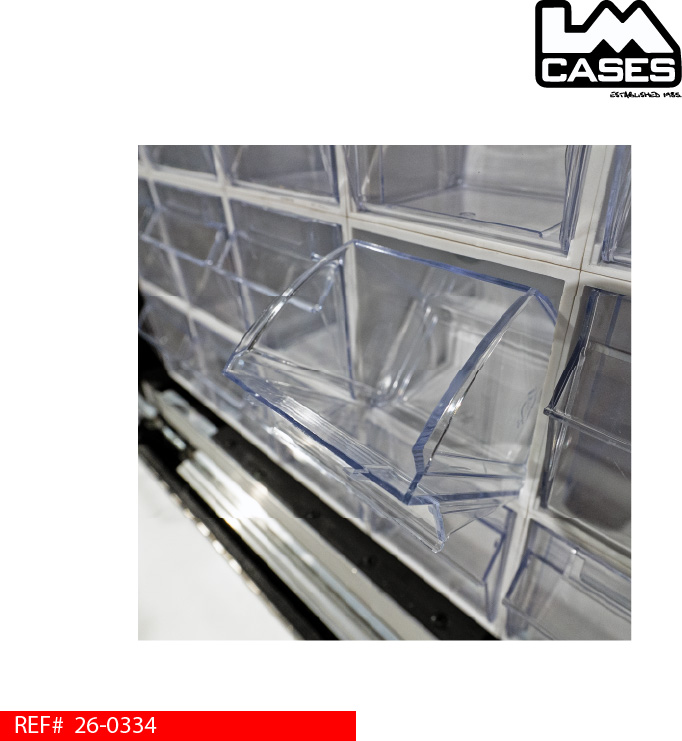

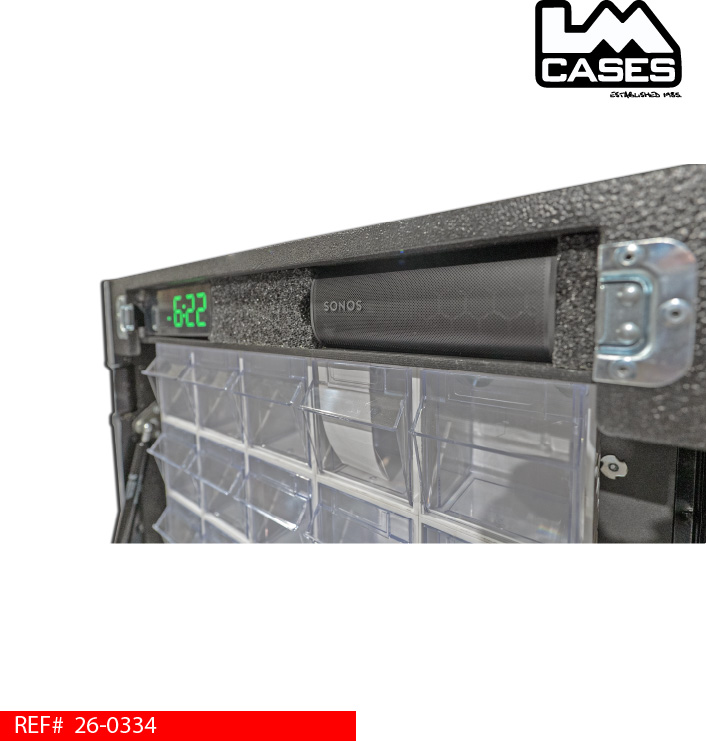

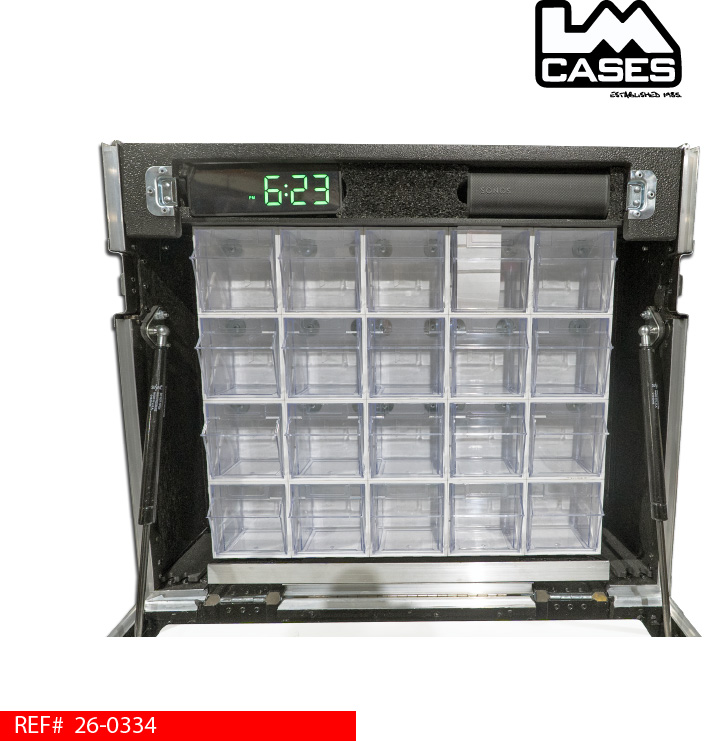

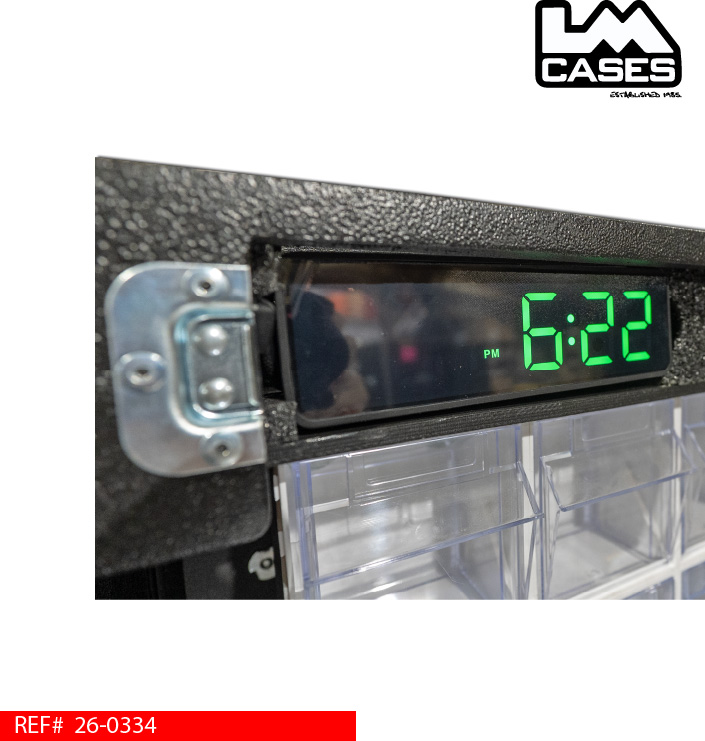

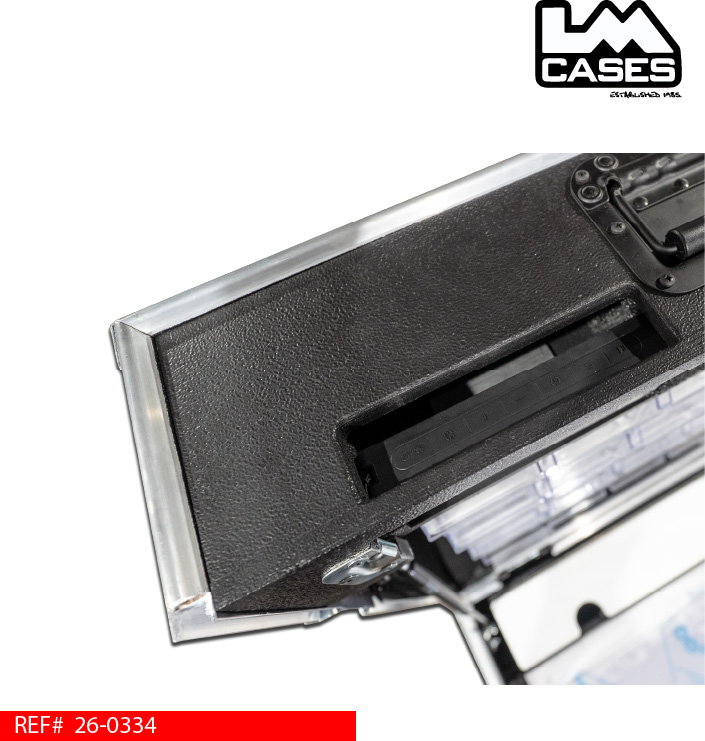

The hinged top lid is supported by gas springs and features 20 clear tilting storage bins for small medical supplies, bandages, accessories, and trainer essentials. Built into the lid is a clock with timer functions, presets, custom intervals, and remote control, along with a removable Sonos® Roam portable Bluetooth/Wi-Fi speaker.

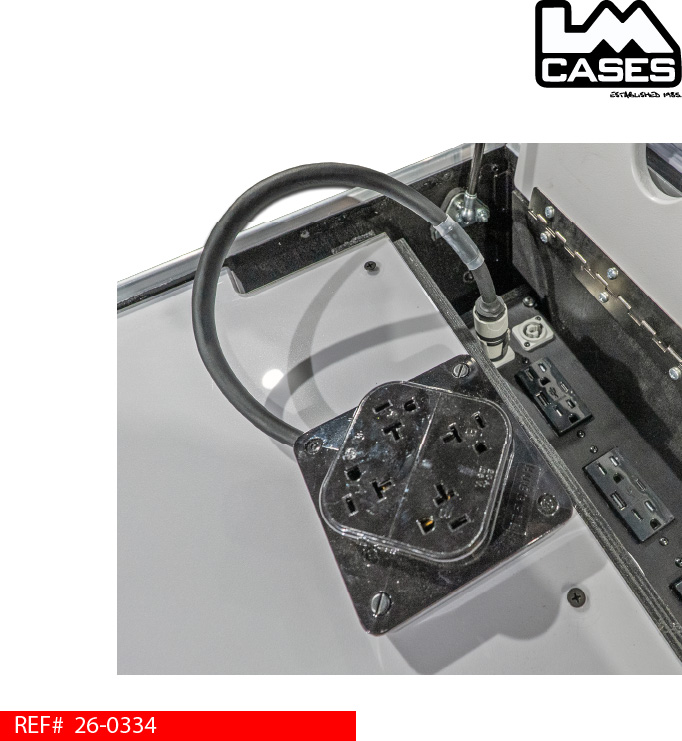

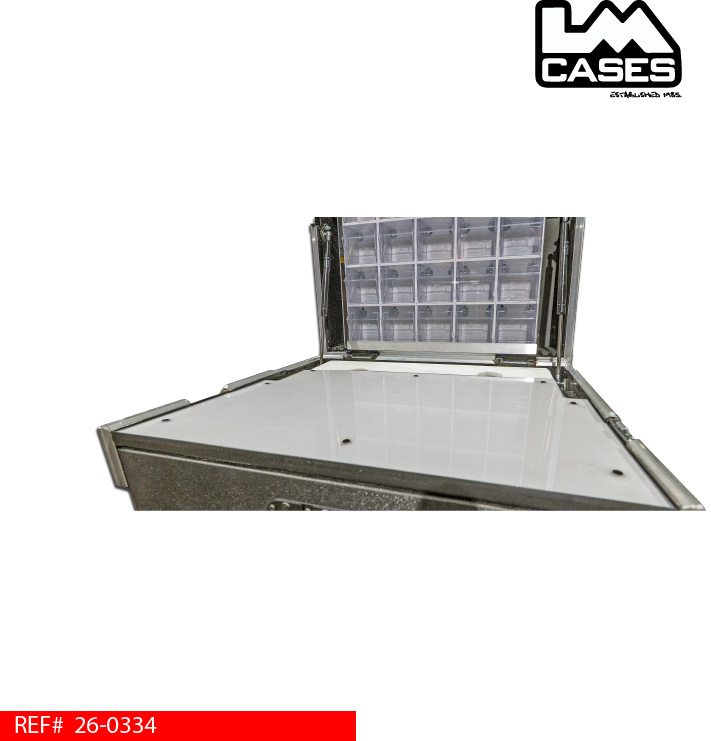

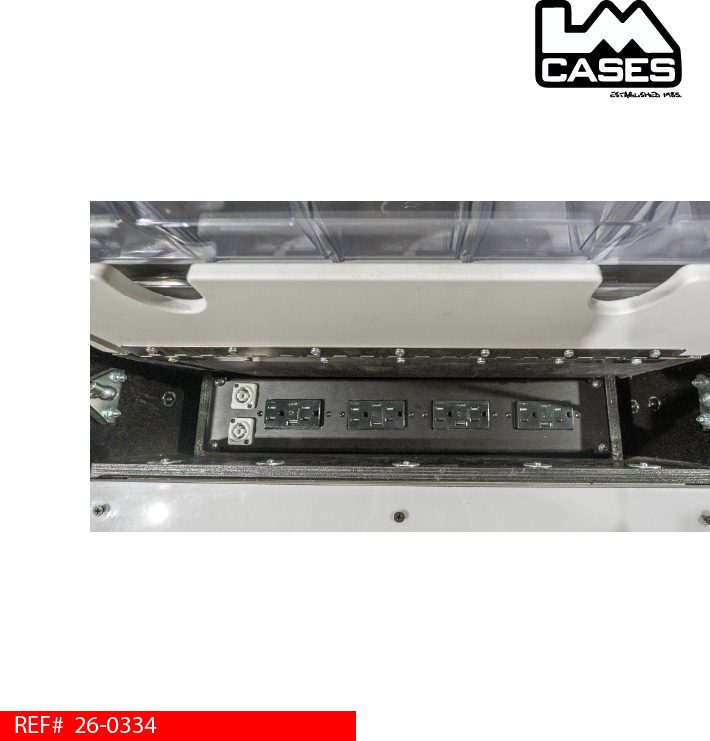

The main work area features a white work surface with a replaceable clear Lexan top, giving trainers a clean, durable, and serviceable prep area. Integrated into the workstation is an LM Tour Systems courtesy power module with eight standard AC outlets, four USB-A charge ports, four USB-C charge ports, and two Neutrik Powercon locking outlets. An included LM Tour Systems Powercon-to-4-plex outlet block provides additional accessible power for chargers, wall adapters, radios, batteries, and other equipment.

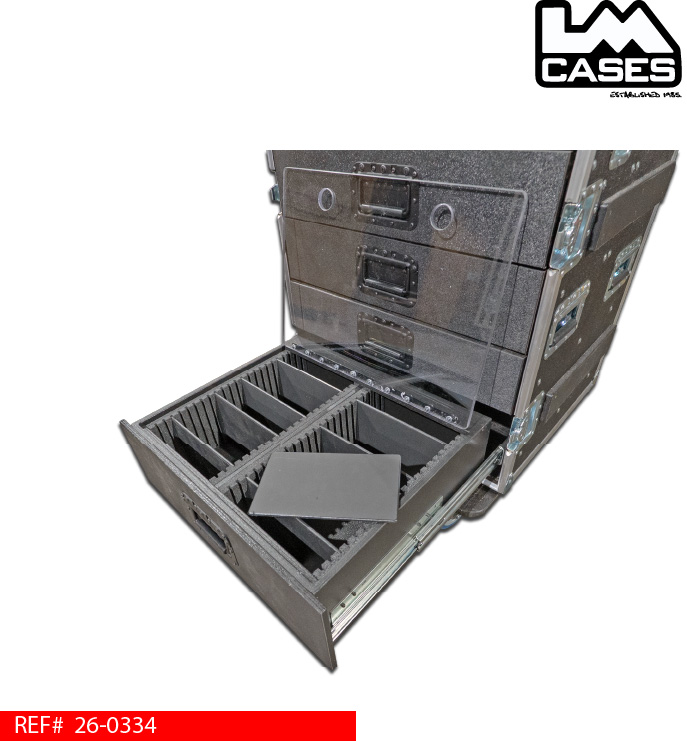

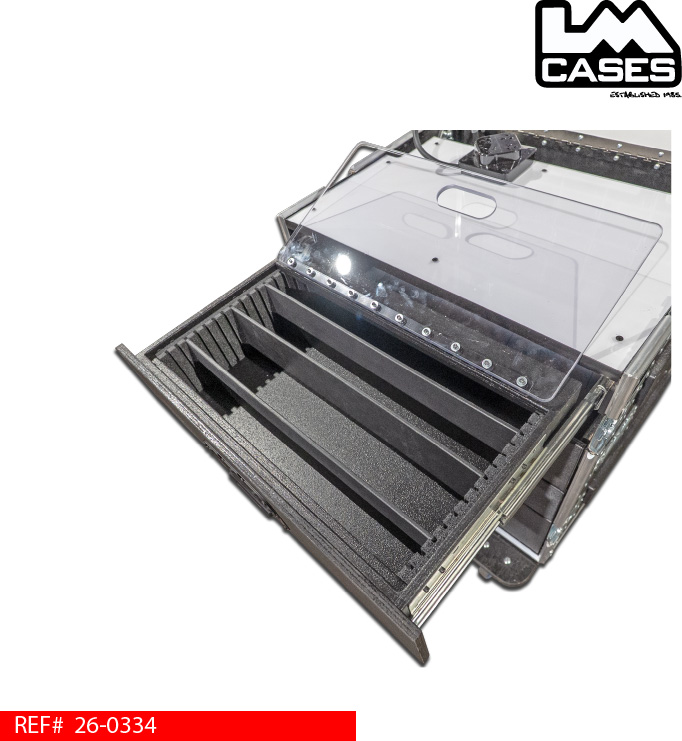

Storage is handled by four heavy-duty drawers, each built from 1/2" Baltic birch and mounted on heavy-duty Accuride drawer slides. All drawers feature black recessed pull handles, black texture-coated interiors, common 21.5" wide x 18.25" deep dimensions, and a .375" hinged clear Lexan cover to help keep contents contained during transport.

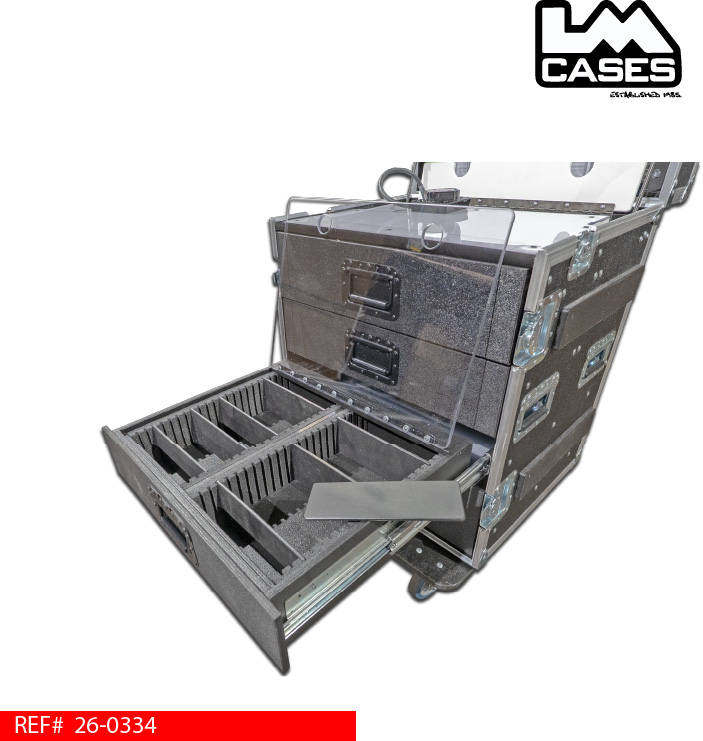

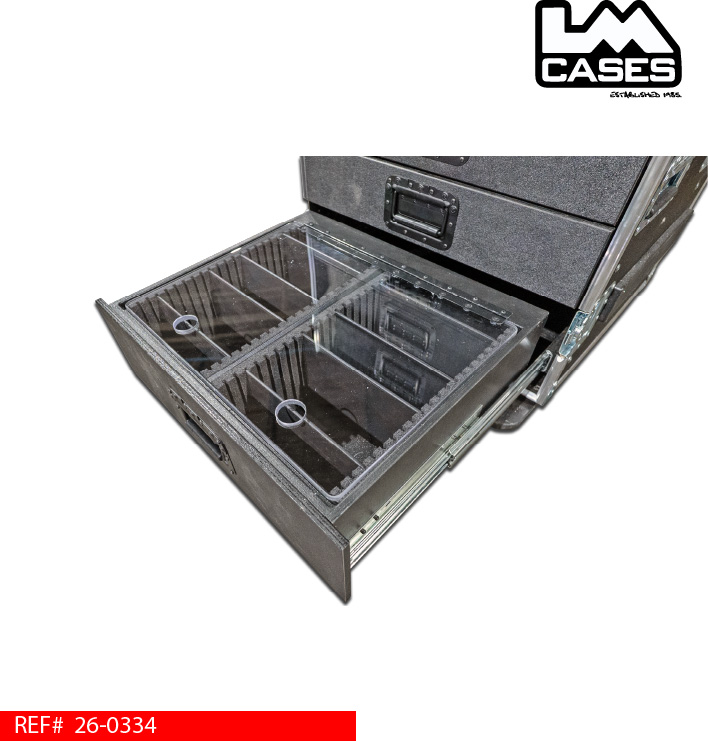

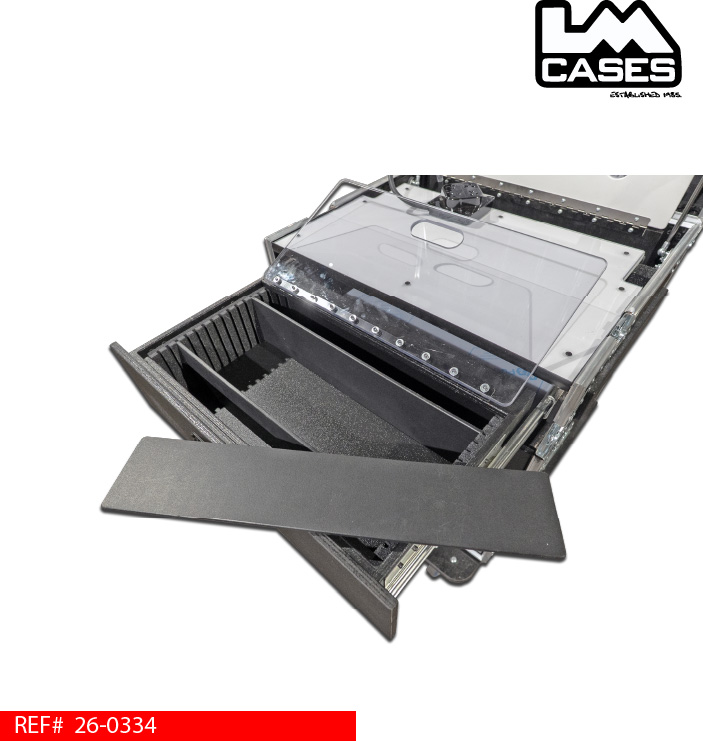

Drawers 1 and 2 are 5.875" tall and include movable 1/4" black marine-grade plastic dividers that split each drawer into four width-wise compartments. Drawer 3 is 5.125" tall and is split in half depth-wise, with four movable 1/4" black marine-grade plastic dividers per section. Drawer 4 is 7.5" tall and uses the same split-depth layout, giving extra height for larger supplies and bulkier items.
The exterior is built for professional travel, with 1/2" black marine-grade plastic runners, deep recessed hardware, and 4" Colson casters mounted to a full-sized 3/4" Baltic birch caster board. The removable front lid includes telescoping table legs, allowing it to convert into an additional work surface when the trunk is deployed.
Power enters the case through an LM Tour Systems DSK-IT power inlet and includes a 25' LM Tour Systems True1 - 12 AWG power cable for flexible placement in locker rooms and event spaces.
Maximum outside dimensions, including corners and casters, are approximately 27.125" wide x 26.5" deep x 40.25" tall.
- REFERENCE: 26-0334
- CATEGORY: Sports CATEGORY: Custom Integration
