Low Profile 24” Confidence Monitor Prompter Stage Wedge System
This custom 24” confidence wedge built by LM Cases is designed for applications where a small low-profile monitor is required. The design is intended to blend with audio stage monitors in appearance. Applications include teleprompters, confidence monitors and producer feeds.

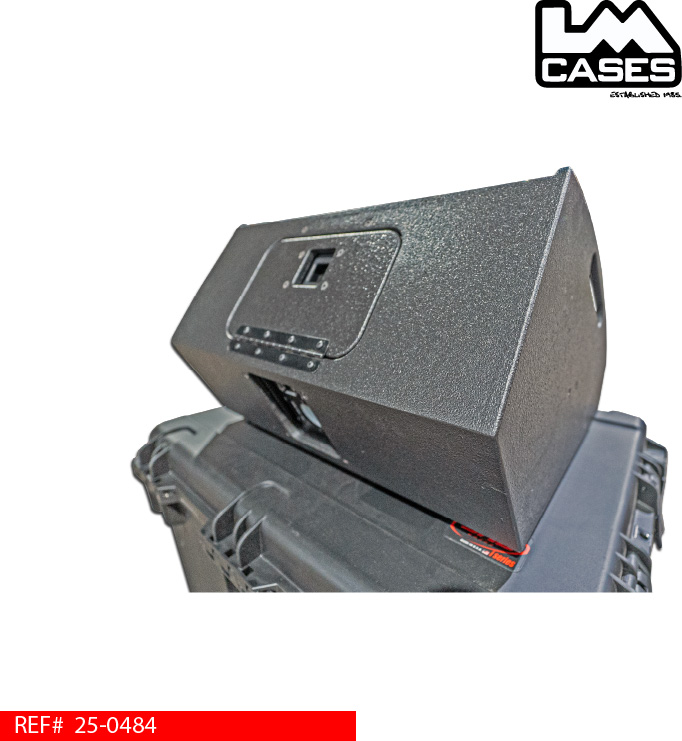

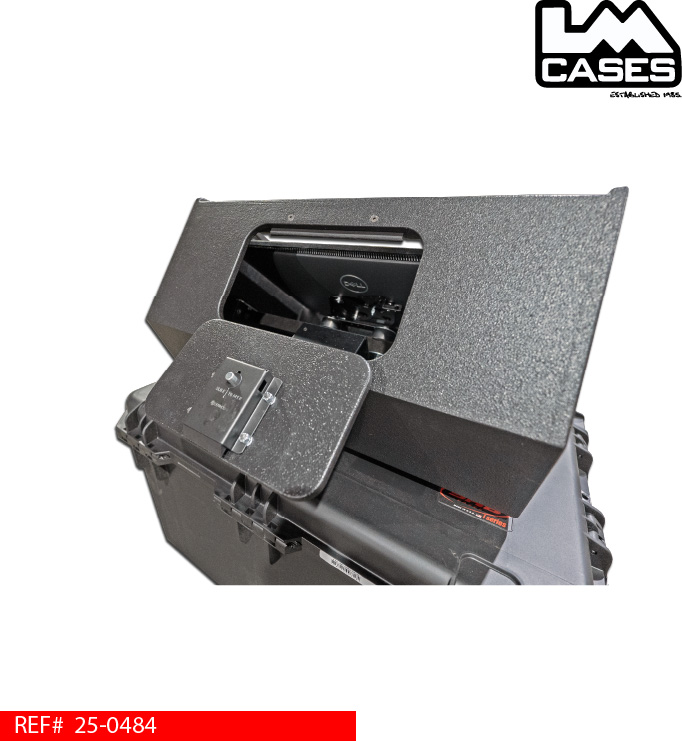

The monitor wedge shell is built from ½” Baltic Birch and finished with black textured coating. The wedge features a hinged door with a. slam latch to access the electronic components. A 24” Dell Ultrasharp monitor is mounted via Chief tilt mount to ensure the viewing angle can be adjusted. Signal is routed to the monitor via a custom LM Tour Systems inlet box. A recessed “male” Hubbell inlet is provided with a 25’ LM Tour Systems 12awg power cable. The power inlet can be changed to a True1 or Powercon if needed using the LM Tour Systems 5278 – D adapter plate. Video signal can be fed to the monitor via a HDMI or SDI jack. An SDI- HDMI converter is provided

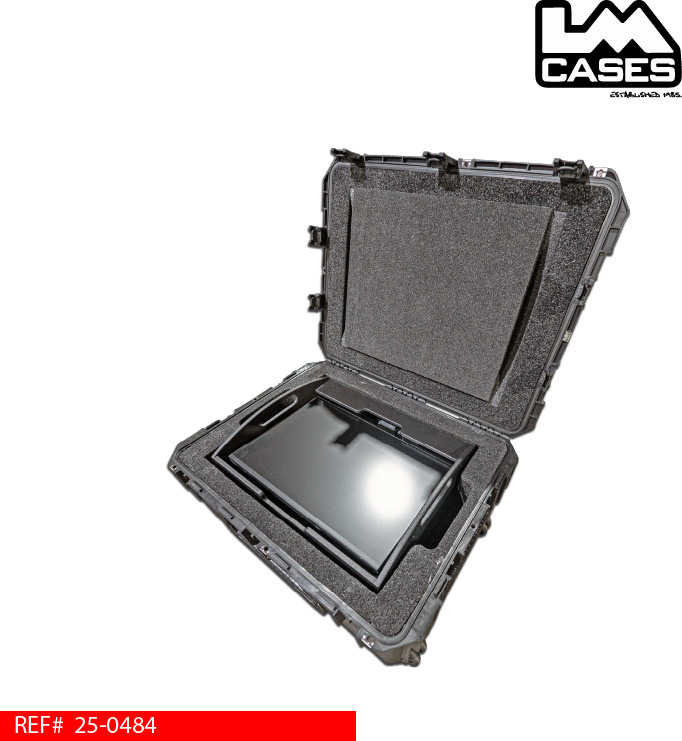

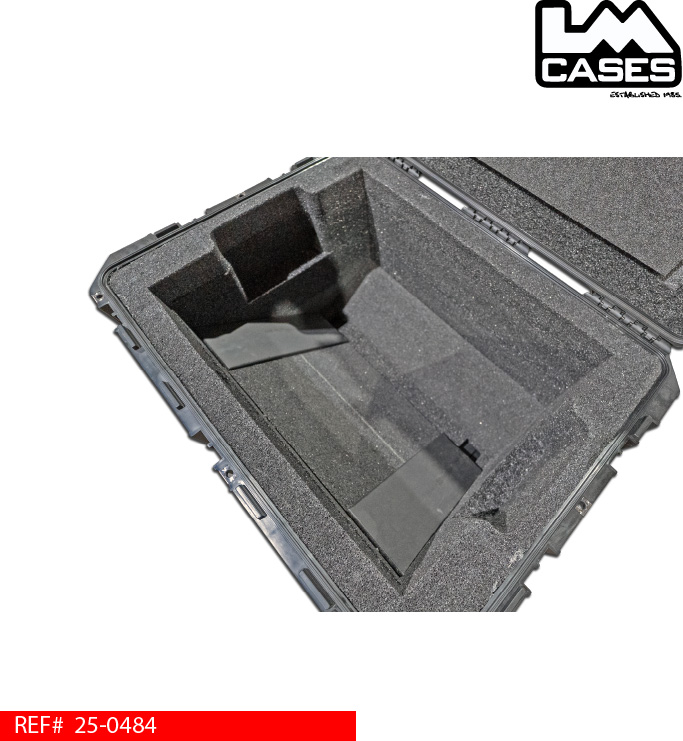

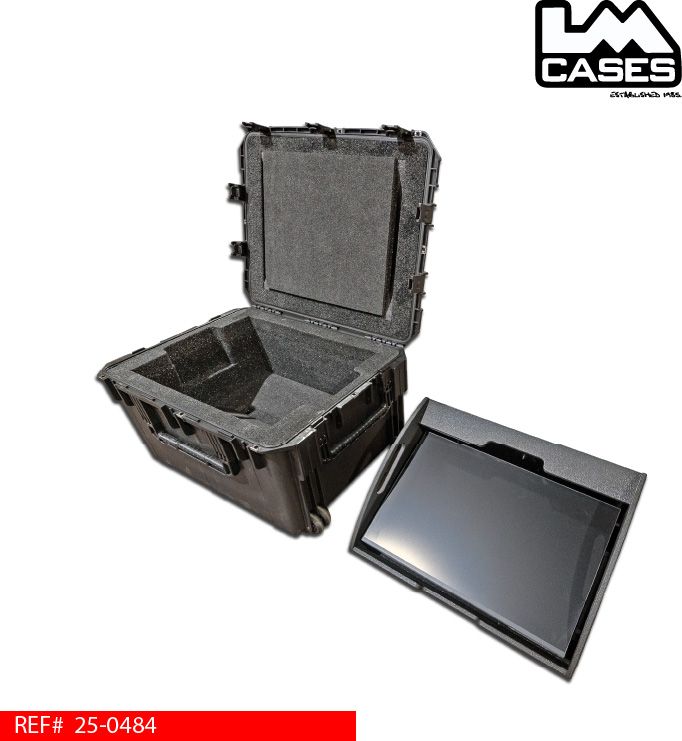

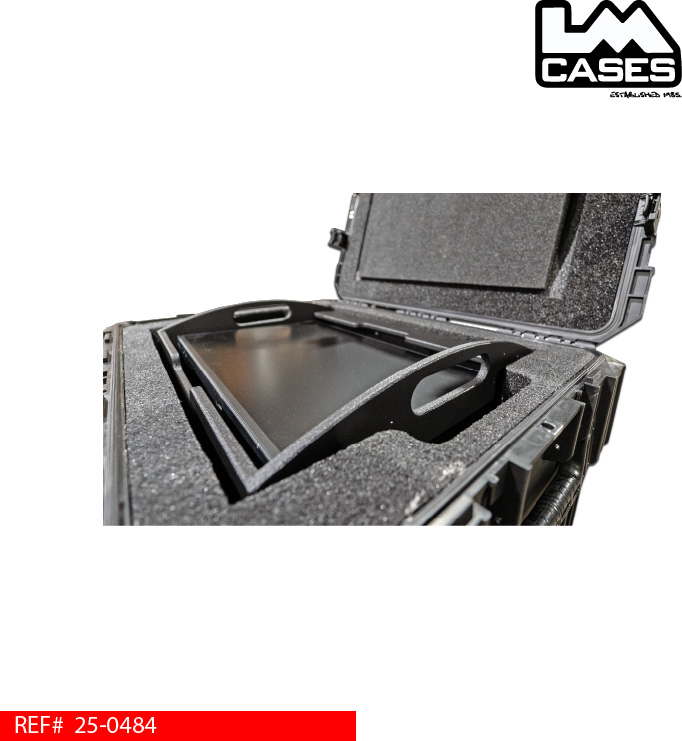

The wedge is transported in a SKB iSeries case with a custom CNC cut foam insert. The foam insert is designed with angled blocks allowing the monitor to sit flat in the case. A non-abrasive Crosslink foam lid block is mounted in the lid to contact the monitor screen to prevent damage. The wedge positioned in a way that the handles are easily grabbed to remove it from the case.
Don't forget to add a Locking HDMI or LM Tour Systems SDI Cable.
- REFERENCE: 25-0484
- CATEGORY: Audio/Visual CATEGORY: Custom Integration
