Power Input / Ethernet 2RU Rack Panel

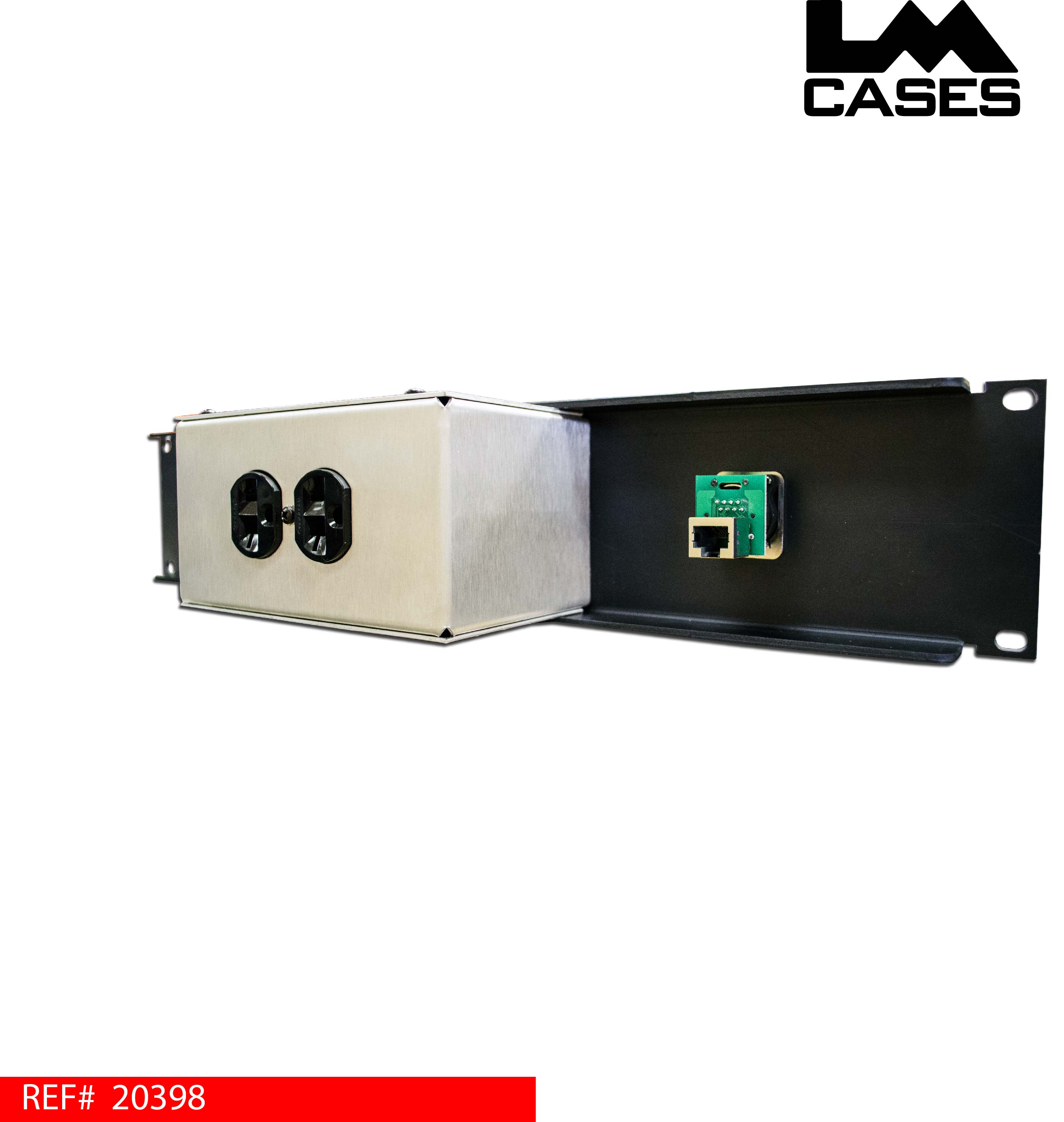

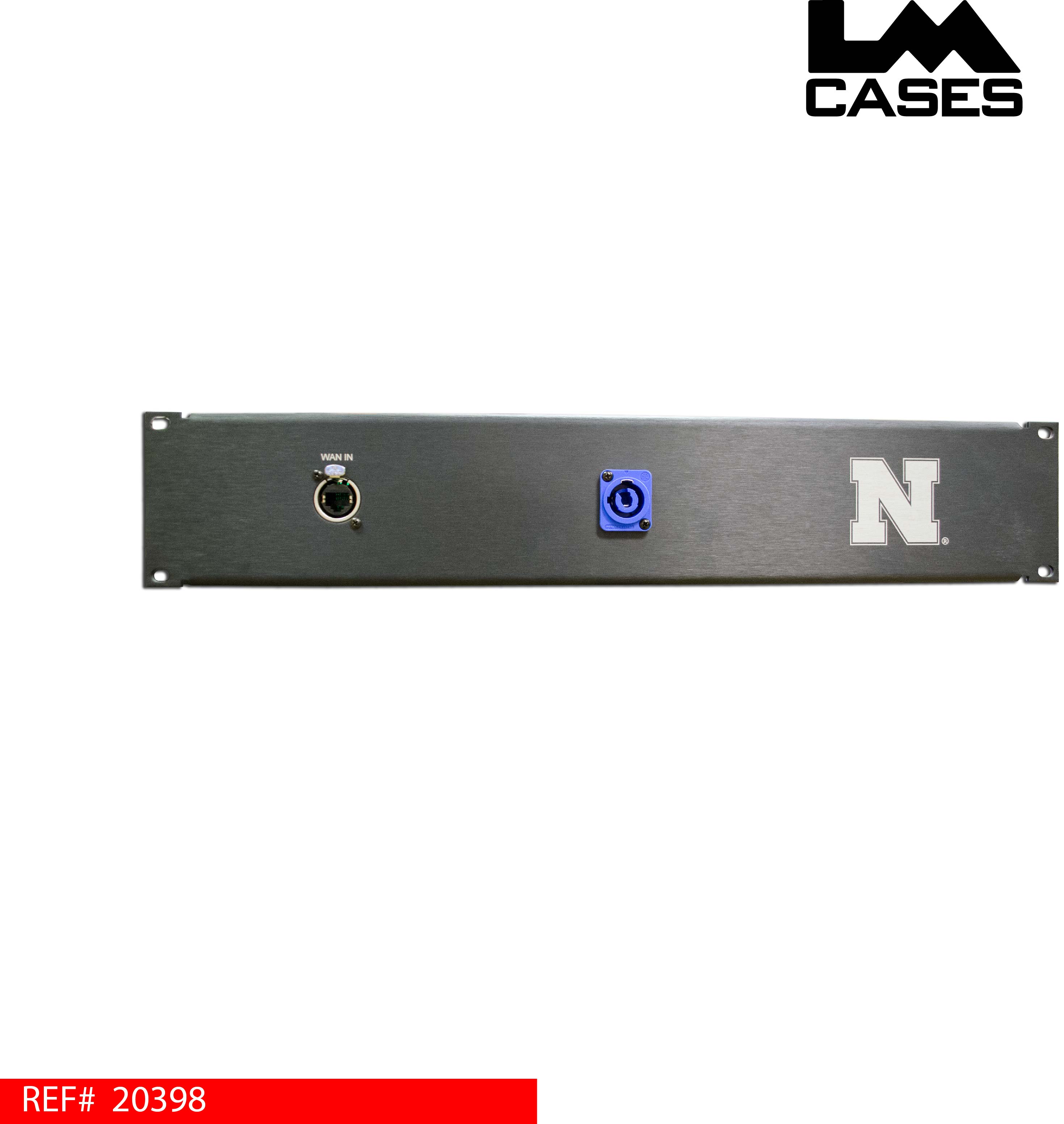

This panel was built for the University Of Nebraska as a power and signal input for a portable server rack. The panel features a Neutrik Powercon input wired directly to a Hubbell duplex outlet enclosed in a back box. The panel also features a Neutrik NE8FDP-B ethernet jack to provide a WAN input. The panel is built out of .125" thick brushed aluminum that black anodized and features white laser etched labels and the Nebraska "N" logo.
- REFERENCE: 20398
- CATEGORY: Custom Integration
