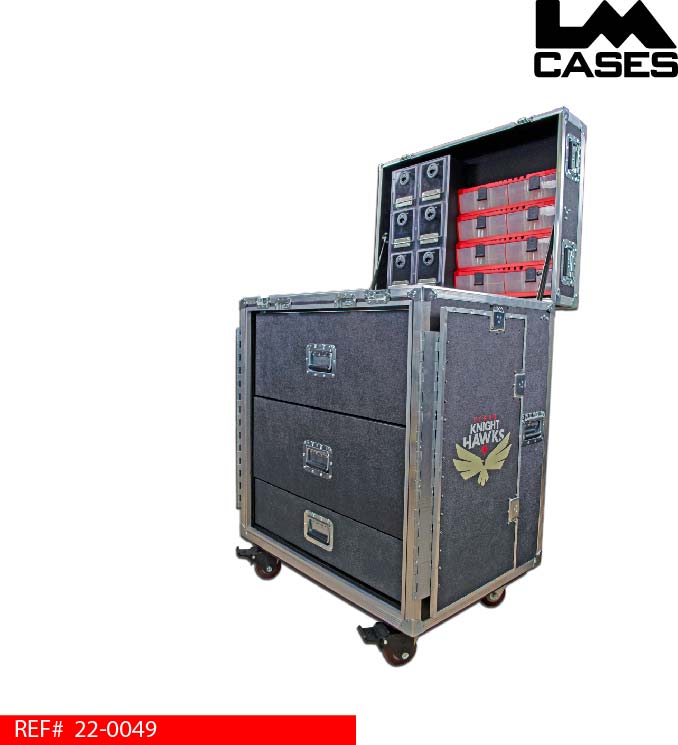

Vegas Knight Hawks Locker Room Supply Trunk
This trunk was built for the Vegas Knight Hawks. The design allows for storage in the lid for small parts in addition to large drawers in the main section for bulkier items.

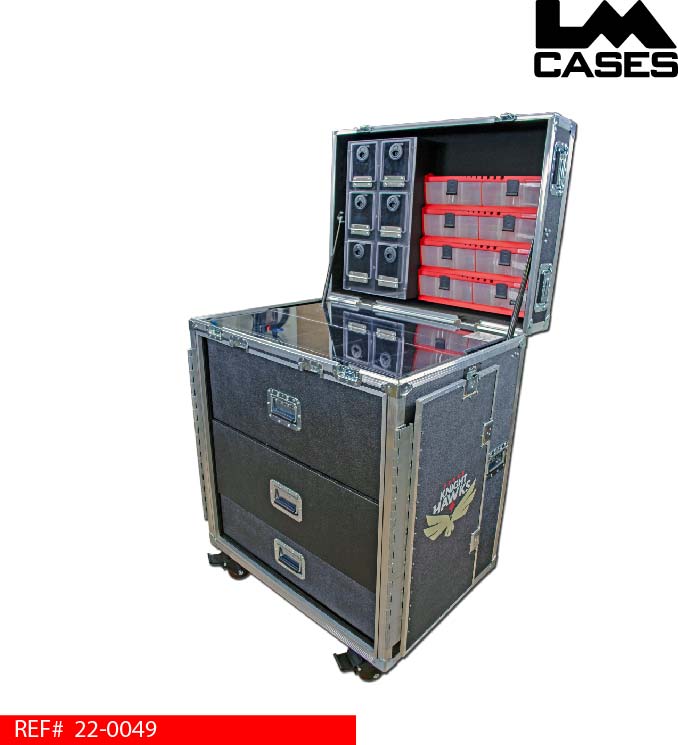

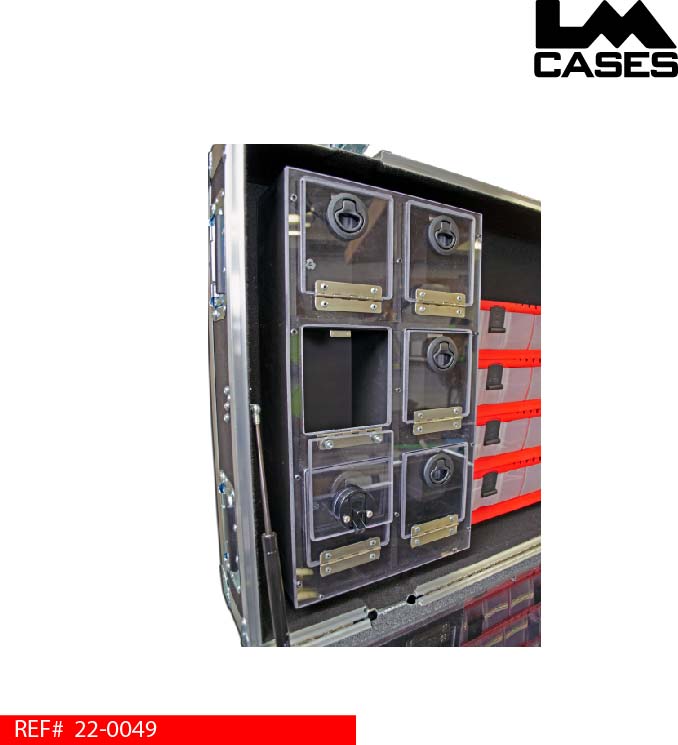

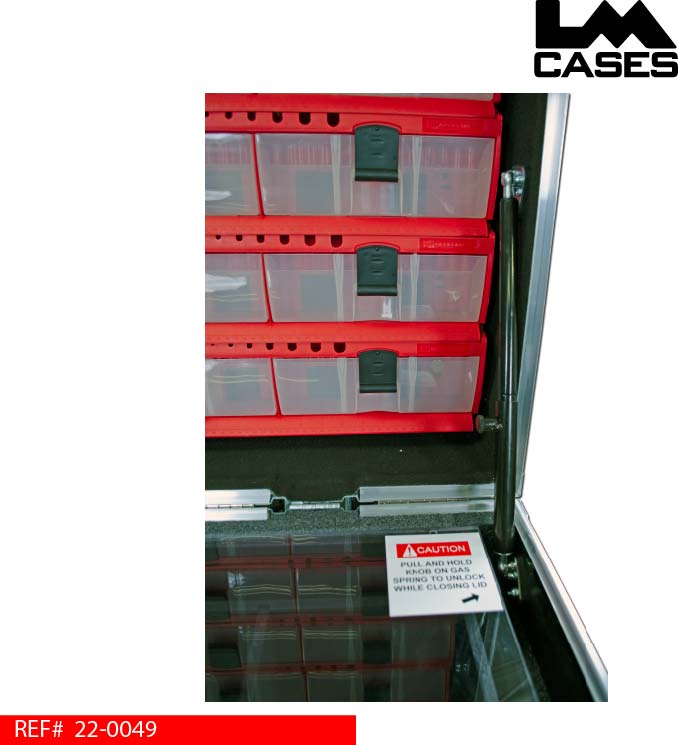

The lid features 4 sets of Tilt Lock bins for small parts. Each bin set has 2 tilt out units for a total of 8 individual, tiltable storage sections. Each tilting section can be divided into 3 compartments. The lid also features 6 individual small parts storage compartments. These compartments are built from ½” marine grade plastic with a front fascia and doors built from 3/8” Lexan. Each lid features a HD Southco slam latch. The lid is supported by 2 gas springs to assist in opening and closing. One gas spring is locking to ensure that the lid remains open. A custom printed label is placed on the work surface to remind users to release the lock prior to closing the lid.

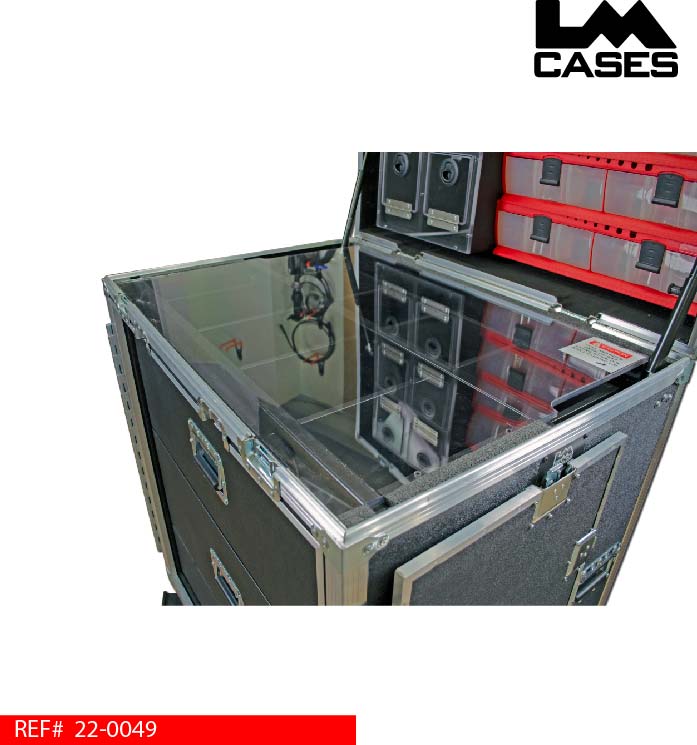

The main work surface is built from 3/8” scratch resistant clear Lexan. This allows users to quickly see into the first drawer in the set.

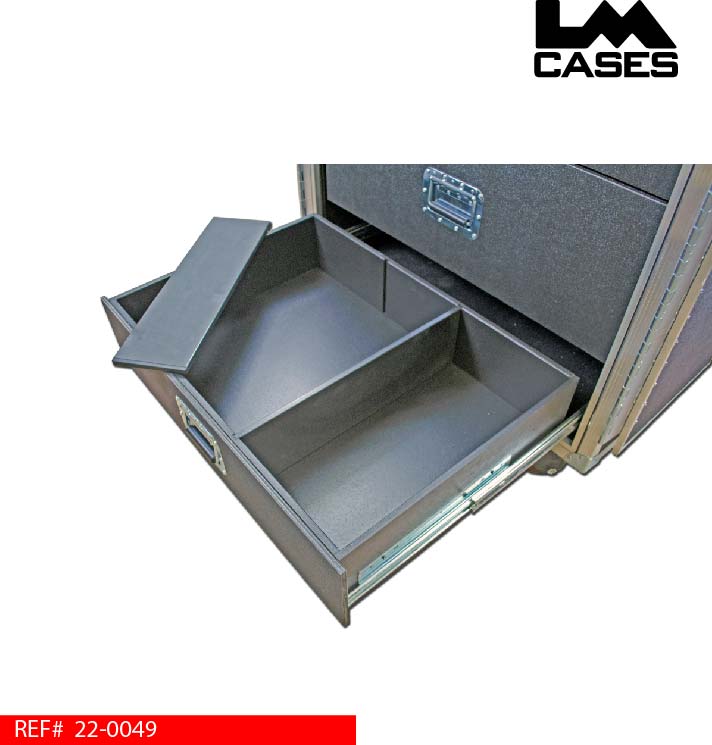

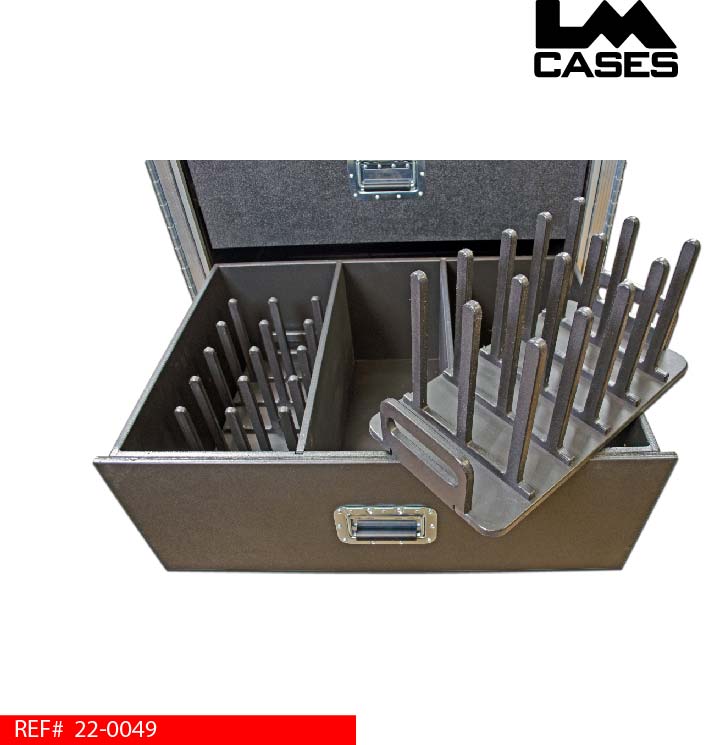

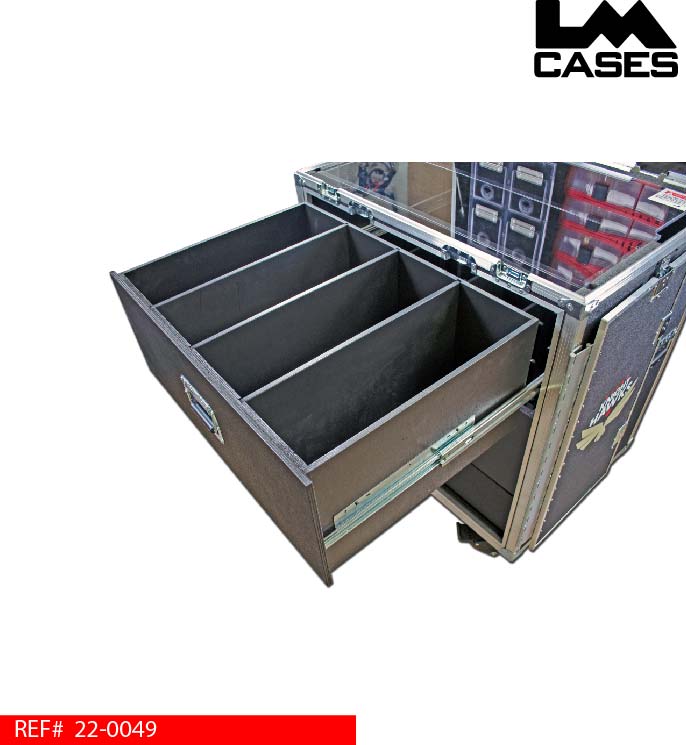

The drawers are built from ½” Baltic Birch plywood, mounted on HD Accuride glides, and finished with black textured coating. Each drawer is 30.5” wide x 21” deep, and have heights of 7.125”, 12.125” and 12.125”. The top and bottom drawers are split into thirds with removable ½” marine grade plastic dividers. The center drawer features 2 removable tape dowl caddies. Each caddy features 15 dowels that are spaced for 2” tape rolls.

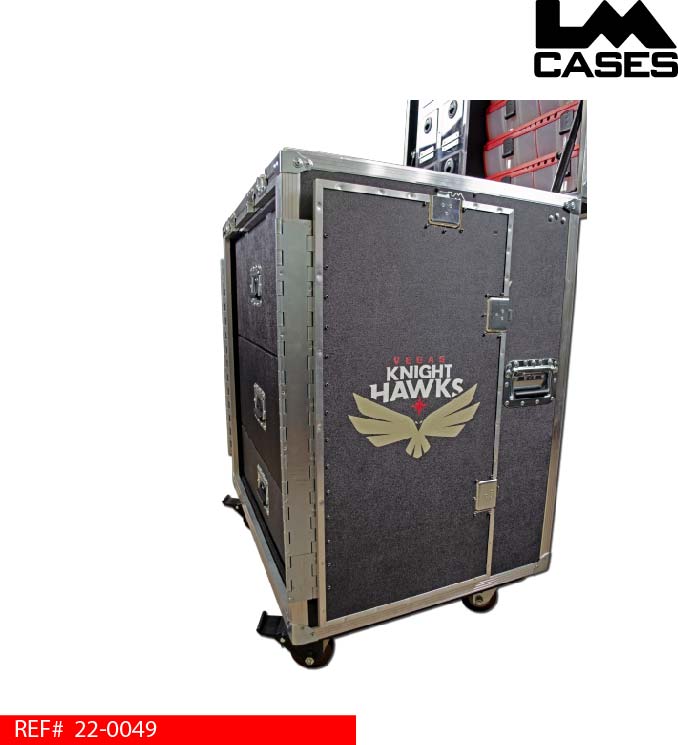

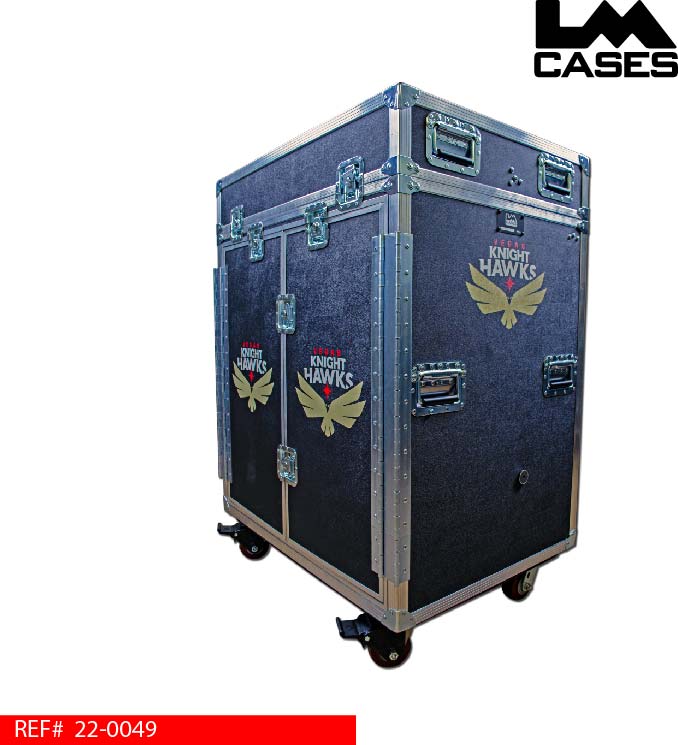

The trunk exterior is built from ½” plywood laminated with black ABS plastic. The trunk features multiple silkscreen prints of the Knight Hawks 3 color logo. The trunk rides on 4” x 2” Colson casters and features deep recessed hardware.
Special thanks to Mike and the Knight Hawks staff!
