REFERENCE: 20-0419

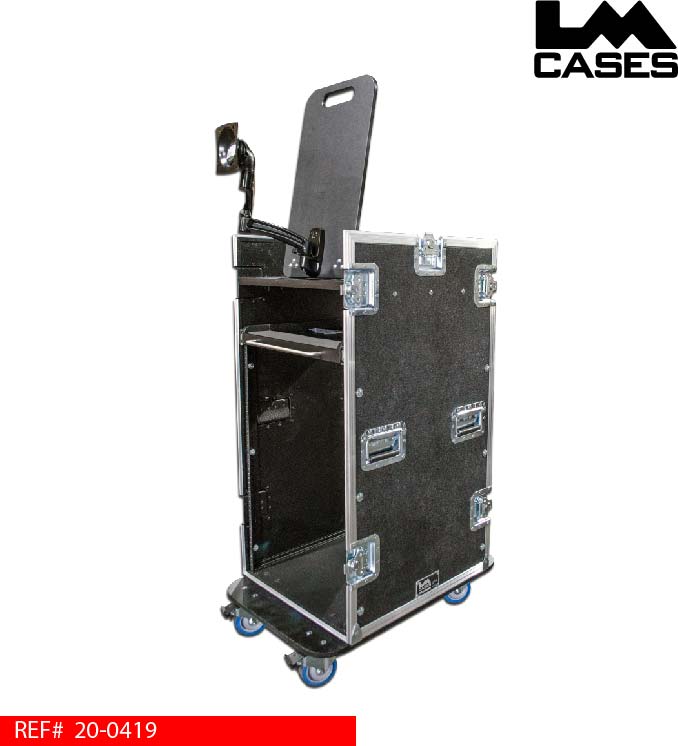

Video Streaming Fly Pack w/Articulating Monitor Arm & 16RU Rack

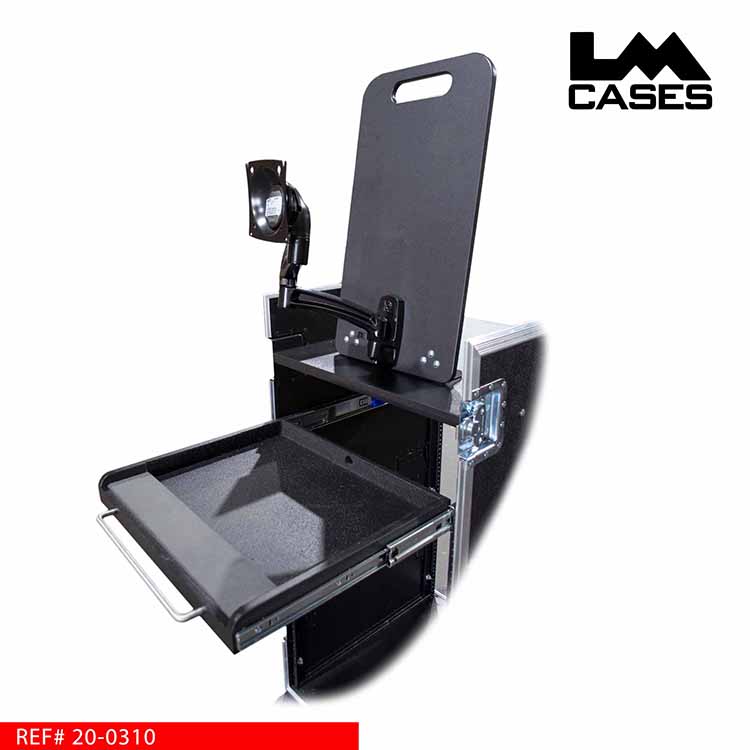

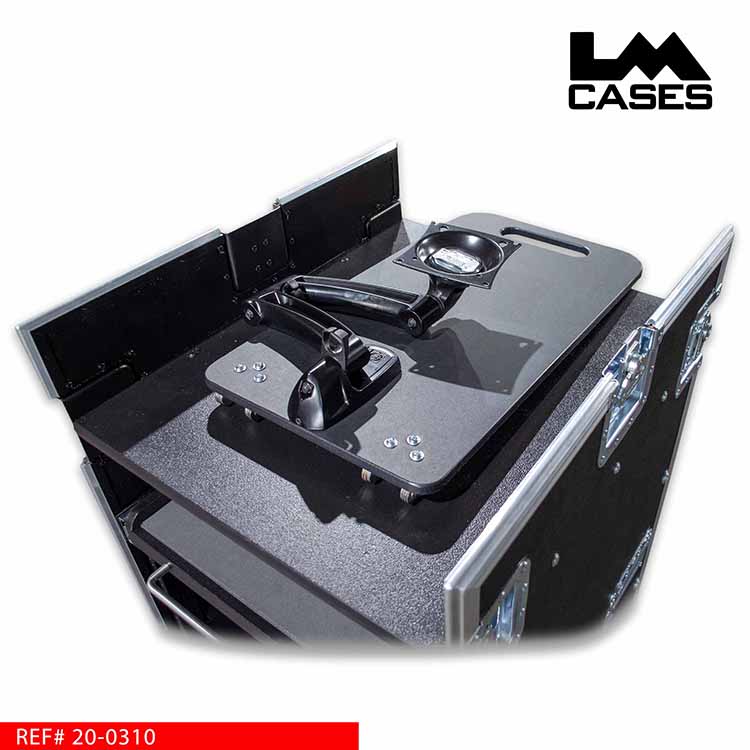

This case is designed with mobile audio and video productions in mind. The 3 axis monitor mounting system allows the display to be angled in a sitting or standing position, extended, and moved to the left or right of center. A position control board handles the monitors angle. Friction hinges are used allowing the screen to be raised to a vertical position or laid flat. These friction hinges allow the monitor to behave in the same manner as a laptop screen: the screen can be positioned in any position along a 90 degree plane without the need for ratcheting mechanisms or support rods. A Chief K2W120B mount is installed to allows the display to be positioned left or right of center, in addition to 15” of extension towards the user.

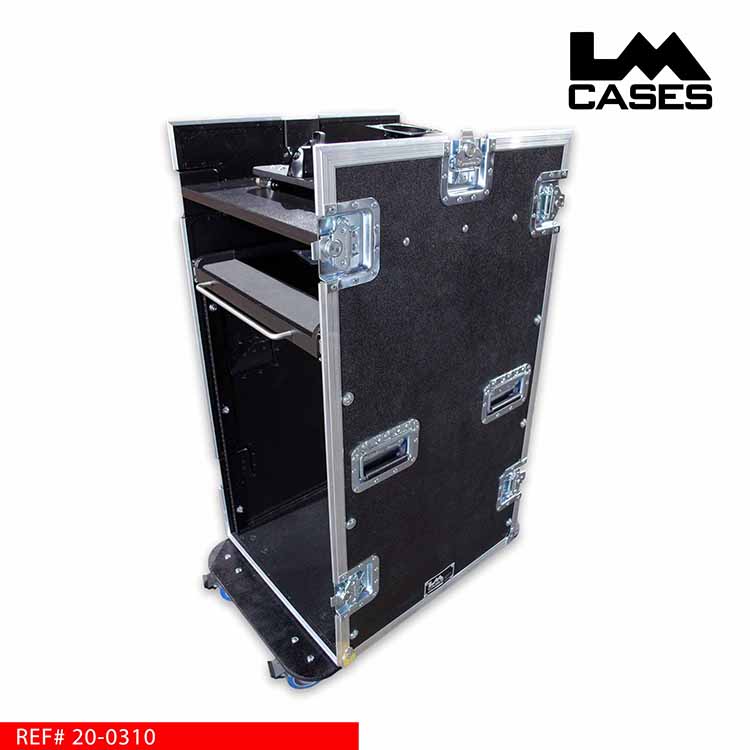

A slide out shelf constructed from ½” Baltic birch is provided for a keyboard, switcher, or control surface. The shelf features usable space of 16.875” x 12” x 6.125”. The shelf includes a beveled crosslink foam wrist pad.

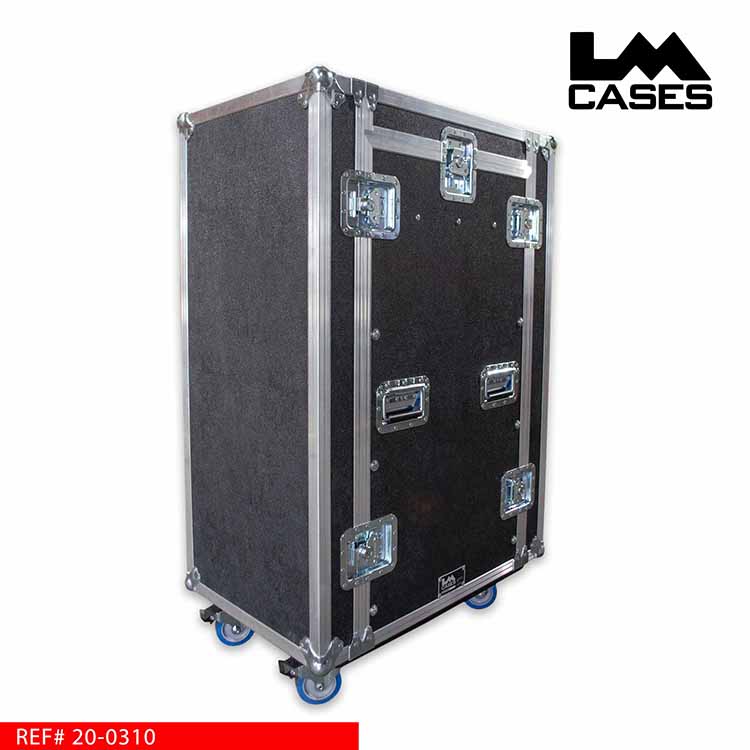

A 16 space rack section is provided for equipment mounting. Front and rear rails are included with 22” of rack depth. The exterior case is built from 3/8” plywood laminated with your choice of ABS plastic colors. The case features 4 deep recessed handles, 3 removable lids, and 4” Colson casters.
To purchase this case from our online store, CLICK HERE.
- REFERENCE: 20-0419
- CATEGORY: Audio/Visual
