REFERENCE: 52-246

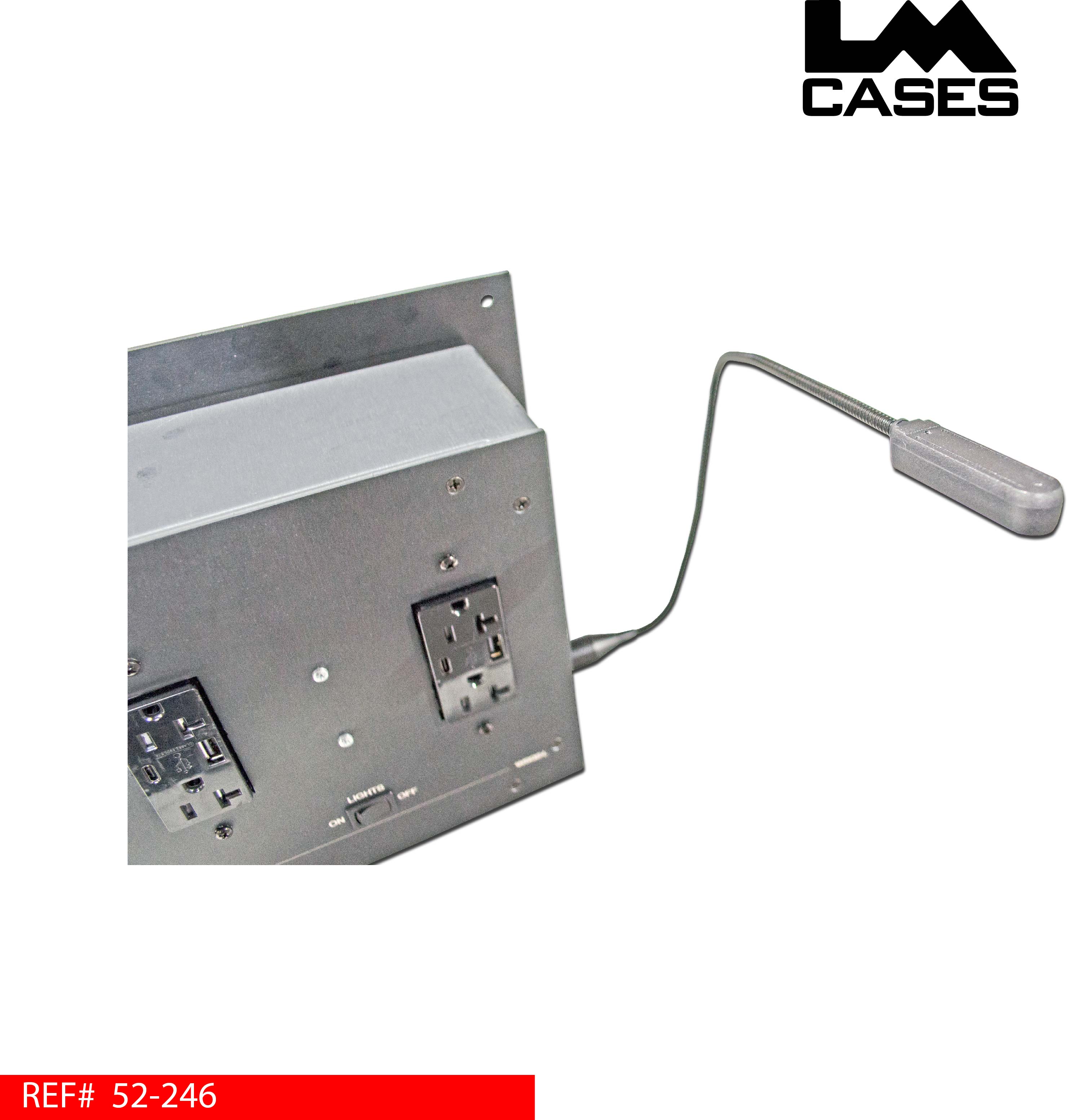

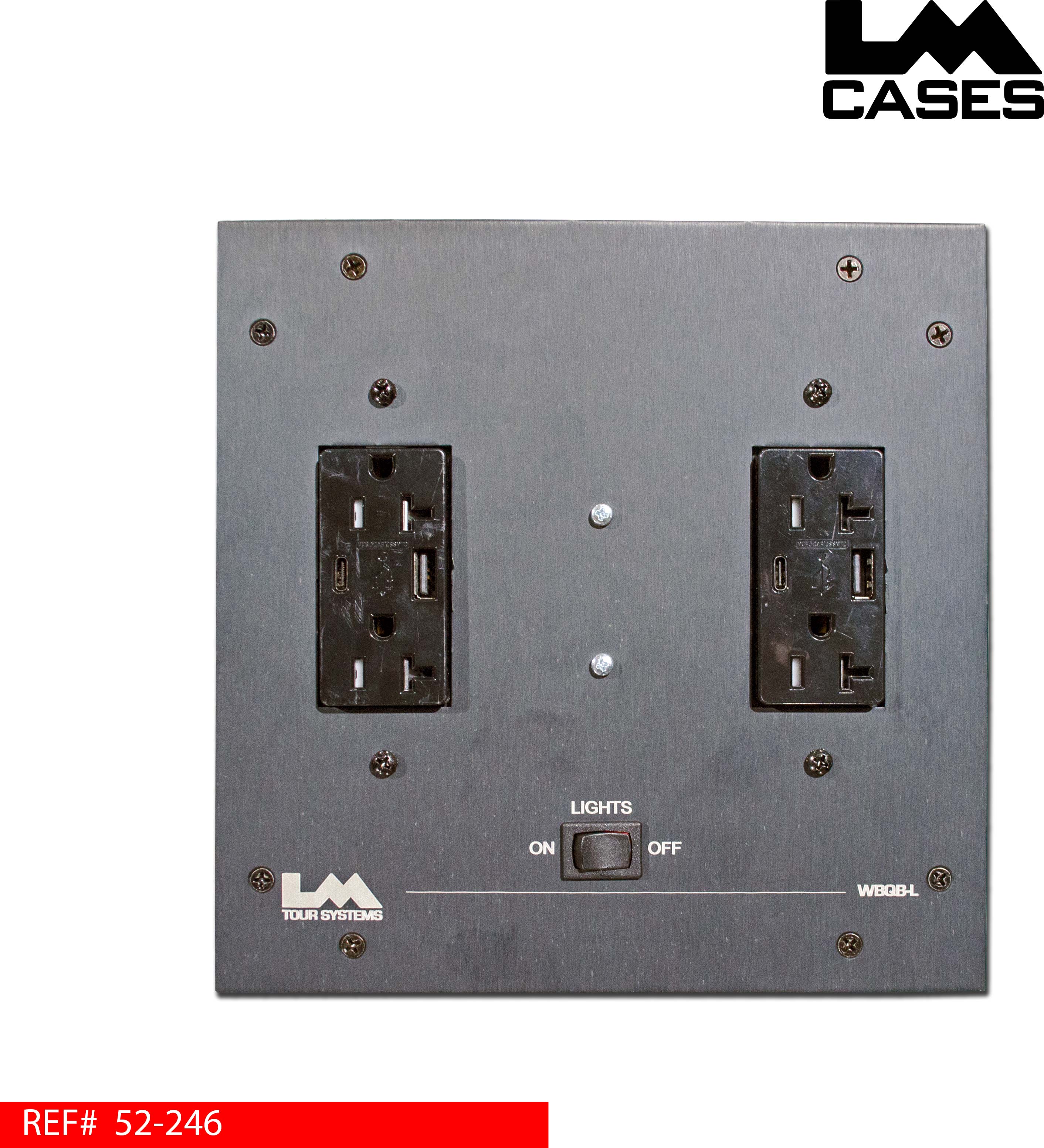

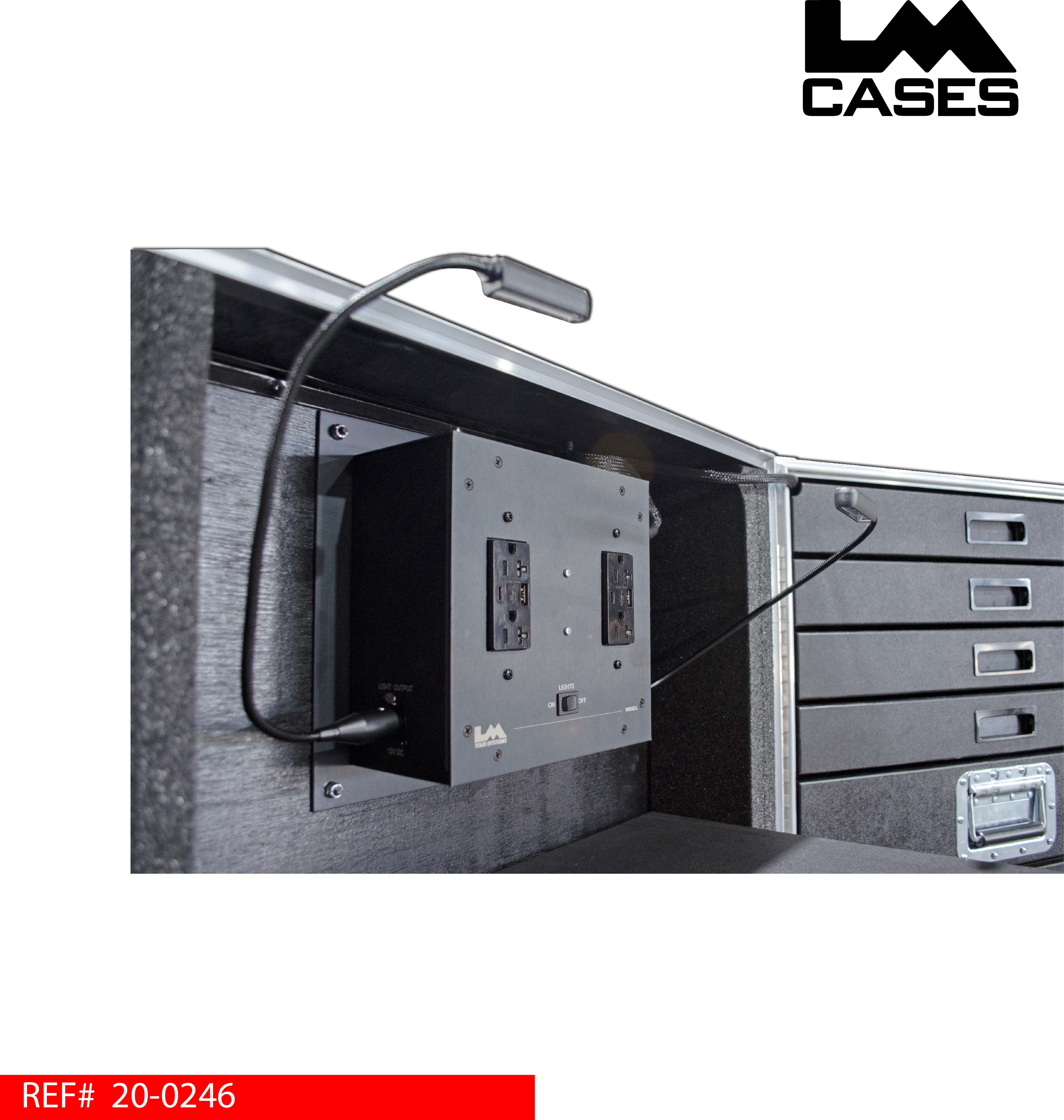

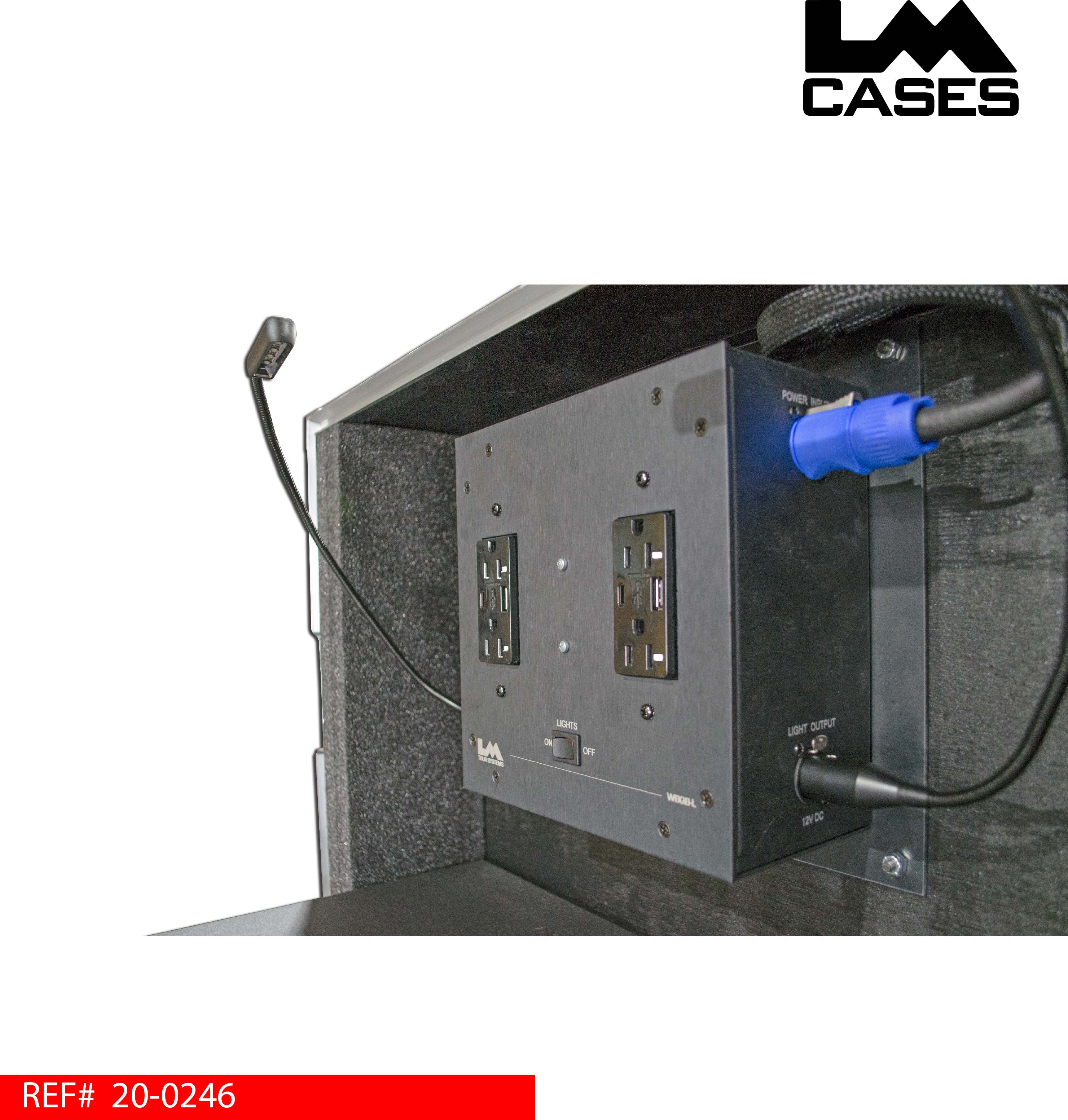

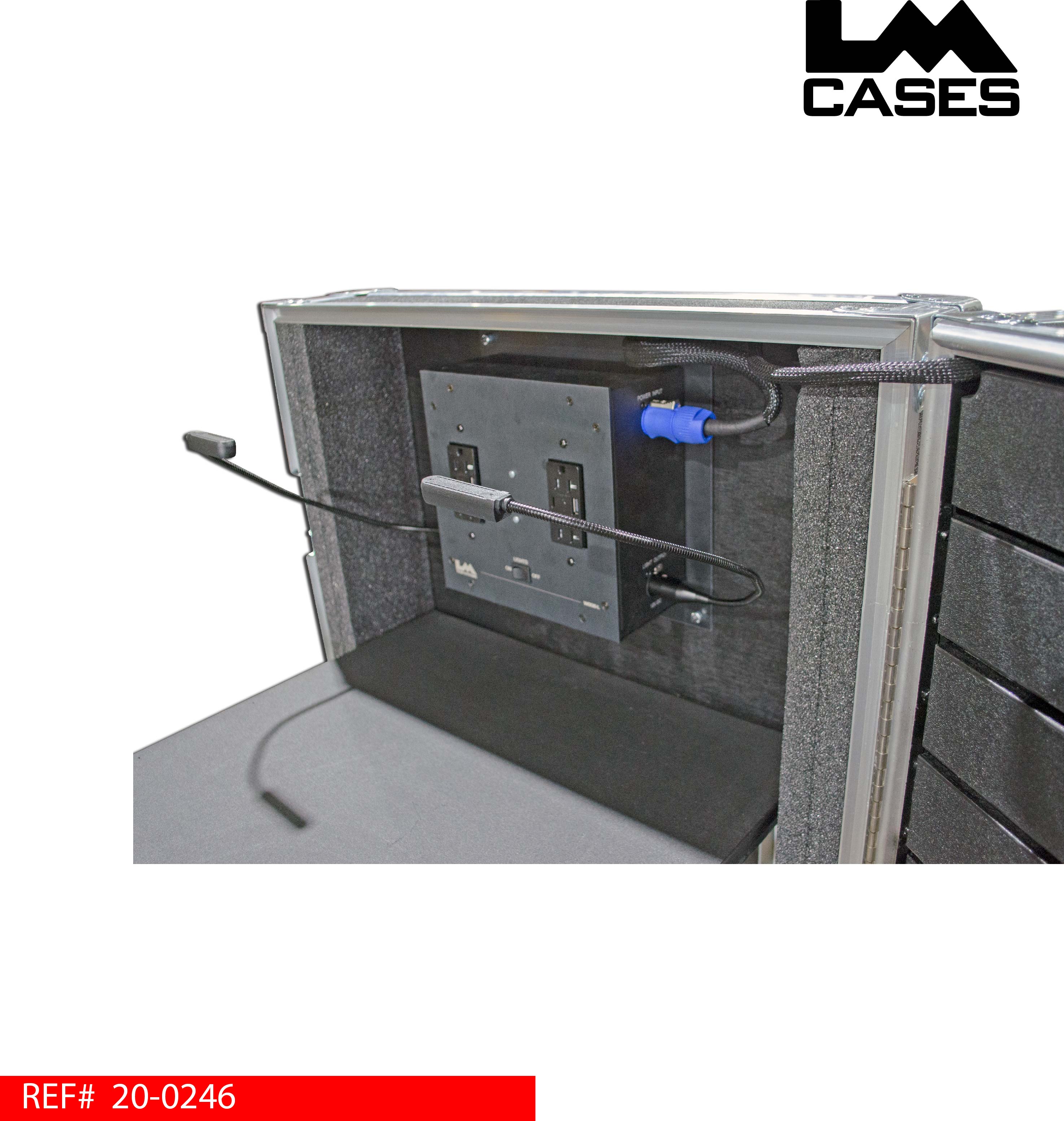

WBQB-L Work Station Courtesy Outlet Box w/USB Charging & LED Lights
The WBQB-L Courtesy Panel built by LM Tour Systems is designed to provide courtesy power and lighting for workboxes. Though intended to be used above work surfaces, the box can be mounted anywhere via its rear 10" x 10" mount plate such as inside drawers. The enclosure is fed via a Powercon inlet. Power is fed to two outlets that feature both AC outlets and USB A & C charge ports. A internal 12v DC power supply feeds 2 XLR jacks to power LED lighting. Traditional XLR gooseneck lights like the Hosa LTE-503 can be used for task lighting or any 12v fixture fitted with an XLR.
- REFERENCE: 52-246
- CATEGORY: Audio/Visual CATEGORY: Custom Integration
Related Products
LM Tour Systems C 1/1 240v - 120v Touring Power Conversion System
The LM Tour Systems C 1/1 Power Conversion System allows North American 120V equipment to operate safely on European 240V power. Built around a custom transformer, it steps down 240V single-phase input to 120V single-phase output with up to 32 amps of capacity. The compact system provides multiple 120V outlet options, integrates seamlessly with True1 infrastructure, and includes a world power adapter kit for broad European compatibility. Housed in a rugged rack shell and protected within a Pelican 1630 case, it’s designed for reliable touring use.
LM Tour Systems D B/1 15 Outlet Power Distribution Briefcase w/USB A & C Charge Ports
The LM Tour Systems D B/1 Power Distribution System is a compact, high-density charging solution designed for video, film, and athletic environments where many low-power devices need to be powered simultaneously from a standard 15-amp outlet. It features multiple AC and USB-A/USB-C outlets with auto-sensing power delivery, built-in overcurrent protection, real-time voltage and amperage metering, and a hydraulic breaker for system safety. Power is supplied via a locking True1 connection, with expansion options available for additional equipment and remote power distribution.
LM Tour Systems ST1 True1 Stage Power Distribution Box
The LM Tour Systems S T/1 True1 stringer box is a heavy-duty power distribution unit designed to supply multiple systems using True1 inlets. It features one NAC3PX-TOP inlet/outlet combo for input linking plus five additional True1 outlets, providing six total outputs. A blue LED indicates when input voltage is present, and clear labeling shows the output voltage. Compatible with both 120V and 220V power, it’s well-suited for touring, sports teams, and international use. The S T/1 also supports permanent installations, with front and rear mounting points for rack bays or road case lids, and optional 1RU rack ears available.
Dual Source Power Distribution Unit For Floating Set Piece
This custom power caddy built by LM Cases was designed to supply cable-free power to a moving set piece used by the Backstreet Boys during their residency at the Sphere in Las Vegas. To maintain the illusion of a floating set piece, the system relies on battery power while airborne, with an EcoFlow Smart Home Panel 2 acting as a transfer switch to seamlessly switch between battery operation and charging when not in use.
The caddy includes a 20U rack section, a 50-amp shore power inlet, multiple True1 power circuits for lighting and lasers, and dedicated 240V power for specialized equipment. Custom breakout panels and internal wiring were handled by LM Cases’ Custom Integration department. Built from heavy-duty Baltic birch with textured finish, reinforced handles, and protective interfaces for loading into the set piece, the caddy is engineered for durability, safety, and seamless show operation.
Dual Source Temporary Site Power System - 15 Amp 1 Phase
The LM Cases Dual Source Temporary Site Power System is designed to provide multiple power outlets such as standard AC, USB and locking Neutrik True1. The system can operate on standard 15-amp AC or be isolated from the electrical grid via its built in generator. Applications for the system include mobile offices, command centers, locker rooms and athletic sidelines.
D 1/1 15-Amp Edison Power Distribution Unit
The LM Tour Systems D 1/1 15-Amp power distribution unit is designed for applications where an Edison AC power is the desired input connector. The D 1/1 has many of the same features of our larger 2 & 3 phase units in a 15-amp single phase version.
L14-30 Power Distro w/True1 Outlets & L5-20 Tails
This custom L14-30 power distribution unit was built as the main power distributer for a video flypack. The distro is built from .125” black anodized brushed aluminum and is 2U tall with a 6” deep chassis.
19 Pin Socapex Rack Mount Break Out Box w/Edison Duplex Outlets
The LM Tour Systems 6 circuit break out box is designed for applications requiring rack mounted duplex outlets within a Socapex infrastructure. The HD black anodized rack mounted chassis features a front mounted Socapex inlet with 6 front mounted duplex outlets. Each outlet is wired with separate grounds allowing for isolation between circuits. Each Hubbell 5362 outlet is labeled 1-6 and shows the corresponding pinouts for troubleshooting. The center Socapex pin is not terminated.

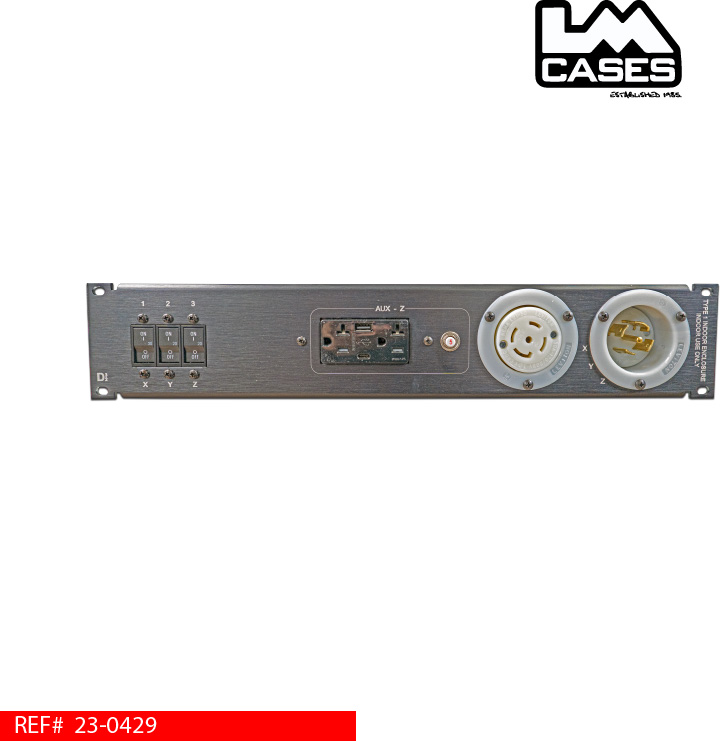

D3/2 3 Phase 30 Amp Rack Mount Power Distro
