Yamaha TF1 Mixer Case With Doghouse

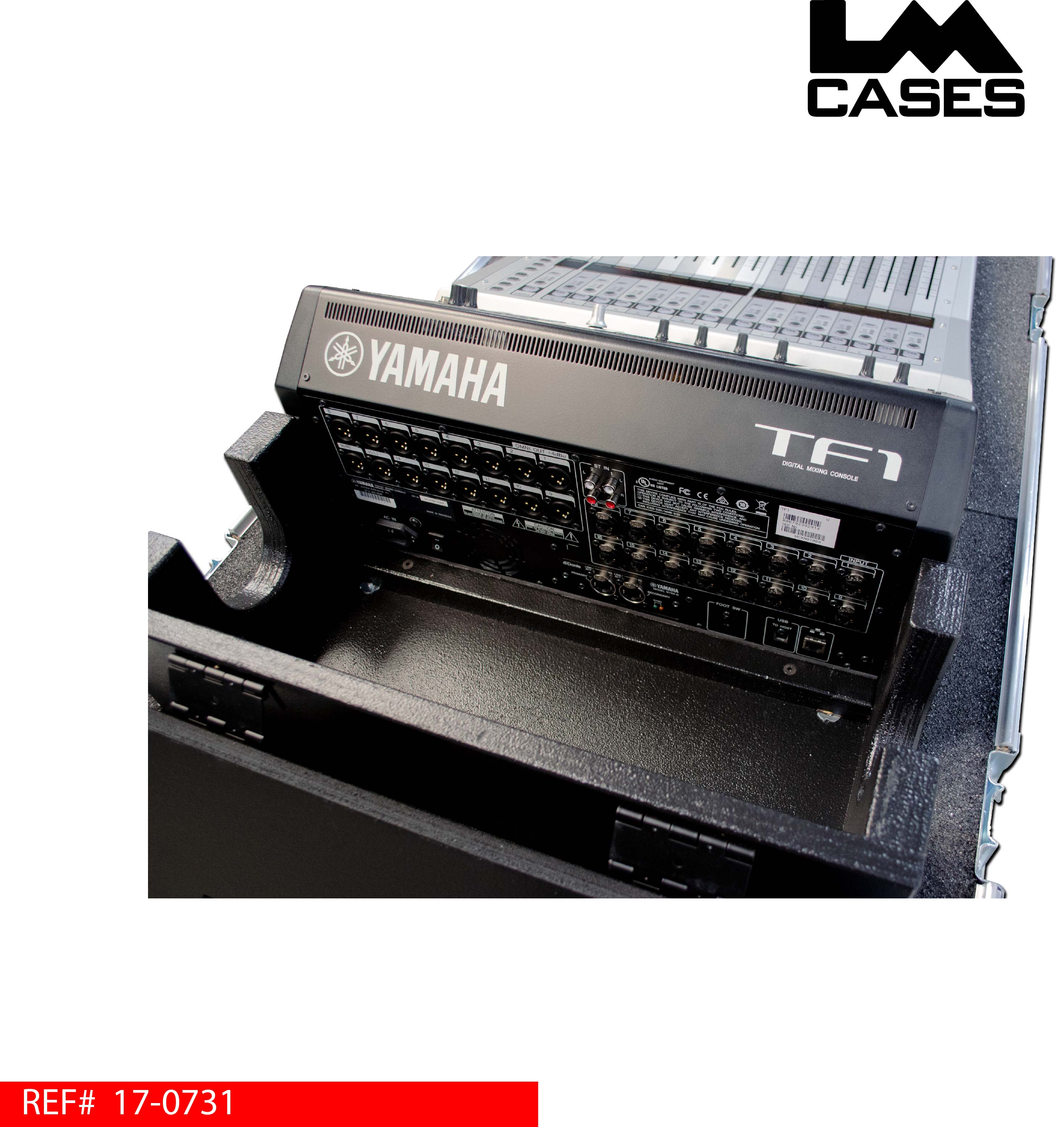

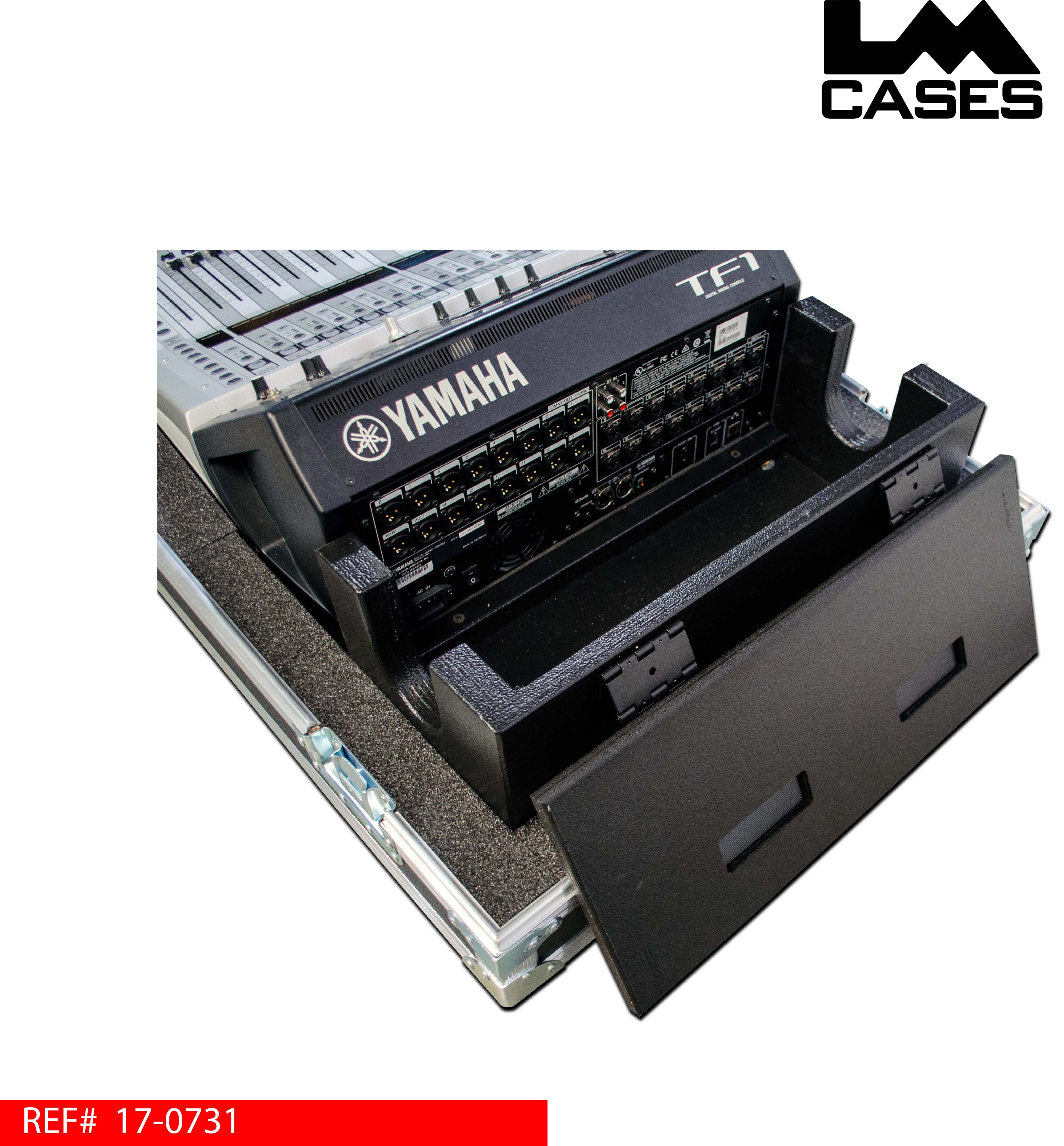

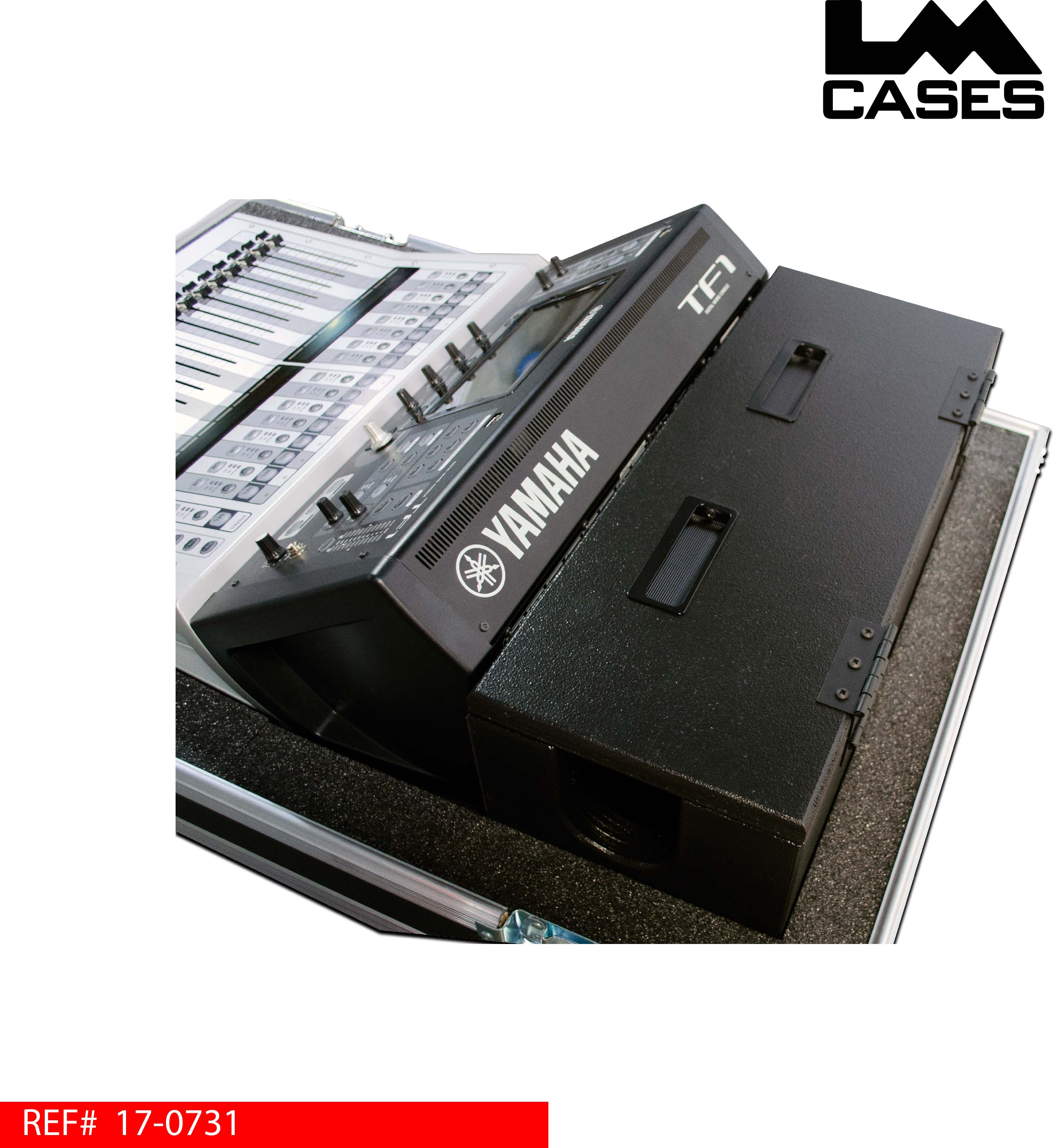

This case was built for Audible Difference Inc. to hold a Yamaha TF1 mixing console. The console is held in a custom designed 2” foam interior. Holding the console in place in the case tray is a custom CNC cut 2” PE foam insert. The foam insert follows the tapered shape of the console allowing it to be supported along all points, not just the widest point. Cable connections to the console are hidden behind a custom doghouse. The doghouse is built out of ¾” Baltic Birch plywood and finished with black texture coating.

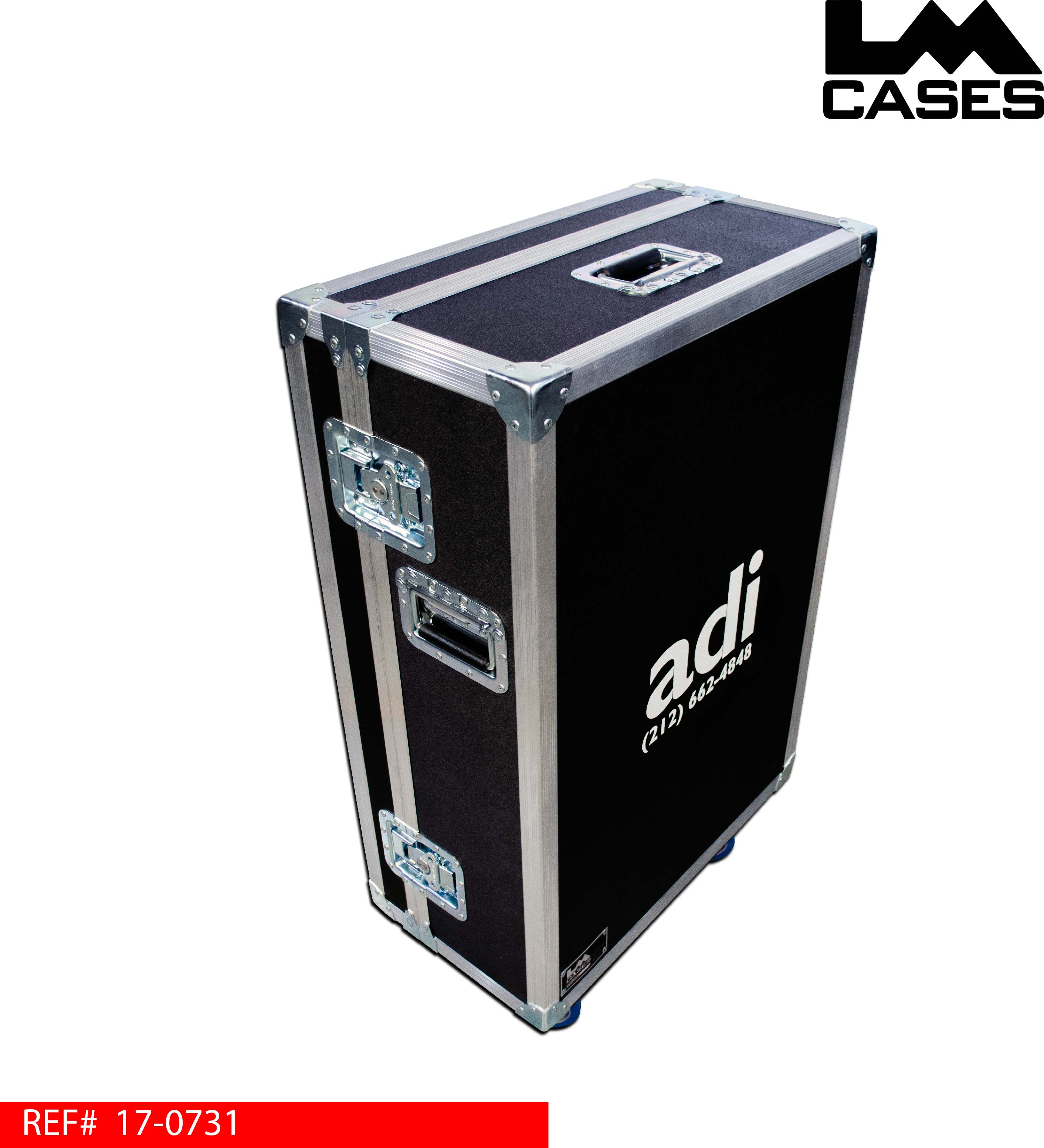

The case exterior is built out of 3/8” plywood with black ABS plastic laminate. The case features 7 deep recessed handles and rides on 3.5” casters mounted to a full ¾” plywood caster board. The case exterior also features a custom silk screen of the ADI logo.
Special thanks to ADI!
