REFERENCE: 46-486
GTS10A Generator / Land Power Transfer Switch Module
The LM Tour System GTS10A transfer module is designed to easily switch between 2 power sources. The panel features a 3-position switch to toggle between “off” and the 2 power sources. LED lights are provided to show when voltage is present on the generator and land sides of the switch.

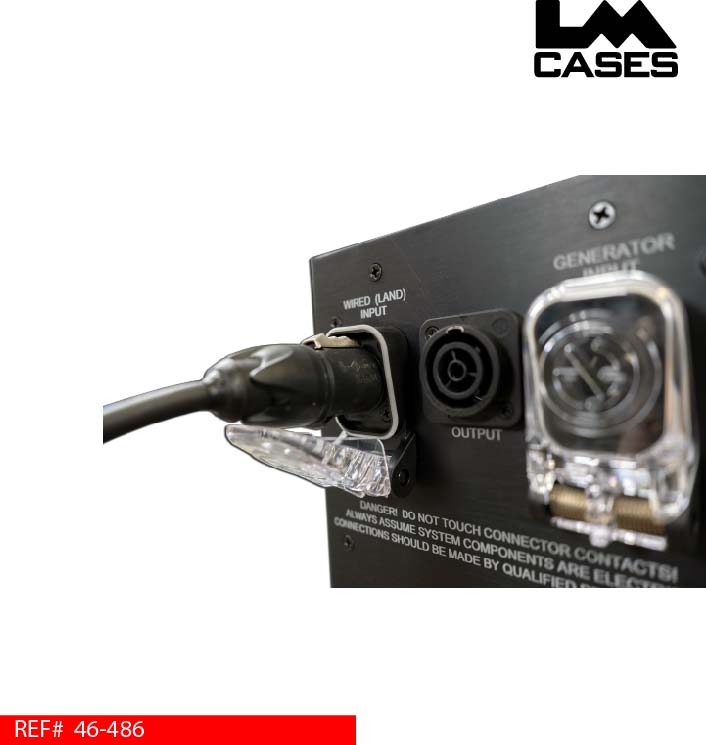

The rear panel features 2 Neutrik True1 inlets that are protected by Neutrik SCCD-W covers. The main power outlet is also a locking Neutrik True1 jack. The panel is constructed out of 1/8” aluminum that is black anodized with white laser etched labels.
Don’t forget to add a LM Tour Systems True1 cable!
- REFERENCE: 46-486
- CATEGORY: Custom Integration
