Charging Cases
32 Capacity iPad Charging Trunk For The Chicago Cubs
This custom LM Cases transport case was designed for the Chicago Cubs to store and charge 32 iPads using Apple’s factory charging bricks and cables. Each device is housed in an individual Crosslink foam compartment with plastic dividers, allowing tablets with protective cases to slide in and out easily while protecting them during transport. The rear electronics compartment contains 32 AC outlets connected to a retractable 30-ft power cable reel, enabling flexible charging for Apple or other tablet devices. The ATA-style case is built from 3/8” plywood with dark blue ABS laminate and features a hinged front lid with a pop-up work surface, recessed handles, and heavy-duty casters. Its compact dimensions are designed to optimize truck, trailer, and bus packing for touring or team travel.
LM Tour Systems D B/1 15 Outlet Power Distribution Briefcase w/USB A & C Charge Ports
The LM Tour Systems D B/1 Power Distribution System is a compact, high-density charging solution designed for video, film, and athletic environments where many low-power devices need to be powered simultaneously from a standard 15-amp outlet. It features multiple AC and USB-A/USB-C outlets with auto-sensing power delivery, built-in overcurrent protection, real-time voltage and amperage metering, and a hydraulic breaker for system safety. Power is supplied via a locking True1 connection, with expansion options available for additional equipment and remote power distribution.

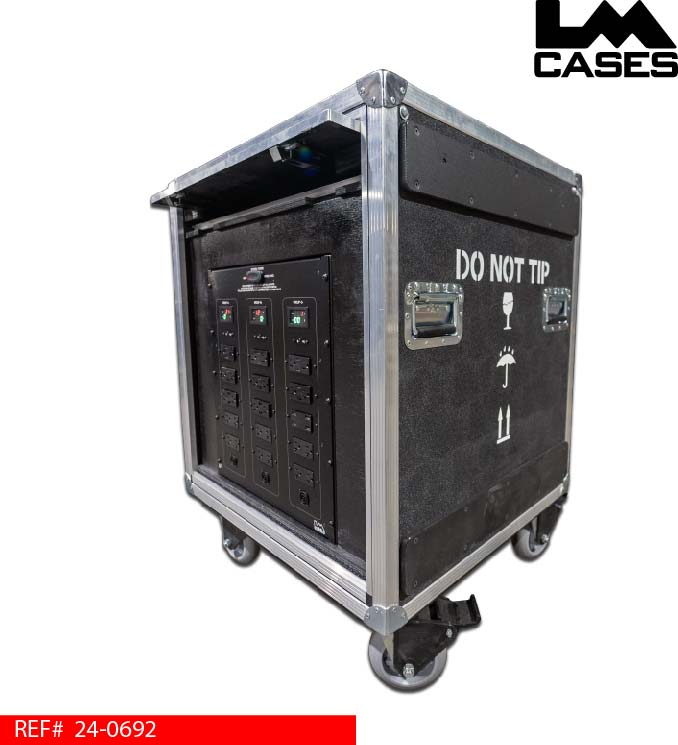

Dual Source Temporary Site Power System - 15 Amp 1 Phase
The LM Cases Dual Source Temporary Site Power System is a portable power solution designed to supply AC, USB, and Neutrik True1 locking outlets for applications such as mobile offices, command centers, locker rooms, and athletic sidelines.
The system can operate from two power sources: a 125 ft electrified cable reel connected to standard 15-amp AC power or a built-in 18-amp generator for off-grid operation. Both the generator and cable reel are mounted on heavy-duty slide-out shelves, allowing the generator to extend or be placed remotely while remaining connected to the system.
Power distribution is managed through the LM Tour Systems D S/1 output panel, which includes multiple duplex AC outlets, USB charging ports, and True1 locking connectors. The panel is divided into three protected power banks, each with its own breaker and power meter to monitor voltage and amp draw.
The system is housed in a durable ABS-laminated plywood case with recessed handles, removable lids, marine-grade protective runners, and 6” locking field casters, making it suitable for rugged transport and temporary site deployment.

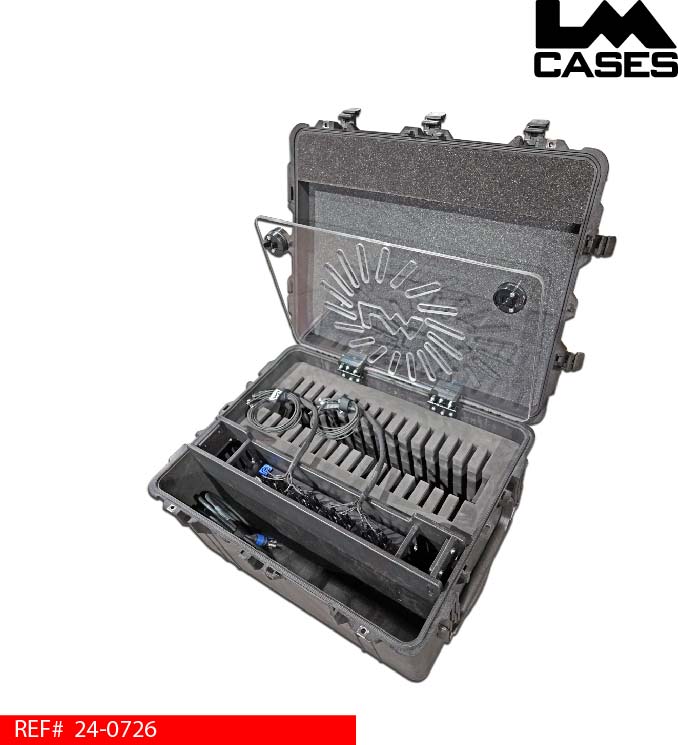

16 Capacity iPad Transport/Charging Case
This custom transport and charging case is designed to store and charge up to 16 iPads, accommodating both standard and Pro models.
Each device is protected in custom-cut, non-abrasive Crosslink foam compartments, with removable inserts that adjust the height for smaller iPads. The case includes a custom LM Tour Systems charging unit with 16 USB ports and USB-C cable looms, allowing all devices to charge simultaneously.
Power is supplied through a 15 ft heavy-duty cable with locking Powercon connectivity, and an additional Powercon outlet allows linking multiple systems or adding courtesy power outlets.
The system is housed in a rugged, waterproof Pelican 1630 case with lifting handles, a retractable pull handle, and dolly wheels, making it ideal for secure transport and charging in demanding environments.

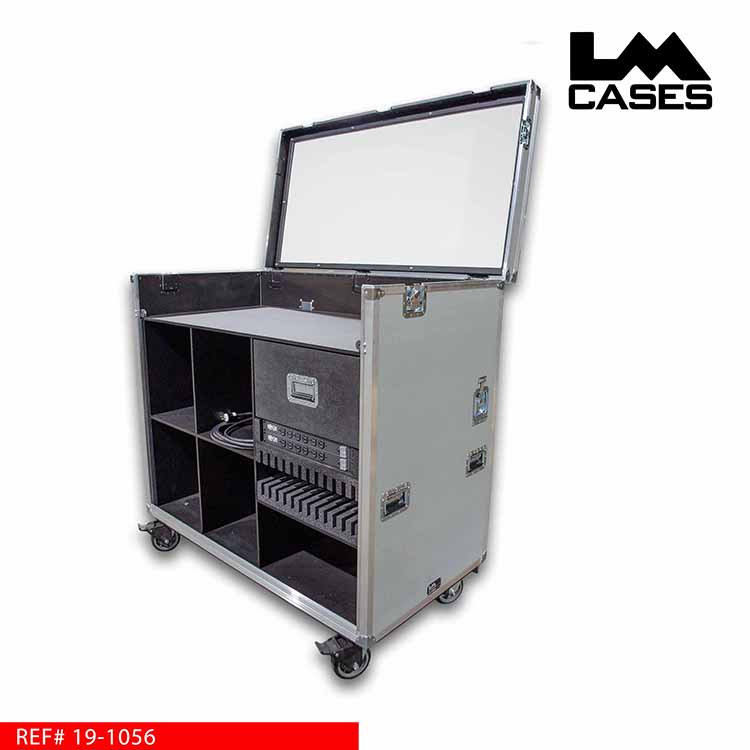

Univ. Of Texas Stadium Camera Trunk w/Tablet Charging
This trunk was designed for the University Of Texas to hold cameras, tripods and tablets.

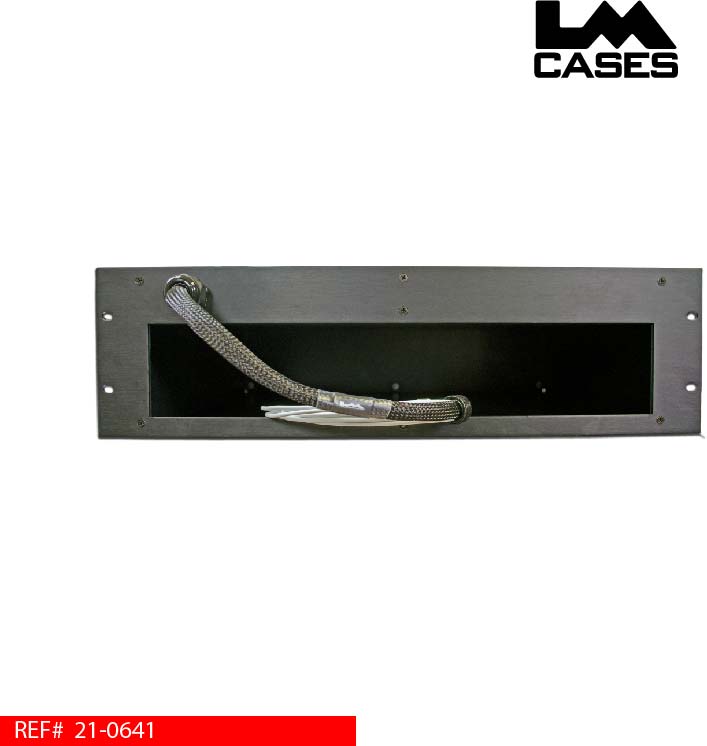

Apple iPad/iPhone Lightning Rack Mount Charging Enclosure 3RU 8 Capacity
This rack mountable 3RU enclosure is designed to provide storage and charging for 8 devices within a rack. The enclosure is built from .125” black anodized aluminum. The device storage section features a carpet lined bottom.

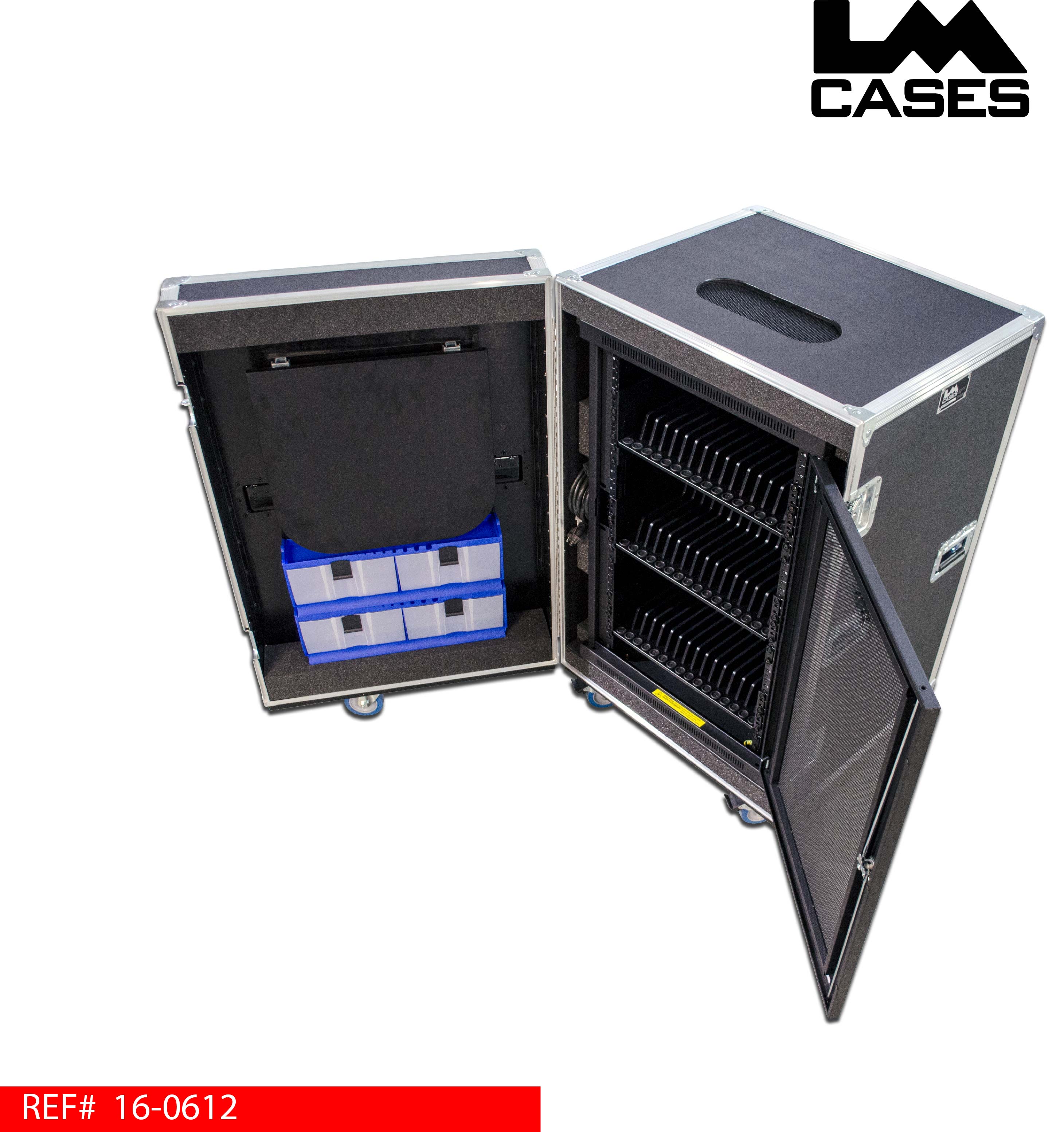

48 Capacity Charging Flight Case
This case is designed to be a mobile charging and storage solution to hold 48 devices in individual compartments. There are 3 - 16 port USB charging hubs that also function as sync units that allow data to be pushed to 16 devices simultaneously.

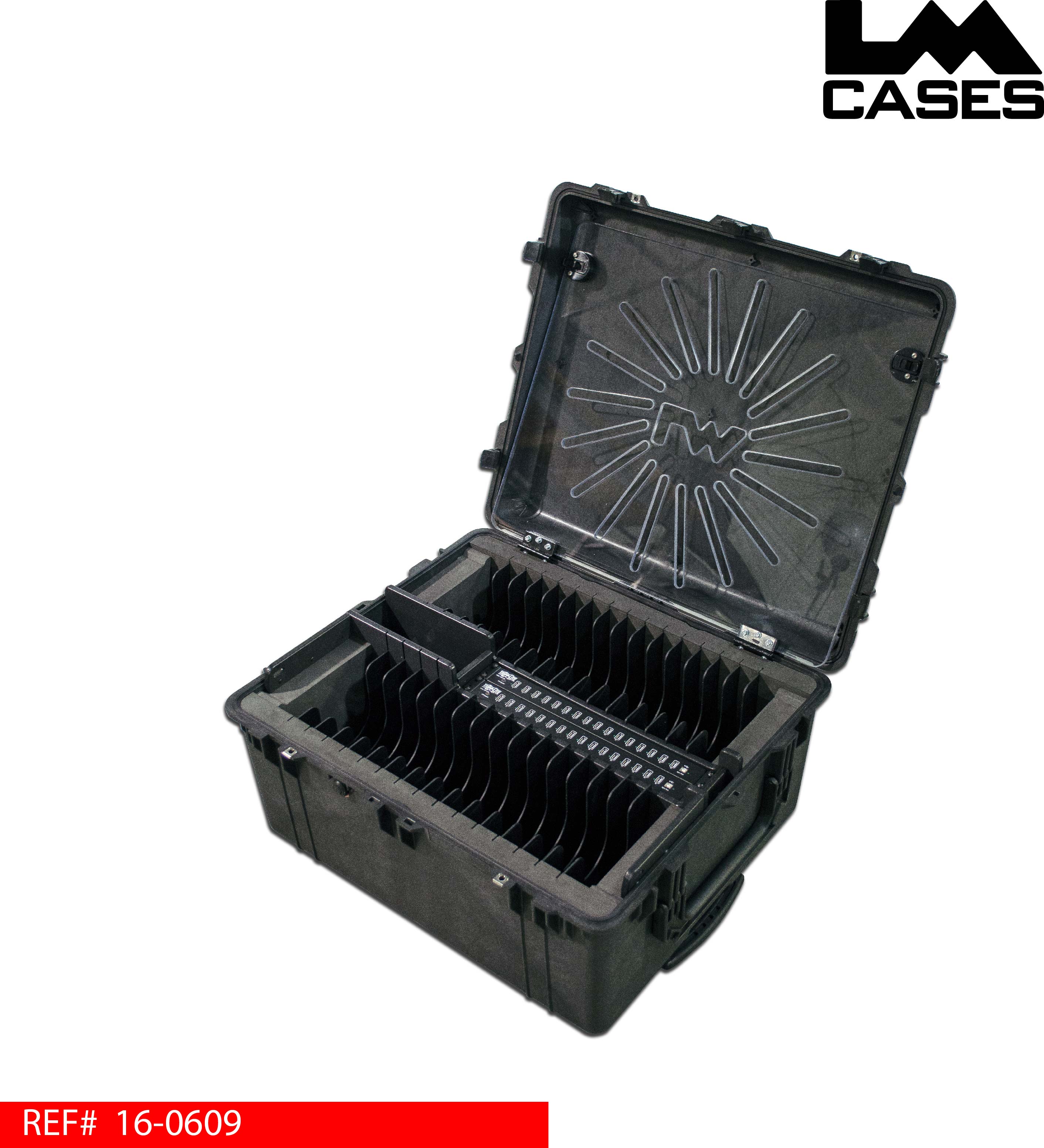

32 Capacity iPad Charging Pelican Case
This case is designed to be a portable charging solution allowing USB devices like tablets and phones to be charged on the road. The charging components also allow the devices to be sync'd and updated in groups of 16 at a time for fast updates and data pushes. Each unit is stored in its own individual compartment. The case features a vented clear Lexan lid that allows the units to be locked while they are charging. The vented Lexan lid allows the devices to remain cool as well as visible when they are securly charging.

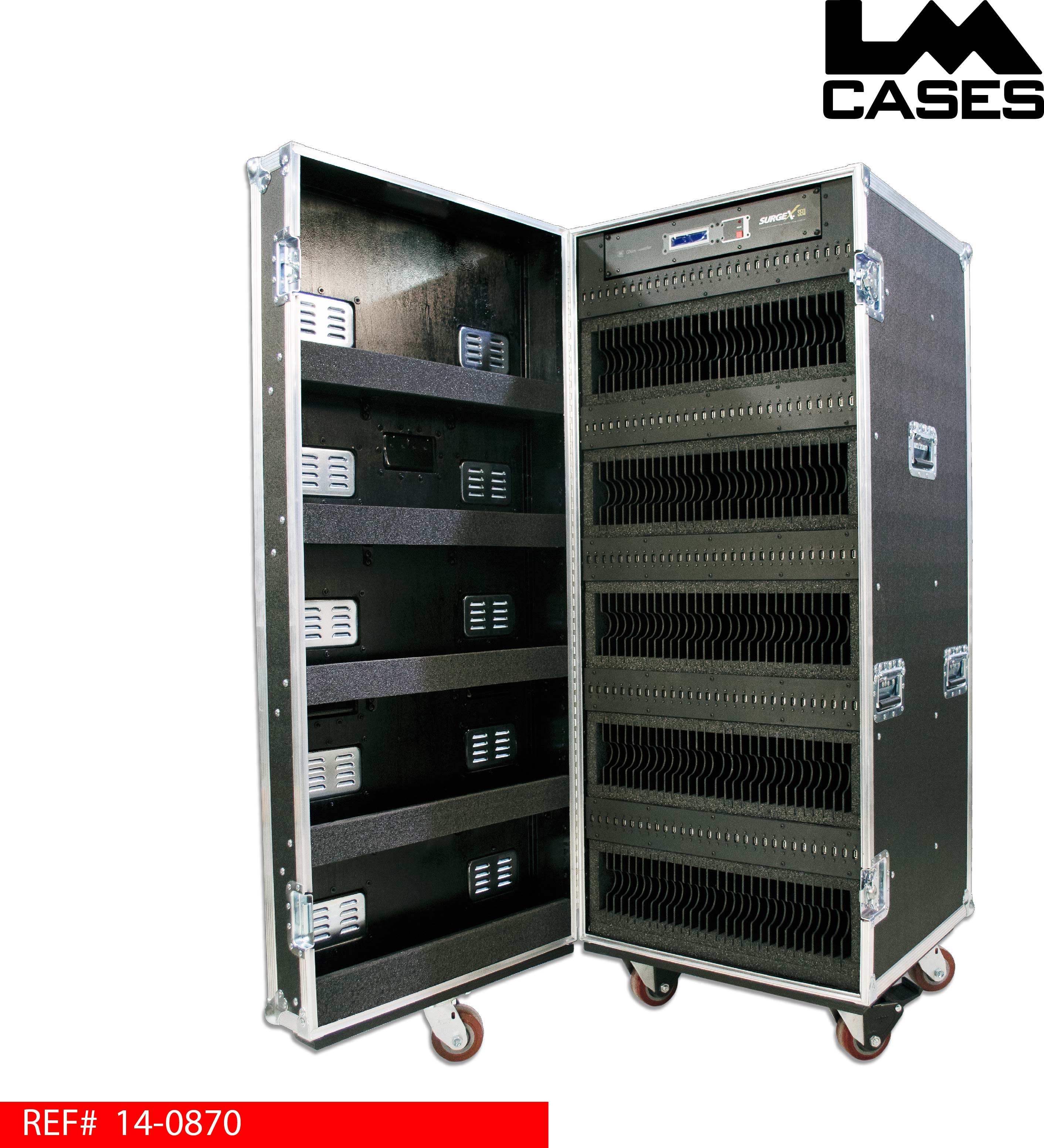

150 Capacity Amazon Kindle Fire Charging Transport Case
This case was designed for American Image Displays to transport and charge 150 Amazon Kindle Fire tablets. The case holds each tablet in an individual compartment and provides a dedicated USB outlet per slot.

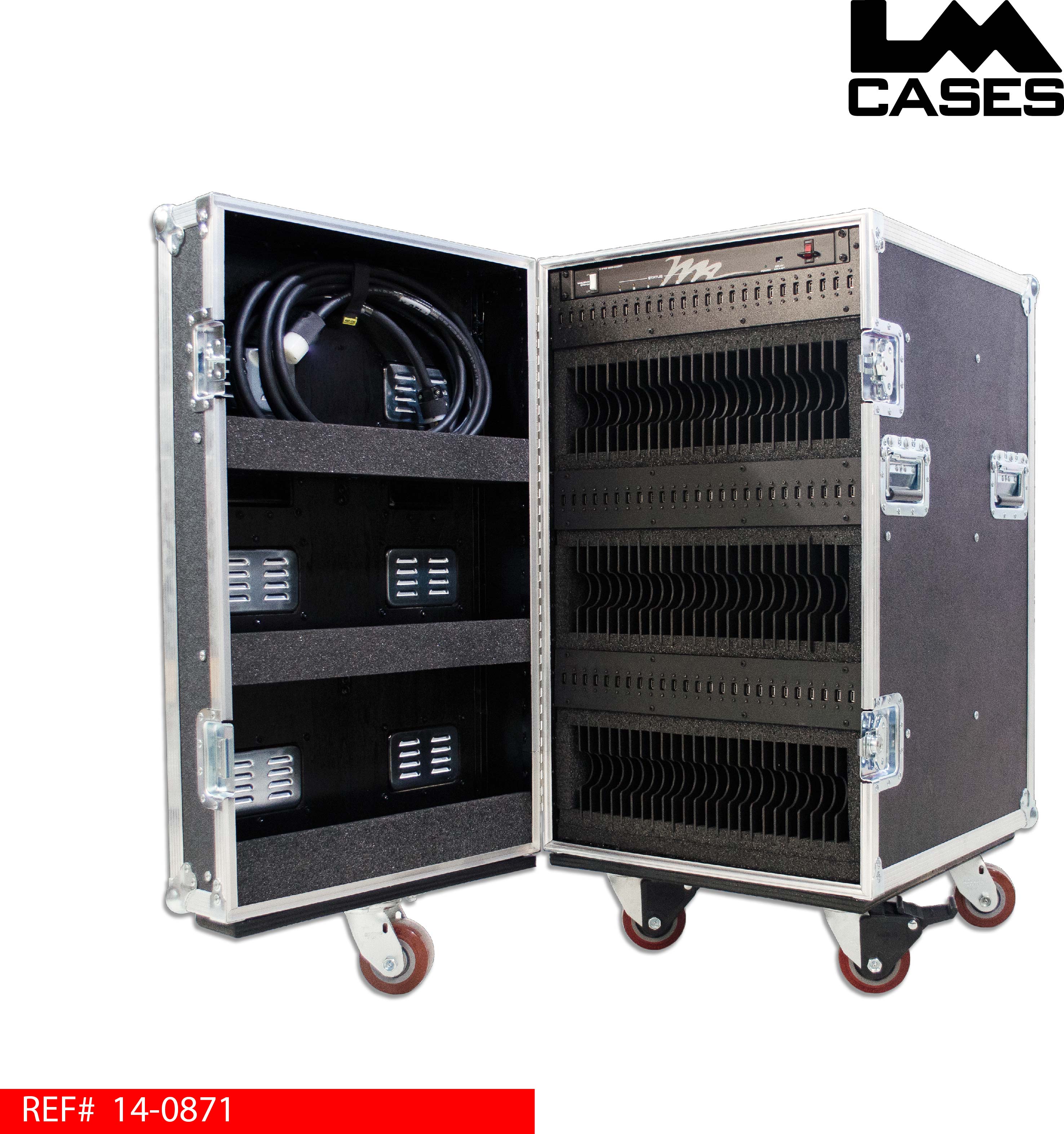

75 Capacity Amazon Kindle Fire Charging Trade Show Display Case
This case was designed for American Image Displays to transport and charge 75 Amazon Kindle Fire tablets. The case holds each tablet in an individual compartment and provides a dedicated USB outlet per slot.

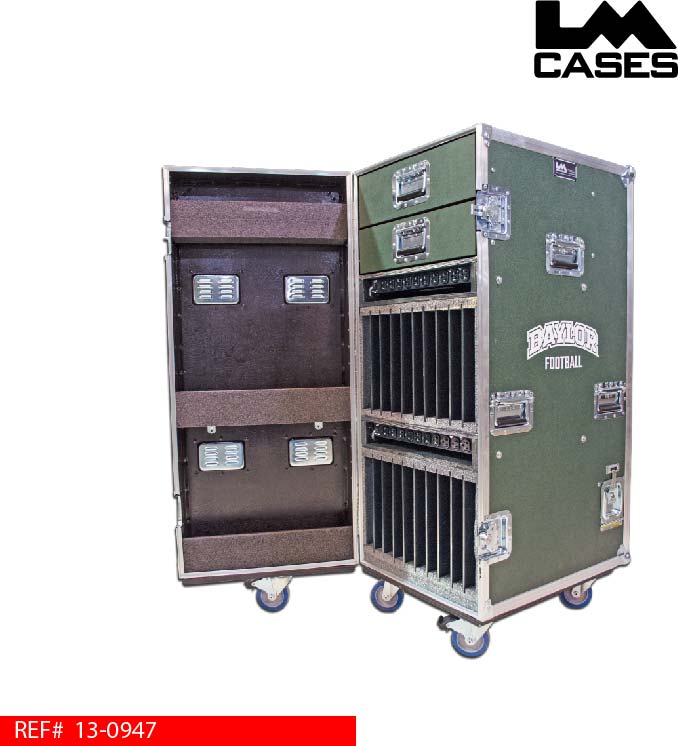

20 Capacity Laptop Charging Case
This case was designed for Baylor University to store and charge 20 laptops for bowl games. The case features 20 individual slots, with dedicated power outlets. All equipment was spec'd and installed by LM's in house Custom Integration department.
