Modular Generic RCP Case - 4 Capacity

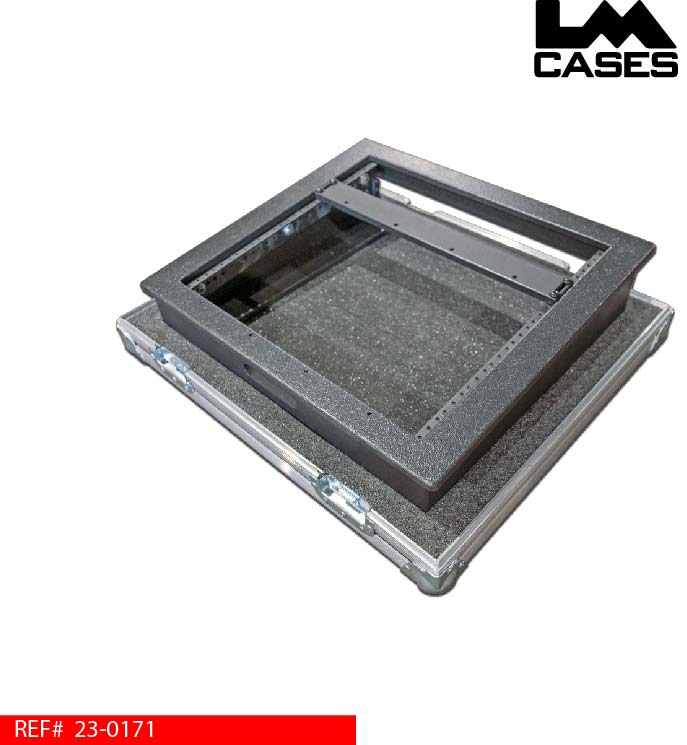

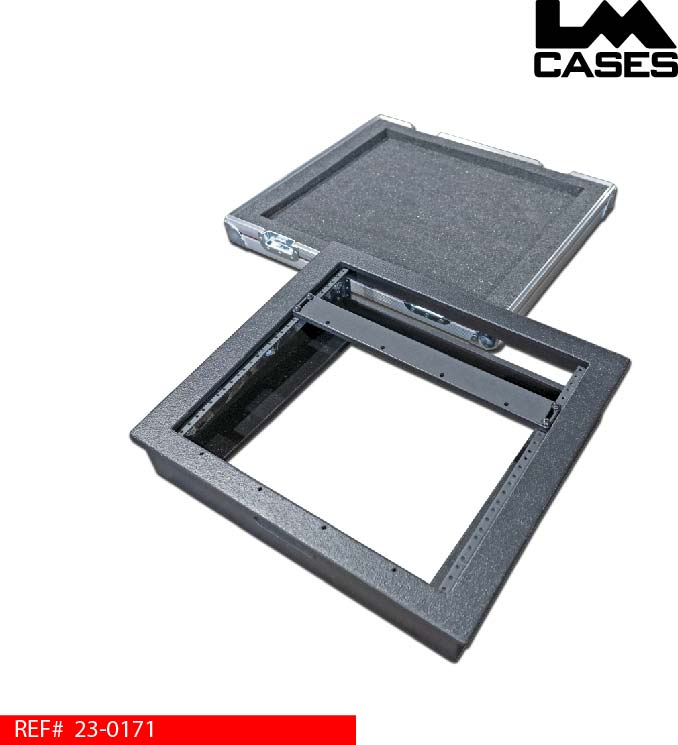

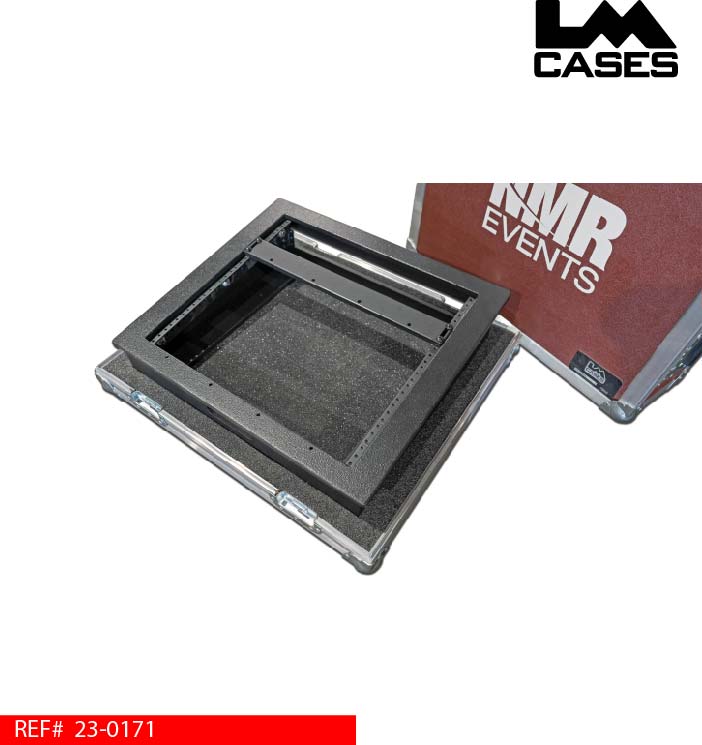

This case is designed to hold remote control panel style camera controllers for National Micro Rentals. The case features a removable inner caddy allowing it to operate outside of its exterior road case. The caddy features a slidable top panel allowing a variety of RCP sizes to be used.

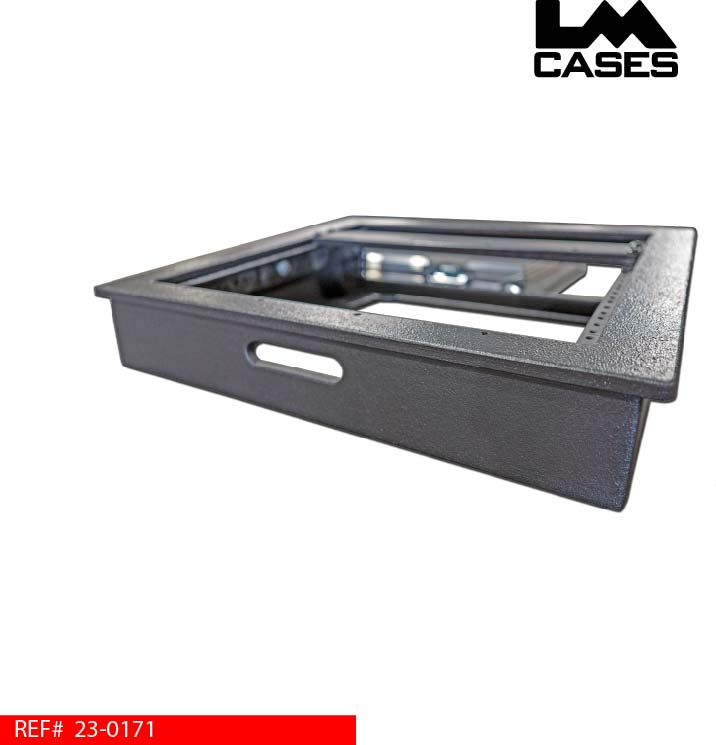

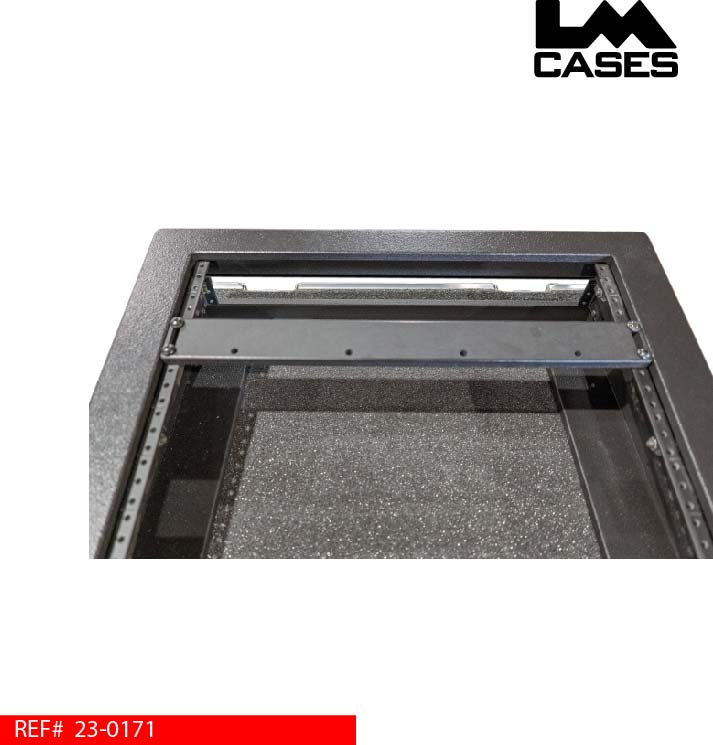

The removable caddy is built from ½” Baltic Birch plywood and finished with black textured coating. 9U of pre-tapped 10/32” rail is provided as a slide track for the top adjustable panel. A rear mounted 1U patch section is provided for cable passage or panels.

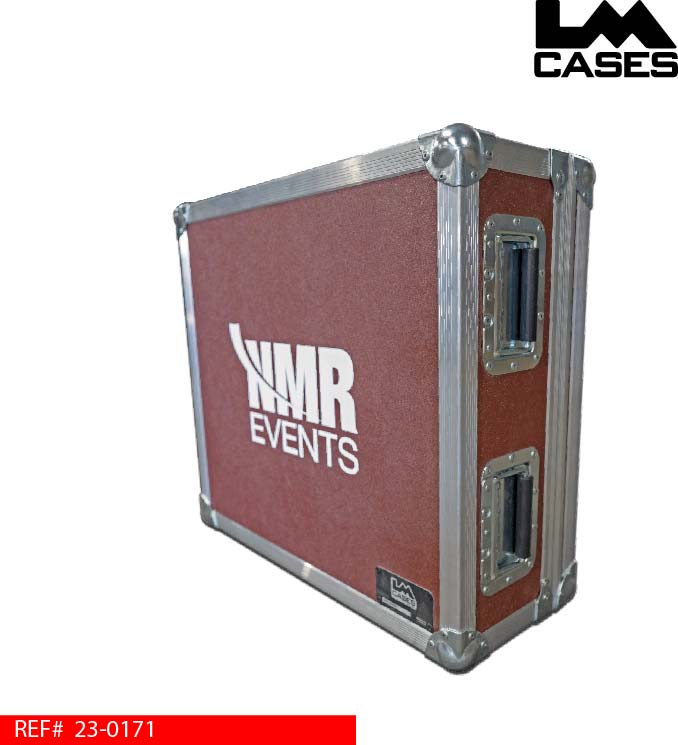

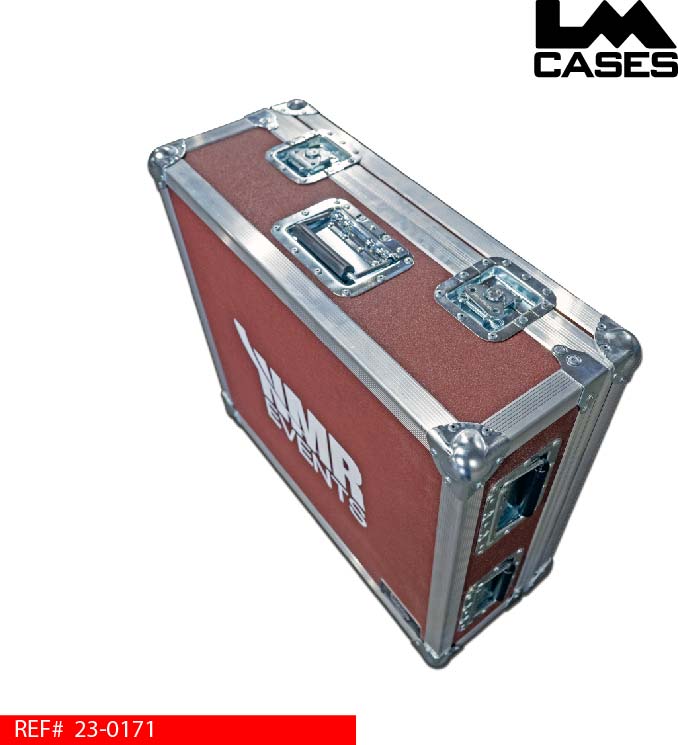

The exterior case is built from ¼” plywood laminated with Wine ABS plastic color. The case is a pullover lid design and features 5 recessed handles and features a custom silkscreen of the NMR logo.
Specifications:
Max Mount Hole – Mount Hole Height For Controllers (On Center): 14.643”
Mount Hole Spacing (On Center): 4.125”
Arm Wrest Height: 3.625”

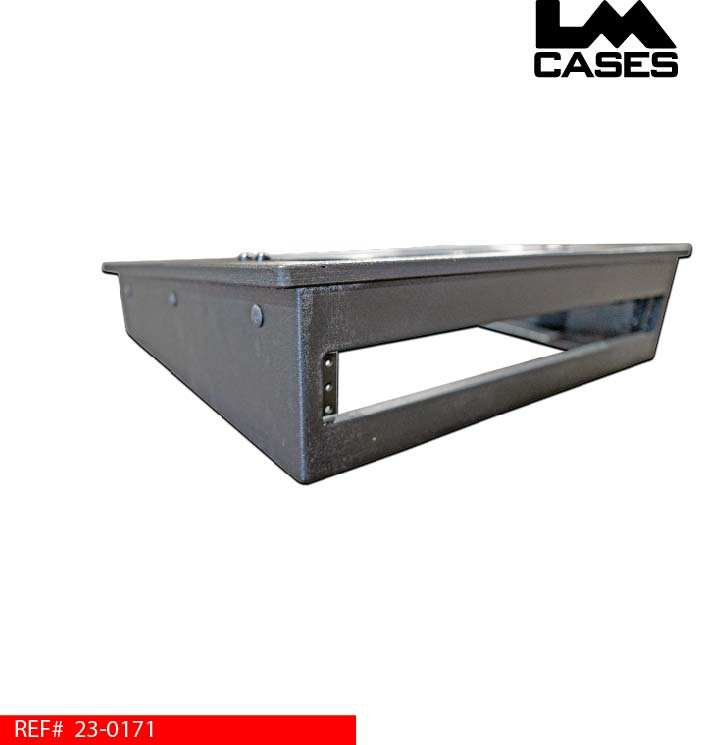

Rear Patch Section Max Depth: 2.625”
Known Working RCP:
Panasonic AK-HRP1010GJ
Panasonic AK-HRP200
To purchase this case from our online store, CLICK HERE.
