Projection System True1® / Signal Rack Mount IO Panel

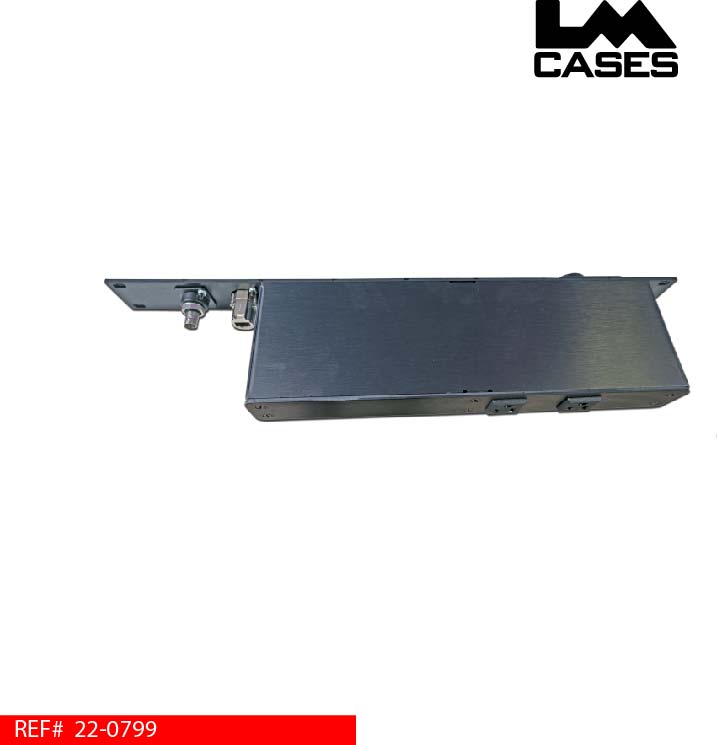

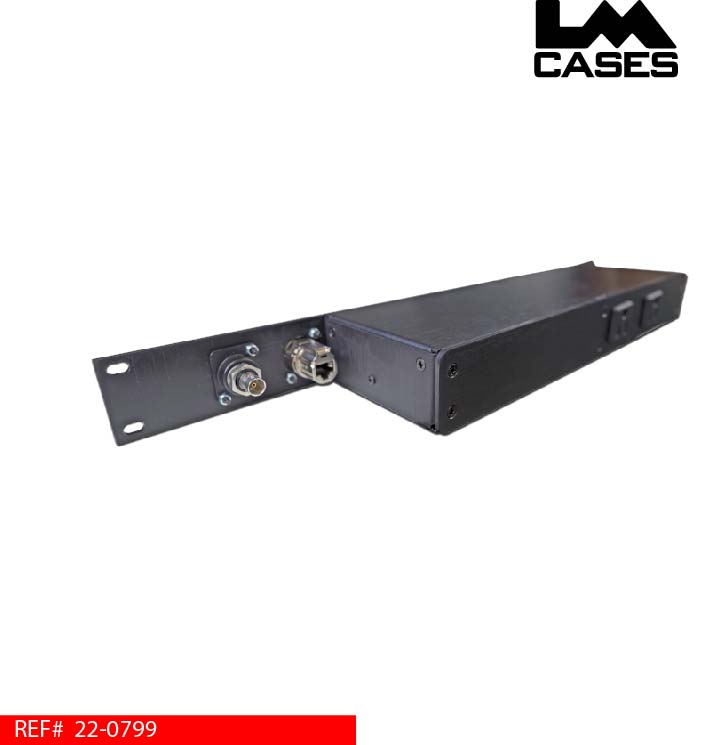

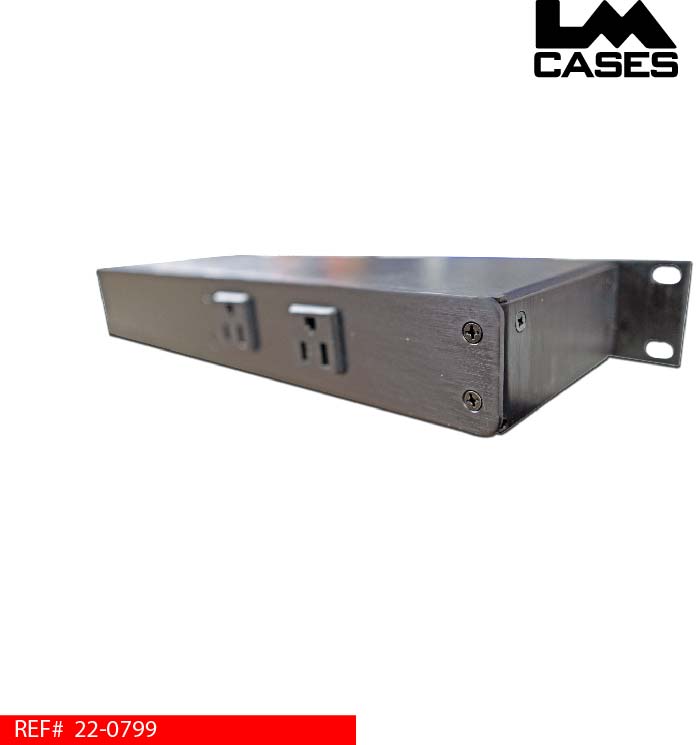

This custom rack mount panel was designed as the main power/signal source for a projection system. The panel is built from .125” black anodized brushed aluminum. Power is brought in via a Neutrik NAC3PX-TOP True1® combination jack. This jack has an inlet and outlet in the same chassis. The outlet is a convenient way to link multiple systems together or provide courtesy power via a 4-plex or pendant aux power cable. A fully enclosed back box isolates internal wiring. 2 snap in, spaced, AC outlets are mounted on the rear of the back box to provide outlets for the system.
SDI signal is handled via a Neutrik NBB75DFIB-P BNC jack while ethernet is handled by a Neutrik NE8FDX-P6 Cat 6 jack.
Don’t forget to add a LM Tour Systems True1® power cable!
- REFERENCE: 22-0799
- CATEGORY: Custom Integration
