ETC Source Four Ellipsoidal Case - 4 Capacity
LM Cases designed and manufactured this custom four-capacity ETC Source Four Ellipsoidal Lighting Road Case for Panavid, providing a specialized transportation solution for professional theatrical lighting and live event production.

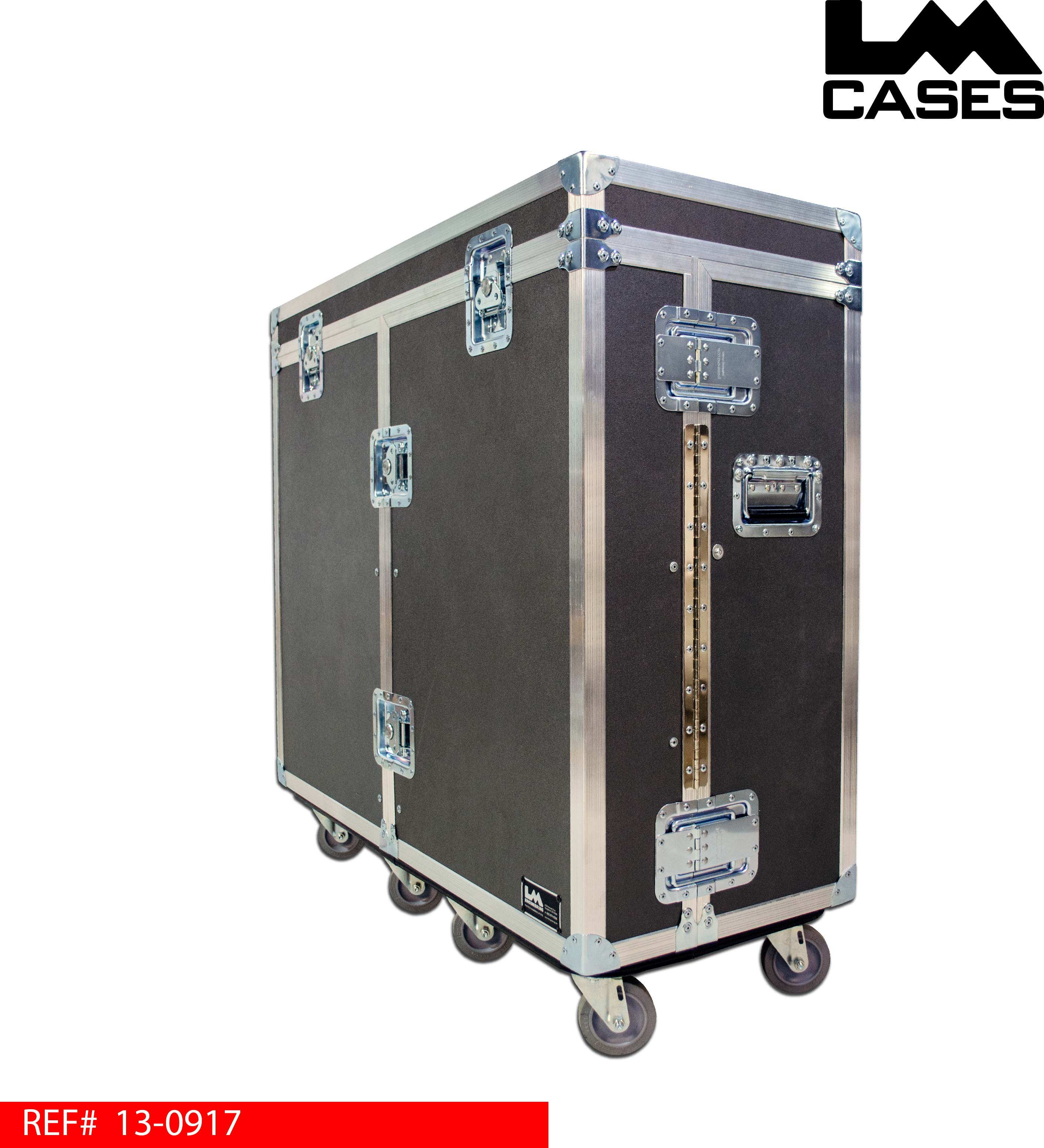

Engineered to accommodate four ETC Source Four ellipsoidal fixtures with their mounting clamps attached, the case features a unique dual front-opening design that simplifies loading and unloading while maintaining individual protection for each fixture.
Unlike conventional top-loading lighting trunks, this design allows technicians to access the fixtures through two hinged front doors, reducing the amount of lifting required to remove or return equipment during setup and teardown.
Low-Lift Loading Design
One of the most distinctive features of this road case is its combination of a hinged top lid and two independently opening front doors.
The front doors swing open 90 degrees, providing unobstructed access to the fixture compartments. Rather than lifting each heavy ellipsoidal fixture over the entire height of the case, technicians only need to raise the fixture a few inches to clear the lower compartment supports.
This design helps simplify the loading and unloading process, particularly when handling multiple lighting fixtures during production load-ins and strikes.

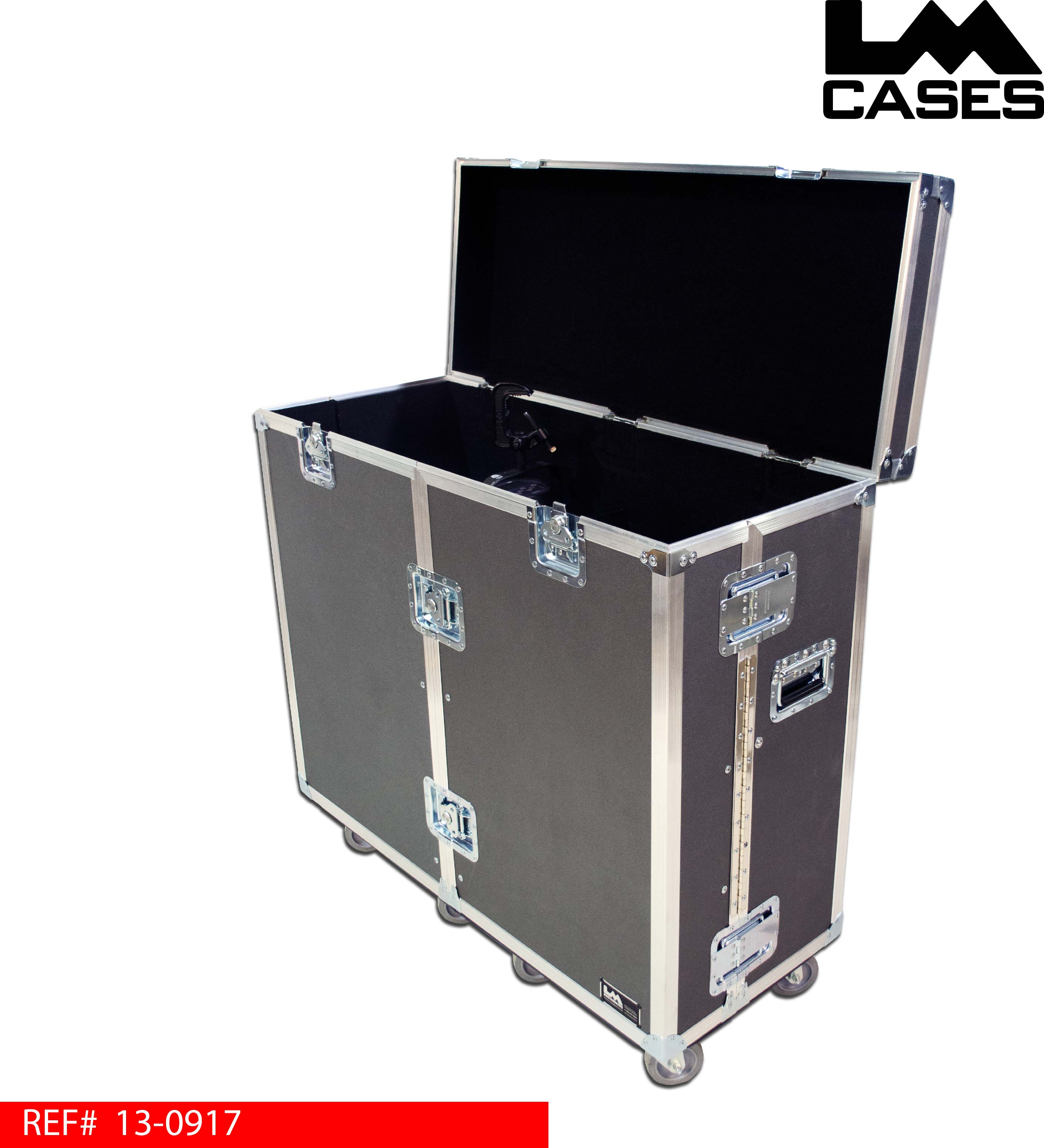

The hinged top lid is supported by gas shocks, allowing convenient access to the interior while keeping the lid securely supported in its open position.
Four Individually Protected Fixture Compartments

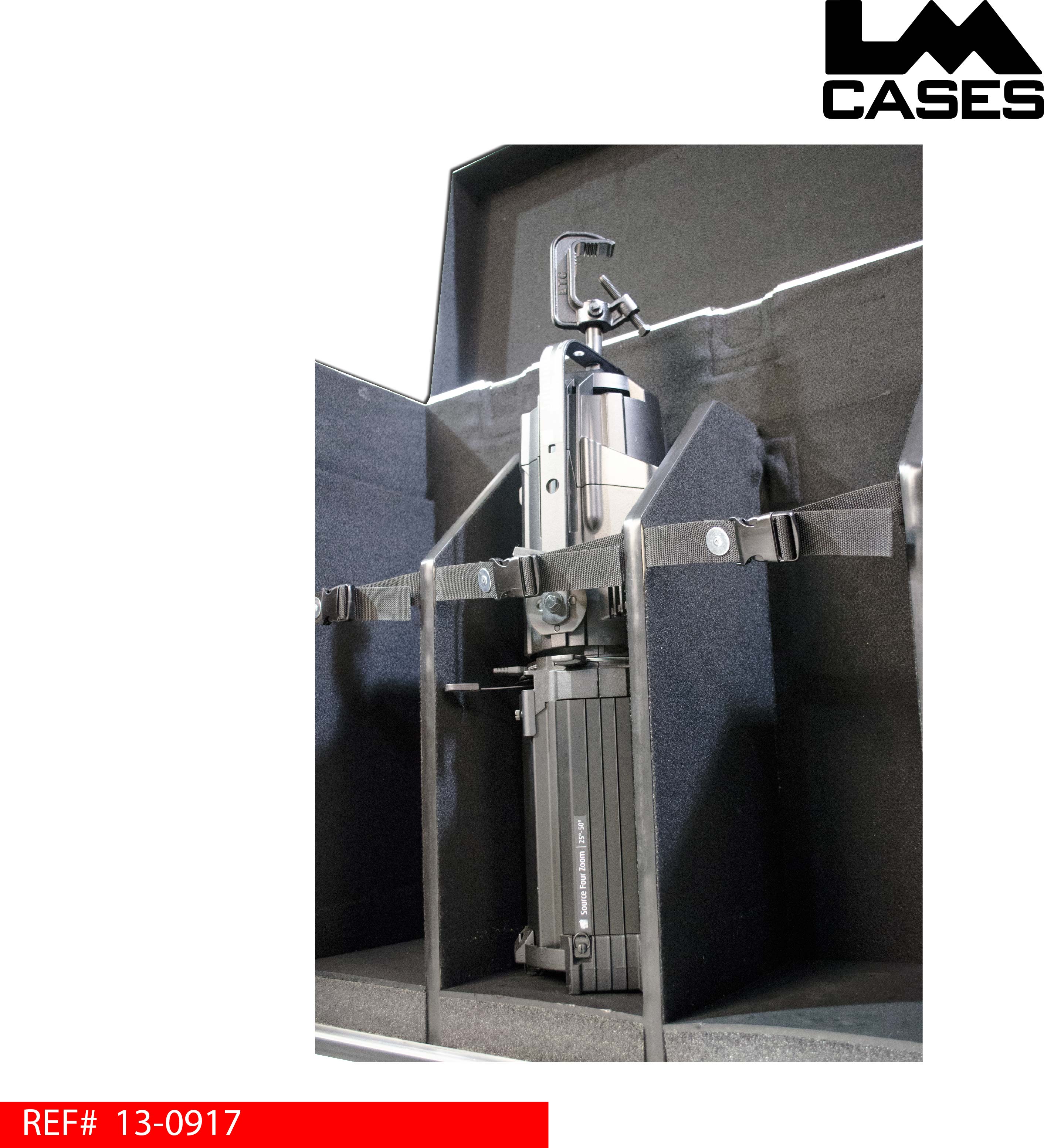

The case interior is divided into four dedicated storage compartments, allowing each ETC Source Four fixture to be transported separately.
Carpet-lined dividers provide separation between fixtures, helping prevent equipment from shifting into adjacent compartments during transportation.
Each compartment features a 2" polyethylene (PE) foam bottom that provides cushioning and support beneath the fixture.
A protective marine-grade plastic top cap is laminated to the foam, creating a durable loading surface that helps prevent the fixtures and their mounting hardware from damaging the underlying foam during repeated loading and unloading.
The interior configuration accommodates the fixtures with their mounting clamps attached, reducing the amount of equipment disassembly required between events.
Integrated Accessory Storage
In addition to the four main fixture compartments, the case incorporates dedicated accessory storage within its hinged lids.
The two front-opening doors feature deep, carpet-lined storage compartments that provide convenient space for power cables, DMX cables, and other lighting accessories.
An additional compartment is incorporated into the hinged top lid, providing organized storage without requiring a separate cable trunk.
This arrangement keeps fixtures and their supporting accessories together, helping lighting technicians streamline equipment preparation, transportation, and inventory management.
Professional Touring Construction
The exterior is manufactured from 3/8" plywood laminated with charcoal ABS plastic and reinforced with professional road case hardware.
Deep recessed handles provide convenient gripping locations for handling and maneuvering the case, while heavy-duty 4" Colson casters allow the trunk to be rolled between trucks, production facilities, and performance venues.
The hinged front doors incorporate piano hinges, and the exterior features recessed latches and lid stays designed for professional touring use.
A custom Panavid logo completes the exterior, providing clear equipment identification and a professional appearance.
Custom Lighting Equipment Solutions by LM Cases
This project demonstrates LM Cases' approach to designing specialized transportation solutions around the equipment and workflow requirements of professional lighting crews.
By combining individually protected fixture compartments, low-lift loading access, and integrated cable storage, this ETC Source Four road case provides a practical alternative to conventional lighting fixture trunks.
LM Cases designs and manufactures custom cases for theatrical lighting fixtures, moving lights, lighting consoles, and other professional production equipment, with layouts and features tailored to the requirements of each project.
Designed and manufactured in the USA by LM Cases.
Special thanks to Panavid for the opportunity to build this custom lighting case.
