Custom 20A Rack-Mount Power Distribution System for Trade Show Booths
This custom rack-mounted power distribution system was designed and manufactured by the LM Cases Custom Integration Department for Imperial Trading. The system was developed to support the simultaneous charging of 150 Acer Iconia tablets used during trade shows and corporate events while also providing power distribution for the client's exhibit booth equipment.

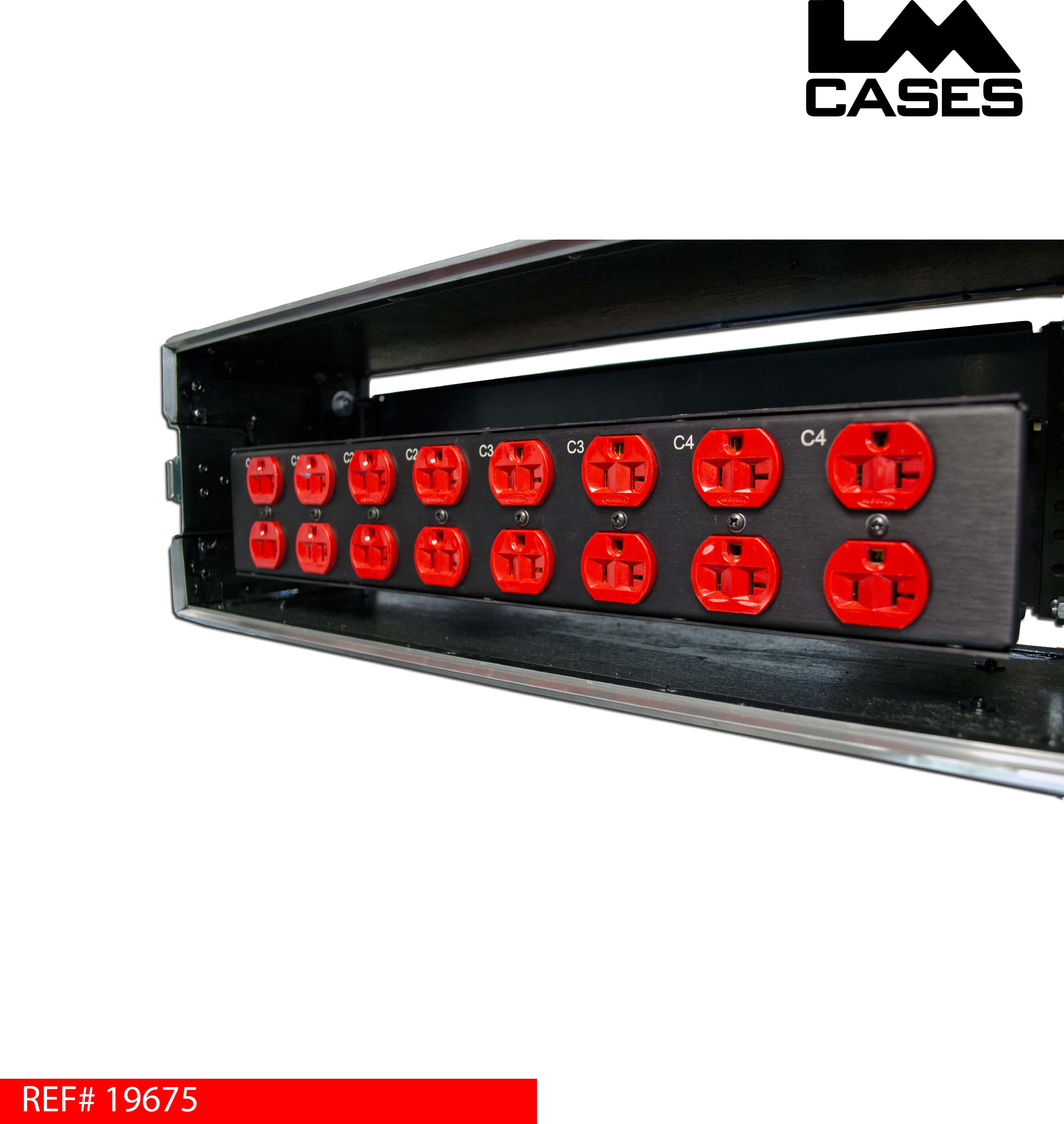

The custom power distro utilizes two independent 20-amp power inputs to supply 16 rear-mounted AC receptacles dedicated to tablet charging. A selectable power configuration allows the rear charging outlets to be switched off and power redirected to four front-mounted courtesy outlets for operation of the trade show booth.

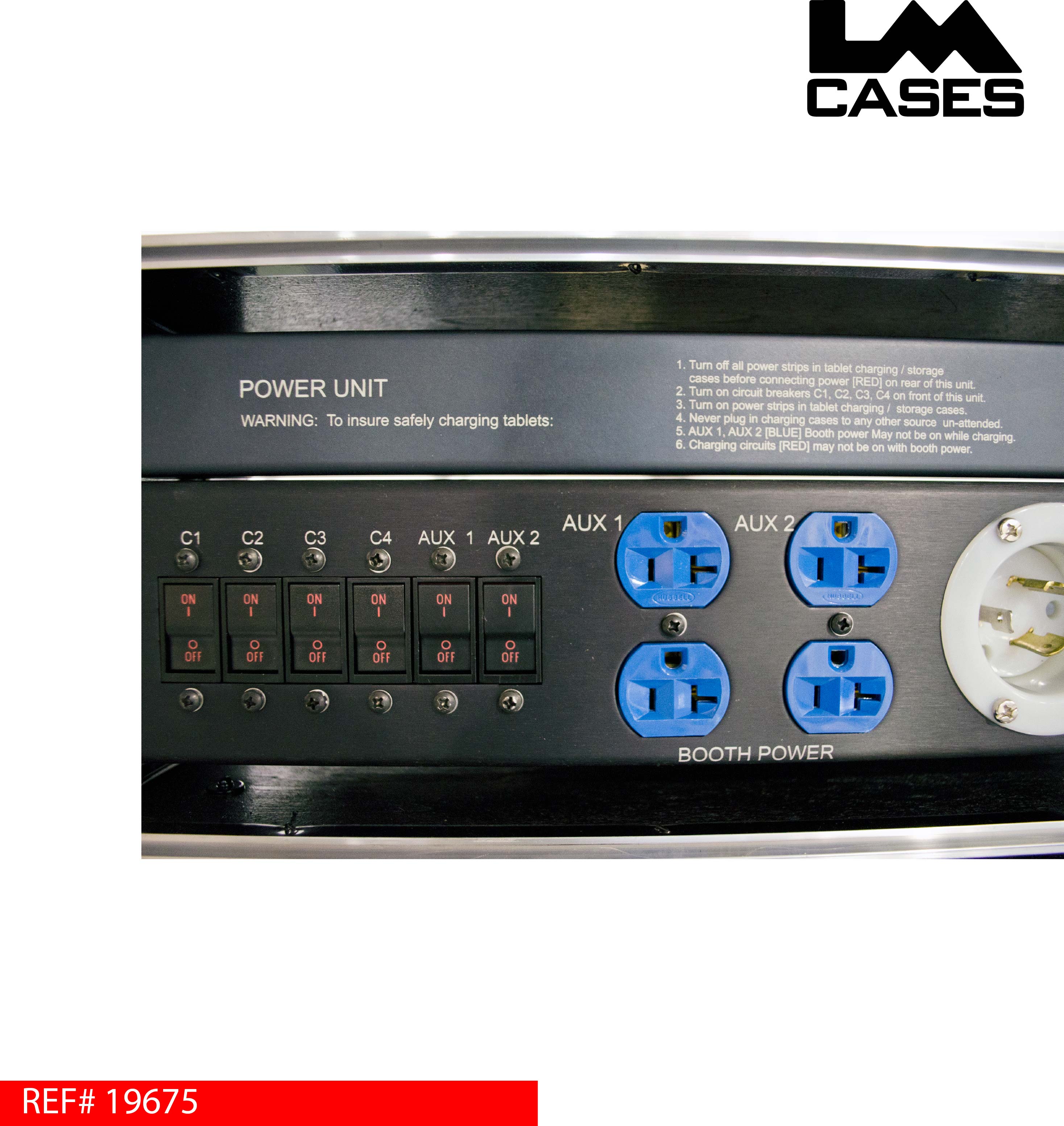

Heavy-duty Hubbell receptacles are color-coded to distinguish between the two operating configurations. Red receptacles identify the tablet charging outputs, while blue receptacles provide power for the booth equipment. This layout simplifies operation and helps personnel identify the appropriate connections during setup and teardown.
A custom laser-etched instruction panel is mounted directly above the power distribution unit. The panel provides clearly labeled operating instructions, allowing trade show personnel to configure the system without requiring specialized technical knowledge.
The power distribution assembly is installed in a compact 3RU ATA-style rack case constructed from 1/4" plywood. Oversized front and rear lids provide dedicated storage for the LM Tour Systems 12 AWG L5-20 - Edison power feeder cables, keeping the complete system together during transportation.
The portable rack was designed to integrate into a larger custom server rack workstation, also manufactured by LM Cases for Imperial Trading. Together with three 50-capacity tablet transportation cases, the system provided a centralized solution for transporting, charging, and managing 150 tablets during trade show operations.
This project highlights LM Cases' ability to develop application-specific power distribution and equipment integration solutions for corporate exhibits, mobile technology deployments, and professional AV systems.
