REFERENCE: 17-0480
RCF TT052A 4 Capacity Speaker Case

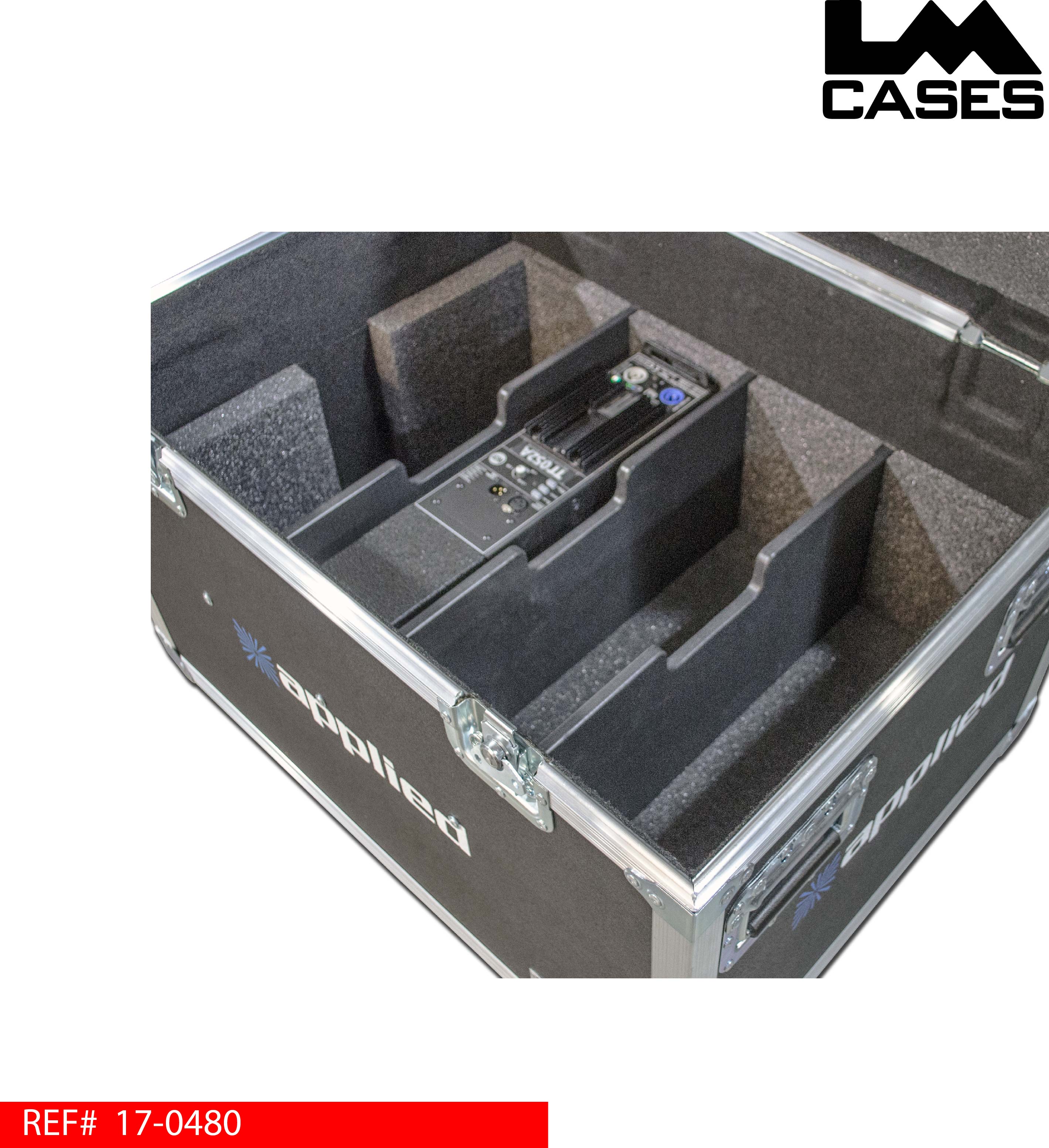

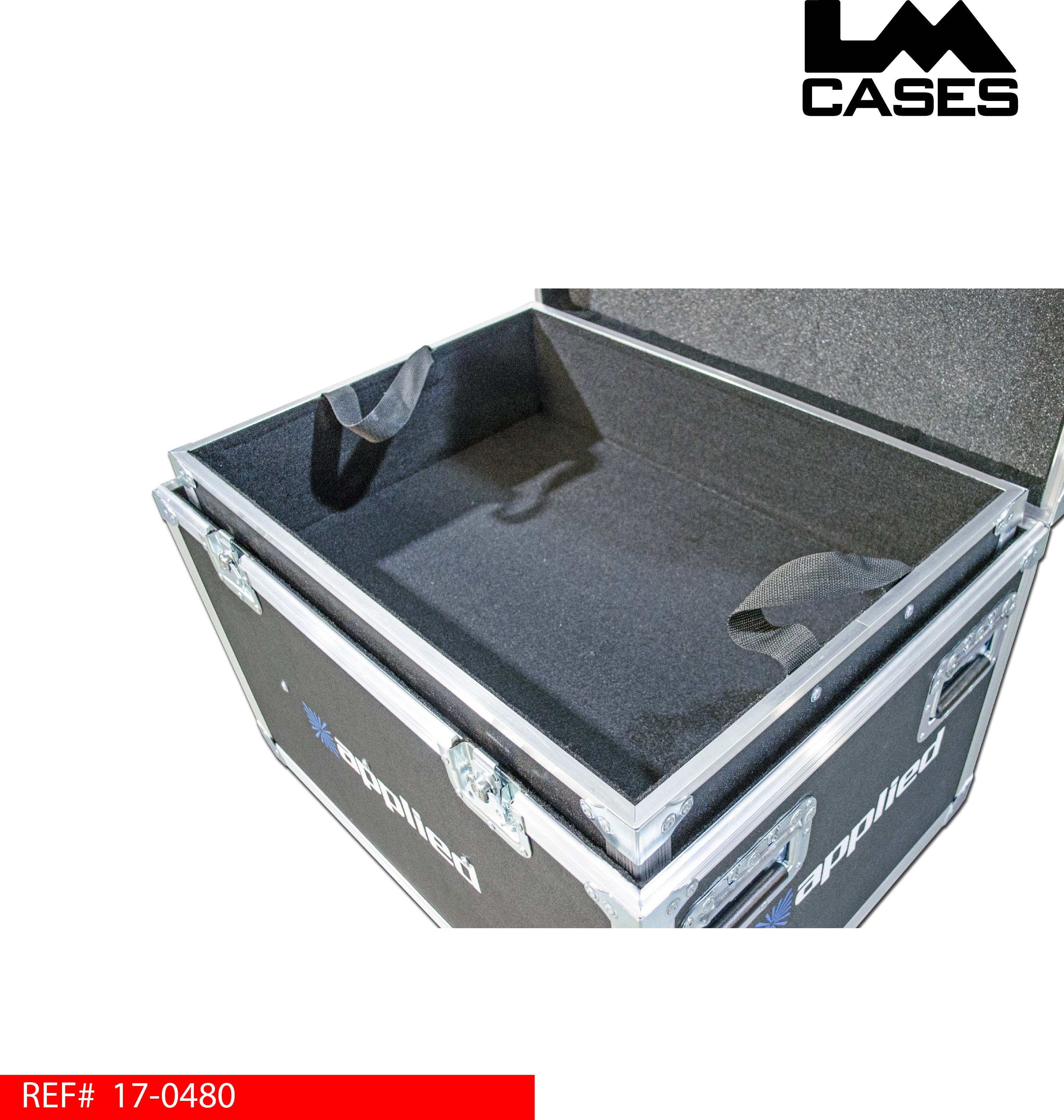

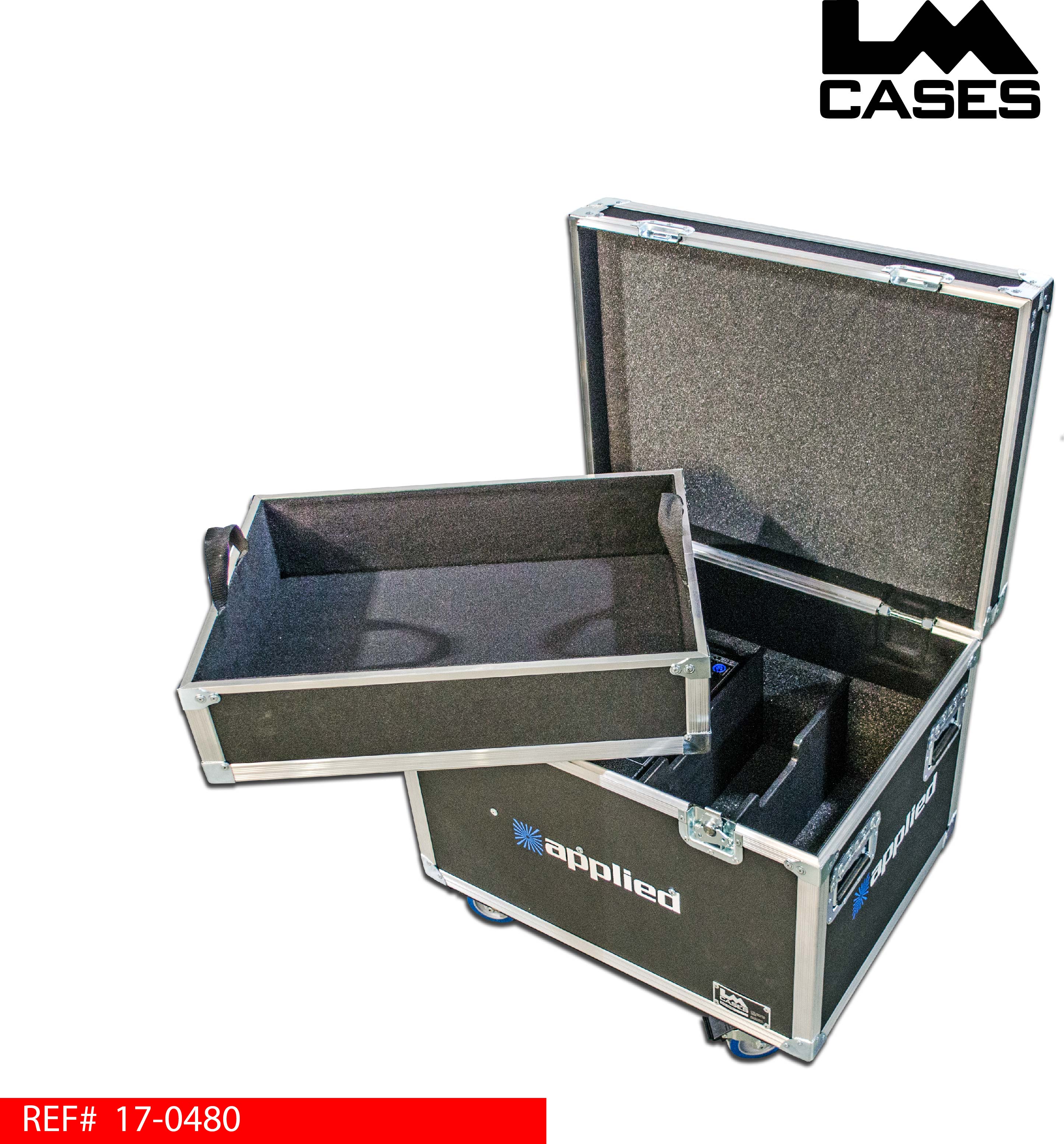

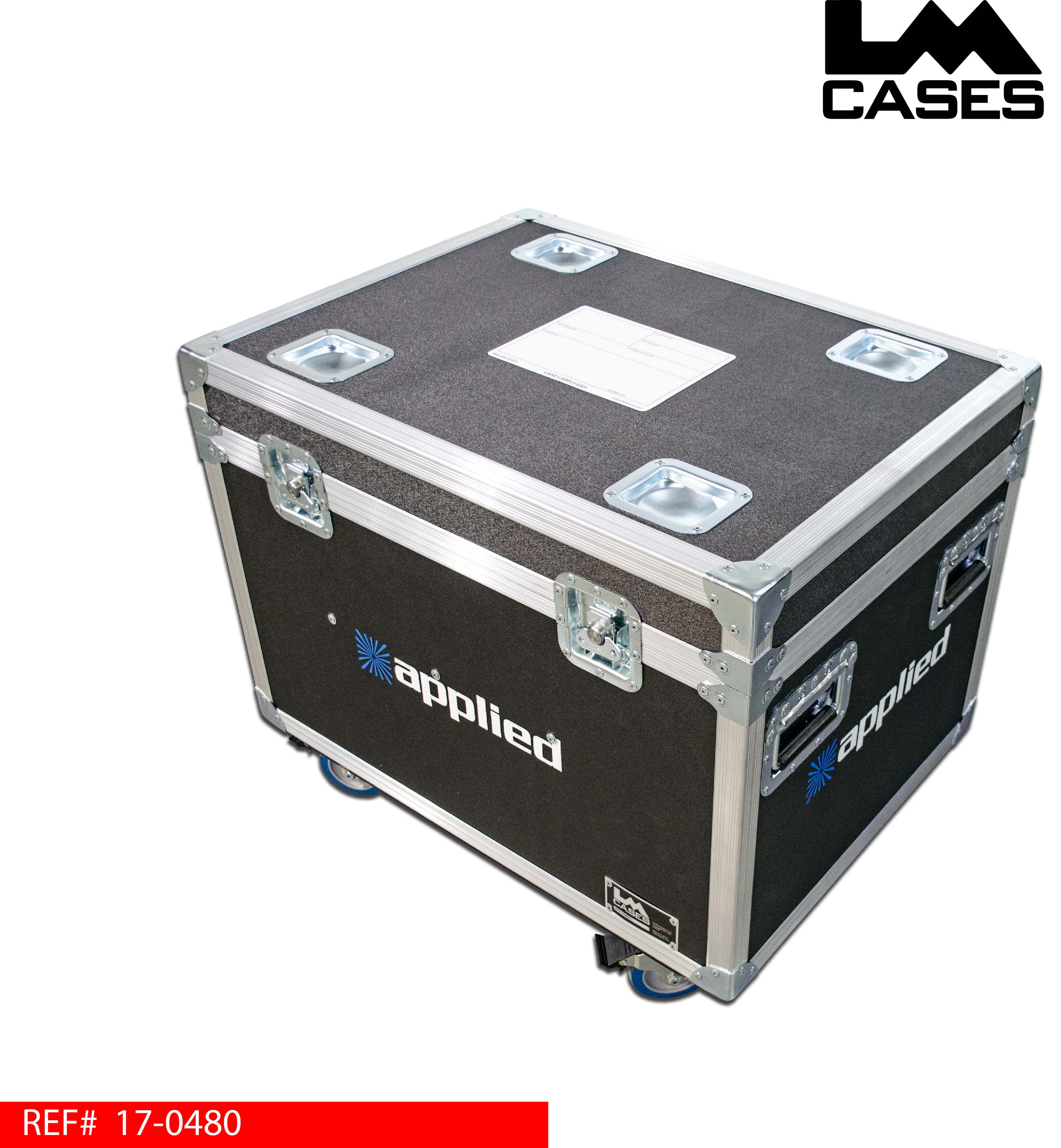

This case was designed for Applied Audio to hold 4 RCF TT052A powered speakers. The speakers are held in 4 individual compartments. Each compartment is separated by a custom CNC cut ½” marine grade plastic divider with a routed in notch to make the speakers easier to handle. A removable 3/8” plywood tray is included for storage. The usable dimensions of the tray are 26.5” wide x 19” deep x 6” tall. The case exterior is built out of 3/8” plywood laminated with ABS plastic. The exterior features 4 deep recessed handles, 2 recessed lid stays, 4” Colson casters (2 locking), stacking caster wells and a route out for a McLoone dry erase road case label
Special thanks to Applied Audio!
To purchase this case from our online store, CLICK HERE.
- REFERENCE: 17-0480
- CATEGORY: Audio/Visual
