19 Pin Socapex Rack Mount Break Out Box w/Edison Duplex Outlets
The LM Tour Systems 19-Pin Socapex Rack Mount Breakout Box provides a compact, professional solution for breaking out a standard 6-circuit Socapex feed to individual Edison connections. Designed for touring, theatrical, broadcast, live event and production applications, the unit converts a single multicircuit Socapex connection into six clearly identified duplex receptacles within a rugged 2RU rack-mount enclosure.

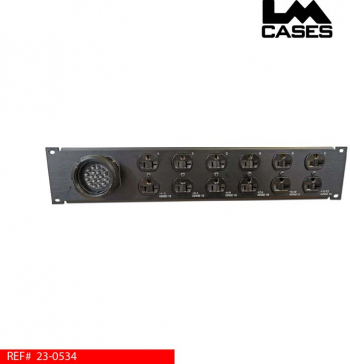

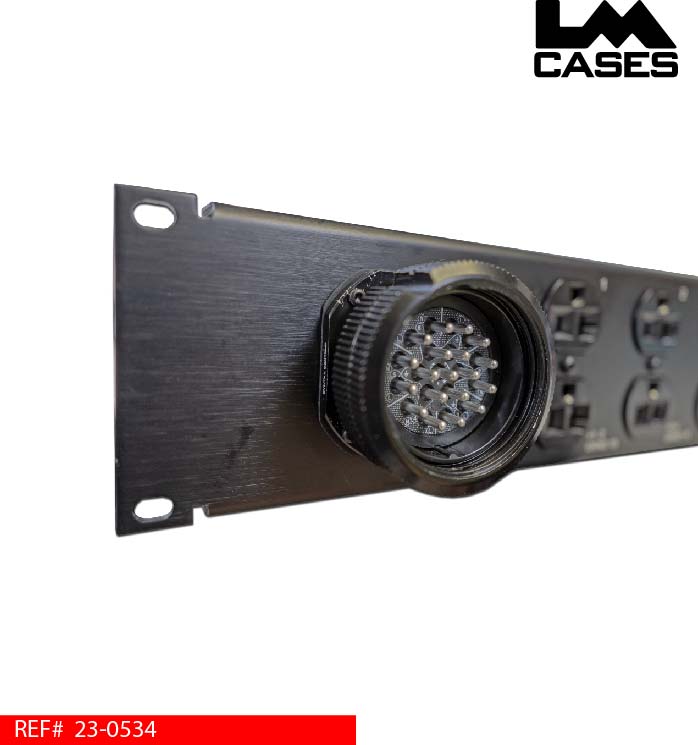

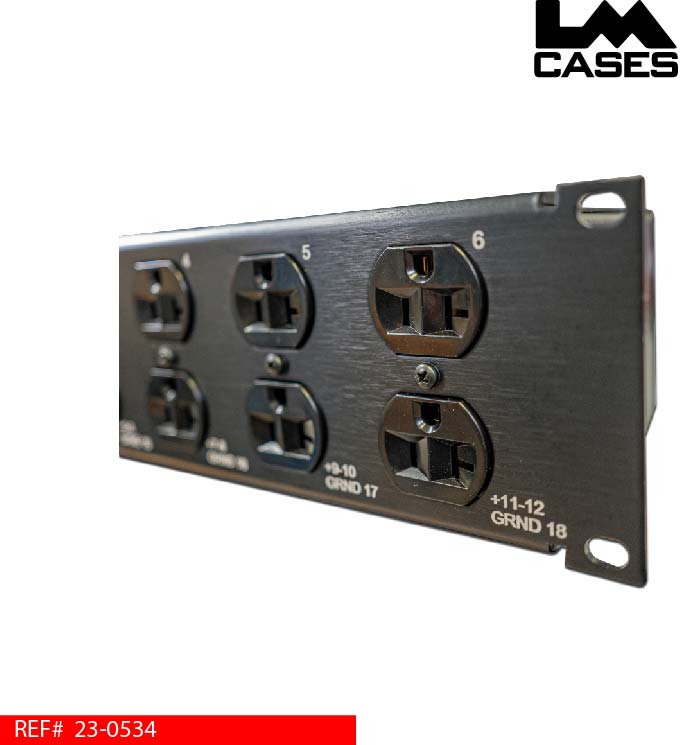

A front-mounted 19-pin Socapex input feeds six individual Hubbell duplex receptacles, providing convenient access to each circuit without the need for traditional fan-out cables. Each outlet is clearly labeled with its corresponding circuit and Socapex pin assignments, making it easier to identify circuits, troubleshoot connections and manage power during setup and operation.

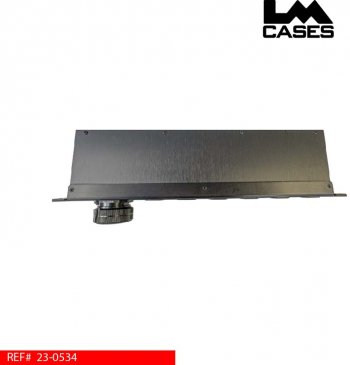

The fully enclosed black anodized rack-mount chassis is designed for permanent installation in touring racks, flypacks, production systems and custom power distribution packages. Its compact 2RU format keeps multicircuit power distribution organized while reducing loose cabling and simplifying deployment.
The Socapex connection also makes the breakout easy to integrate into existing entertainment power infrastructure. A single multicircuit cable can carry power from a remote distribution point to the rack, where the six circuits are conveniently broken out to standard Edison receptacles for connected equipment.
This breakout is particularly useful anywhere multiple 120V circuits need to be transported over Socapex and made available as standard Edison connections at a rack or equipment position.
Complete your system with custom Socapex, AC power or courtesy power cables from LM Tour Systems.
- REFERENCE: 23-0534
- CATEGORY: Custom Integration
