D 2/3 L14-30 Power Distro w/Meters
The LM Tour Systems D 2/3 is a compact 2RU rack-mount power distribution system designed for applications where standard 120/240V split-phase power is more readily available than 3-phase service. It provides a practical power distribution solution for live sound, lighting, video, DJ systems, production racks, and other mobile applications that need reliable access to multiple 120V circuits from an L14-30 source.
Power enters the D 2/3 through a recessed Hubbell HBL2715 L14-30 inlet, with integrated LED indicators showing when voltage is present on the incoming power legs. Because L14-30 is a common 30A split-phase connection, the distro can also be adapted for use with a standard NEMA 14-30 dryer-style receptacle, making it especially useful in clubs, event spaces, residential environments, and smaller venues where 3-phase power may not be available.
Two 20A hydraulic circuit breakers provide independent protection and switching for the X and Y power legs. Dual digital meters display both line voltage and current draw on each leg, allowing the operator to monitor the load and more effectively balance connected equipment between the two phases.

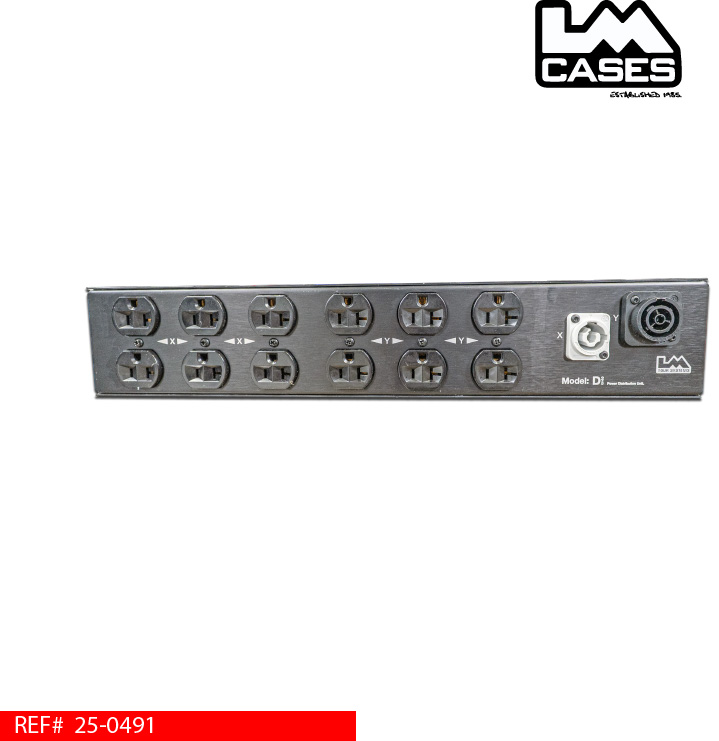

The rear panel provides six duplex Edison outlets, divided evenly with three outlets on the X phase and three on the Y phase. A locking PowerCON output is provided on the X phase, while a locking powerCON TRUE1 output is provided on the Y phase, giving users additional options for distributing power to racks, stage equipment, powered speakers, lighting, or downstream breakout systems.
An additional Hubbell HBL2716 L14-30 outlet is wired ahead of the branch circuit breakers, allowing the incoming source to be passed through to another compatible distribution unit. This makes it possible to deploy multiple D2/3 units from a common power source when the upstream circuit and load requirements allow.
For convenience, the front panel also includes a dedicated duplex outlet with USB-A and USB-C charging, protected by its own 5A circuit breaker. This provides an easy source for charging phones, tablets, laptops, test equipment, and other production accessories without using the main rear-panel outputs.
The D 2/3 is housed in a compact aluminum enclosure with a 1/8" brushed aluminum front panel and permanent white laser-etched labeling, making it well suited for demanding touring and production environments while occupying only 2RU of rack space.
