L15-30 250v / 120v Combination Power Distro

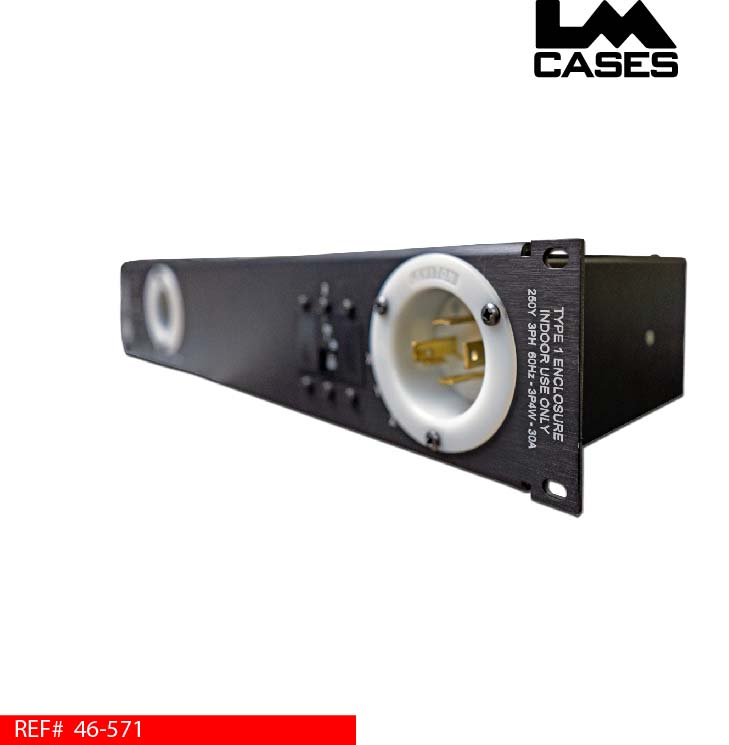

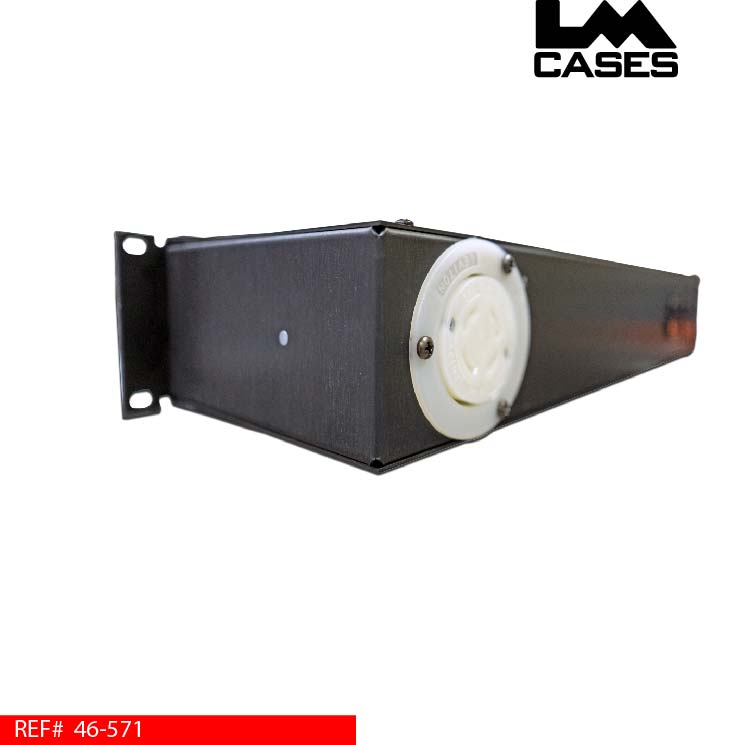

This custom rack mount combination 250v / 120v power distribution module was designed as a main power input point for a mobile MRI power supply rack. The distro features a Hubbell HBL2725ST flanged inlet connector protected by a 3-pole hydraulic breaker. The rack chassis features a Hubbell HBL2726 flanged outlet.

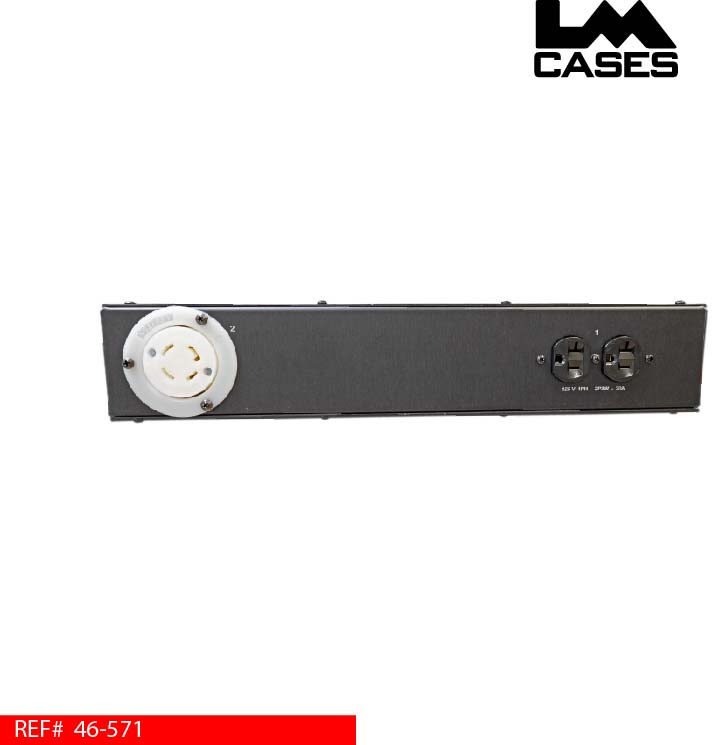

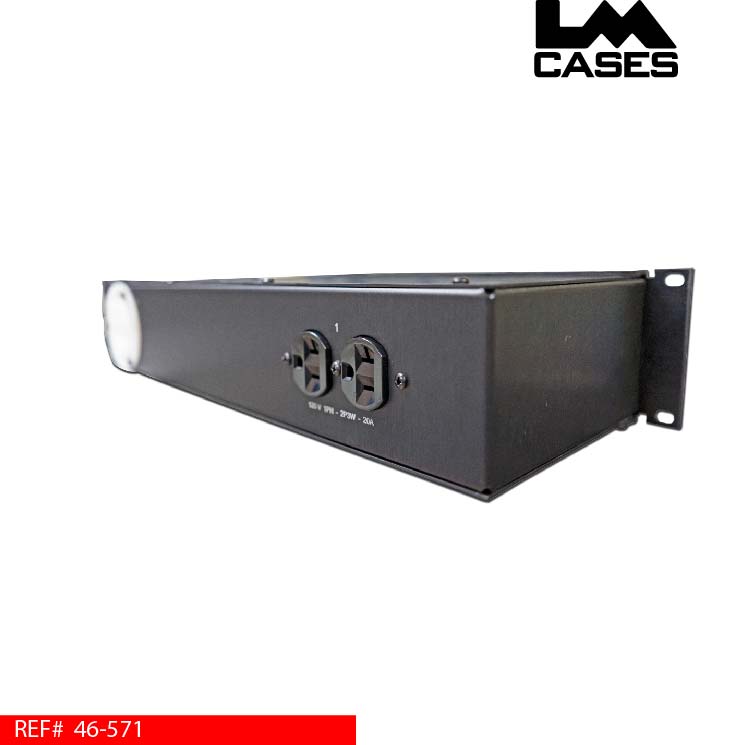

The rack also contains 120v equipment. A Hubbell 5278 flanged inlet protected by a 15-amp hydraulic breaker wired to a rear mounted duplex outlet is provided to power 120v equipment located in the rack.
The distro chassis is built from .125” black anodized aluminum with white laser etched labels.
Custom LM Tour Systems L15-30 and HD 15-amp power cables were provided with the distro. (not pictured)
