REFERENCE: 22-0362
L14-30 Power Distro w/True1 Outlets & L5-20 Tails
This custom L14-30 power distribution unit was built as the main power distributer for a video flypack. The distro is built from .125” black anodized brushed aluminum and is 2U tall with a 6” deep chassis.

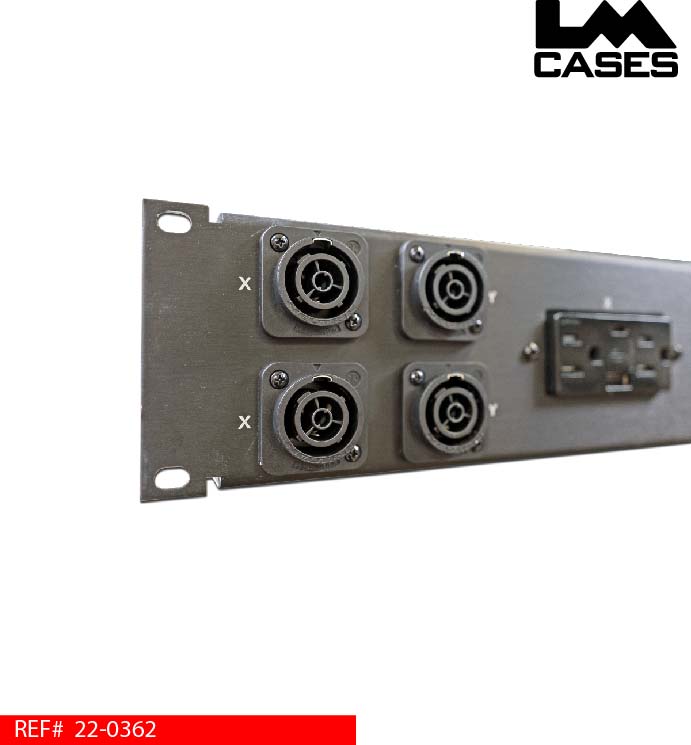

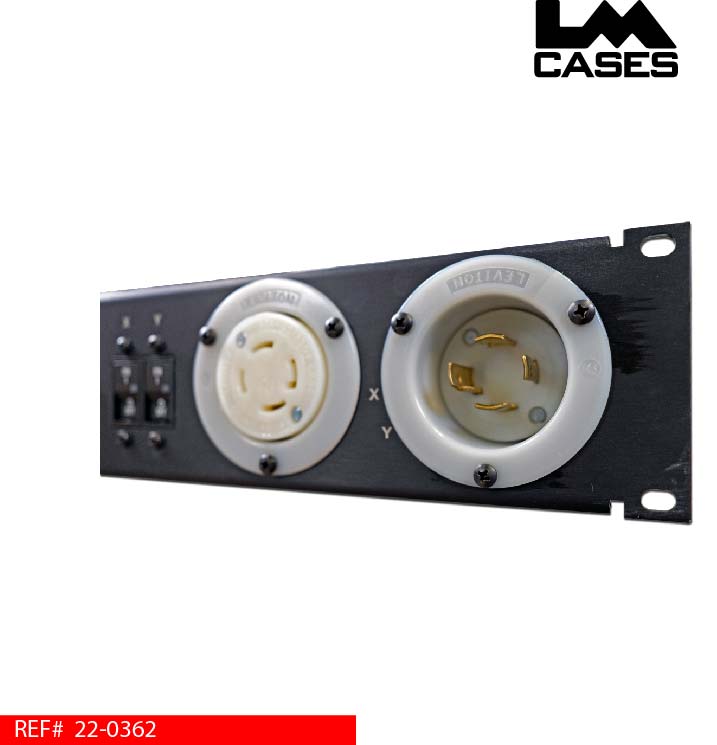

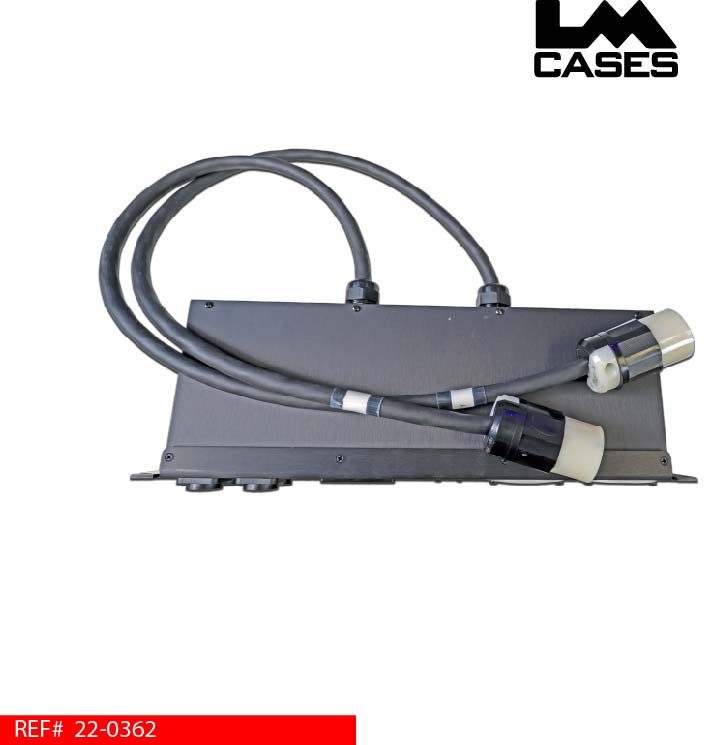

The distro features a L14-30 input and a looped L14-30 output. The front panel features dual 20amp hydraulic breakers, a courtesy Edison duplex outlet with USB A & C charge ports and 4 True1 locking outlets. The back of the distro features 2 L5-20 tails for powering equipment in the case.
This distro was part of a video wall processing flypack, CLICK HERE for more info on the case!
- REFERENCE: 22-0362
- CATEGORY: Custom Integration
