ETC Source Four Ellipsoidal Case - 4 Capacity
This case was designed for Panavid to hold 4 ETC Source Four fixtures with clamps attached. The case features a hinged top and dual opening front lids allowing the fixtures to only be lifted a few inches to be loaded and unloaded from the case. Each fixture is held in a separate carpet lined compartment with a 2" PE foam bottom. A piece of 1/4" Marine Grade plastic is laminated to the PE foam of each compartment which prevents the fixtures from damaging the foam. The lids feature deep compartments for the storage of Powercon and DMX cables.

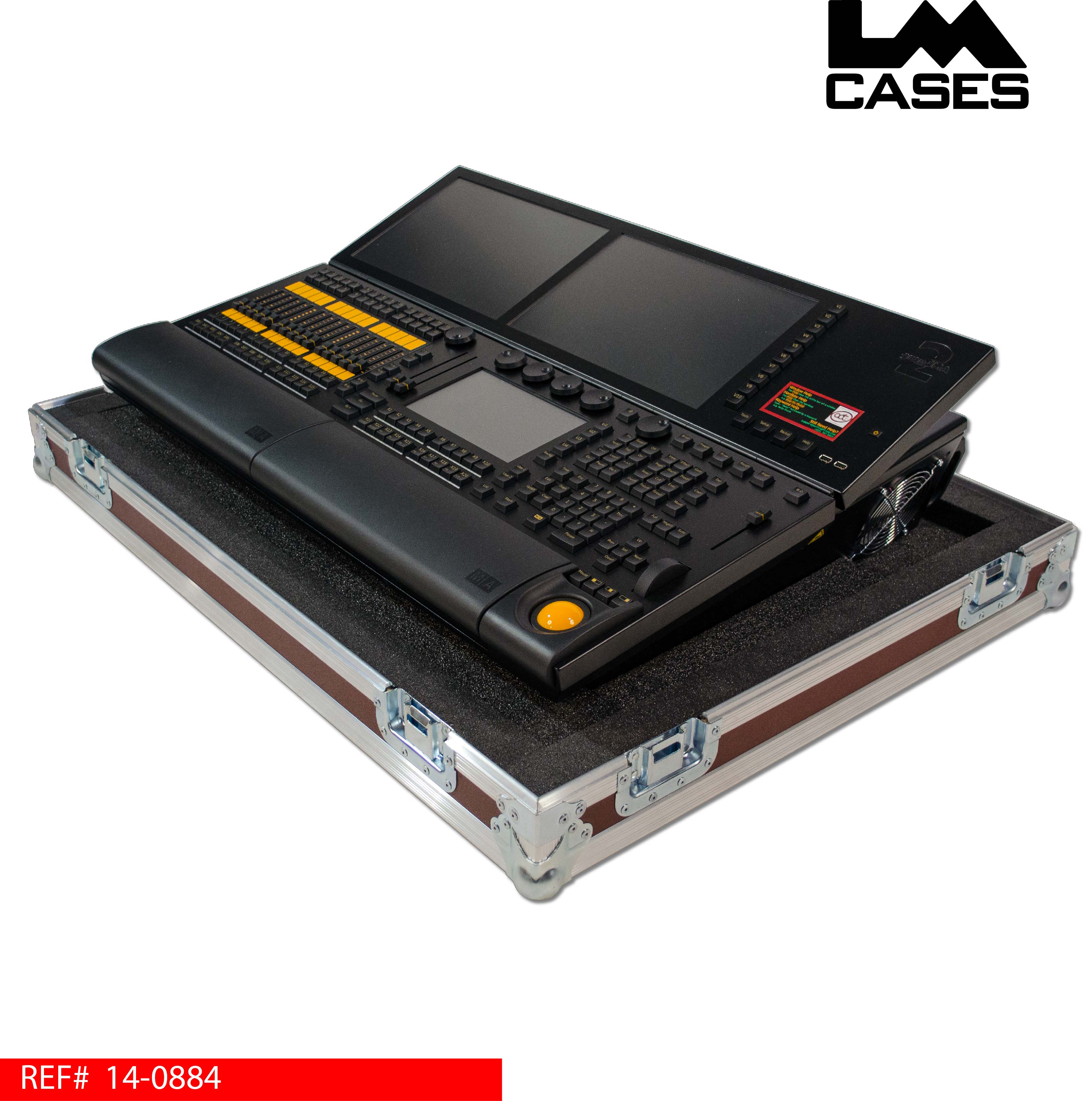

MA Lighting GrandMA2 Light Road Case
This case was designed for Loyola University to house their MA Lighting GrandMA2 Light console. The case features a custom PE foam lined interior that contours all the angles of the console and its screens.

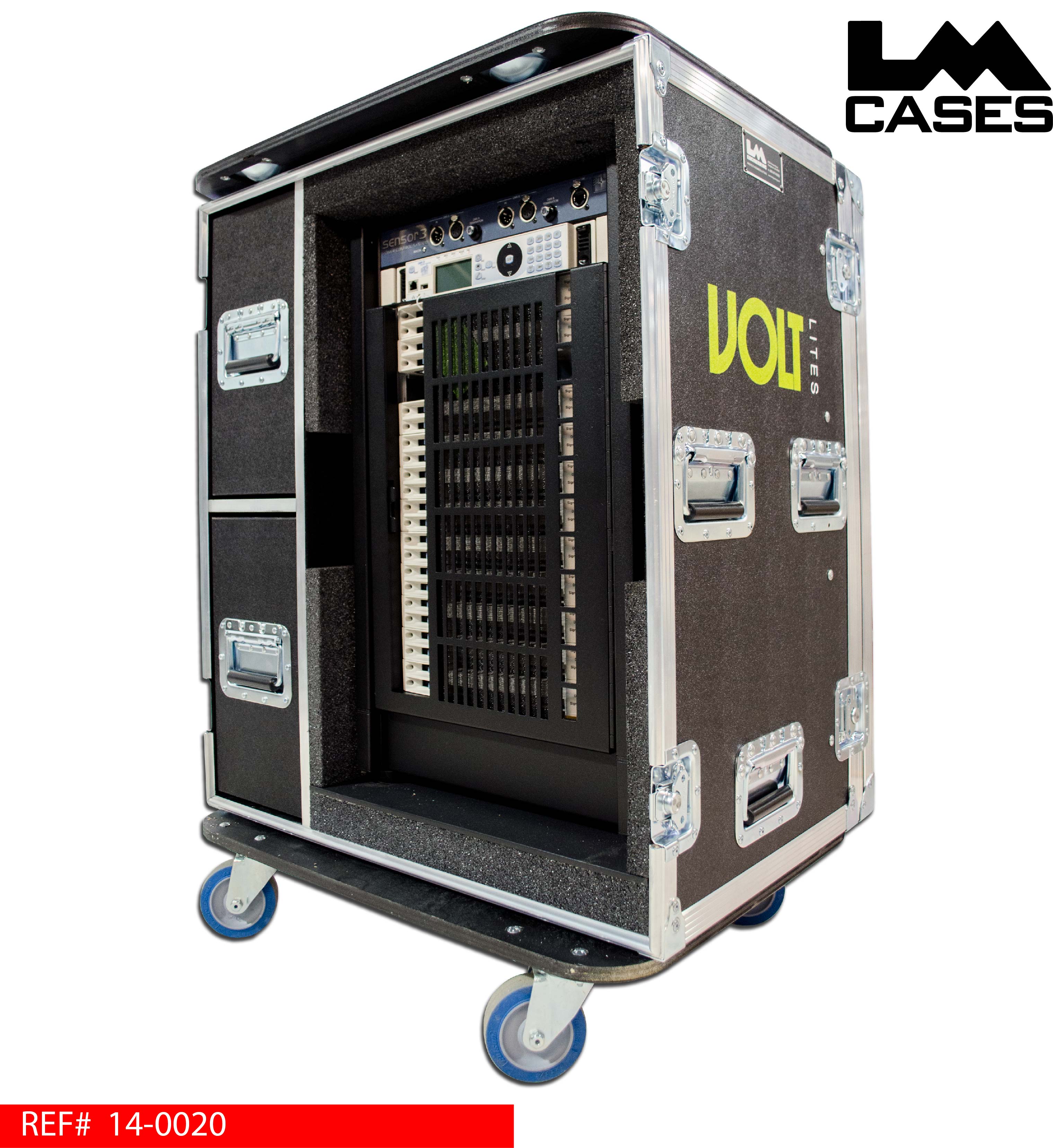

ETC Sensor3 12 Channel Portable Pack Case
This case was designed for Volt Lites for their 12 channel ETC Sensor3 portable dimmer pack. The case is based around a 30" x 24" truck pack and is designed to stack with their other dimmer cases and racks of the same footprint.
Volt Lites Altman 155 Scoop Light Case
This case was designed for Volt Lites to hold 4 Altman 155 18" Scoop Lights.

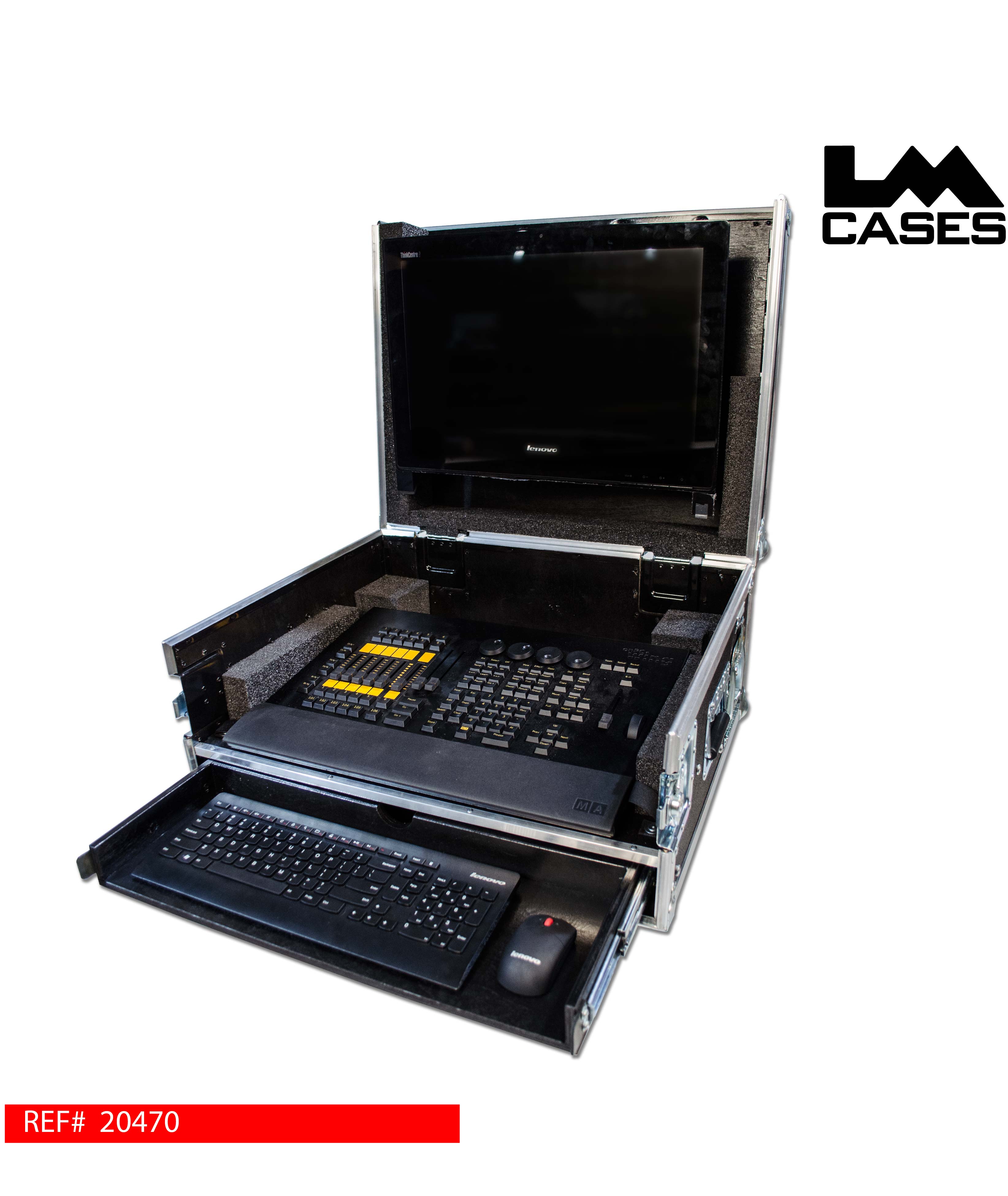

MA Lighting MA onPC Command Wing Case
This case was designed for Vincent Lighting Systems to hold a MA Lighting MA onPC command wing lighting controller. The case lid holds a Lenovo all in one PC to interface with the controller while the case bottom holds the physical controller and a slide out keyboard shelf. Power is supplied to the console and PC by a multi outlet strip installed by the LM Cases Custom Integration department.

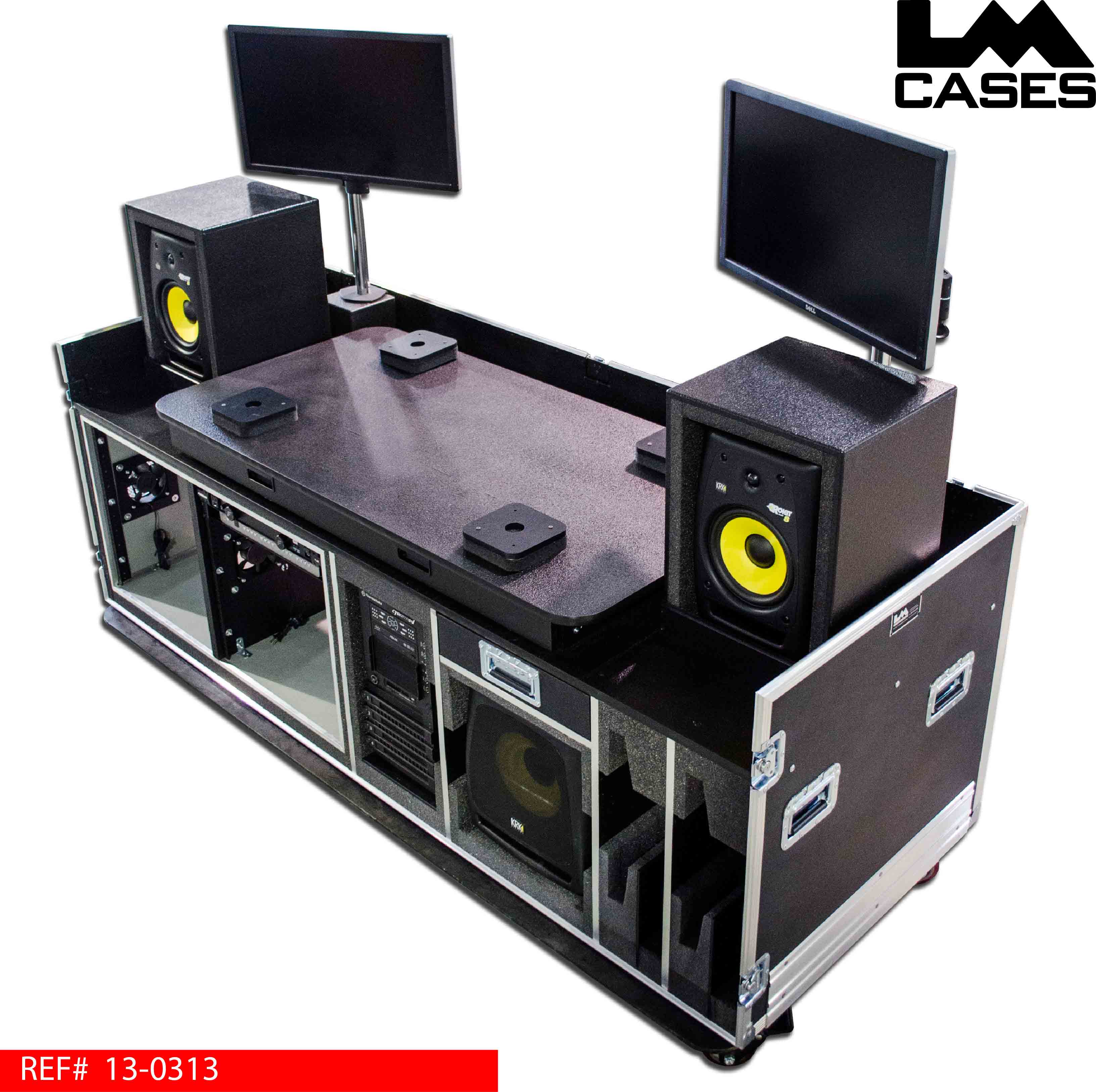

GrandMA2 FOH Workstation Case
This case was designed for Volt Lites by the LM Cases Custom Integration Department to be a fully integrated front of house workstation for large scale tours. The LM Cases CI department handled the sale and installation of many of the case components such as the video monitors, audio monitors, mounts, custom cables, and rack mounted components.
The case design is centered around the GrandMA 2 Fullsize lighting console which is mounted on a retractable shelf. Because each show is programmed and run from the console, the case needed to have 2 distinct "Live" and "Program" modes. In Live Mode, the console is retracted over the case and the 2 monitors are moved over the audio monitors so the operator can see the stage. In Program Mode, the console can be extended from the case allowing the programmer to sit with their legs under the console like a traditional desk. The console sits on 4 pedastals that hold it by its feet to keep it firmly in place during use and provide additional shock protection during transport. The console is also held by 2 lid mounted dividers that separate the console from the speaker enclosures. The pedastals are made out of PE foam and marine grade plastic. The monitors can also be move over the rear of the console for maximum visibility. The LM Cases CI department created a Powercon inlet and custom cable to allow the console to be powered via the locking Powercon connectors.
The Dell 23" LCD monitors are mounted on articulating arms allowing them to swing over the console and monitors and be spun between portrait and landscape modes. The video switching between computers, the console and media servers is handled by a 4 in 4 out video switcher.
The audio playback system is based around a 2.1 KRK speaker system compromised of 8" monitors and a 10" subwoofer. Custom black texture coated foam lined enclosures were created to hold the 8" monitors allowing all components to be firmly mounted during transport.
All rack mounted equipment is housed in a 11RU shock mounted double wide rack under the console. The rack section is built out of 1/2" plywood laminated with silver abs plastic allowing a more reflective surface in case equipment needs to be serviced during a show. Cooling is provided by 9 fans pulling air from the outside and cooling both rack sections as well as the computer section to the right of the rack.
The exterior case is built out of 1/2" plywood and features 4" x 2" Colson casters, deep recessed hardware and a 2 color silkscreen of the Volt Lites logo. The top lid has 4 recessed D-Ring shackles mounted in it to allow a table to be strapped to the top of the case during transport. Because the case will be forklifted on to a FOH platform, LM Cases custom 1/4" aluminum forklift guard was employed. The forklift guard is contours the aluminum corner stock of the case and wraps under to provide extra protection when the case is lifted.
Special thanks to Matt and the Volt Lites team!
Lycian Super Arc 400 Follow Spot Case
This case was made for Forty Two Inc for a Lycian Super Arc 400 follow spot. The fixture is held in a custom foam lined interior that accomodates all protrusions and levers. The exterior case is built out of 3/8" plywood and features stacking casters cups and 3.5" casters.
8 Capacity Elation Design Brick 70 ATA Case
This case was built for the Audio Visual Professional Group to hold 8 Elation Design Brick 70 light fixtures. The case holds each fixture in a 1" PE foam lined compartment with 2" of PE foam under each unit. The case interior also features a large accessory compartment for cables.

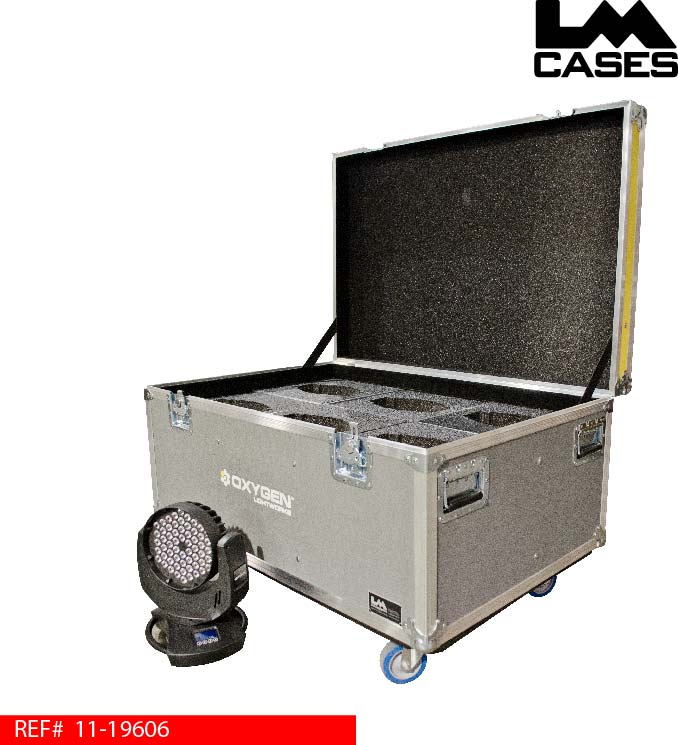

GLP Volkslicht 6 Capacity ATA Case
This case was built for Oxygen Lightworks. The case is designed to hold 8 GLP Volkslicht RGB moving fixtures with clamps attached. The fixtures ride in a hanging configuration in a custom CNC cut foam insert. The lights can be placed in the insert in any direction to allow for easy loading and unloading.

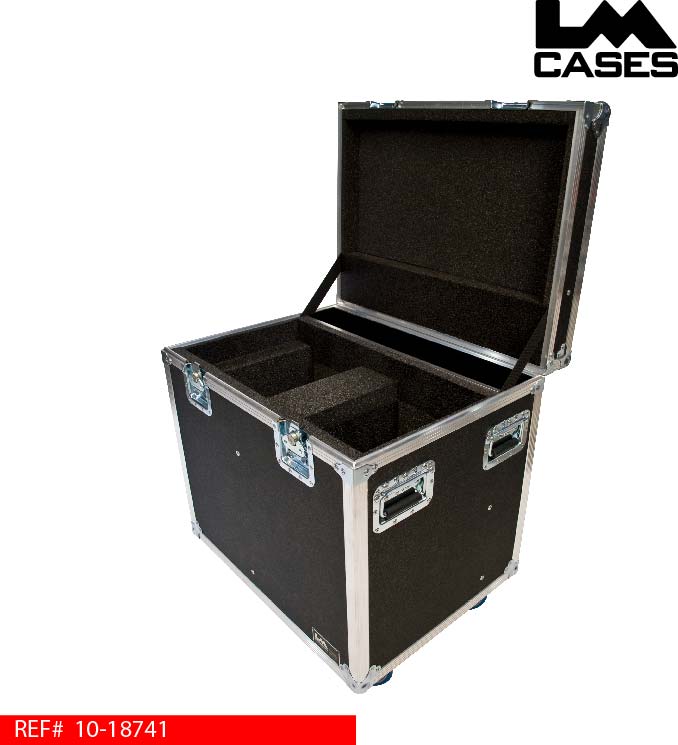

Elation Platinum 5R Case
This case was designed for Atomic Professional Audio. The case is built out of 1/2" plywood and features storage for 2 Elation Platinum 5R light fixtures. The case also features an accessory compartment, stacking caster wells in the lid, deep recessed handles, and 4" Colson casters.

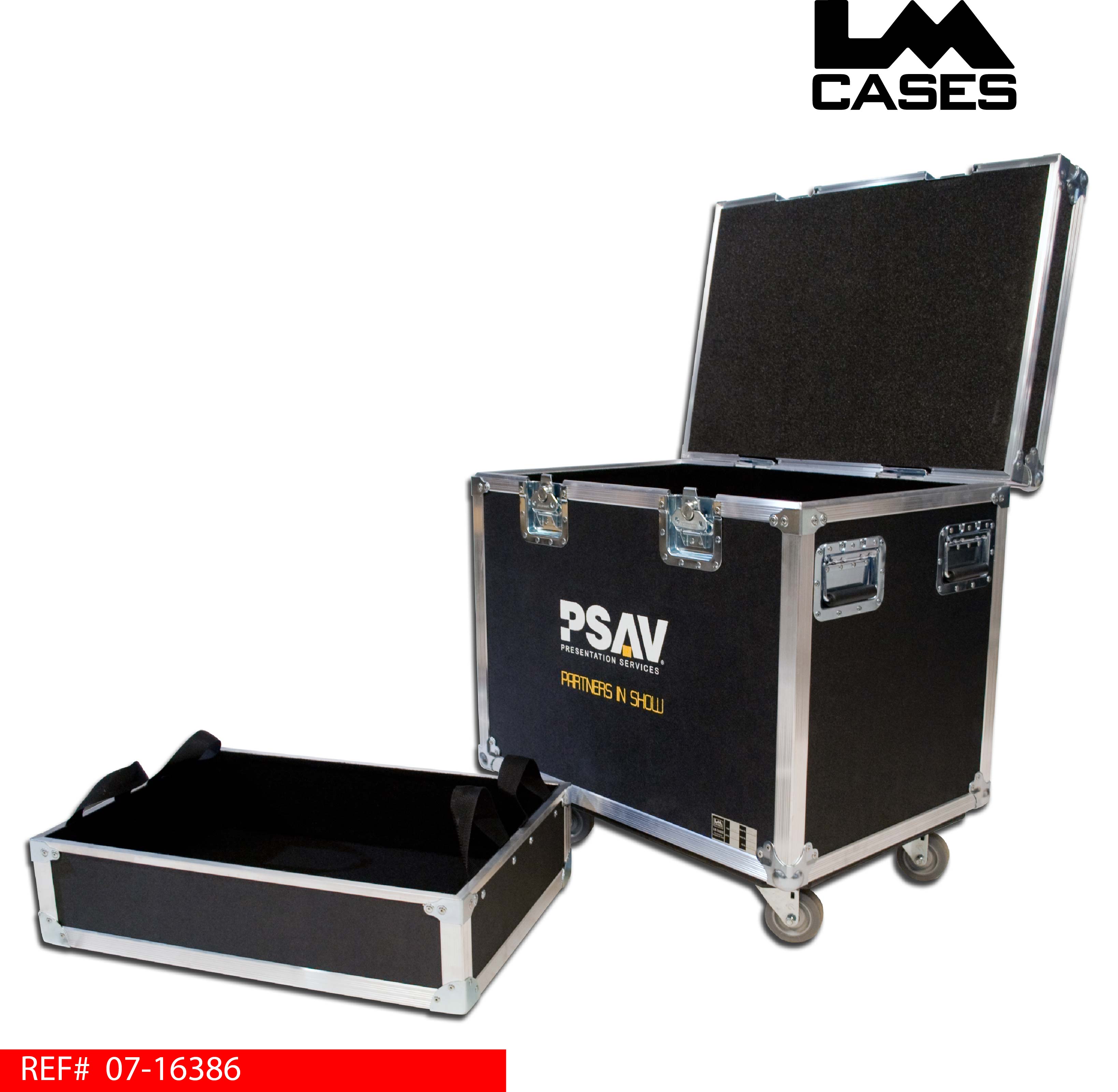

Chroma Q Color Force 12 Case
This case was built for Presentation Services (PSAV). The case is built from 3/8" plywood and features a removable tray also built from 3/8" plywood. The case is designed to hold 6 Chroma Q Color Force 12 light fixtures in a custom CNC cut foam insert. The accessories that go with the lights are designed to be transported in the tray.

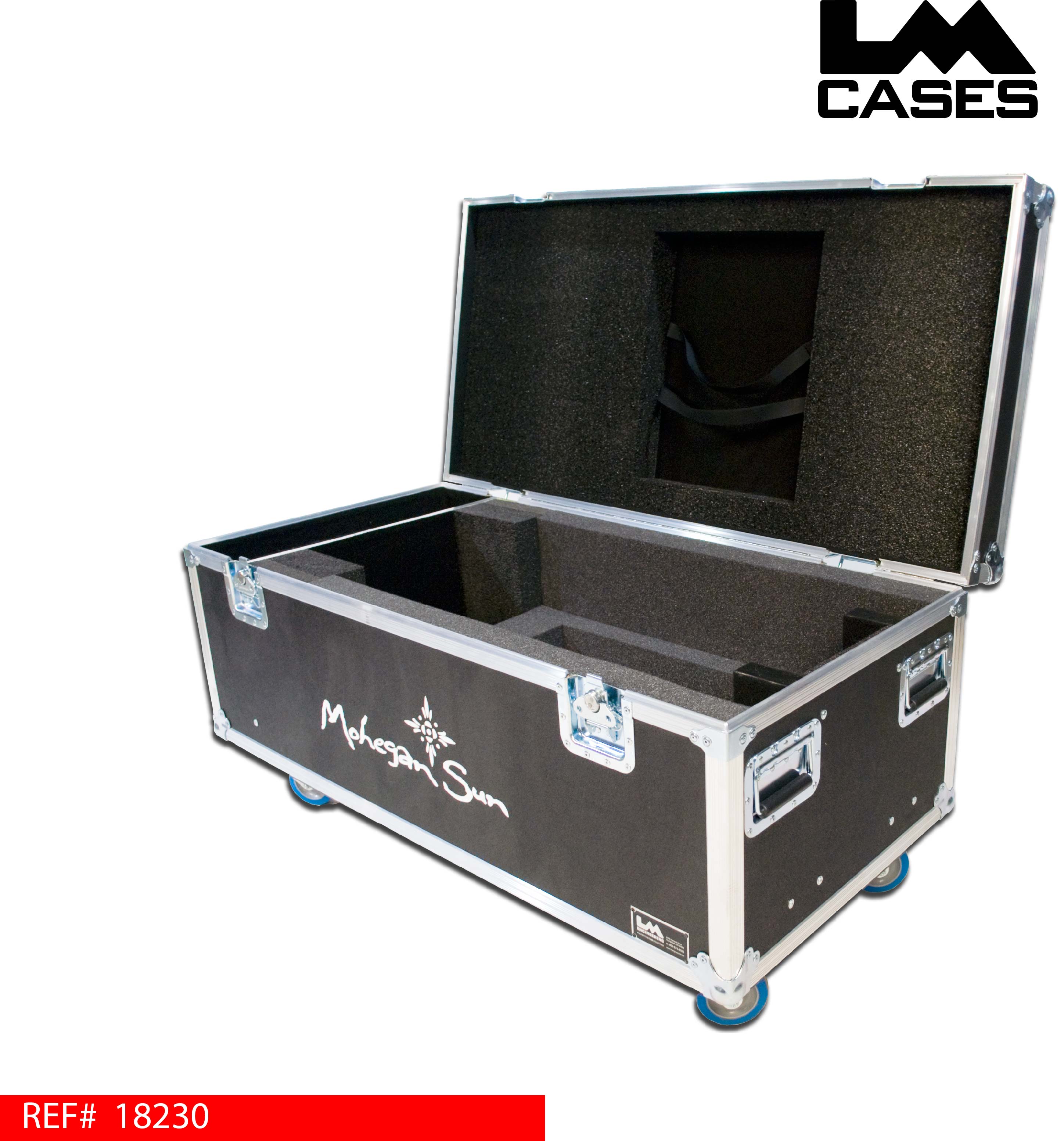

Varilite VL1000 Case
This case was built for Mohegan Sun Casino. The case is designed to hold a single Varilite VL1000 fixture and floor base plate. The fixture is designed to lay down in the case and be supported by the yoke via foam. The lens of the light is held in place via 2 foam wrapped plywood blocks in the front of the case.

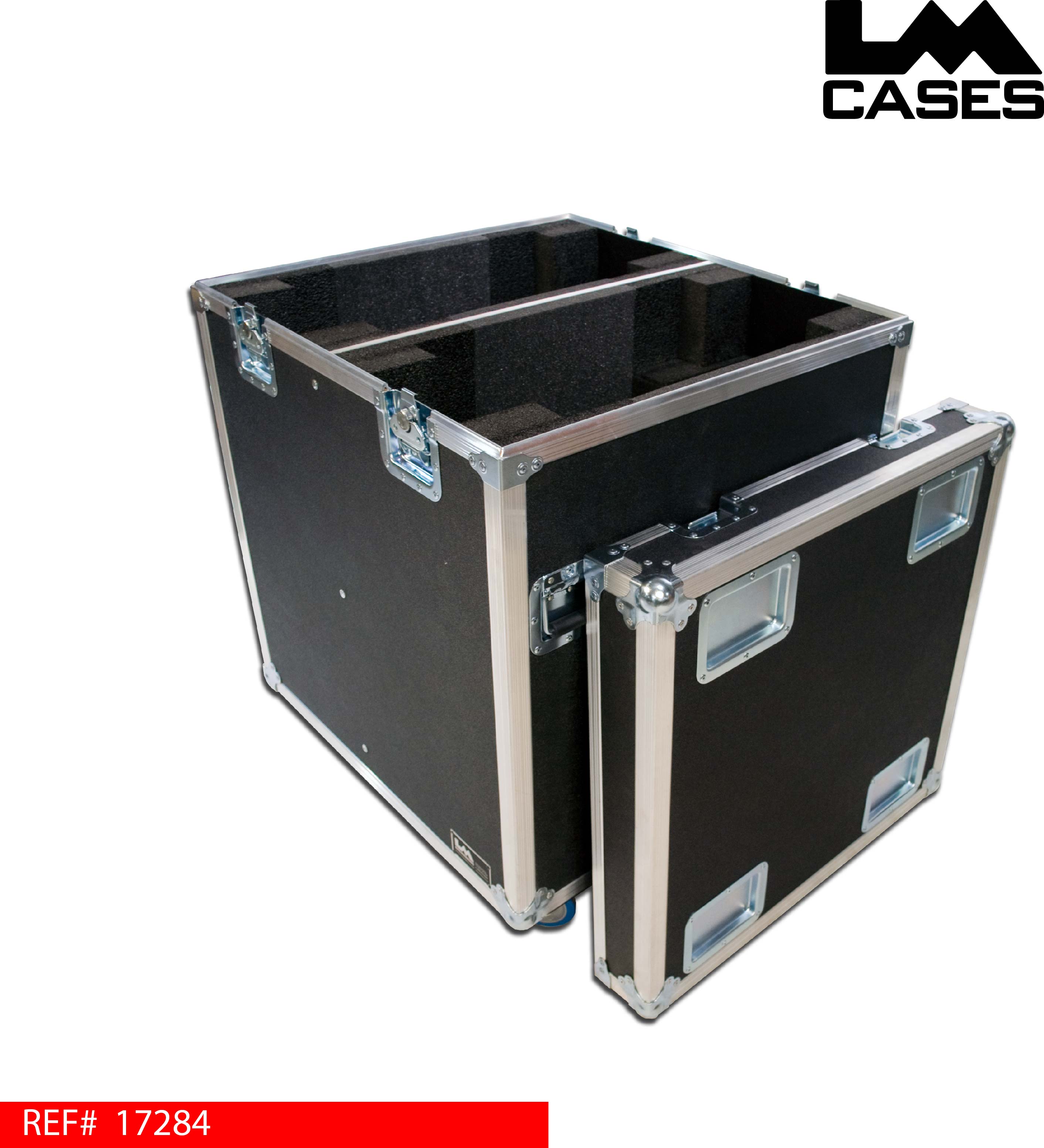

High End Systems Studio Spot 575 Case
This case was designed to carry 2 High End Systems Studio Spot 575 fixtures with the clamps attached. The case is built out of 3/8" plywood and features stacking caster wells in the lid, and 4" Colson casters.[/caption]
