Lighting

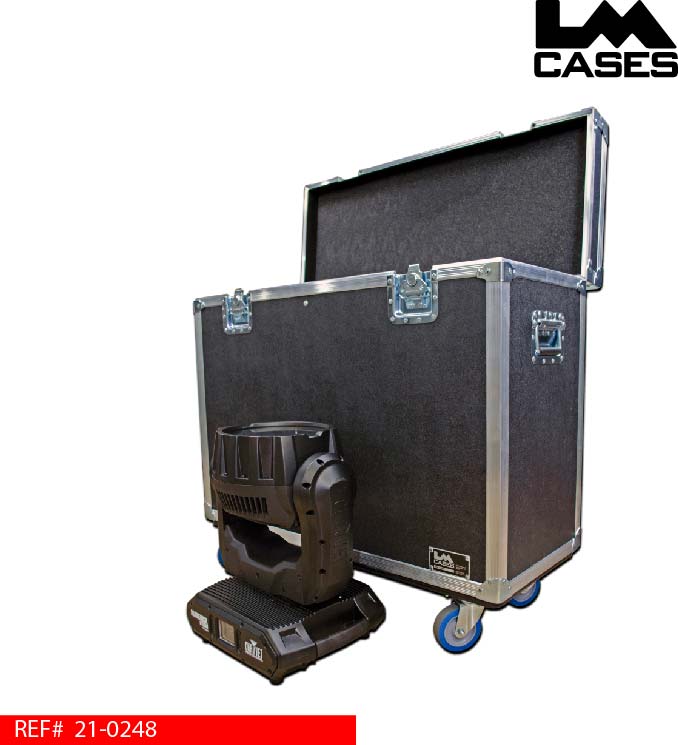

Chauvet Maverick Storm 1 Wash Case
This case is designed to hold 2 Chauvet Maverick Storm 1 Wash light fixtures in custom cut PE foam inserts. The case design allows clamps to remain attached to the fixtures for easy deployment. The case exterior is built from 3/8” plywood laminated with your choice of ABS plastic colors. The case rides on 4” casters with a full sized ¾” caster board. The exterior features recessed lid stays to ensure the lid remains open during loading and unloading. 2 deep recessed handles are provided.
GrandMA3 Light Console Road Case
This case is designed for the MA Lighting GrandMA 3 Light console. The console is held in a custom CNC cut; PE foam lined interior. Custom arch shapes are cut into the foam to protect the console’s screen hinges. A custom ½” marine grade plastic keyboard drawer is provided under the console for additional storage.
MA onPC Command Wing / Fader Wing Flight Case FOH Workstation
This case was designed to be an all in one, pre-wired workstation for MA Lighting, onPC Command Wing, and Fader Wing controller. The case holds each of the control surfaces in place via custom brackets that contour each of the unit’s shape. Touch screen monitors are mounted on HD Ergotron arms, allowing multiple placement options. Custom rack mount panels provide access to all necessary connections.

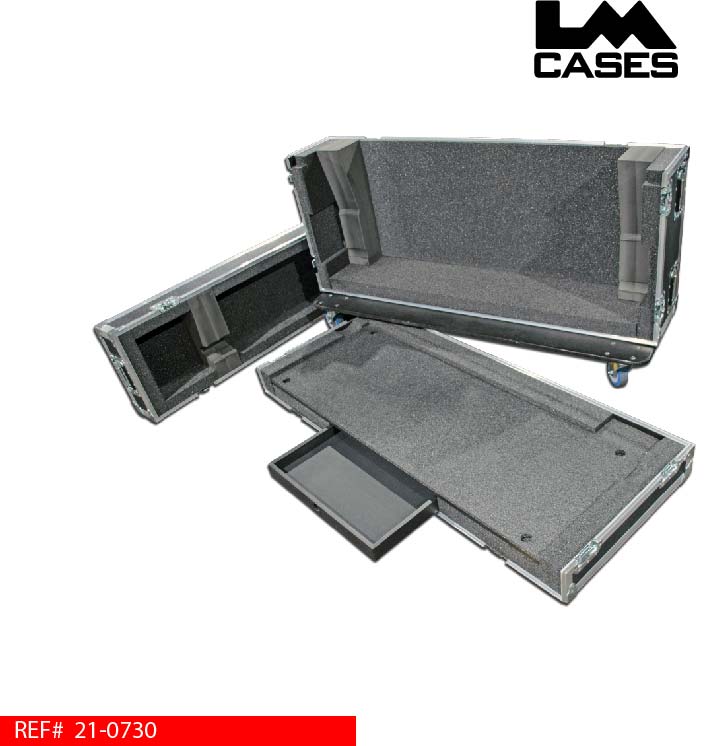

MA Lighting Grand MA 3 Full Size Console Road Case
This case is designed for the MA Lighting GrandMA 3 Full Size console. The console is held in a custom CNC cut; PE foam lined interior. Custom arch shapes are cut into the foam to protect the console’s screen hinges. A custom ½” marine grade plastic keyboard drawer is provided under the console for additional storage.
Elation CW Profile HP Ellipsoidal Light Fixture Road Case - 6 Capacity
This case was built for Nvidia. The case is designed to hold 6 Elation CW Profile light fixtures with their clamps attached. Each light compartment features usable dimensions of 10.875” wide x 10.875” deep x 31.75” tall. The lights are held in individual compartments created by a ½” marine grade plastic divider network. 2” Ester foam laminated with .125” thick white HDPE is positioned under each light to provide shock protection for each light. The foam/HDPE combo is soft enough to not damage the gel frame holders. A carpet lined accessory compartment is provided for additional storage.

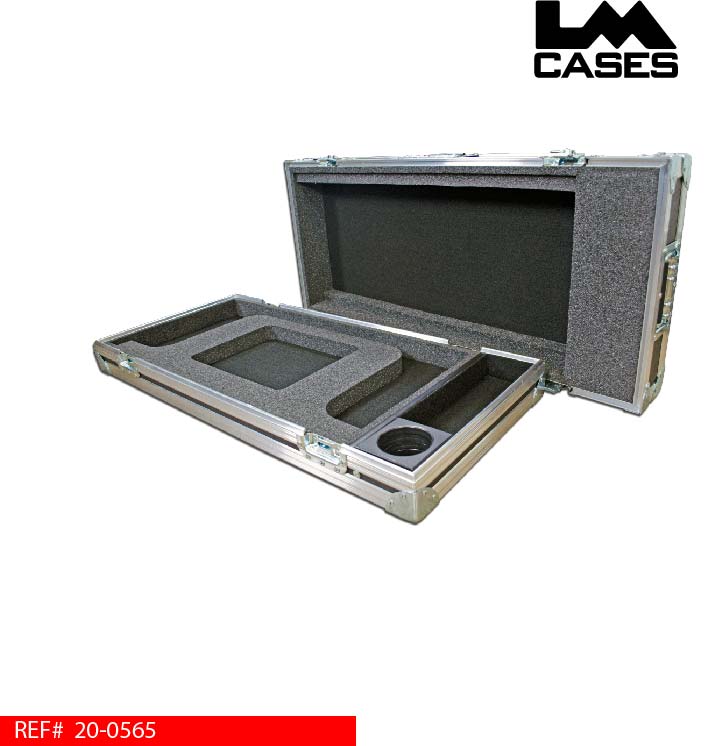

Chamsys QuickQ 30 Lighting Console Road Case
This heavy duty case is designed to hold the Chamsys Quick Q30 lighting console. The console is designed to be permanently held in the case tray, with the top larger lid being removed for use. A custom CNC cut foam piece is located in the case tray to accommodate the console’s unique feet. An accessory compartment is included under the console to hold an iPad and other accessories. An additional storage compartment to the right of the console is provided and includes a cup holder. The case exterior is built out of 3/8” plywood laminated with your choice of ABS colors.

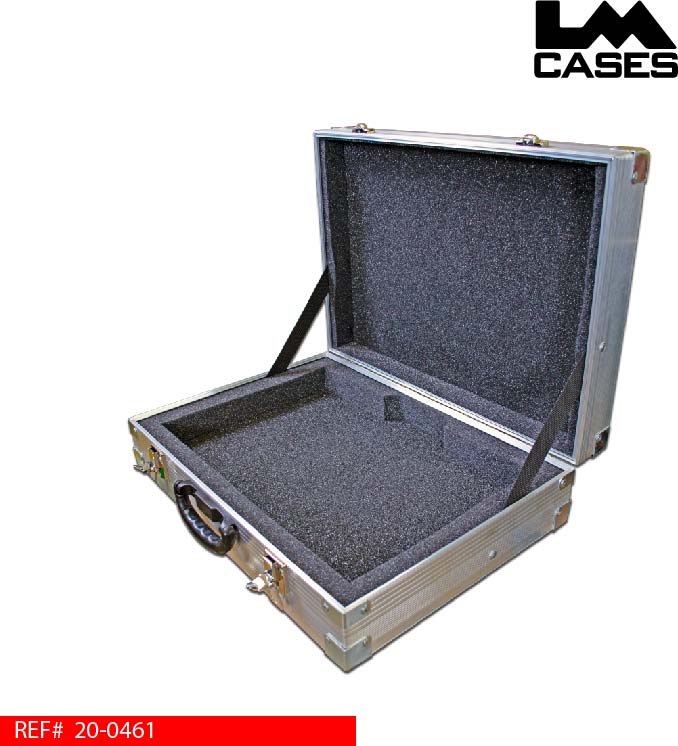

Chamsys Quick Q10 Lighting Console Carrying Case
This case is designed to be a light weight economical solution to transport the Chamsys Quick Q10 console. The case interior is lined with 1” Ester foam and features a routed in rear hand slot to easily remove the console. The case exterior is built from LM’s XL Series aluminum. Top and bottom aluminum extrusions with integrated tongue and groove are wrapped around a piece of ¼” plywood to form the case. The ¼” plywood can be laminated with your choice of ABS colors. A ergonomically attaché handle is provided for easy carrying.

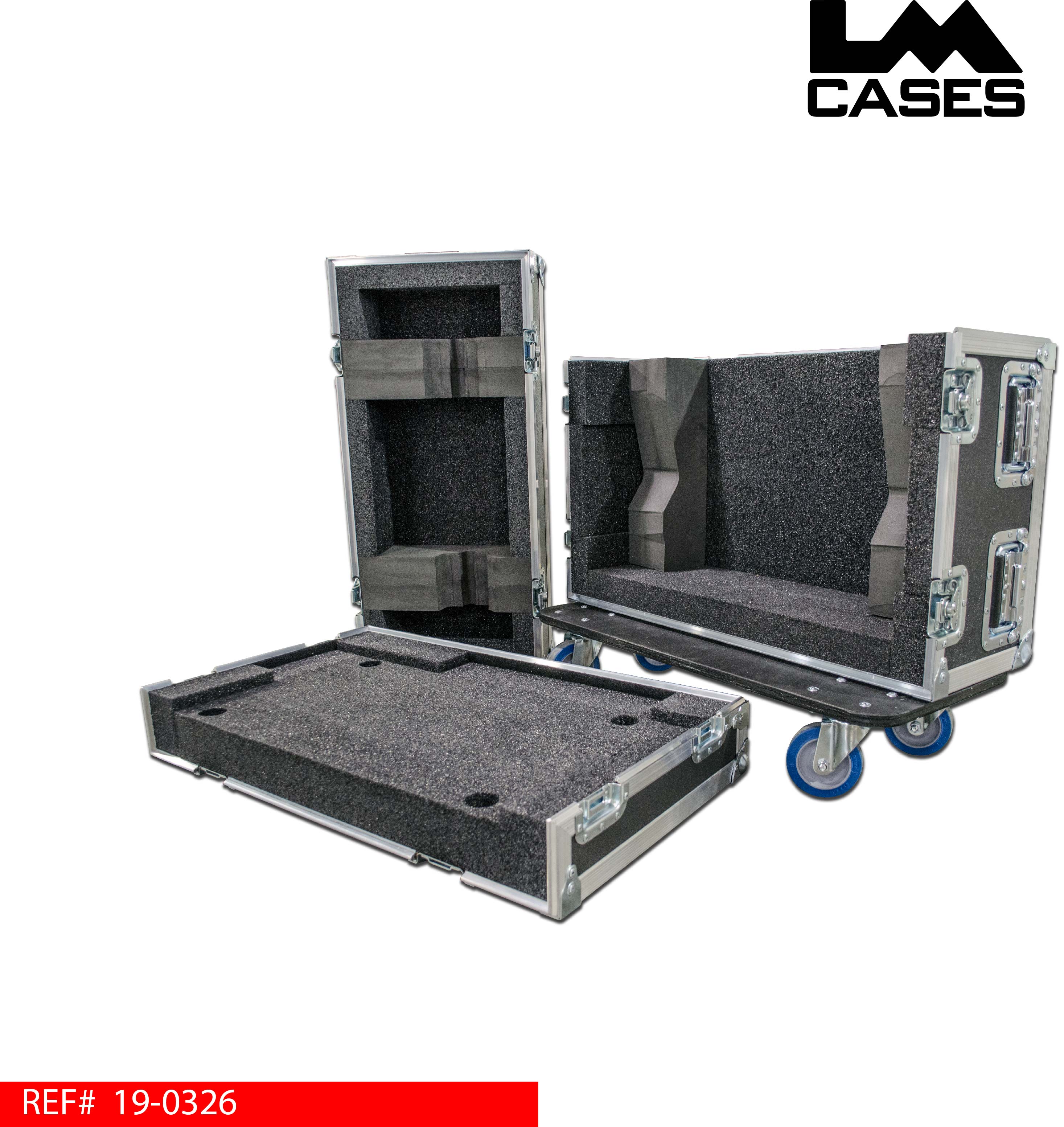

MA Lighting GrandMA 3 Compact Lighting Console Case
This case was built for Crossfade Design for their MA Lighting GrandMA 3 console. The console is held in a custom 2” PE lined compartment. Custom CNC cut Crosslink foam blocks hold the console at its palm rest and back. Holes are routed into the bottom foam to hold the console by its feet ensuring that it is always properly located in the case tray.

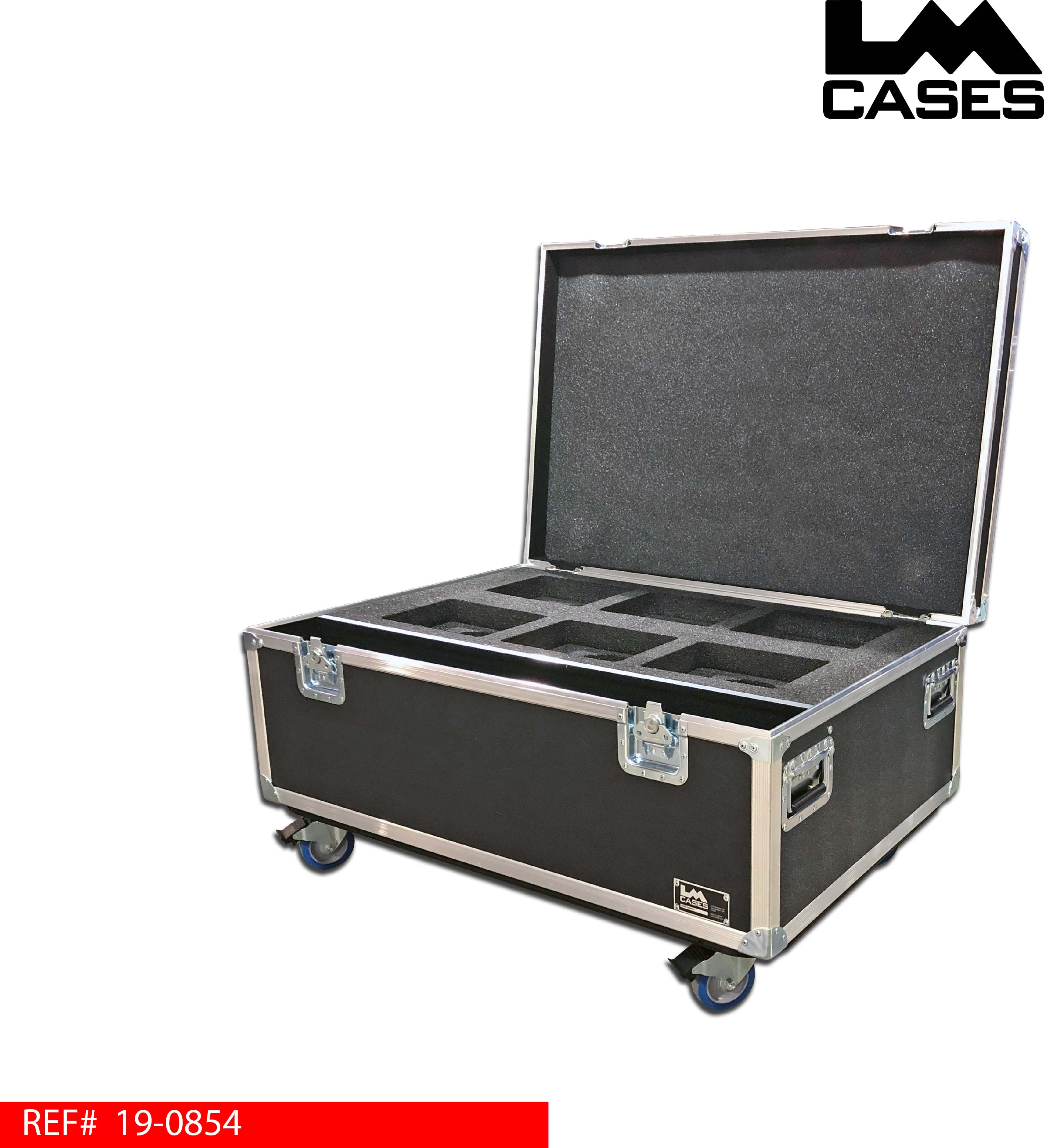

Chauvet Rogue R1 Wash Case - 6 Capacity
This case is designed to hold 6 Chauvet Rogue R1 fixtures in a custom CNC cut foam insert. Each fixture is stored lens facing down. The foam securely contours the shape of each fixture allowing safe travel even if the case is flipped. A 5.5” deep x 43.5” wide x 12.5” tall carpet lined accessory compartment is included to hold clamps, power, and safety cables. The case features 4” Colson casters (2 locking), 4 deep recessed handles, stacking caster wells, and recessed lid stays. The case is designed around a 90” truck pack with OD dimensions of 45” x 30”.

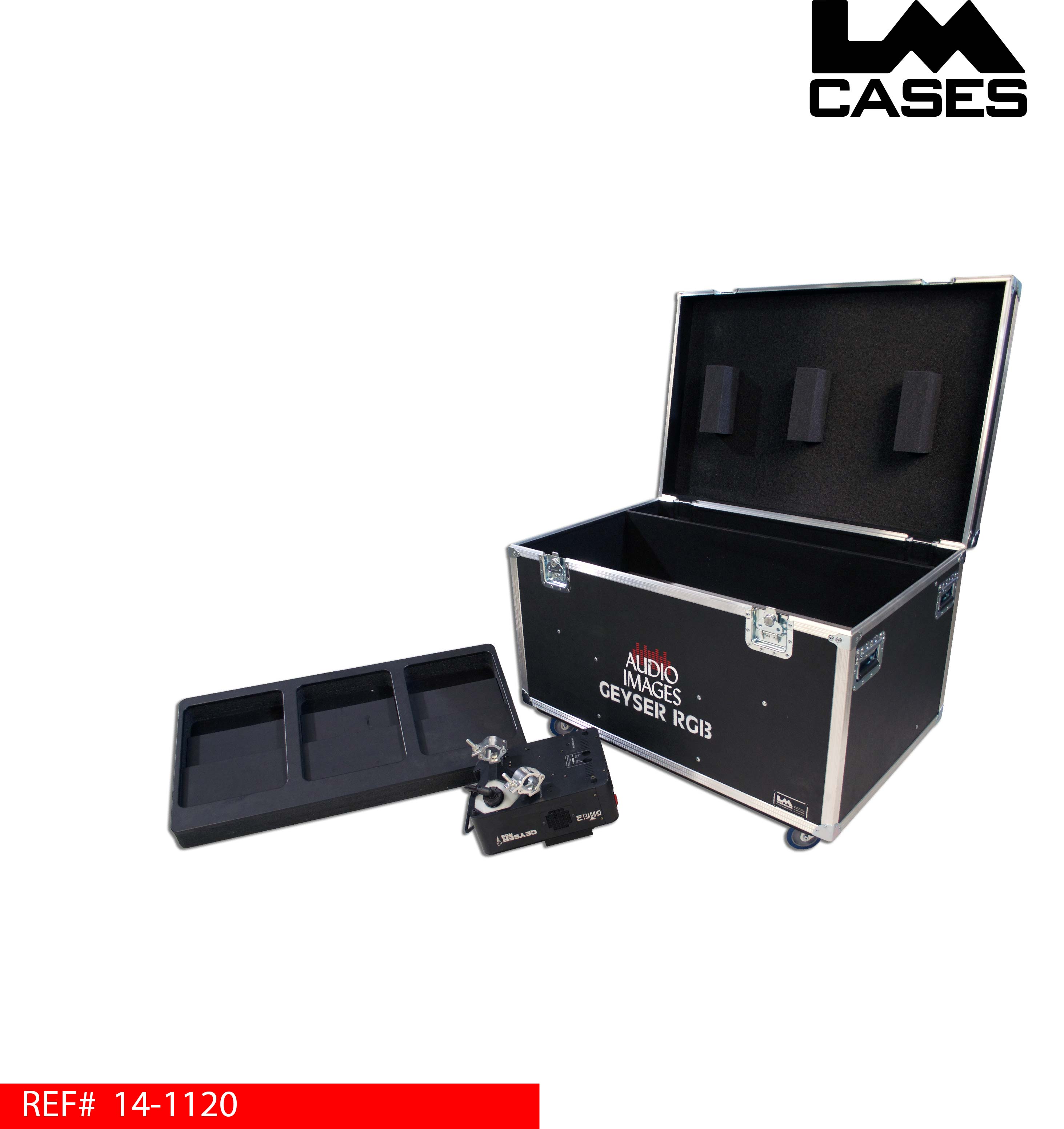

Chauvet Geyser RGB Fog Machine Case
This case was designed to hold 6 Chauvet Geyser RGB fog machines for Audio Images. Each machine is held in a custom CNC cut foam compartment. A removable tray is included to hold 3 machines in the bottom of the case, and 3 machines stacked above.

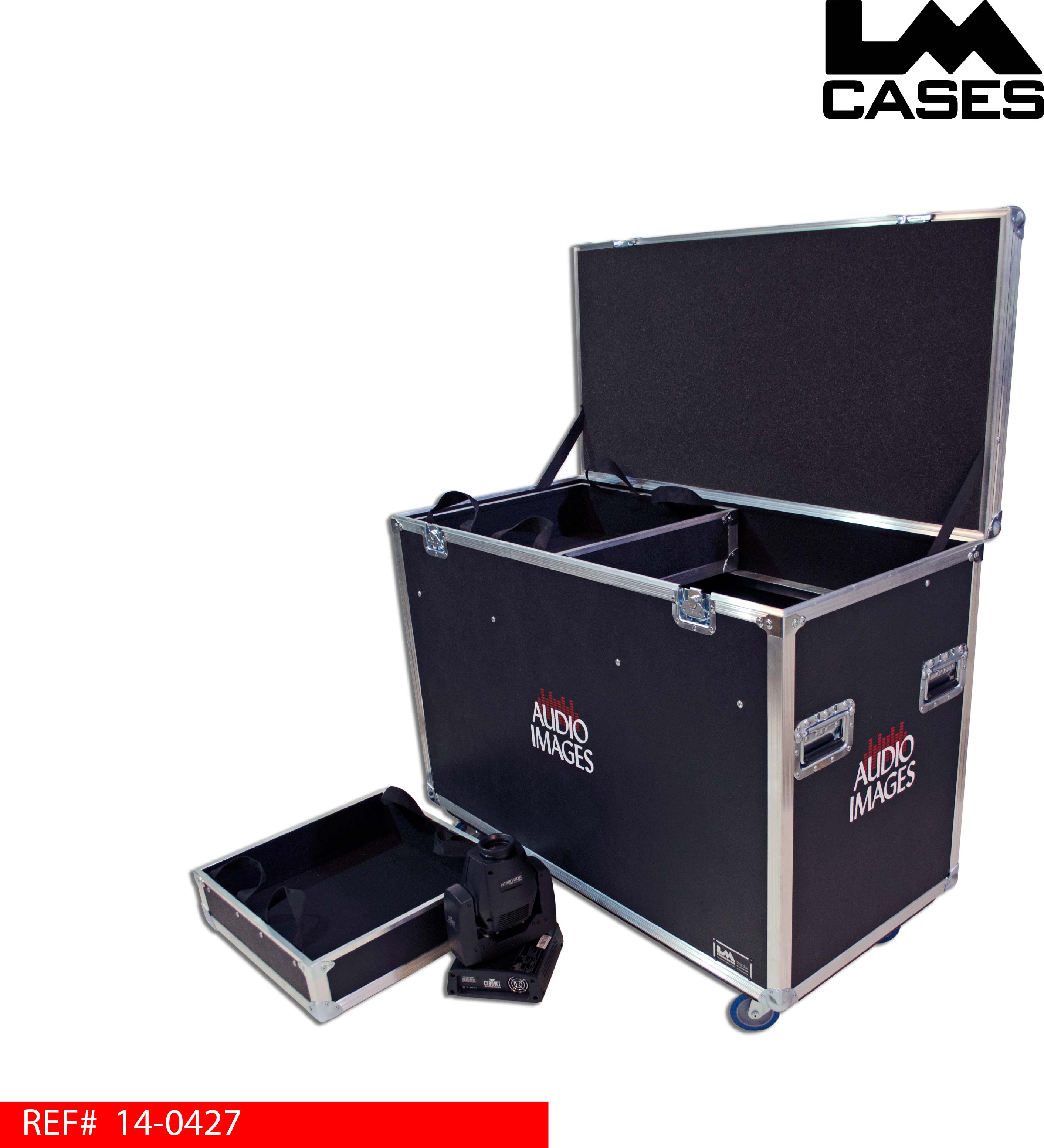

Chauvet Intimidator 350 LED - 8 Pack Road Case
This case was designed to hold 8 Chauvet Intimidator 350 LED light fixtures. Each fixture is held in an individual compartment in a CNC cut foam insert. 6” of space is allowed above each fixture base to accommodate clamps mounted to the fixture. 2 removable trays are provided above the fixtures for storage. The case exterior is 48” wide x 24” deep, and rides on 4” Colson casters.
Chroma Q Color Force 72 Case
This case was built for e33 Productions at MIT University. The case holds 3 ColorForce 72 fixtures in custom CNC cut foam cradles built out of Crosslink foam. The case also features a carpet lined accessory compartment for clamps and cables. The exterior case is built out of 3/8" plywood laminated with black ABS plastic and features 4" Colson casters, stacking caster wells in the lid, recessed lid stay's, and a recessed PAL label dish in the lid.

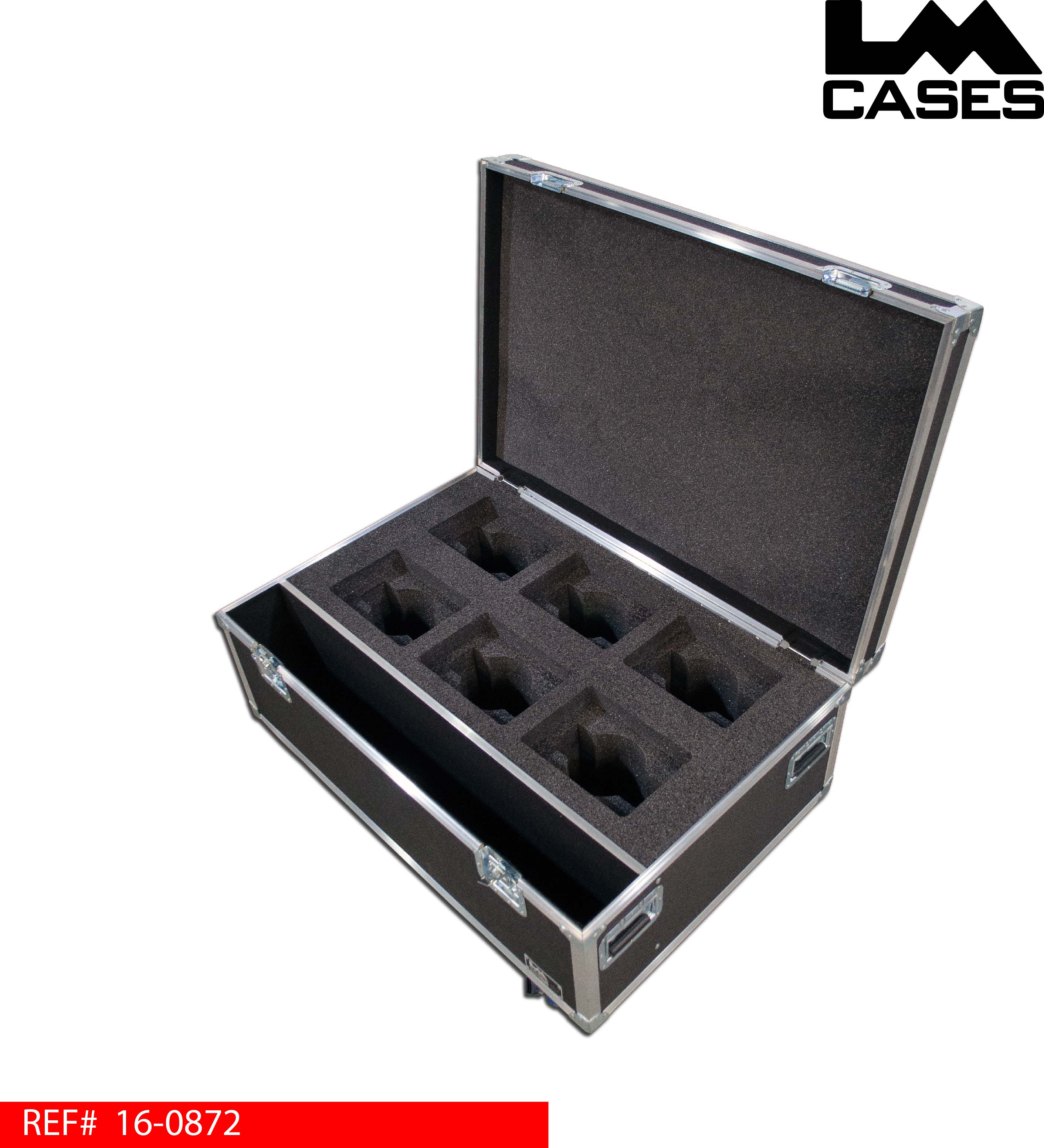

Chauvet Rogue R1 6 Capacity Case
This case was designed to hold 6 Rogue R1 light fixtures in a 96" x 90" truck pack configuration. The case is 48" wide x 30" deep allowing it to be half packed in a 96" truck and third packed in a 90" truck.

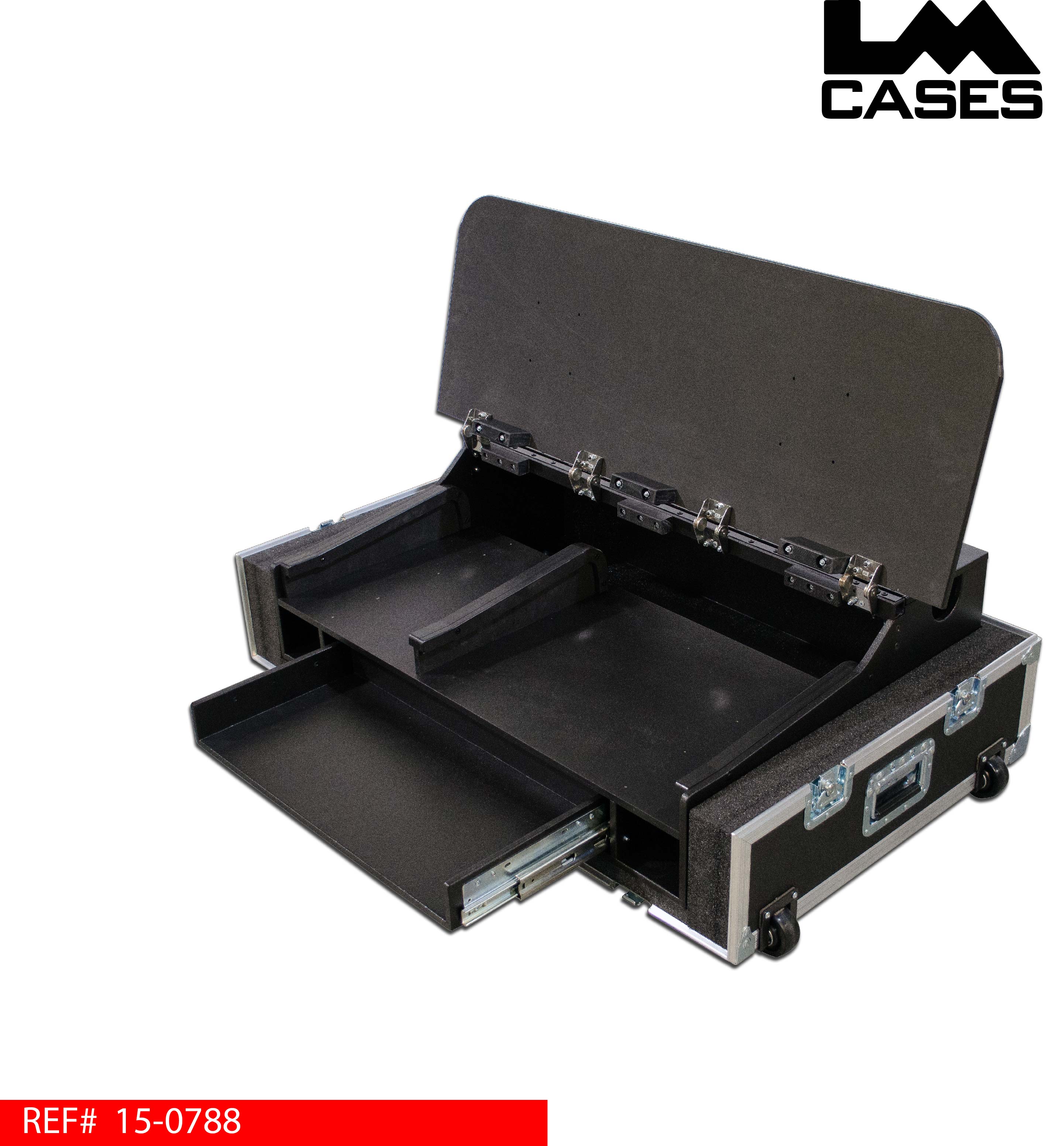

MA Lighting MA on PC / Faderwing Workstation
This case was designed for New World Symphony to be an all in one workstation for their MA Lighting MAonPC and FaderWing. The case holds the two controllers in custom CNC cut plastic brackets that contours the shape of each unit and keep them securely mounted. The case is designed to hold 2 monitors mounted on a position control board allowing them to be tilted in any position within a 180 degree range. All wiring is enclosed in a custom doghouse that includes a 2RU patch section for an IO panel. The case also includes a slide out tray for a keyboard.
8 Capacity Leko Light Case
This case was designed for Volt Lights to hold 8 Leko light fixtures with clamps attached. The exterior cases dimensions are based around a 96” truck pack. The case features an all 1/2” Marine Grade plastic divider network. The lights ride on a 2” PE foam block with a 1/4” Marine Grade plastic board laminated on top to prevent the end of the light from digging into the foam. The exterior case is built out of 3/8” plywood and features, stacking caster wells, 4” Colson casters, 8 deep recessed handles and a route out for a PAL label in the lid.
