Mixing Consoles
Allen & Heath C3500 Mixer Road Case - Medium Duty
This medium-duty flight case is designed for the Allen & Heath C3500 control surface. The case interior is lined with 2” PE foam. The console is held in place via custom foam blocking and by its feet. Foam blocks are located behind the console to space the rear connectors off the back of the case wall.
Allen & Heath C3500 Console Road Case - Tour Grade
This heavy-duty flight case is designed for the Allen & Heath C3500 control surface. The surface is held in place during transport via custom CNC cut, non-abrasive, Crosslink foam side blocks. These side blocks match the console’s contours and shape, these prevent it from sliding during transport and loading on console stands. To further keep the console in place, a ¼” marine grade plastic locator is provided to trap the console by its feet to ensure proper mating to the lid foam blocks and doghouse.

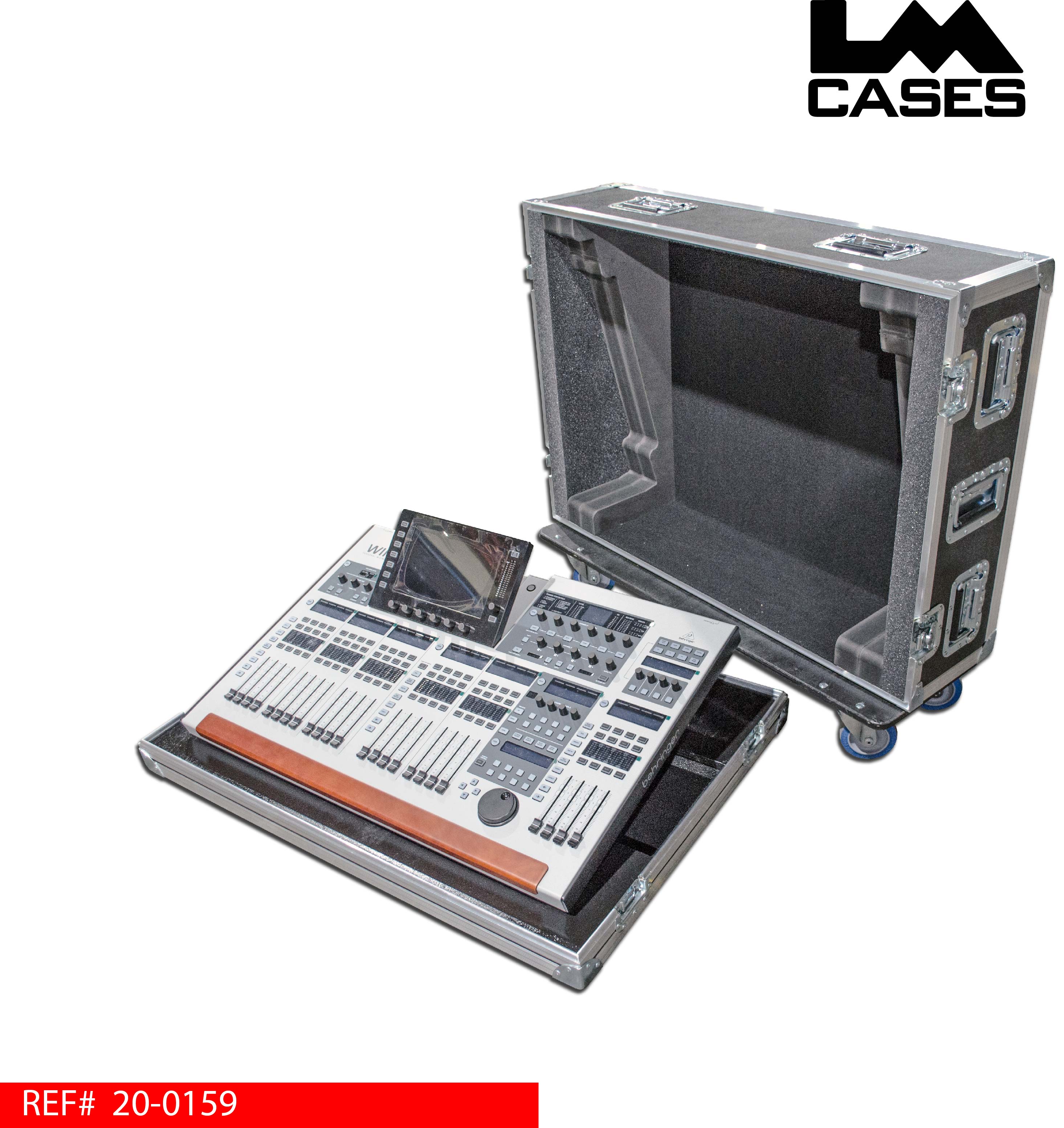

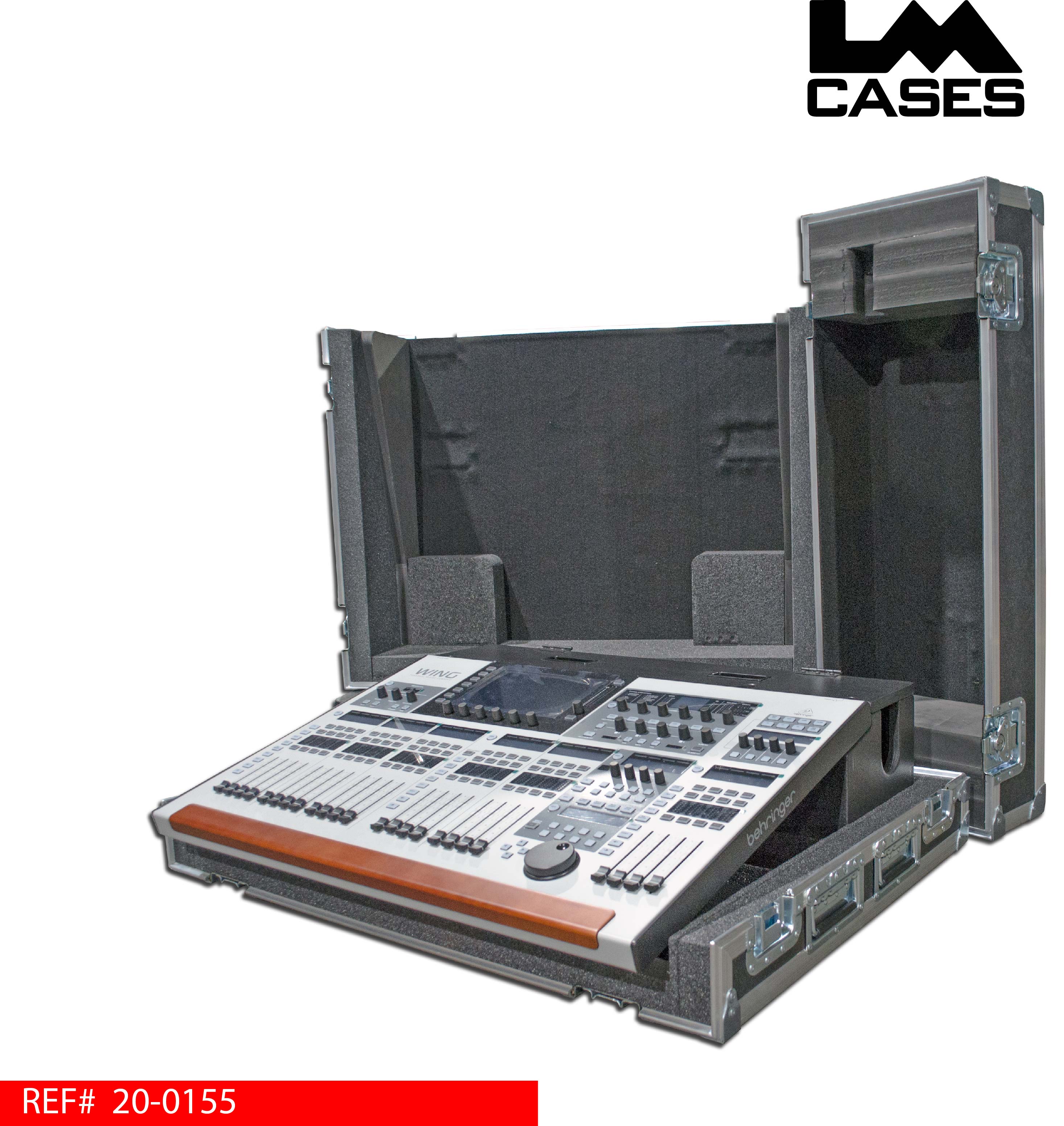

Behringer Wing Tour Grade Flight Case
This case is designed to be a heavy duty, tour grade transport solution for the Behringer Wing console. The case holds the console by its feet in the case tray. CNC routed holes in ¾” Baltic Birch hold the console in place during transport and mixing. A custom ¾” Baltic Birch doghouse contours the back of the console matching its angle at all points. Vents are routed into the back of the doghouse ensuring proper ventilation during use. CNC cut Crosslink (XLPE) foam blocks contour the unique console shape in the lid. The 3-piece design allows easy access to all points during a show. The case includes 18 deep recessed handles, and 4” Colson HD casters.
Behringer Wing Case - Medium Duty
This case is designed to be a medium to heavy duty transport solution for the Behringer Wing console. The case holds the console by its feet in the case tray. CNC routed holed in ¾” Baltic Birch hold the console in place during transport and mixing. CNC cut 4” Crosslink (XLPE) foam blocks contour the unique console shape in the lid. The case includes 8 deep recessed handles, and 4” Colson HD casters.

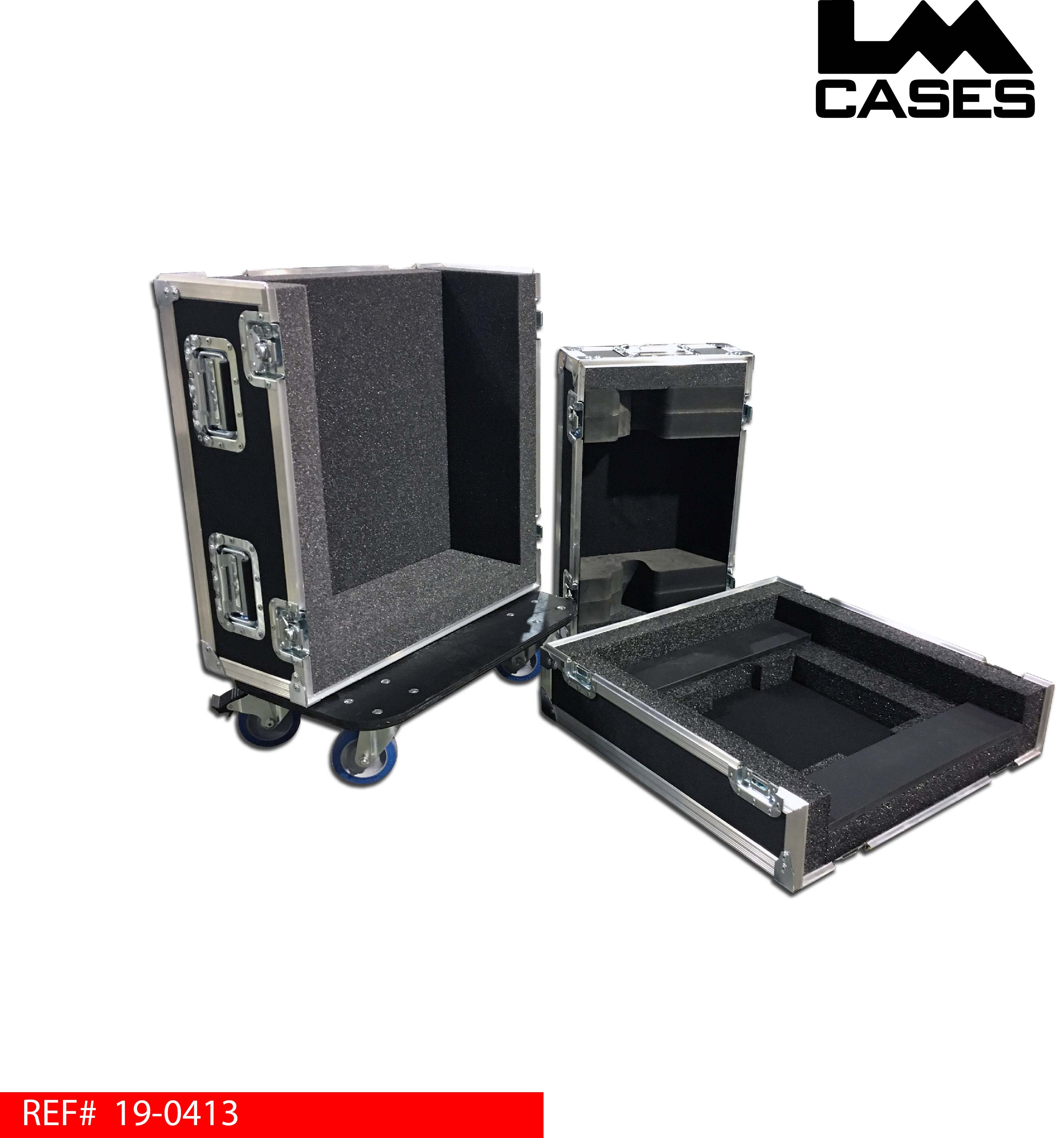

Midas M32R 3 Piece Lid Mixing Console Case
This case is designed to hold a Midas M32R mixing console. The three piece design allows the console to be used in the case bottom tray with the top, and nose lids being removable. The exterior features 8 deep recessed handles. A handle is located in the case caster pad to help move it when on a table top or EZ Tilt. The case exterior is built from 3/8” plywood laminated with your choice of ABS laminate color. The case rides on 4” Colson casters and features a full ¾” thick birch wheel pad.

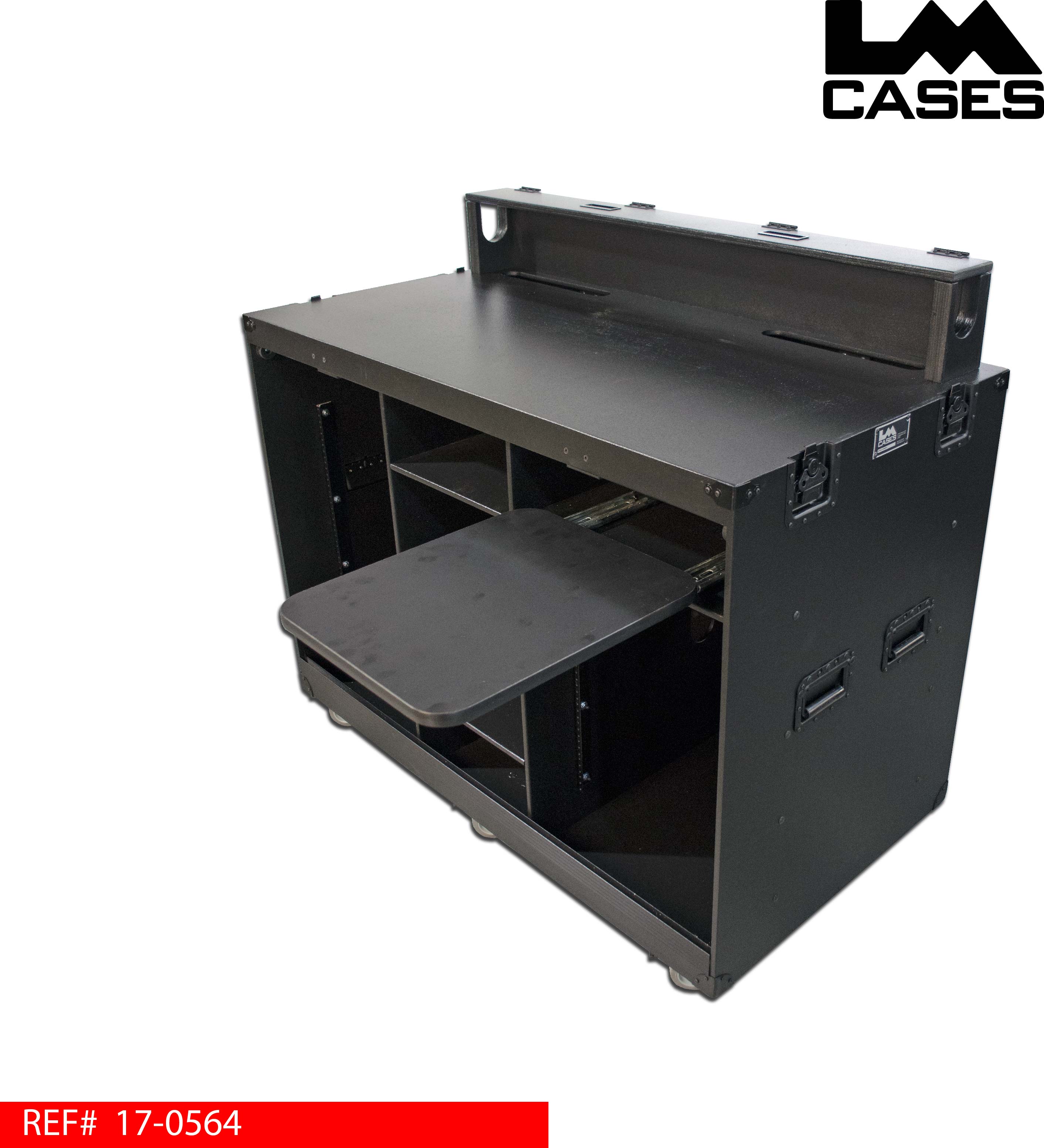

Installed Yamaha QL5 Mixing Console Work Station Desk
This case was built for a church to provide a front of house work station to hold their Yamaha QL5 mixer, and provide storage for production equipment.

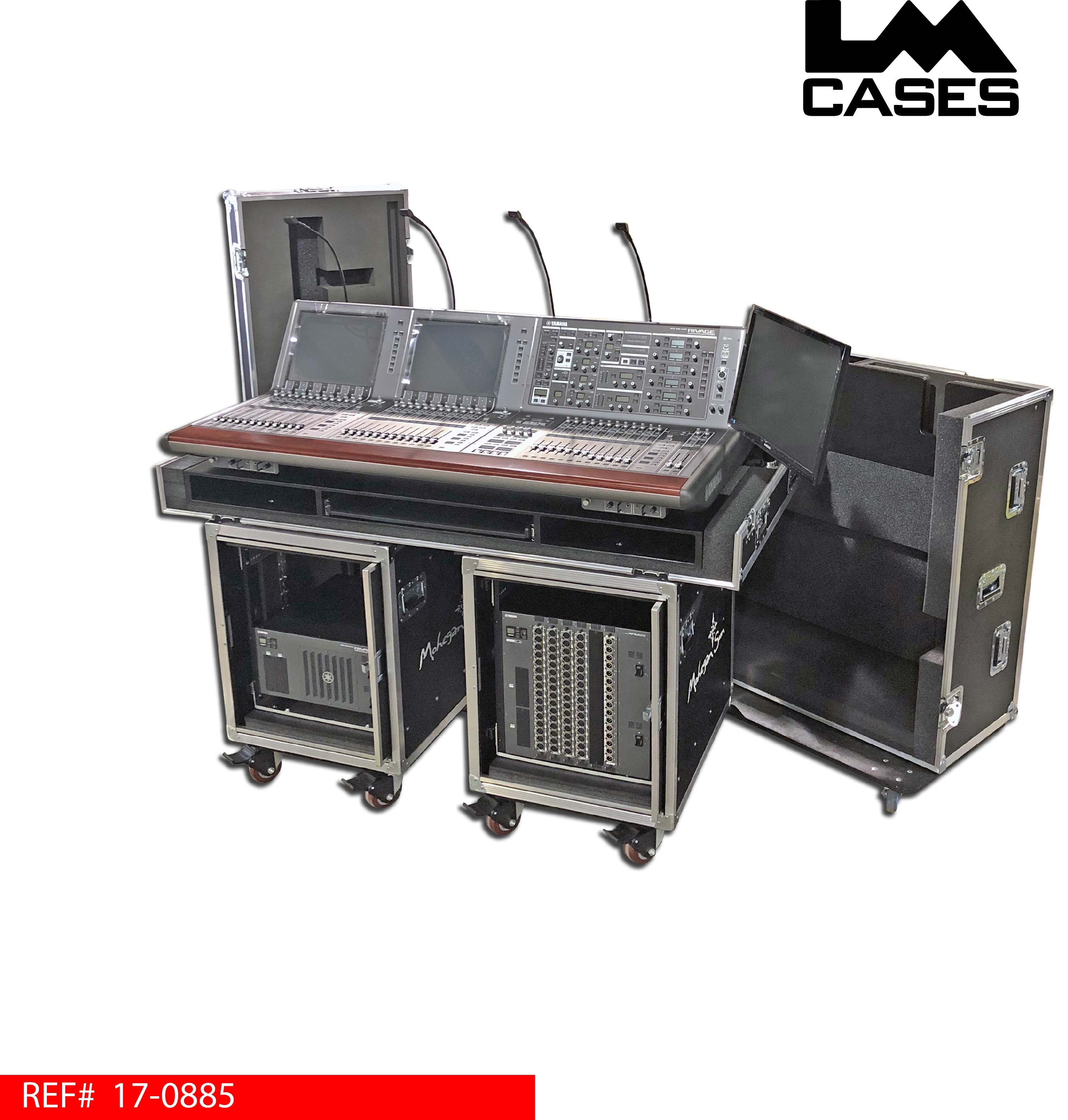

Yamaha PM10 Rivage Mixing System Case Set
The console case is designed to hold the Yamaha CS-R-10 control surface, which is part of the PM10 Rivage system. The case holds the control surface on a ½” Baltic birch internal structure that traps the surface by its feet. The internal structure supports a slide out keyboard shelf at the front and a doghouse at the back. The control surface is supported by 2” PE foam at all points. CNC cut foam blocks that match the contour of the console are provided to ensure that all parts are supported during transport. The back of the control surface is covered and supported by a custom doghouse. The doghouse is built out of ¾’ Baltic birch and features a top lid that hinges flat against the back of the doghouse. The back of the doghouse also features 2 removable vented panels that secure with HD Southco slam latches.

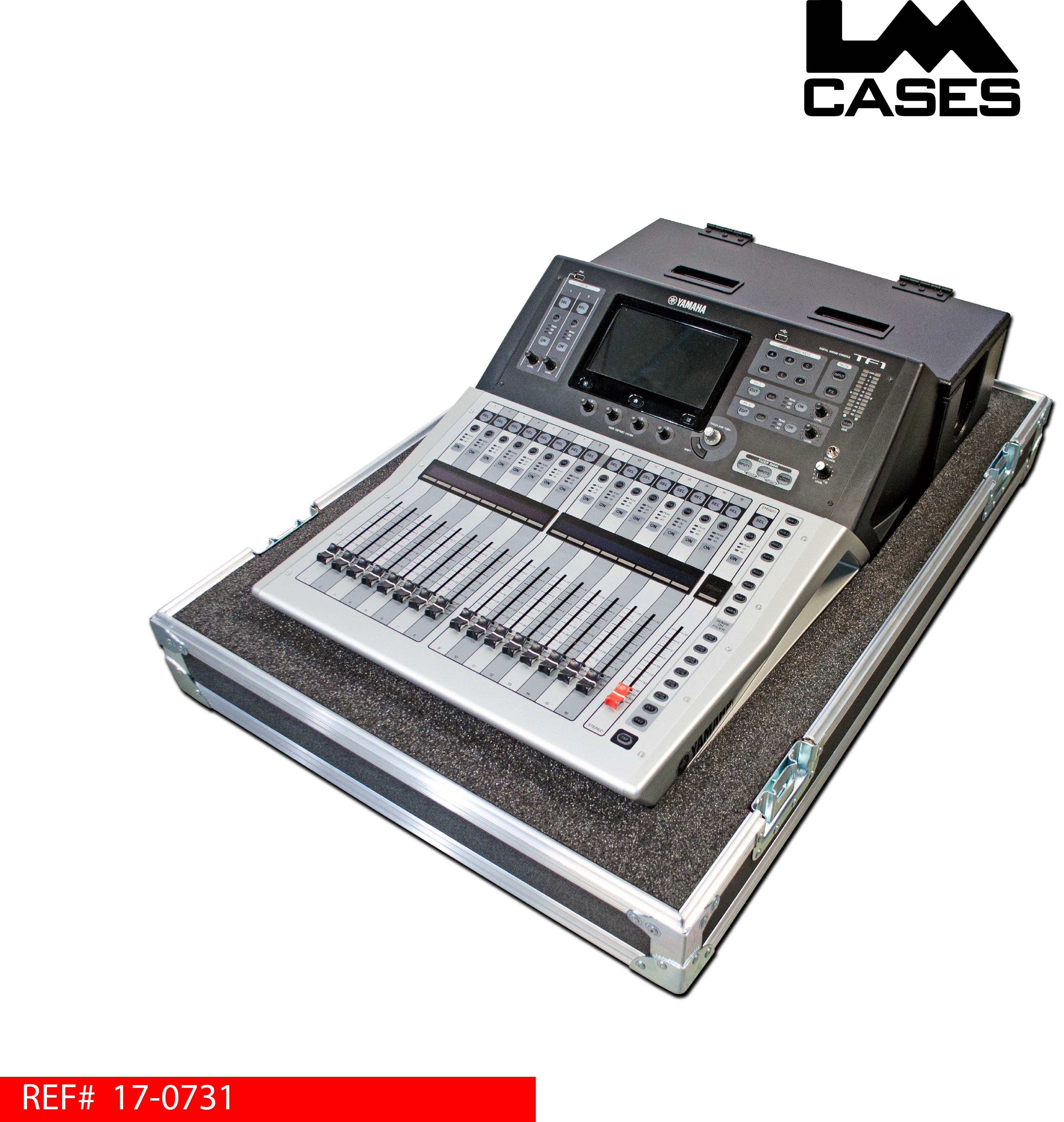

Yamaha TF1 Mixer Case With Doghouse
This case was built for Audible Difference Inc. to hold a Yamaha TF1 mixing console. The console is held in a custom designed 2” foam interior. Holding the console in place in the case tray is a custom CNC cut 2” PE foam insert. The foam insert follows the tapered shape of the console allowing it to be supported along all points, not just the widest point. Cable connections to the console are hidden behind a custom doghouse. The doghouse is built out of ¾” Baltic Birch plywood and finished with black texture coating.

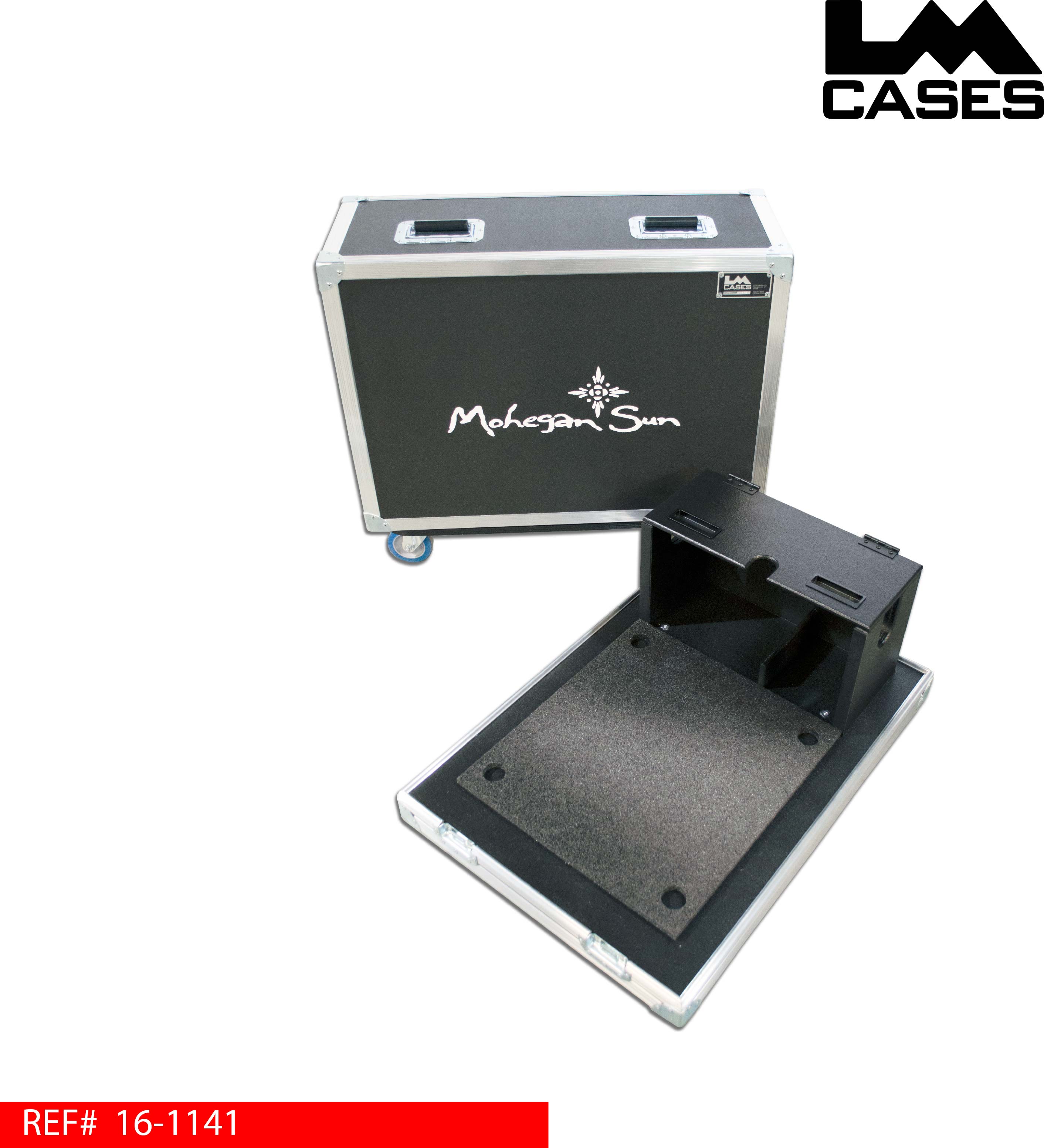

Yamaha QL1 Mixing Console Case With Doghouse
This case was designed for Mohegan Sun Casino to hold a Yamaha QL1 digital mixing console. The case features a 1" PE foam lined interior with a custom doghouse built out of 3/4" Baltic Birch plywood.

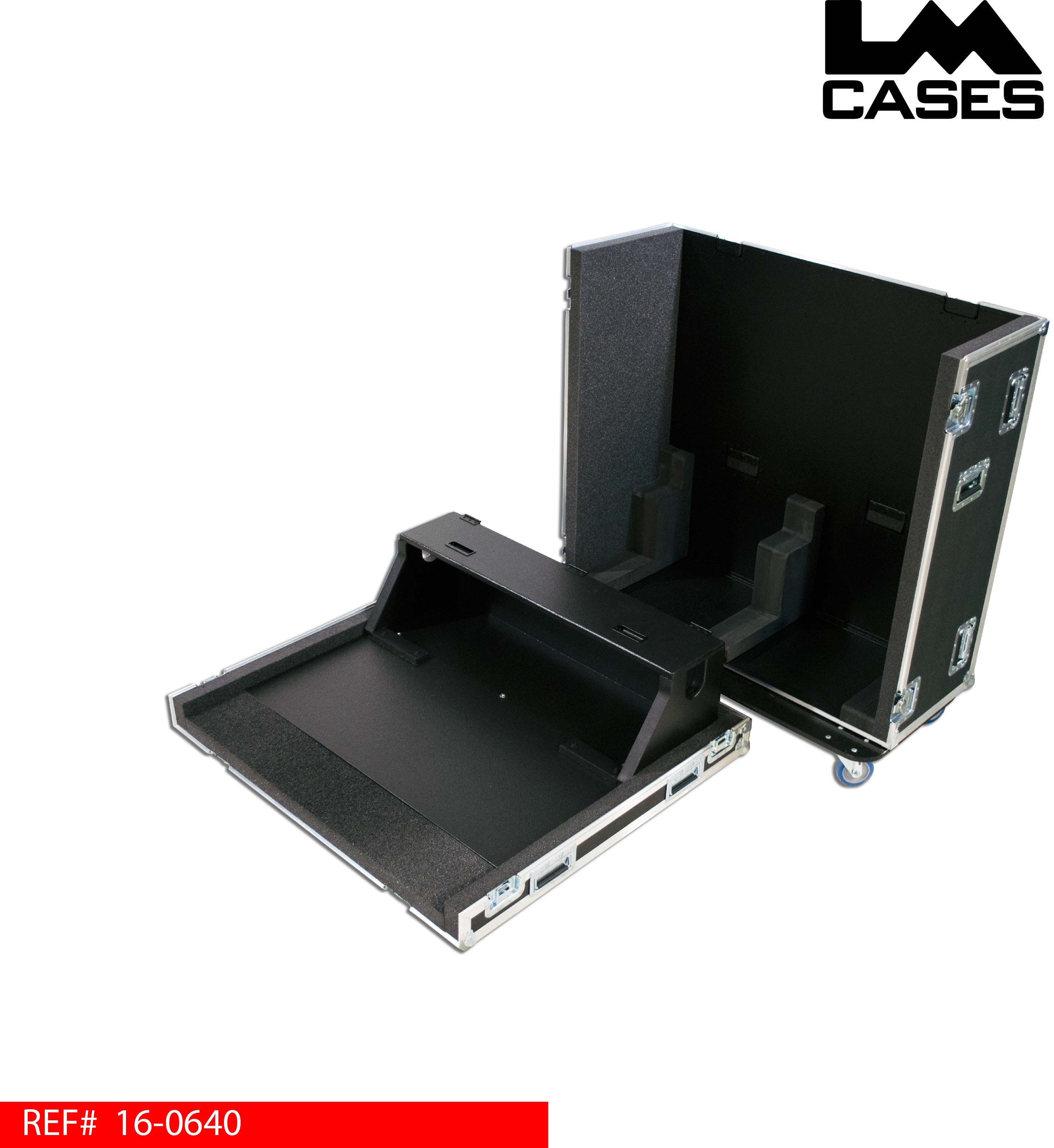

Lawo MC36 Console Case
This case was designed for YouTube to hold thier Lawo MC36 console. The case is engineered to contour the shape of the console, wrapping the interior foam and doghouse around the angled features and screens. The console is protected by no less than 2" of foam at all points. The case interior features Crosslink foam which is a closed cell material to prevent any scratchers to the console or its screens. The interior also features a 8" deep doghouse that is built out of 3/4" Baltic Birch plywood that is finished with black texture coating.

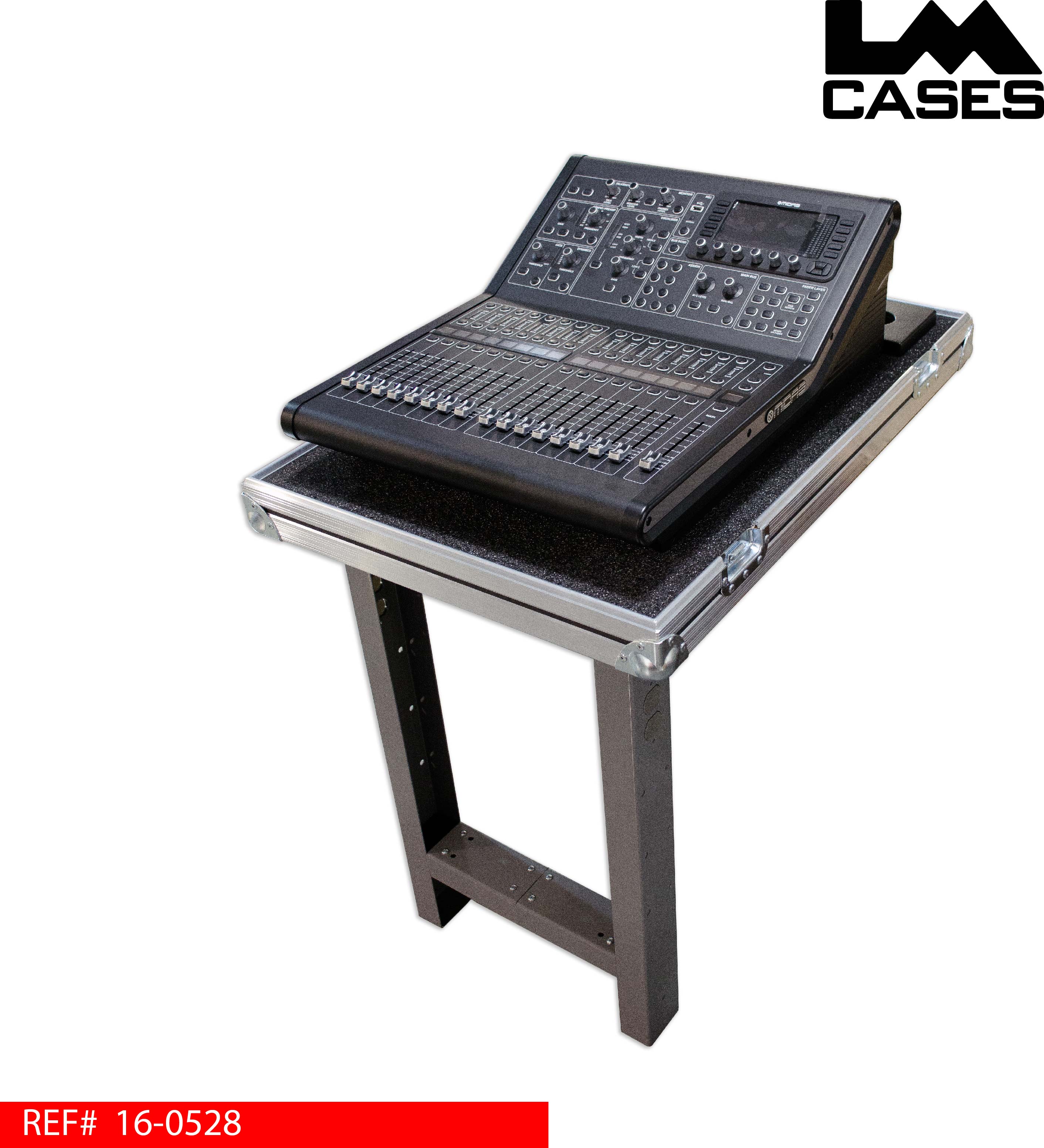

Midas M32R Venue Install Mixer Case
As part of an installed sound system, our client had the unique need to store and protect the venue's Midas M32R while leaving it wired into the system. Because of limitations at the venue, the console could only be placed on a ledge that was not deep enough to accommodate it. The solution was to build a case that could be secured to the ledge at the rear and hang off at the front. To accomplish this, a set of table legs were cut to allow the case to use the rear ledge as a support and safely support the front weight via the legs.
Avid S6L-24 Console Case w/Doghouse & Monitor Storage
This case was built for Maryland Sound International to hold an Avid S6L-24 mixing console. The case interior is designed as a mirror image of console, the foam follows all the contours of the desk for the ultimate support in any orientation. A custom doghouse is included for a finished look in addition to two monitor mount posts allowing monitors to be positioned on either side of the console.

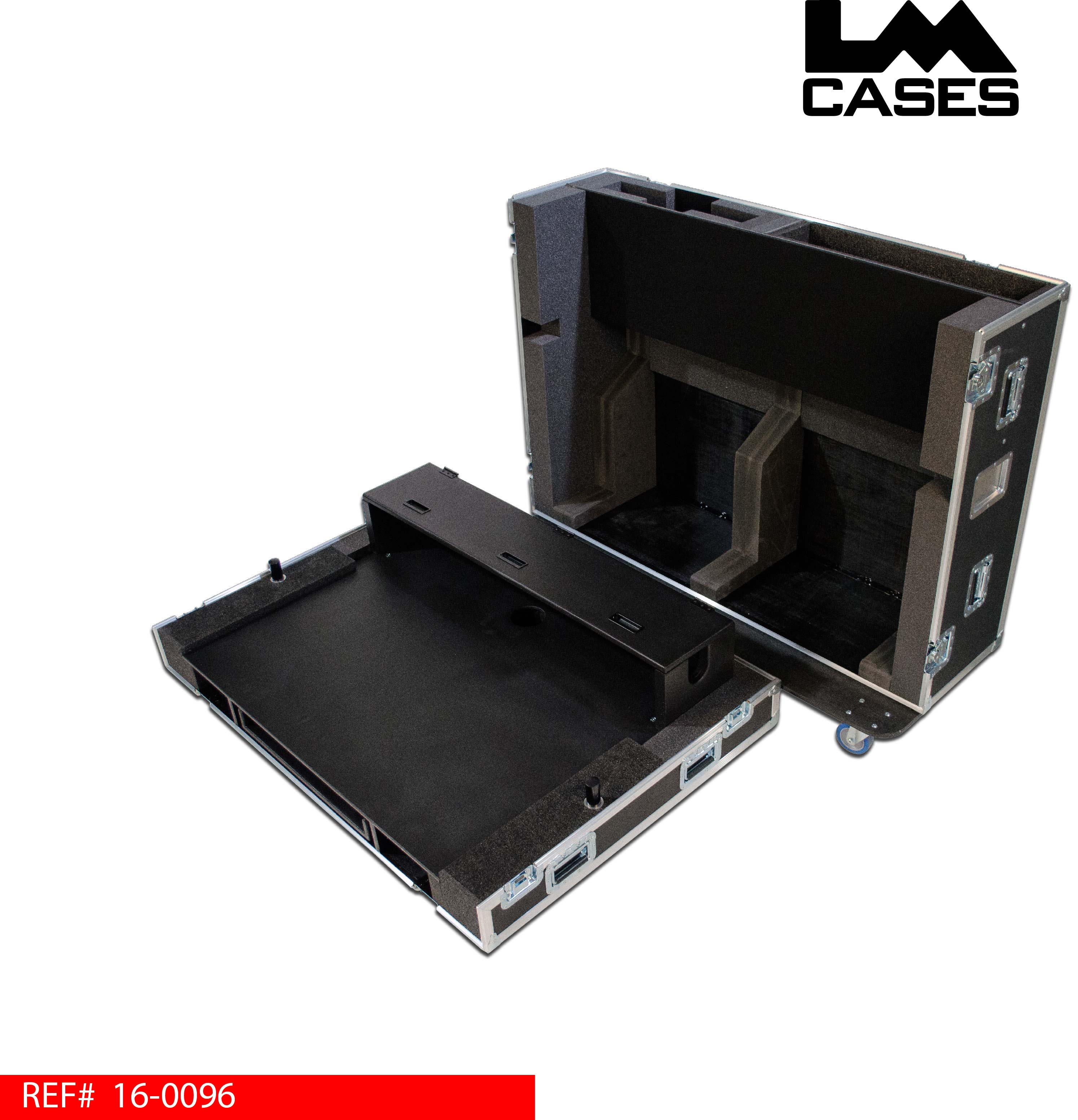

Avid S6L-32 Console Case w/Doghouse And Monitor Storage
This case was built for Maryland Sound International to hold an Avid S6L-32 mixing console. The case interior is designed as a mirror image of console, the foam follows all the contours of the desk for the ultimate support in any orientation. A custom doghouse is included for a finished look in addition to two monitor mount posts allowing monitors to be positioned on either side of the console.

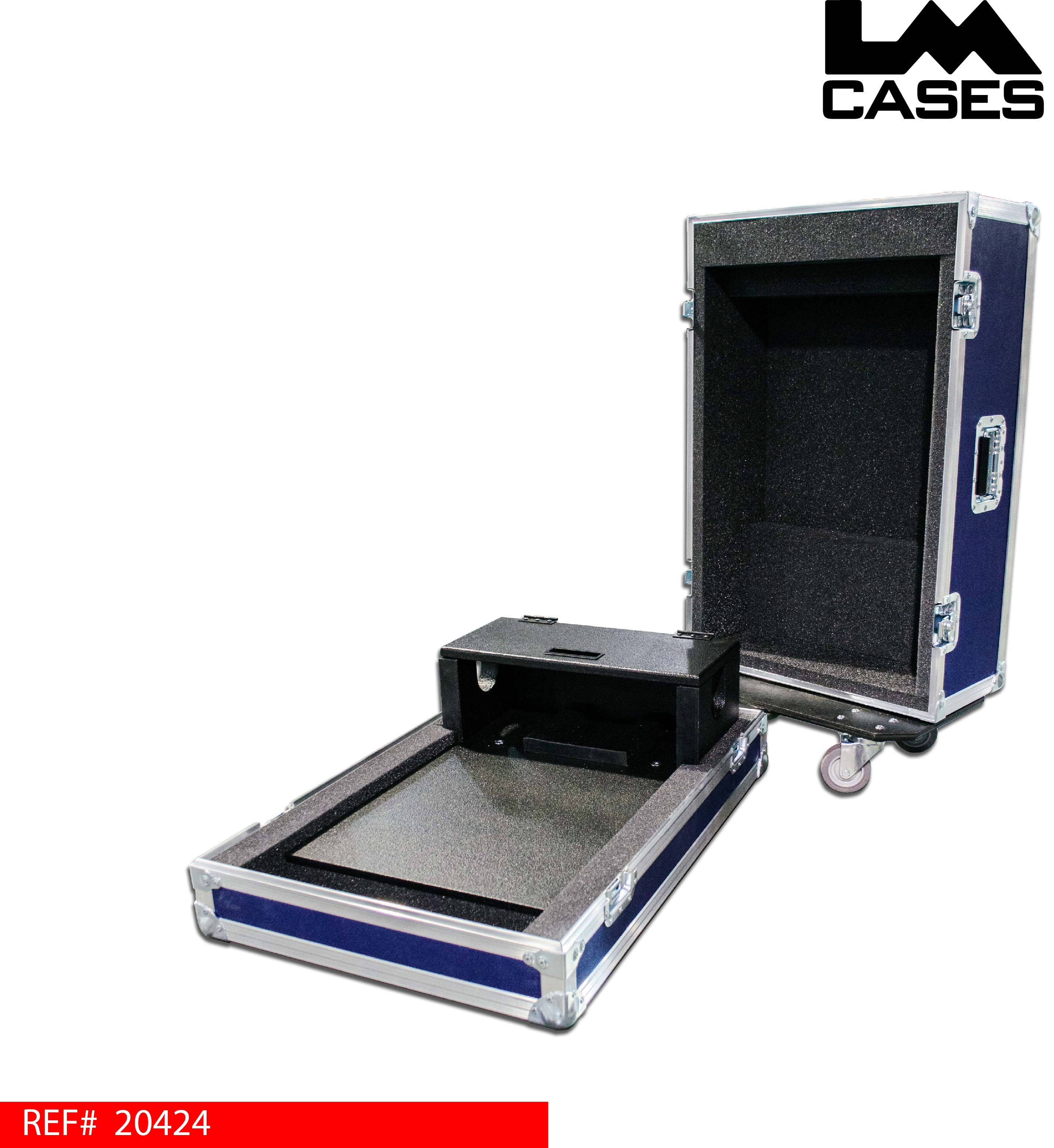

Yamaha LS9-16 Case With Doghouse
This case was designed for VAE to house a Yamaha LS916 console. The case features a 1” Ester foam lined interior with custom blocking at the palm rest and by the integrated screen. A 8” deep doghouse built out of high quality 3/4” Baltic Birch finished with black texture coating hides the I/O section of the console for a sleek finished look perfect for corporate events. The exterior case is built out of 3/8” plywood laminated with your choice of ABS plastic and features 3 recessed handles and 3.5” casters with a full 3/4” Birch caster pad.

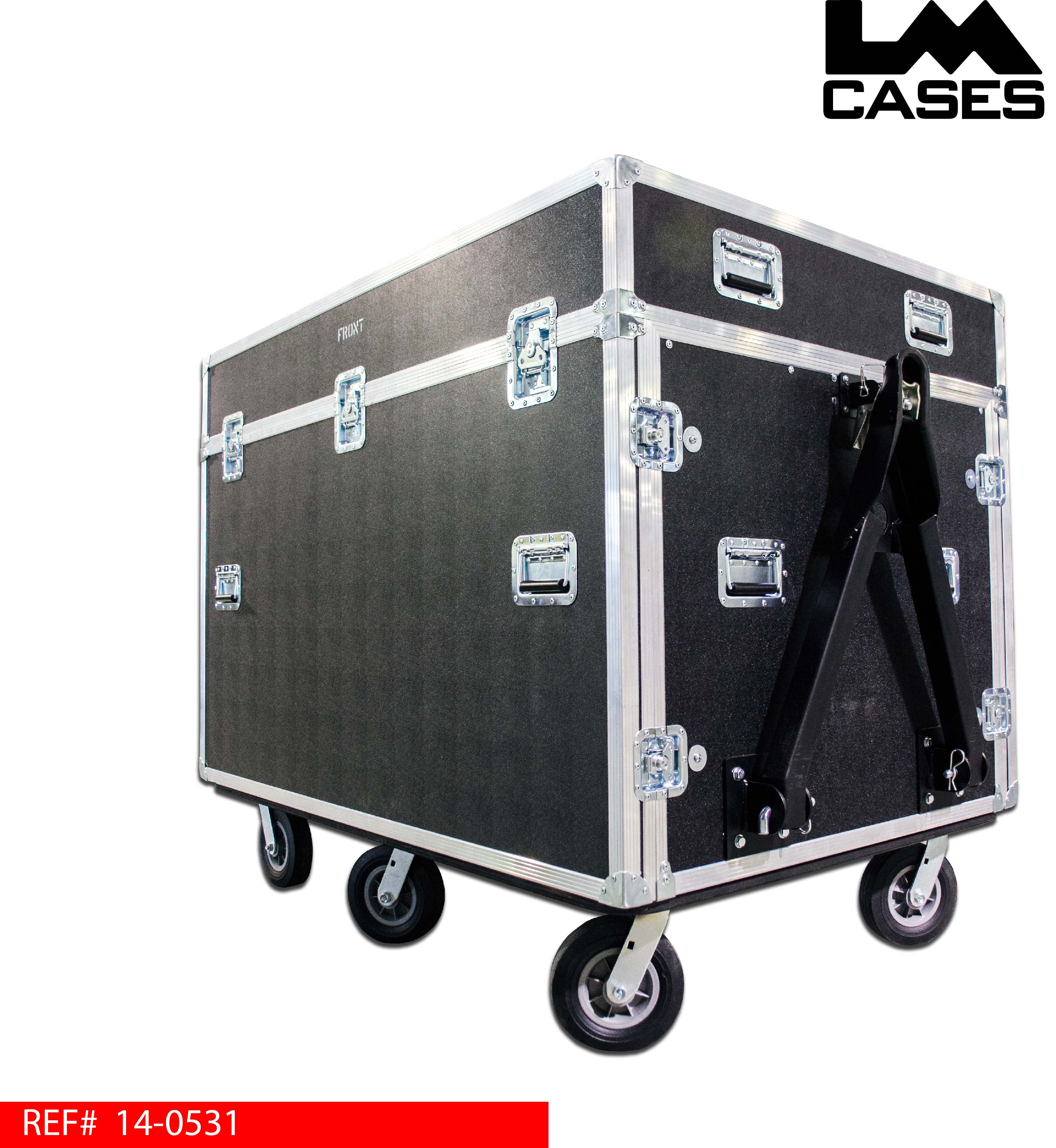

Portable Marching Band PA System Case
This case was designed for the Palen Music Center to provide an on field PA system control case that can be towed on the field with a Gator, ATV or pickup truck for a marching band's half time show. The case is designed around a Presonus Studiolive 24.4.2 mixer and has 3 shock mounted racks for equipment storage.
