Yamaha QL1 Double Wide Workstation

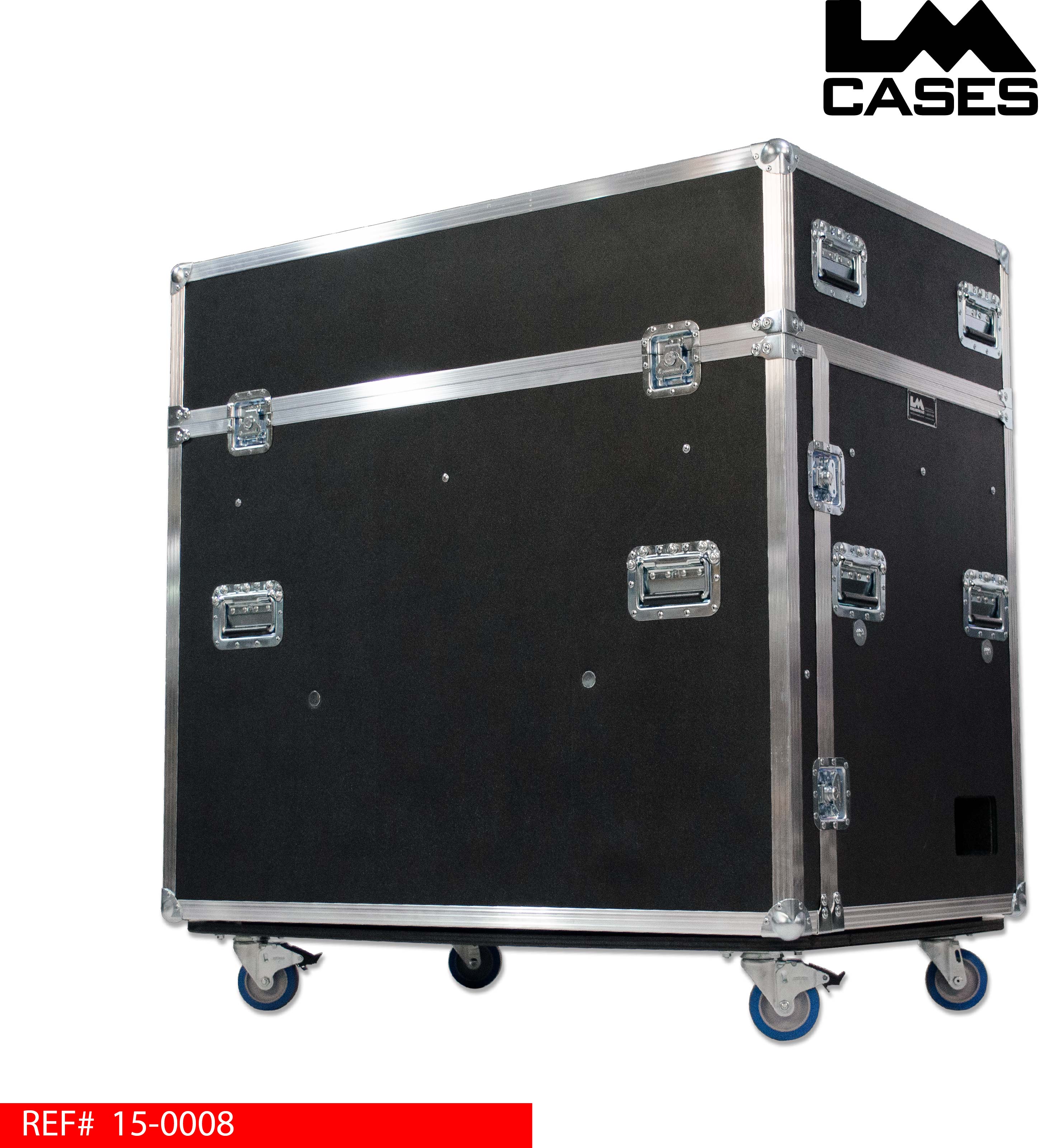

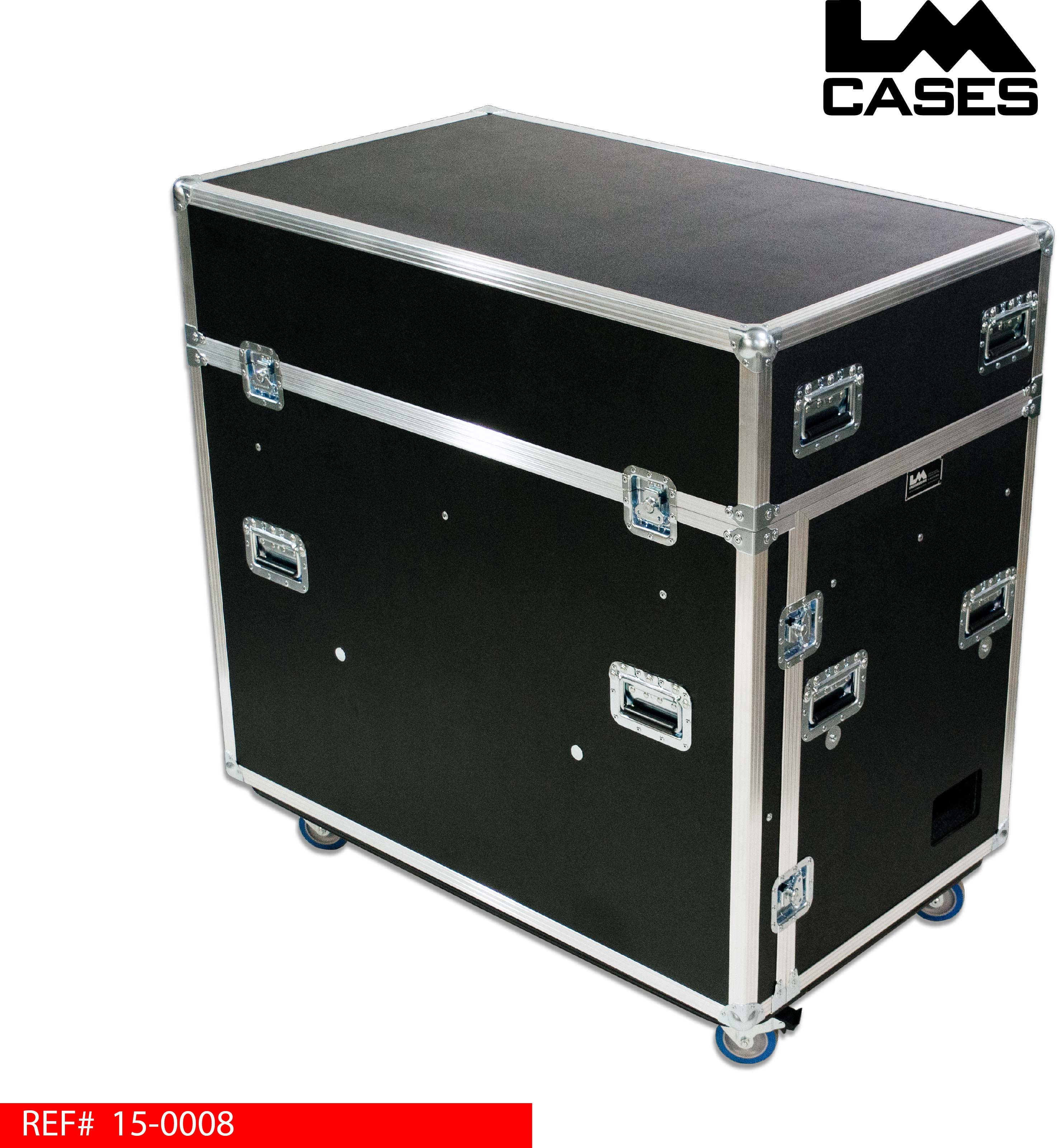

The LM Cases Yamaha QL1 Double Wide Mixer Workstation is a professional touring workstation designed to combine a Yamaha QL1 digital mixing console, dual equipment racks, and a large production work surface into one road-ready package. The double-wide design provides a complete operating position for front-of-house audio, monitor mixing, broadcast, theatrical productions, corporate events, or other applications where additional control and workspace are required.

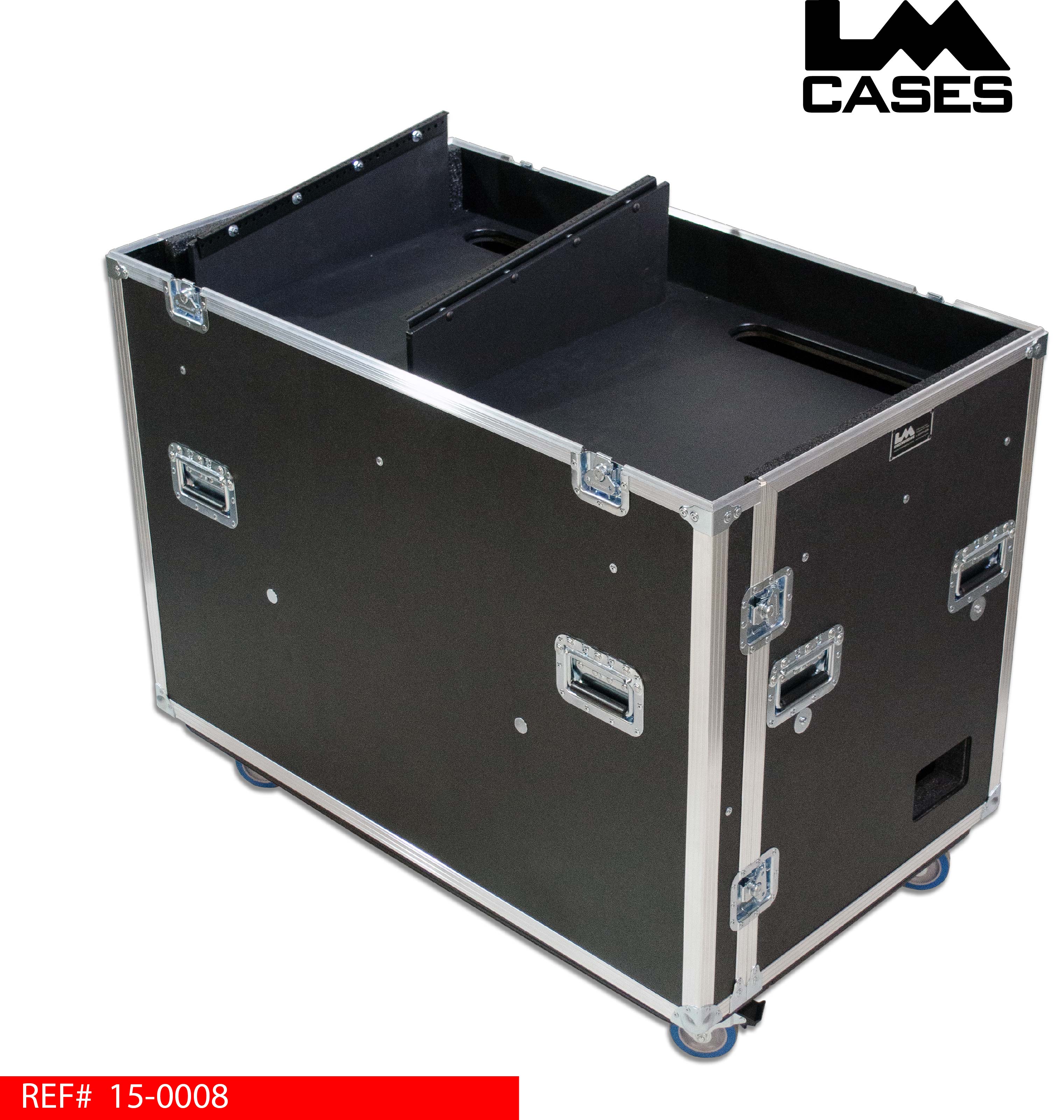

The upper work surface features a 12RU angled rack section designed to securely mount the Yamaha QL1 console at a comfortable operating angle. Beside the console is a large HDPE work surface that provides room for a laptop, compact lighting or video controller, communications equipment, paperwork, or other production accessories. It can also serve as a dedicated workspace for a stage manager or show caller. The drawing confirms the separate HDPE work surface and angled console position.

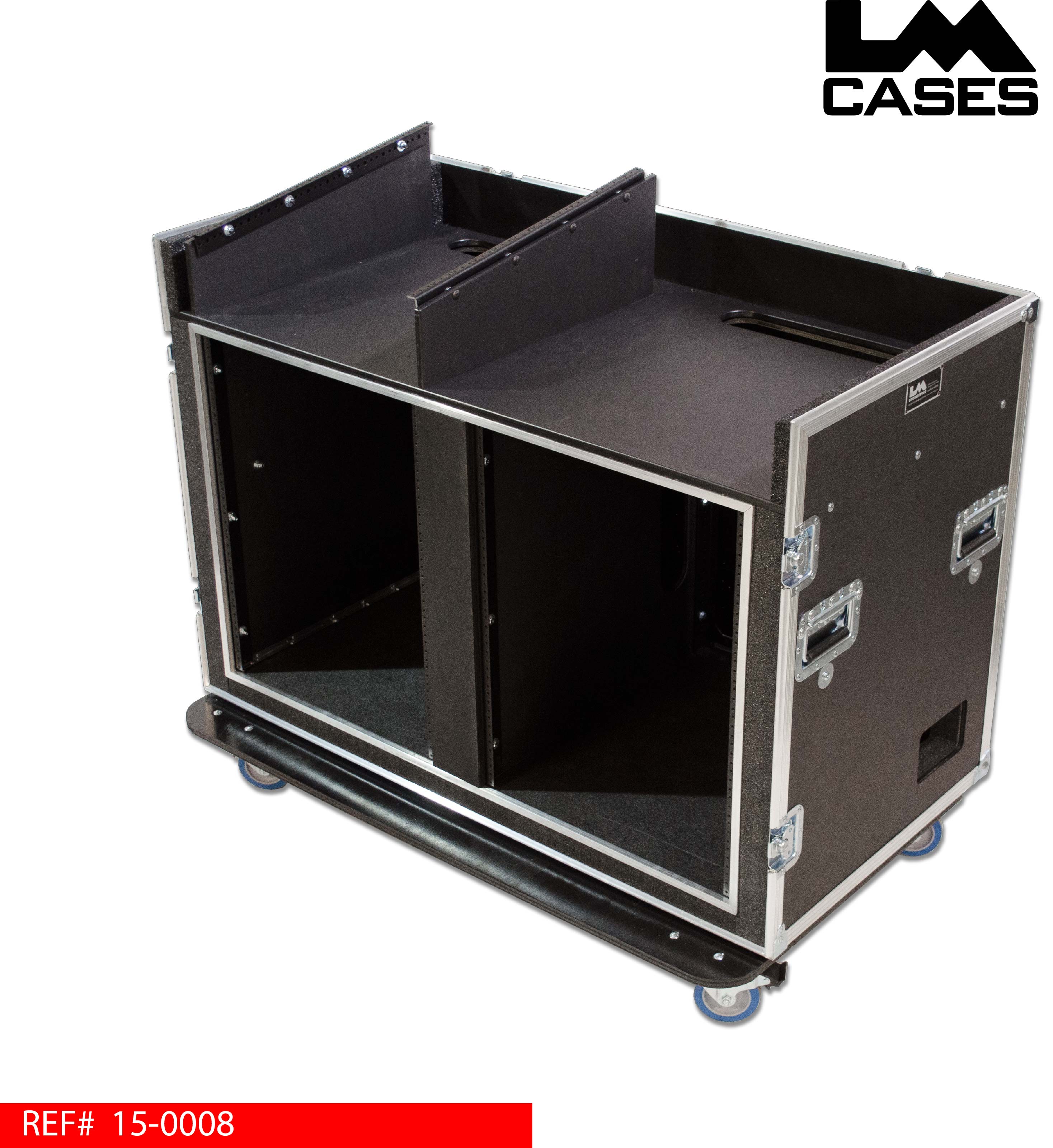

Below the work surface are two fully shock-mounted 14-space rack sections, providing substantial room for wireless systems, playback equipment, networking, DSP, interfaces, power distribution, computers, or other production hardware. Both rack sections include rear rack rail for mounting additional equipment and cable-management components.

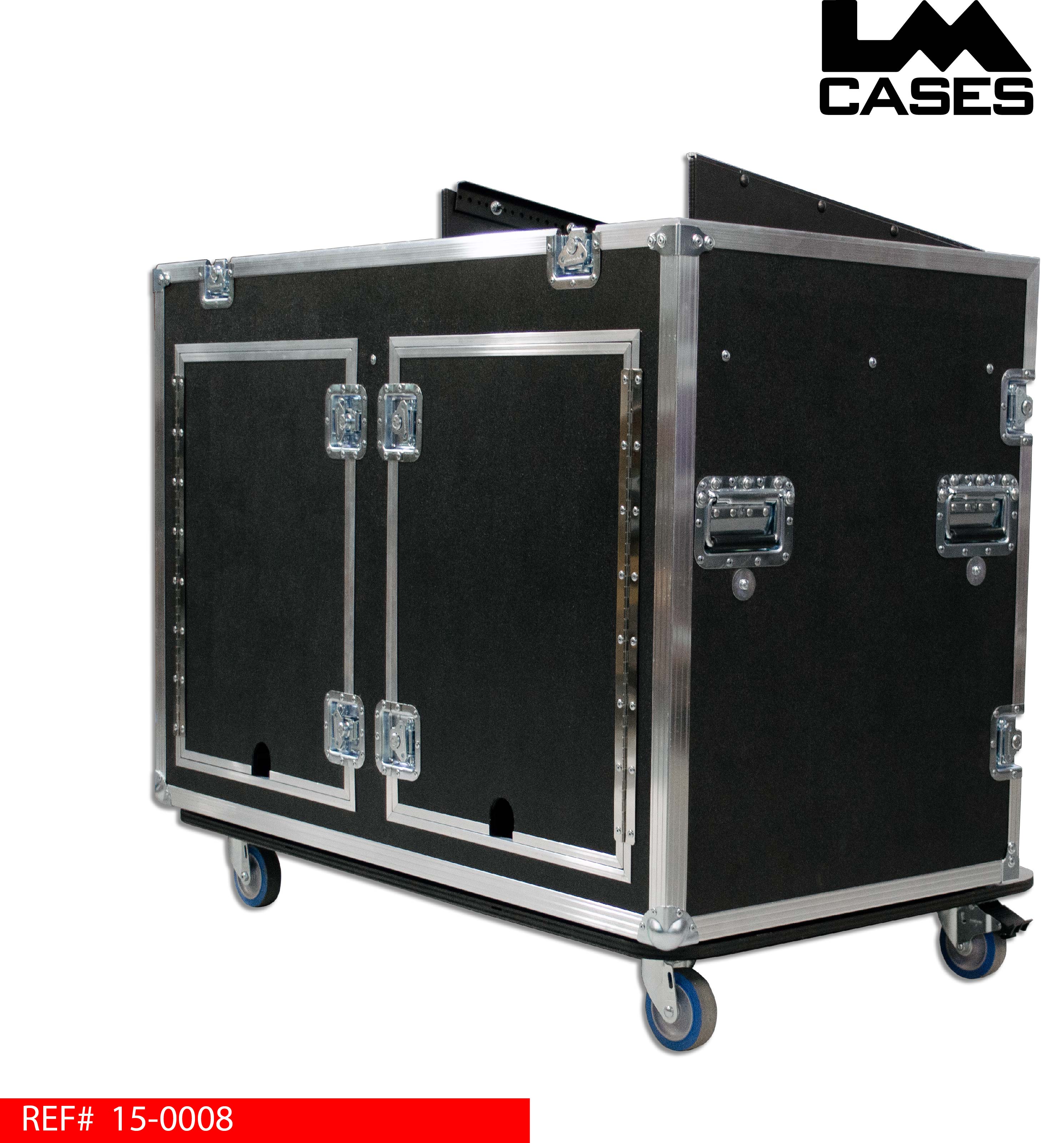

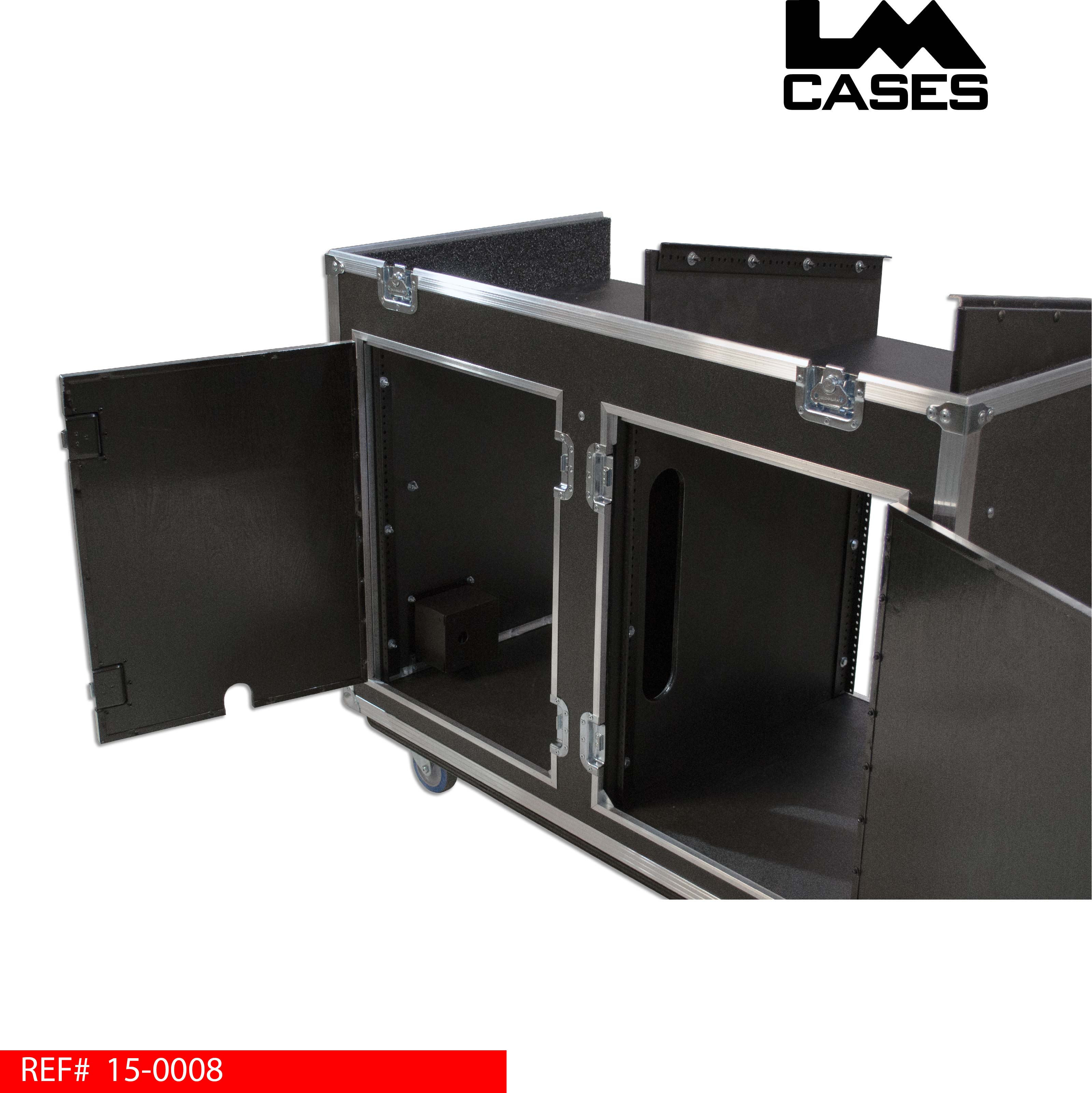

Each rack features its own independent rear trap door, allowing technicians to access the rear of the equipment without removing the main case lids. Integrated mouse holes/cable pass-throughs allow connected cables to remain routed into the rack while the rear doors are closed, making the workstation especially useful for systems that remain partially wired between shows. The rear cable-pass opening is also shown in the case drawing.

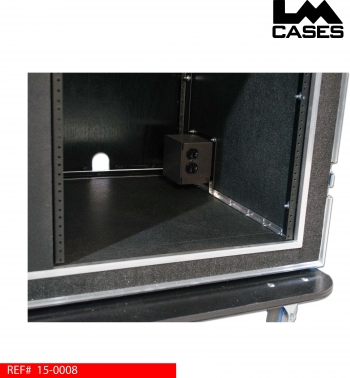

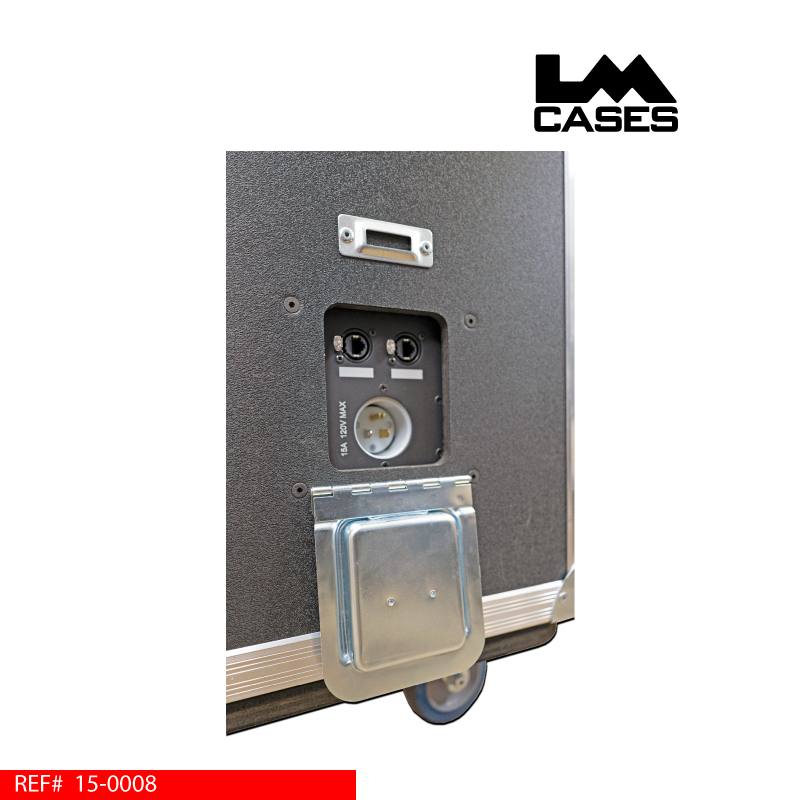

The right-side rack section includes a custom enclosed power and network I/O box located behind the exterior cable hatch. The panel incorporates a Hubbell 5278C AC inlet feeding an internal Hubbell duplex receptacle along with two Neutrik NE8FDX-P6 Cat 6 feed-through connectors, providing a clean connection point for power, digital audio, networking, or control. The drawing specifically identifies the I/O power and D-punch box behind the cable hatch. A 25 ft. LM Tour Systems heavy-duty AC power cable is included.
The workstation is constructed from 3/8" plywood with professional ATA-style hardware and features 10 deep recessed handles for convenient handling from multiple positions. Four heavy-duty 4" Colson casters — two locking and two non-locking — provide dependable mobility around venues, production facilities, and loading docks.
For setup, the removable front lid incorporates folding table legs, allowing the lid to be repurposed as an additional production table or work surface once the system is deployed. Page 4 of the drawing shows the leg assembly stored directly inside the front lid.
The result is a compact but highly capable touring workstation that keeps the Yamaha QL1, rack equipment, power, network connections, and operator workspace together in one integrated system.
- REFERENCE: 15-0008
- CATEGORY: Audio/Visual
