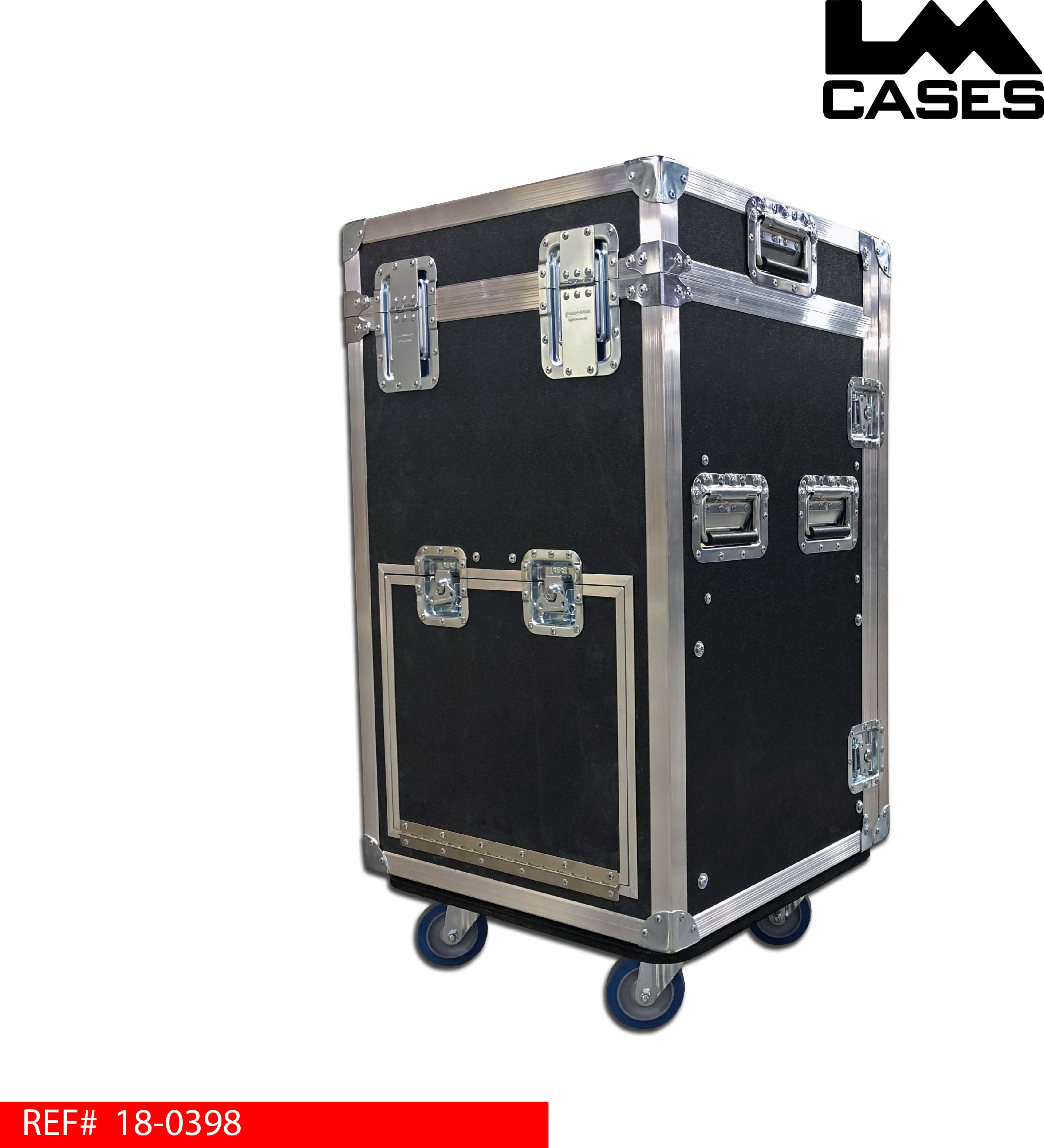

Compact Flypack Production Workstation
This portable video production flypack workstation is designed to provide a compact, self-contained solution for transporting and operating professional audio and video equipment. Ideal for live production, broadcast applications, corporate events, and mobile production environments, the workstation combines an integrated monitor mount, dual slide-out work surfaces, and a shock-isolated equipment rack into a single rolling road case.
The hinged top lid features a Chief FTR1U tilting monitor mount, allowing a user-supplied display to be permanently mounted within the workstation. The monitor compartment provides approximately 20" wide x 17" high x 2.5" deep of available space. When opened, the lid positions the display above the work surfaces for convenient viewing during operation.
Two independently operated slide-out shelves provide dedicated work surfaces for laptops, compact audio mixers, video switchers, or other production equipment. Each shelf features a durable Formica work surface and heavy-duty lock-in/lock-out glides that hold the shelf in position during use or transport.

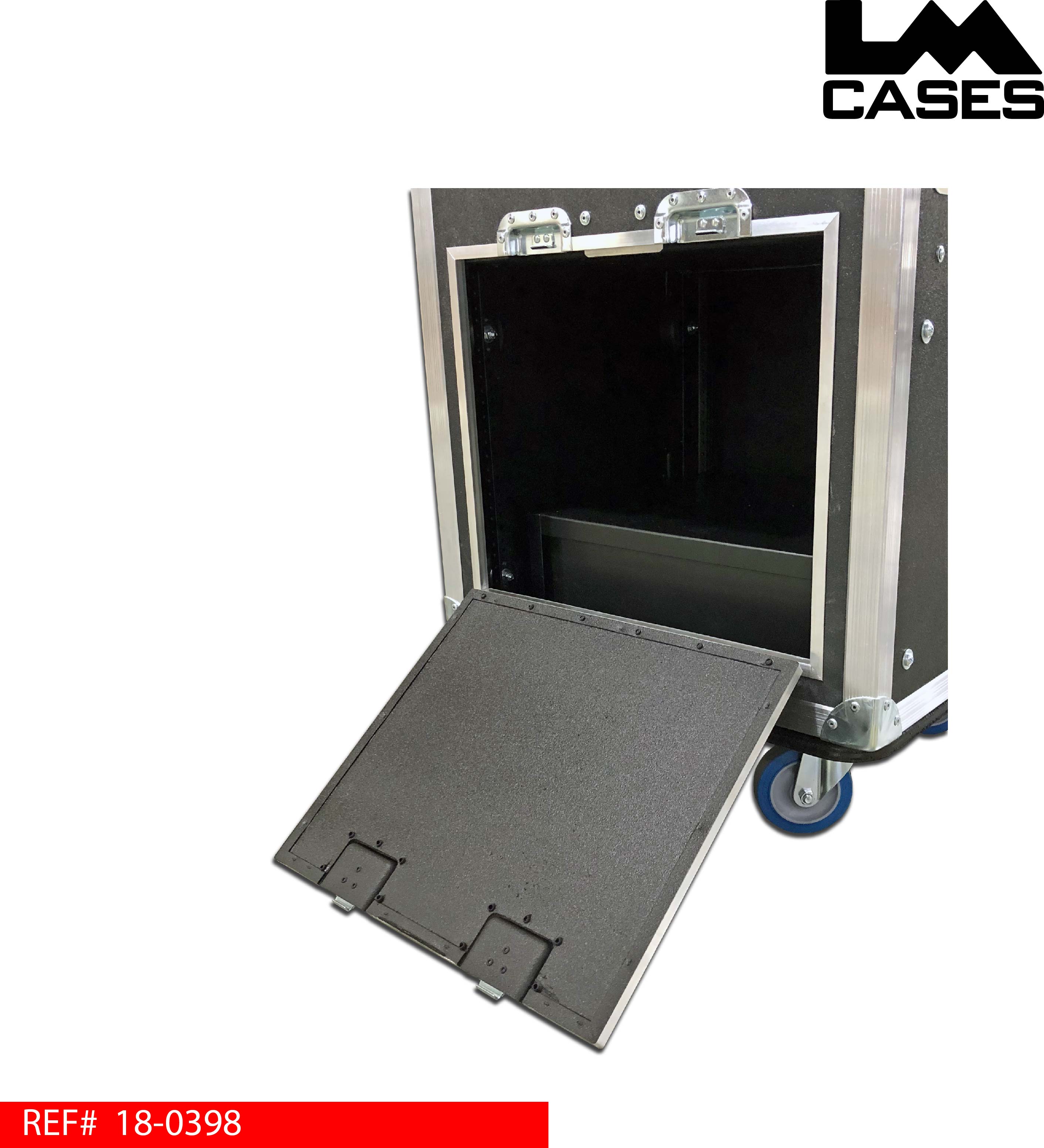

Below the work surfaces is a 9RU equipment rack mounted to the case through rubber vibration isolation mounts to help protect sensitive electronics during transportation. The rack section features front and rear rack rails for equipment installation and support, along with a rear access trap door for cable management and servicing. A 3RU storage drawer provides additional space for cables, adapters, and production accessories.
The case exterior is constructed from durable 3/8" plywood laminated with your choice of ABS plastic colors. Deep recessed hardware provides a professional touring finish while minimizing protrusions during handling. Four 4" Colson casters are mounted to a full-size 3/4" plywood caster board spanning the entire bottom of the case, providing a stable platform for moving the workstation between production locations.
This all-in-one mobile production workstation keeps essential audio, video, and control equipment organized, protected, and ready for deployment.
- REFERENCE: 18-0398
- CATEGORY: Audio/Visual
Related Products
Custom Video Flypack Case w/Integrated LED Lighting
This custom video flypack case built by LM Cases for the Pennsylvania Entertainment Group is a compact, all-in-one mobile production system designed for seated operation. It features a flip-up lid with dual 24” Dell Ultrasharp monitors, integrated audio monitors, LED task lighting, a slide-out work surface, multiple shock-mounted rack sections, and storage drawers.
The system includes dedicated mounting for video switchers, camera control units, and PTZ controllers, along with courtesy power and charging ports throughout. Gas-spring-assisted lids, organized cable looms, recessed rack rails, and configurable storage drawers enhance usability and protection. Constructed from rugged laminated plywood with heavy-duty hardware and field casters, the flypack is built for reliable performance in live production and touring environments.
Broadcast CCU / Switcher Rack Flypack
This custom ENG broadcast rack case was built for Panavid to support mobile broadcast and production workflows.
The case features an upper 12U rack section designed for preview monitors and scopes, along with a perpendicular 1U rack space for a Clear-Com base station. Behind the rack are three storage drawers with configurable dividers for organizing accessories and equipment.
A locking center drawer houses a Blackmagic ATEM switcher and Panasonic camera controller, with additional rack space for a router panel and an integrated wrist rest for operator comfort.
The lower section includes a 24” deep 12U rack with adjustable rail sets for additional broadcast gear. Constructed from ABS-laminated plywood, the case features recessed handles, locking casters, and removable lids with table legs, making it a durable and mobile solution for broadcast environments.
Custom Installed Video Flypack w/Pocket Doors
This custom video flypack was built for Clair Global as part of an installed production system for a casino.
The top lid includes two 12U rack bays for video monitors and a foldable sunshade made from marine-grade plastic to improve screen visibility during use. Below the lid is a Formica-laminated work surface and a sliding workstation with multi-position locking glides.
Behind the work surface is a dual 4U rack section for patch panels, along with two 9U rack sections featuring adjustable rails for additional video equipment. The rack fronts use pocket doors, while the rear remains open for easier access and airflow.
The case is constructed from ABS-laminated plywood with recessed hardware, stacking caster wells, and 4” Colson casters, creating a durable mobile system for internal video production operations.
Video Flypack For Installed Applications
This custom video production cart was designed for theatrical applications, featuring an all-black finish to blend into stage environments.
The cart includes a dual-monitor Ergotron mount that allows operators to position screens for both stage viewing and multiview monitoring. The work surface features foldable side wings to expand the workspace and includes a dimmable LED gooseneck light module for illumination and rack lighting control.
A 16U rack section provides space for video processing equipment, with front and rear LED lighting, recessed rack rails, and vented protective lids with cable pass-throughs. Built from Baltic Birch with a textured finish and mounted on casters, the cart offers a durable and mobile workstation for live production environments.
Single Position Video Broadcast Workstation
This custom video flypack case was built for SoCal Rentals as a prewired, rapidly deployable video production workstation.
The system features an angled rack section with folding monitor arms that allow two monitors to rotate and adjust for optimal viewing. Integrated power outlets, USB charging ports, and a custom patch panel with SDI and Cat6 connections provide convenient connectivity for video production equipment.
A flip-up Formica-laminated work surface expands the workspace, while foam-lined compartments store two 24” monitors with their mounts attached for safe transport.
Constructed from ABS-laminated plywood, the case includes recessed hardware, a unique L-shaped removable lid for full access, and Colson casters, creating a durable and mobile flypack solution for live video production.
Video Wall Flypack w/Custom IO & Power Distribution
The Video Wall Flypack w/Custom IO & Power Distribution by LM Cases is a custom-built touring video production flypack engineered as a centralized processing hub for LED wall and live video applications. Originally built for Sure Sound & Lighting, the system is designed to support rapid deployment of video processors, switchers, networking hardware, signal distribution, and show control infrastructure in demanding touring and corporate production environments.
The flypack integrates custom rack-mounted IO panels, professional power distribution, and organized cable management into a rugged ATA-style road case platform optimized for mobile production workflows. Configurations like this commonly include shock-mounted rack sections, SDI and EtherCON patching, locking power connectivity, integrated work surfaces, monitor mounting systems, and dedicated storage for accessories and peripherals.
Built from laminated Baltic Birch plywood with recessed touring hardware, reinforced caster systems, and production-grade internal integration, the flypack is designed for reliability, serviceability, and efficient truck-pack deployment. These systems are commonly used for concert touring, LED wall processing, esports, broadcast control, corporate AV, theatrical productions, and large-scale live event environments where prewired mobile video infrastructure is critical.
Triple Wide Video Flypack w/Articulating Monitor Arms
The Triple Wide Video Flypack w/Articulating Monitor Arms by LM Cases is a large-format touring video production workstation designed for live event, broadcast, esports, and corporate AV applications requiring a fully integrated mobile control environment. Originally built for House Right Production, the system combines multiple rack bays, articulating monitor systems, custom IO integration, and expansive work surfaces into a single truck-pack-friendly flypack solution.
The flypack features three independently mounted monitor positions utilizing folding upright poles and Chief K2W articulating monitor arms, allowing each display to be positioned forward/backward, side-to-side, and rotated between portrait or landscape orientations. The monitors remain attached to their articulating arms during transport and store safely within custom CNC-cut foam compartments designed to support both the displays and mounting hardware without placing stress on the monitor chassis. Custom monitor looms carrying HDMI and power are integrated into the system for clean deployment and cable management.
A large slide-out workstation provides ample operating space for switchers, control surfaces, keyboards, and laptops, while integrated rack sections support video processors, networking hardware, intercom systems, patch panels, and power distribution infrastructure. Additional features include multi-position locking work surfaces, side-mounted patch panels, rear service access doors, recessed venting, and heavy-duty touring hardware throughout.
Constructed from laminated plywood with recessed hardware and heavy-duty Colson casters, the system is engineered for the demands of touring and mobile production while maintaining clean stage sightlines and rapid deployment capabilities for professional video workflows.
