Single Position Video Broadcast Workstation
This custom video flypack case was built for SoCal Rentals. The case is designed to be a prewired, quickly deployable video production rig.

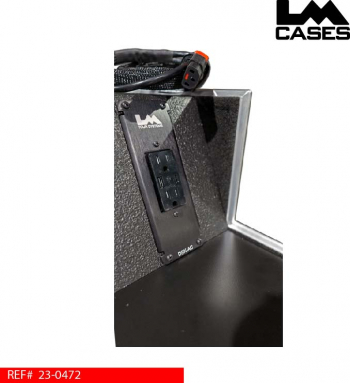

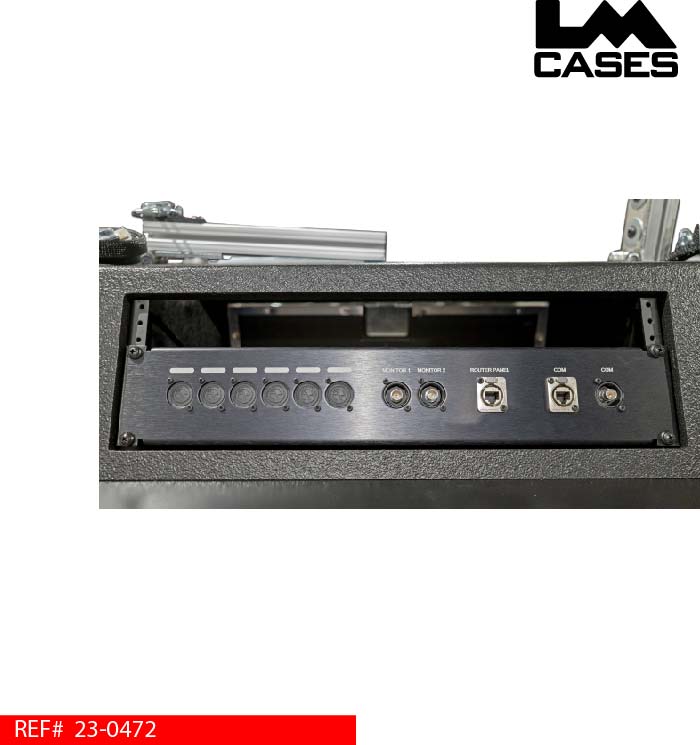

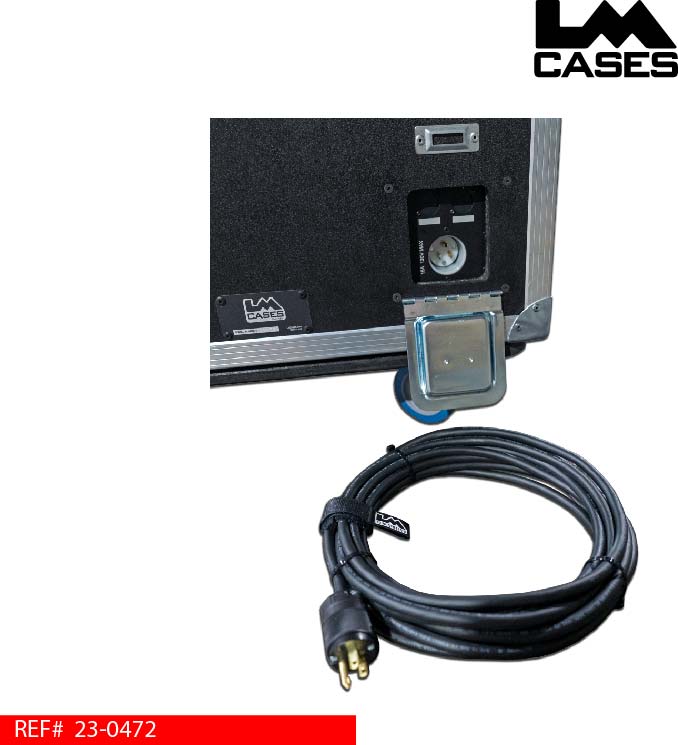

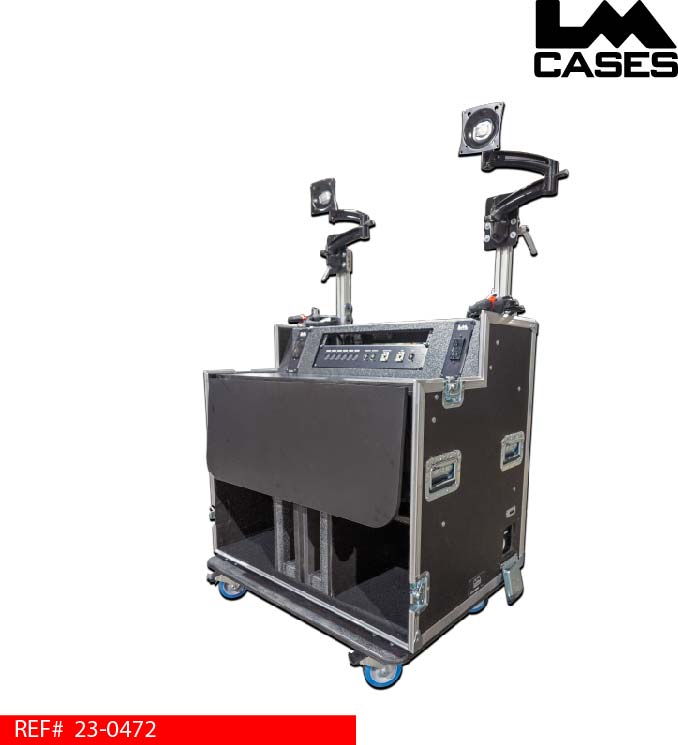

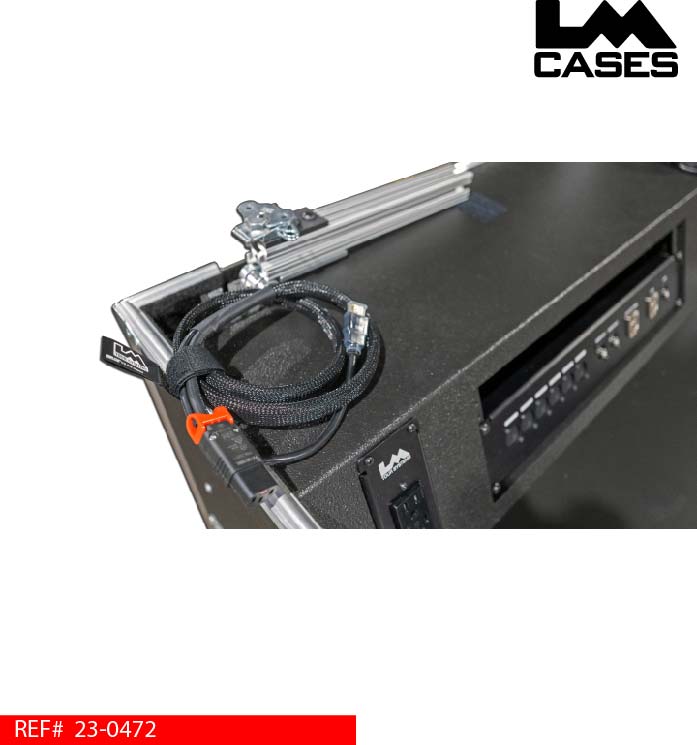

The case features an angled rack section built from ¾” Baltic Birch plywood finished with black textured coating. This section includes a top shelf that has 2 folding monitor arms. Each arm features a Chief mount that allows the monitors to rotate 360 degrees and be positioned front to back and left to right. Each arm includes a custom locking IEC / HDMI cable loom. 2 LM Tour Systems DSK-AC boxes are provided for courtesy desktop power. Each box is loaded with a Leviton AC duplex outlet with USB A & C charge ports. A custom 2U patch panel is included that features 3 SDI jacks and 2 Cat6 jacks. 6 blank D-punches are included for future expansion. Power is brought into the system via a custom inlet box with a Hubbell 5278 inlet wired to a duplex outlet. A 25’ LM Tour Systems 12awg HD power cable is included. All wiring was handled by the LM Cases Custom Integration Dept.

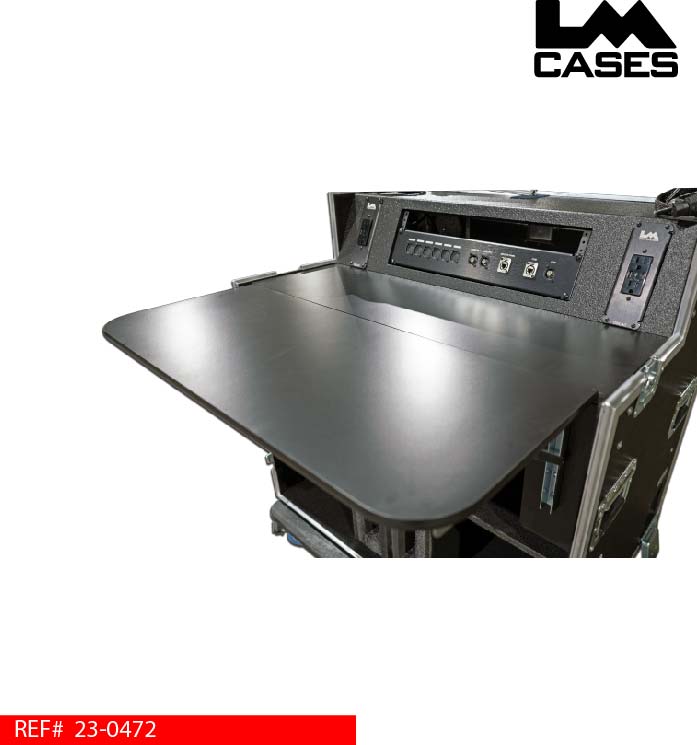

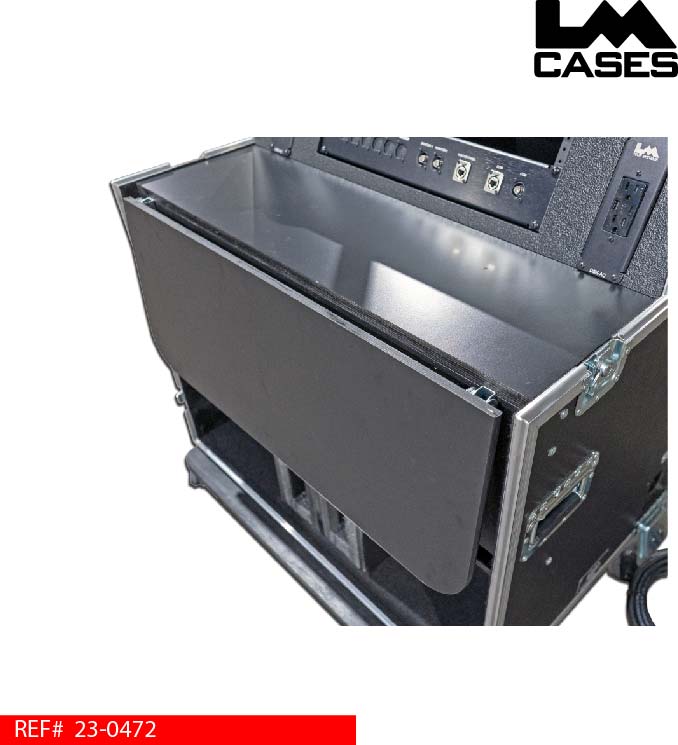

The main work surface features a flip up table. This table is built from ¾” Baltic birch plywood, laminated with black Formica and wrapped in rubber T-molding. Below the work surface are 2 Crosslink foam lined monitor storage compartments. Each compartment is designed to hold a 24” monitor with the Chief arm remaining attached.

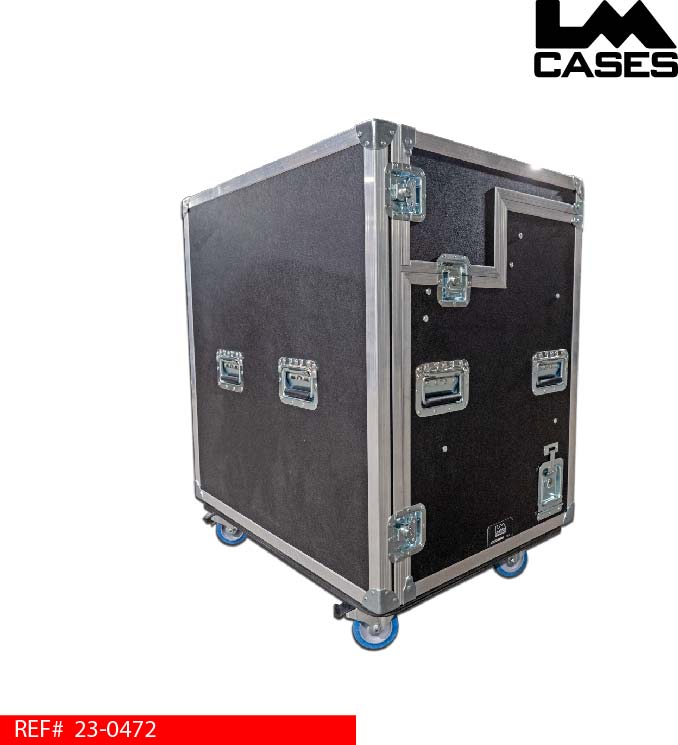

The case exterior is built from ½” plywood laminated with black ABS plastic. Per customer request, the top removable lid features a unique “L” shape allowing full side access to the work surface. The case featured deep recessed hardware and rides on 4” Colson casters. The front 2 casters are locking.
Special thanks to SoCal rentals!
