PA System Processing Workstation w/Dual 24” Monitors

The LM Cases System Processing Workstation was built for Clair Global’s systems integration department and is designed for touring audio deployments requiring a compact, deployable workstation for PA system processing, measurement, and monitoring. Built around the workflow of system engineers and PA technicians, this workstation combines rack integration, monitor deployment, cable management, and accessory storage into a single road-ready platform.

The workstation utilizes a compact ATA-style enclosure measuring approximately 30” wide by 24” deep and is constructed using LM Cases’ standard touring-grade build methods including laminated plywood construction, heavy duty hardware, and reinforced structural components.

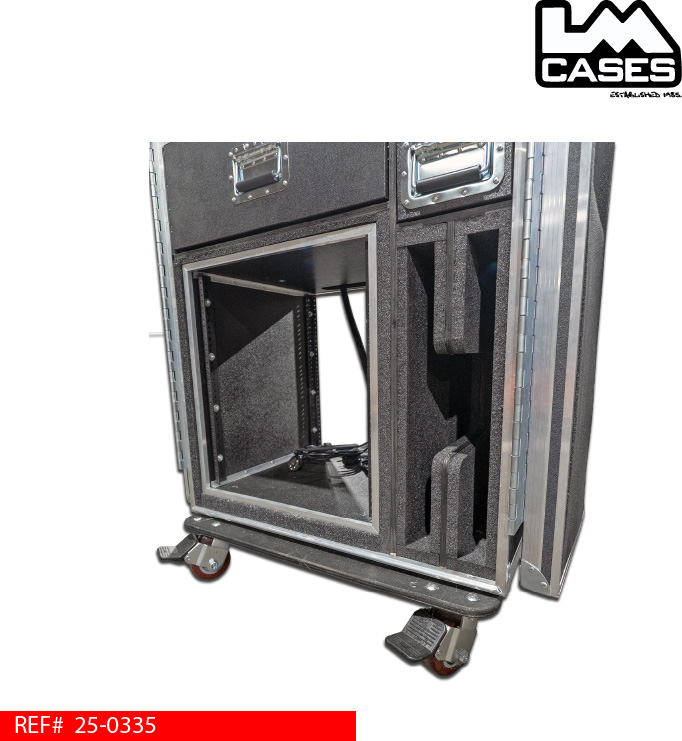

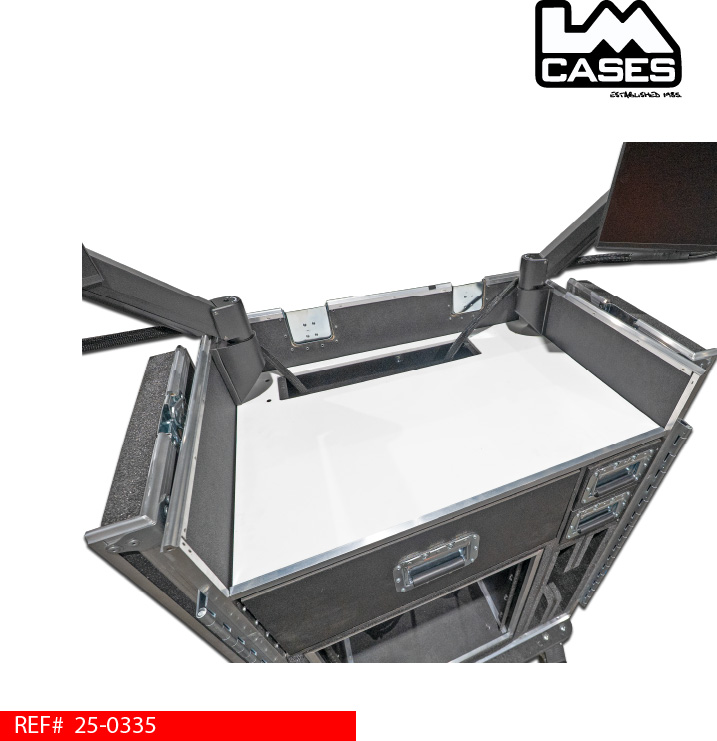

The interior features a 12-space shock mounted rack section intended for audio interfaces, system processors, measurement hardware, networking equipment, and other critical PA control infrastructure. A removable white marine-grade HDPE work surface is integrated into the top of the workstation, providing a durable and clean operating area for laptops, RF coordination, tuning software, and system management tasks.

At the rear of the work surface, a 2U rack-width utility section provides additional flexibility for future patch panels, brush panels, cable pass-through systems, or accessory rack integration.

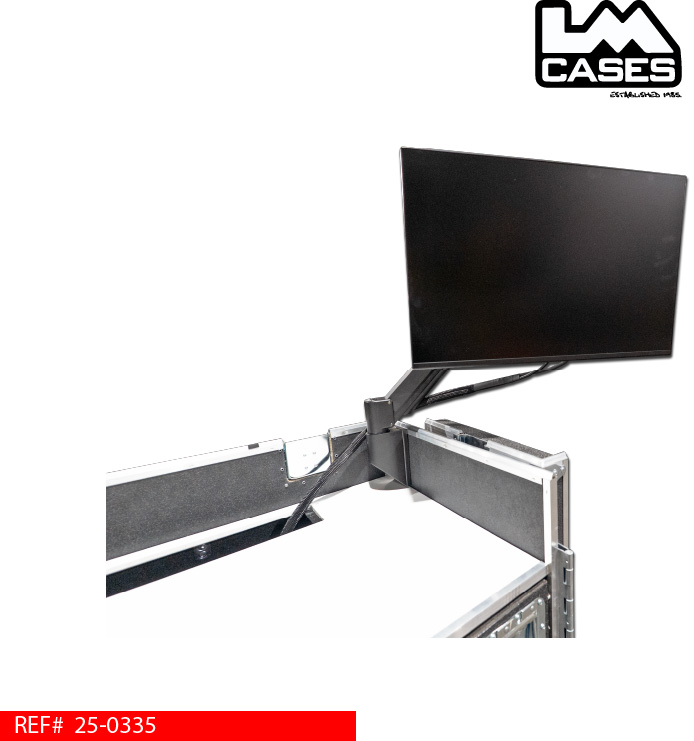

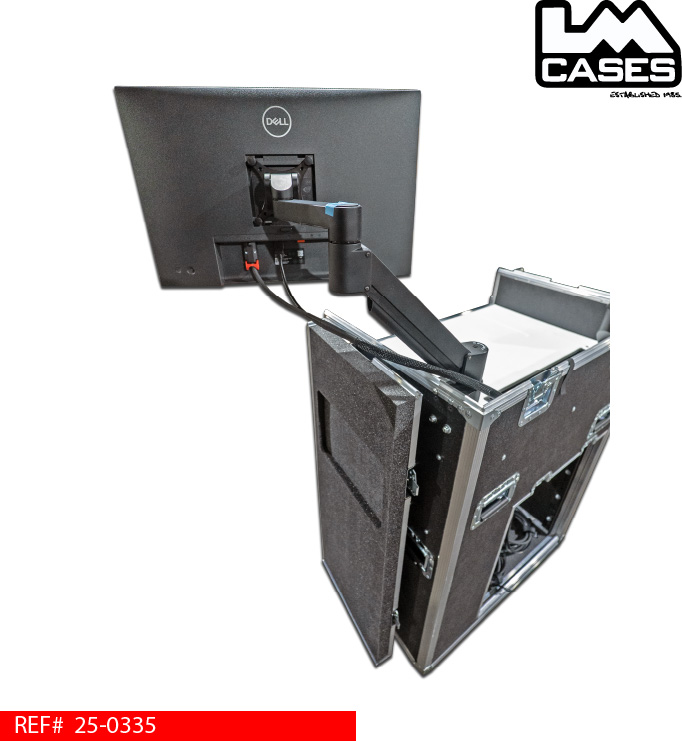

The workstation includes integrated dual monitor storage with Dell UltraSharp displays mounted to heavy duty Ergo Mart monitor arms. Custom monitor looms utilizing Techflex sleeving, extended 14/3 SO cable assemblies, locking IEC connectors, and HDMI extensions are routed directly into the rack section to simplify deployment and improve cable management.

Due to truck pack dimensional constraints, the monitors utilize removable mounting hardware secured with custom metric thumbscrews, allowing tool-free monitor removal and installation during setup and teardown.

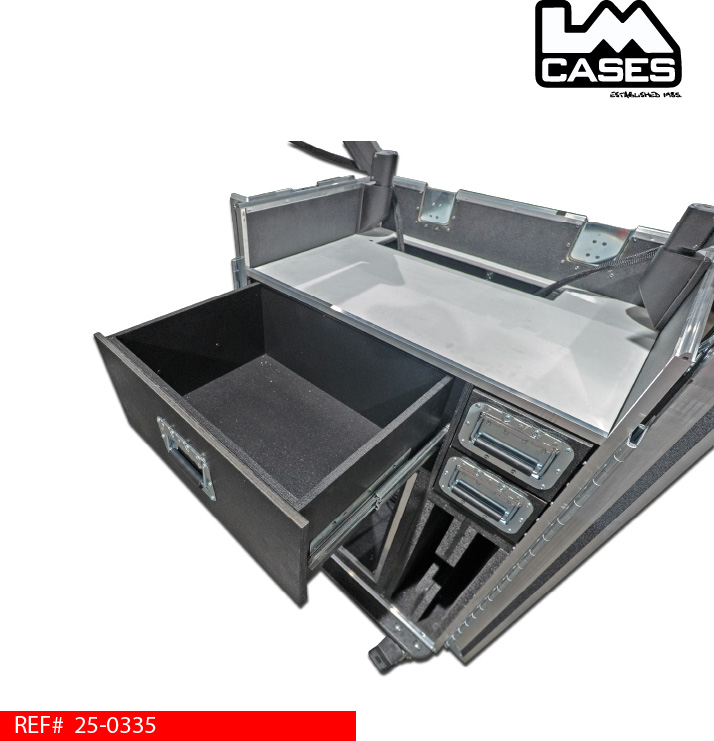

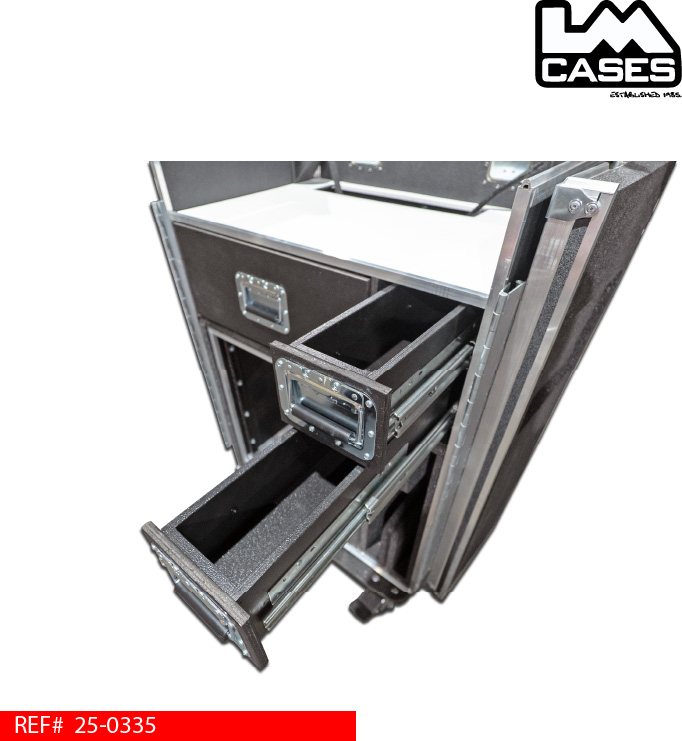

Integrated storage includes one large utility drawer and two narrow accessory drawers mounted on heavy duty Accuride drawer glides. The compact side drawers maximize otherwise unused space while maintaining full functionality and serviceability within the workstation footprint.

The front doors utilize heavy duty TCH 270-degree fold-flat double knuckle hinges, allowing the doors to remain captive to the workstation while providing full operational access during deployment. This hinge system was selected specifically to maintain rigidity and alignment within a touring-grade ATA construction format.

Additional features include recessed handles, removable lids, integrated monitor storage foam, pop-in rack access panels, tongue-and-groove construction details, and heavy duty caster systems for transportation through arenas, stadiums, loading docks, and touring environments.

Unlike generic workboxes or utility racks, LM Cases system processing workstations are custom engineered around real-world deployment workflows used by touring system engineers, integration teams, and live event production professionals.

Custom rack layouts, monitor configurations, power integration, networking infrastructure, work surface materials, cable management systems, and branding options are available upon request.
