QSC Q-Sys System Tech Workstation

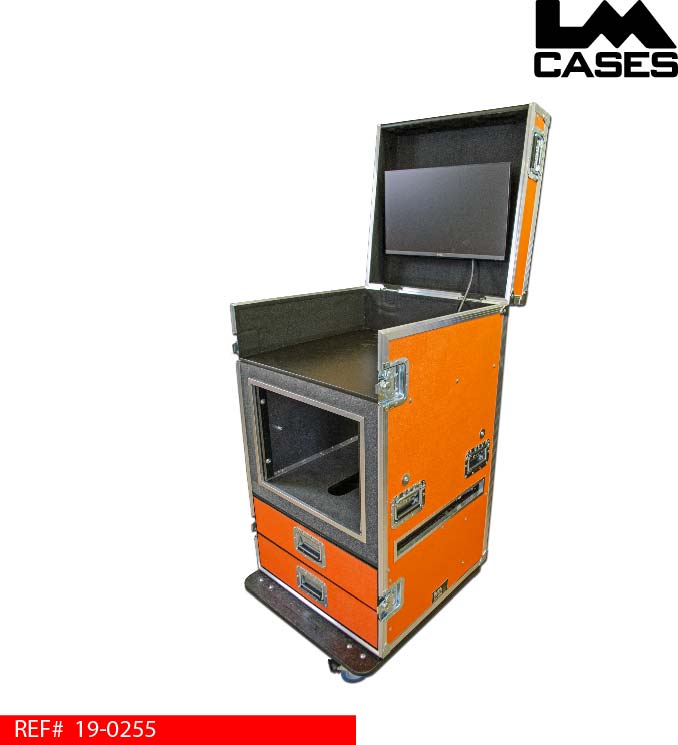

This case was designed for Walt Disney Parks as a PA system tech workstation. The case is based around a QSC Q-Sys system. The workstation includes a Dell 24” touch monitor, Formica laminated work surface, shock mounted rack section, custom IO panel and storage drawers.
The top lid of the case is hinged allowing for a 24” Dell touch monitor to be mounted and deployed easily. The monitor is attached to the case via a Chief tilting mount. A custom cable loom was built by the LM Cases Custom Integration department to keep all monitors connections organized. The loom includes a locking IEC power cable, HDMI and a USB.

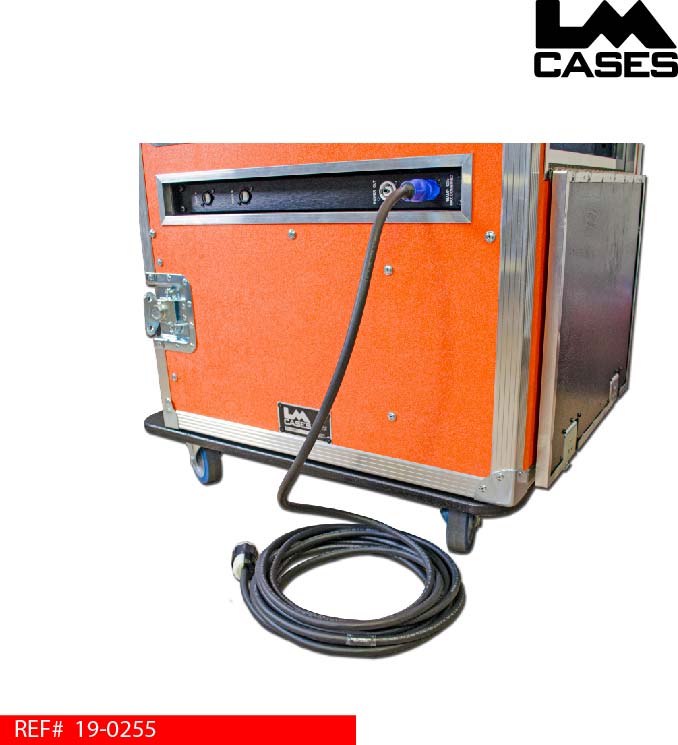

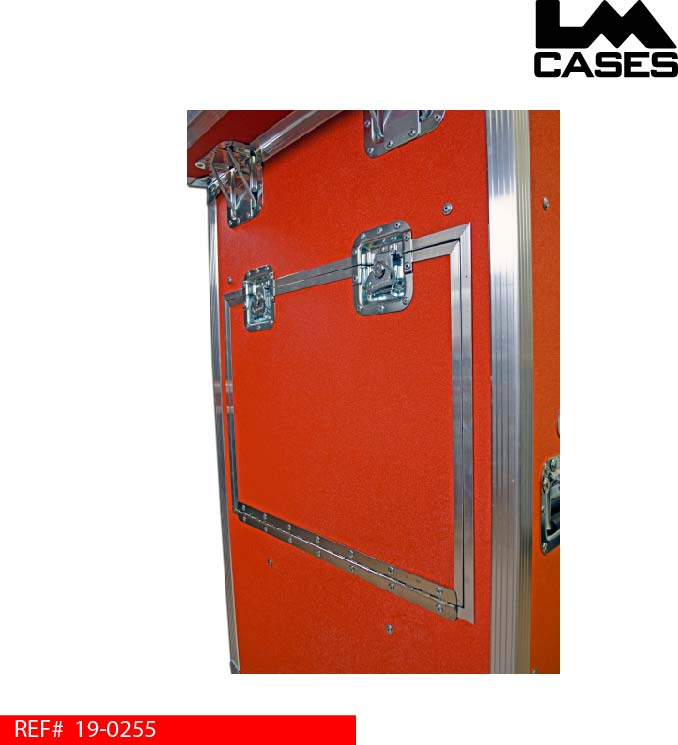

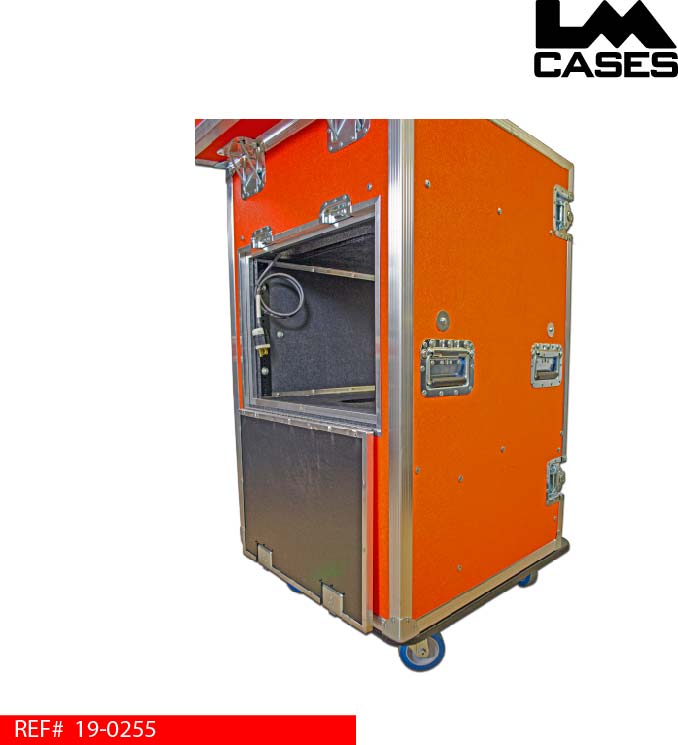

The main work surface is laminated with black Formica for a smooth writing plane. Below the work surface is an 8U shock mounted rack. The rack features front and rear pre-tapped 10/32” rail with a usable depth of 24”. The rear of the rack features a hinged trap door for easy access. Below the rack section is a side mounted, 1U patch section that includes a fiber/Powercon panel. This panel provided a singular connection point for fiber and power to enter and exit the case. A 25ft LM Tour Systems Powercon cable is included.
2 HD storage drawers are provided. Each drawer is built from ½” Baltic Birch and finished with black carpet. The drawers are mounted on HD Accuride glides and feature orange faces to match the case exterior.
The case exterior is built from ½” plywood laminated with orange ABS plastic. The case features 8 deep recessed handles, table legs in the lid and rides on 4” Colson casters (2 Locking).
Special thanks to Walt Disney Parks!
