17 Space FOH System Drive Rack w/Drawer
This custom case is intended for FOH processing applications where rack mount equipment and miscellaneous items need to be stored. Though intended for FOH processing equipment, the case can easily be deployed in wireless mic systems, video processing etc..

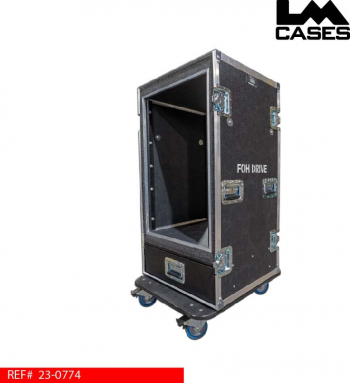

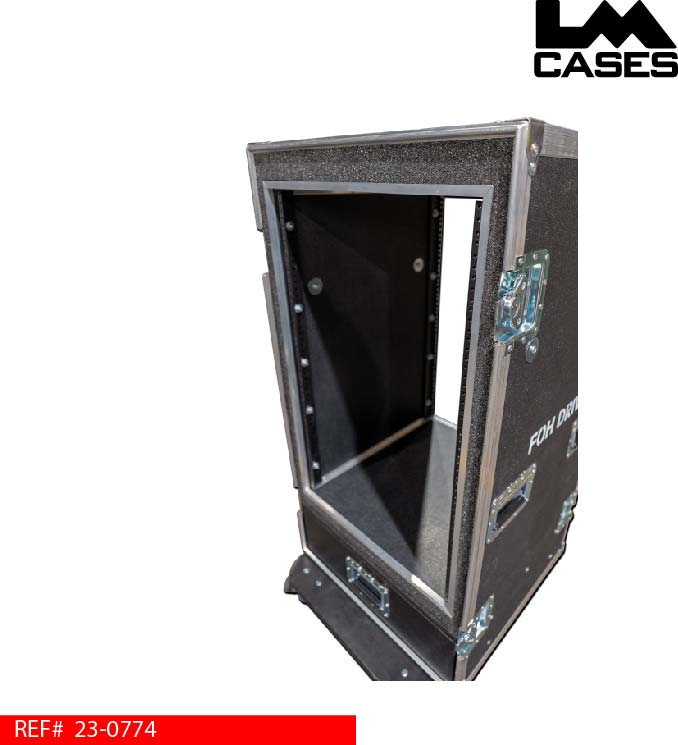

The case features a shock mounted, 17U rack. The rack shell is 20.5” deep and is built from .375” plywood with black ABS laminate facing inward. The rack features front and rear, pre-tapped 10/32” rack rail with 19.5” between the rails. The rack is surrounded by 2” foam, isolating it from the exterior case.

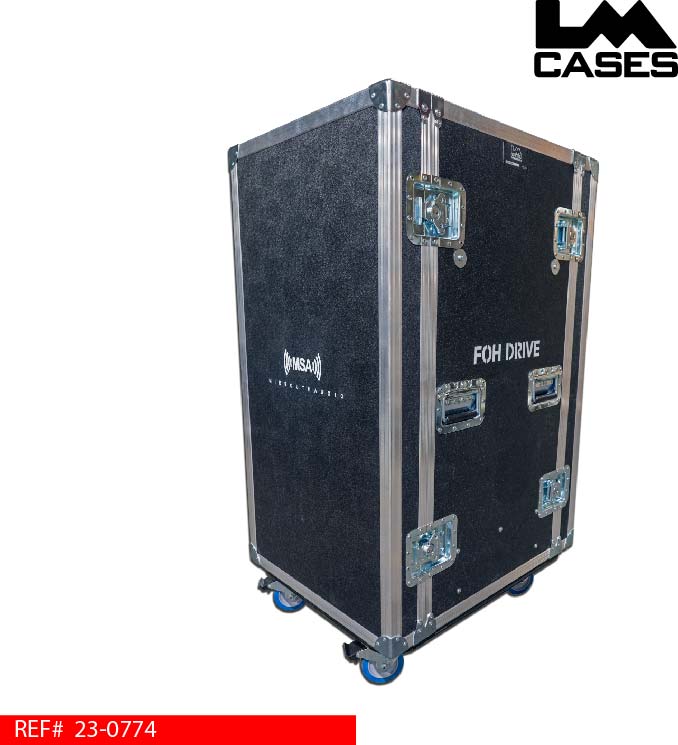

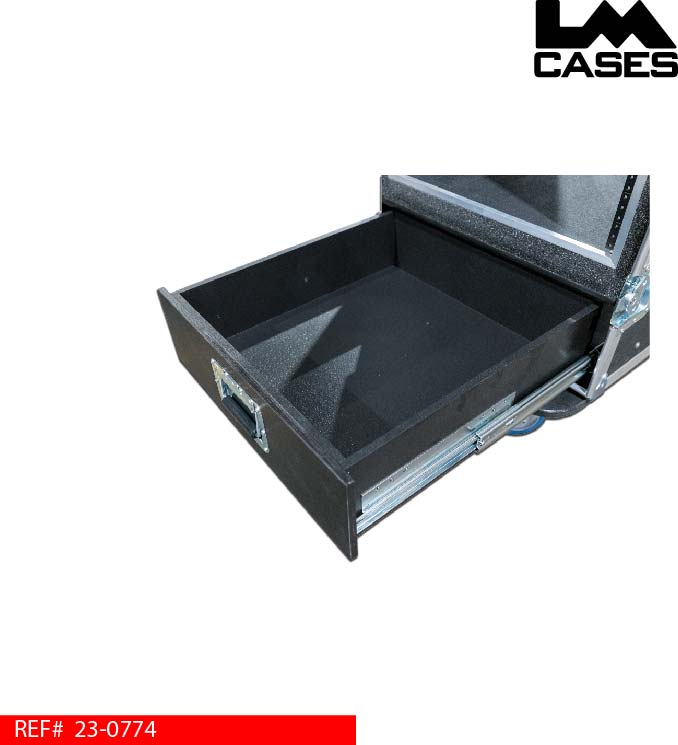

A HD drawer is provided for misc storage. The drawer is built from ½” Baltic Birch plywood and mounted on HD Accuride glides. The drawer features interior dimensions of 19.125” wide x 20” deep x 5.25” tall. The case exterior is built from .375” plywood laminated with black ABS plastic. The case rides on 4” Colson casters (2 locking) mounted via a full sized ¾” caster board. The case features custom silkscreens of the MSA logo and stencils that read “FOH Drive”.
Special thanks to Mid South Audio for a great project!
