REFERENCE: 25-0470
1RU Color Changing LED 12v Power Supply Module For Road Cases
The LM Tour Systems 25-0470 Rack Mount LED Controller & Power Supply is a professional, tour-grade solution for adding integrated color-changing LED lighting to road cases, equipment racks, workboxes, flypacks, and custom AV systems.
Designed and built by LM Tour Systems specifically for mobile production environments, the 25-0470 eliminates the need to rely on consumer-grade LED controllers and power supplies that were never intended to withstand the demands of touring. The compact 1RU chassis combines the power supply, RGB controller, user interface, and lighting distribution into a single rack-mount package that is easy to integrate into both new and existing systems.
The front panel features an OLED display and rotary control for quick access to the unit's lighting functions. Seven factory color presets include white, red, green, blue, cyan, magenta, and yellow. For applications requiring a specific color, each red, green, and blue channel can also be independently adjusted from 0–255, allowing custom colors and different shades of white to be created. Overall brightness can also be adjusted directly from the controller.

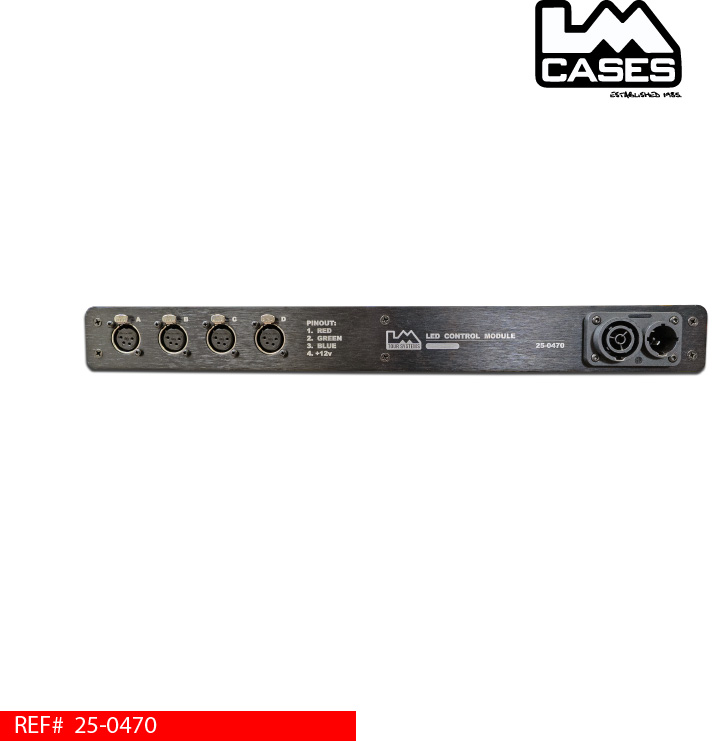

Four rear-mounted 4-pin XLR outputs distribute the same RGB control and 12VDC power signal to multiple LED strips or lighting assemblies. All four outputs operate in parallel, making the system ideal for illuminating multiple areas of a rack or case with consistent color and brightness.
The controller is designed for 12VDC common-anode, four-wire analog RGB lighting. LM Tour Systems also offers pre-terminated RGB LED strips and 4-pin XLR extension cables, allowing complete lighting systems to be assembled using locking, field-serviceable connections rather than permanently wired consumer-style connectors.
AC power enters the unit through a Neutrik powerCON TRUE1 TOP locking inlet/outlet connector. In addition to providing a secure power connection, the pass-through output allows the controller to be linked with other equipment or integrated directly into an LM Tour Systems power distribution system. Many LM Tour Systems rack-mount power distribution products already incorporate TRUE1 outputs, making the 25-0470 especially easy to integrate into a complete rack package.
The TRUE1 connector is intentionally oriented for easy access when the controller is installed near the top of a rack, while the shallow 3.75" chassis minimizes the amount of valuable rack depth required.
With a maximum recommended output of 9 amps at 12VDC, or approximately 108 watts, the 25-0470 can power substantial lighting systems while maintaining the clean installation and reliability expected from professional touring equipment.
Whether you are adding task lighting to an equipment rack, illuminating the interior of a touring workbox, lighting a custom workstation, or designing an entirely new integrated road case, the LM Tour Systems 25-0470 provides a clean, durable, and serviceable solution designed specifically for life on the road.
- REFERENCE: 25-0470
- CATEGORY: Custom Integration
