5 Drawer Workbox w/LED Lighting In Each Drawer

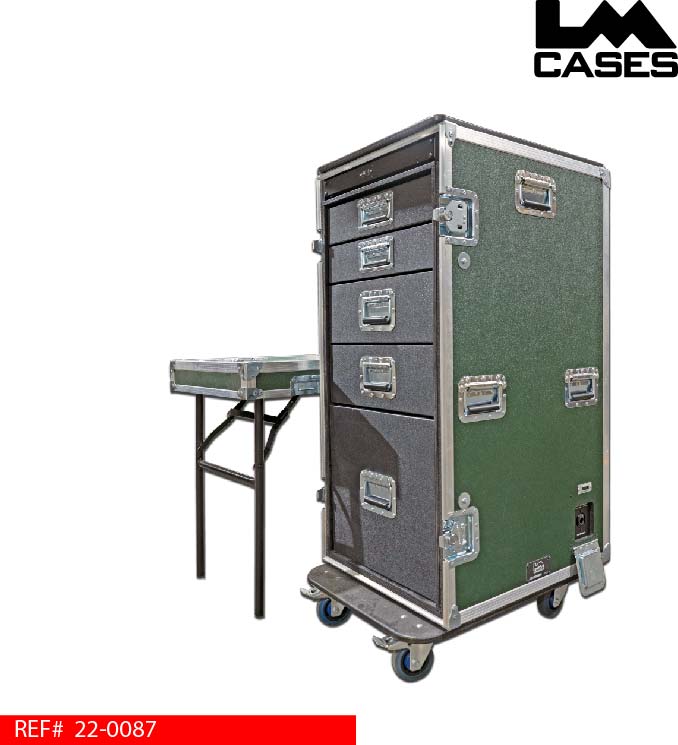

This custom 5 drawer workbox was made for Vile at Helsinki Pro Audio. As a systems engineer, Vile will use this for general accessories and tools at his position at front of house. The case features a True1 power outlet in the top drawer and custom LED lighting in each individual drawer.

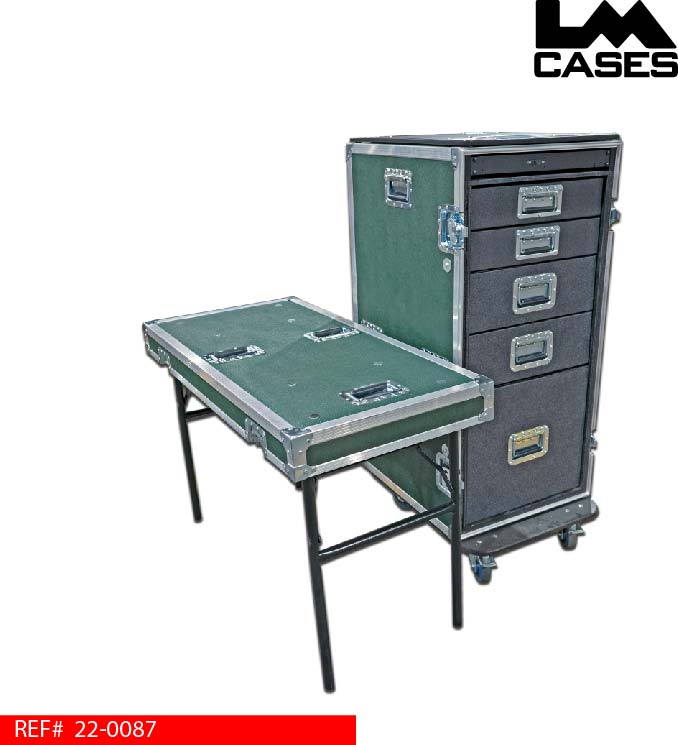

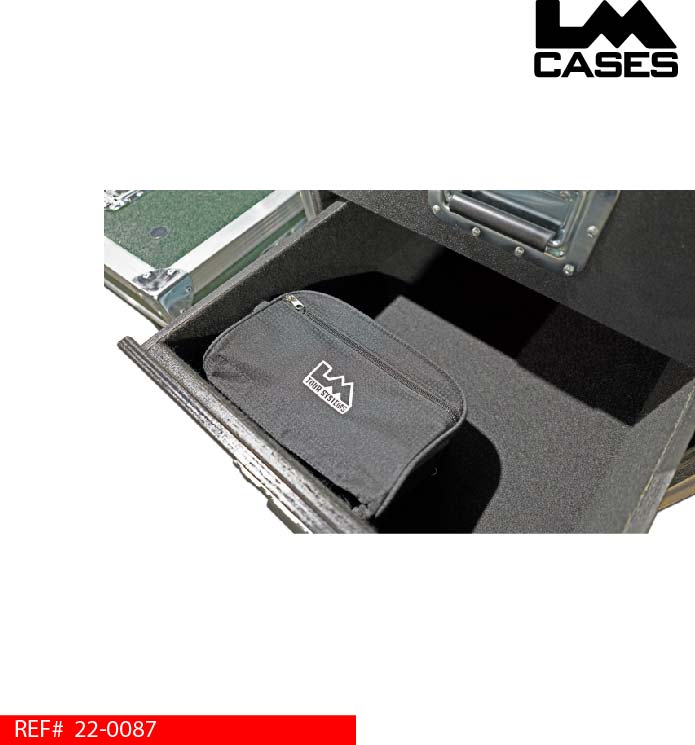

The drawers are each built from ½” Baltic Birch plywood, carpet lined and mounted on HD Accuride glides. The exterior of each drawer is finished with black textured coating. All drawers are 16” wide x 17” deep with heights of 3”, 5.5” and 16”. The drawers are built into a ½” plywood shell that is isolated from the case exterior by ½” PE foam.

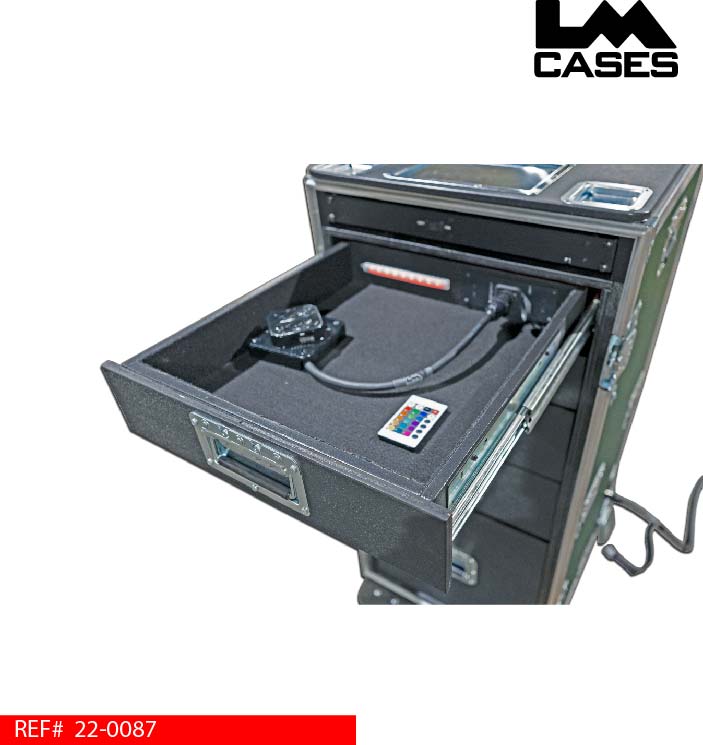

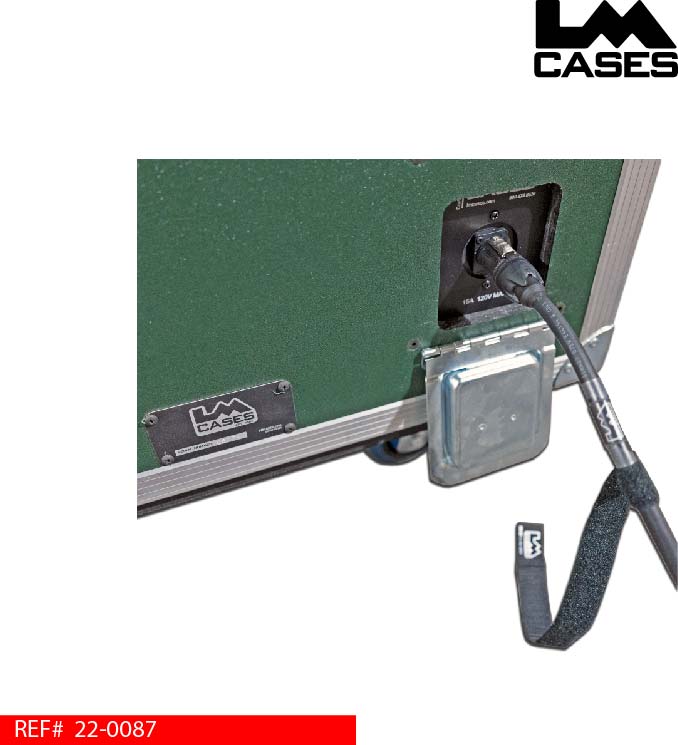

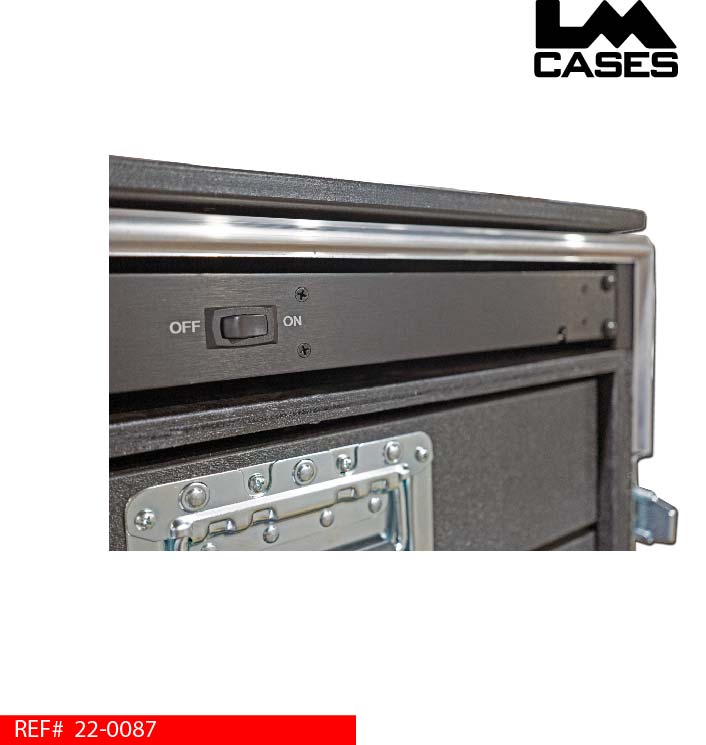

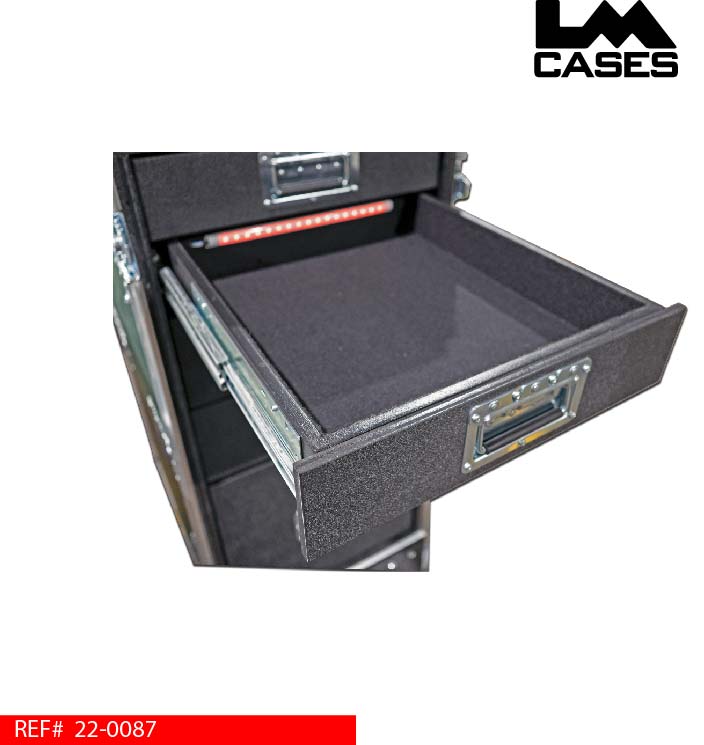

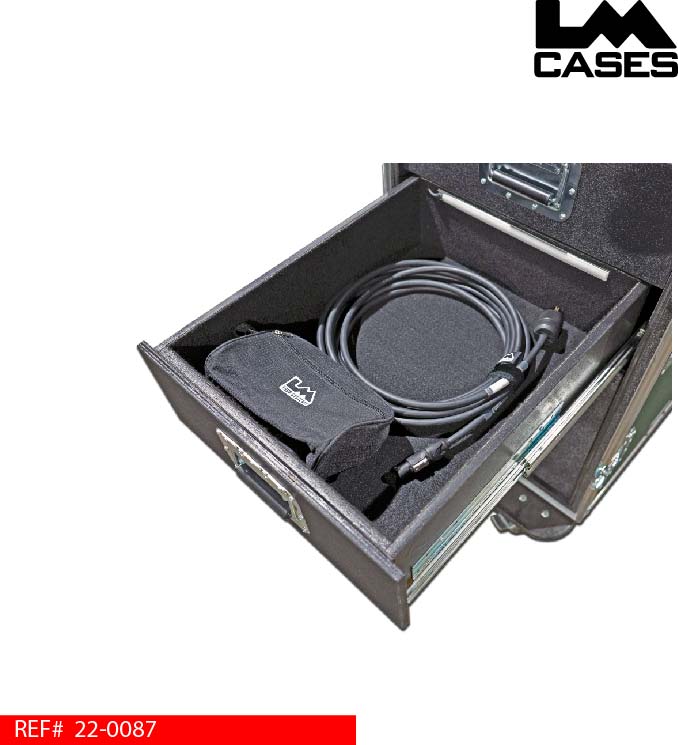

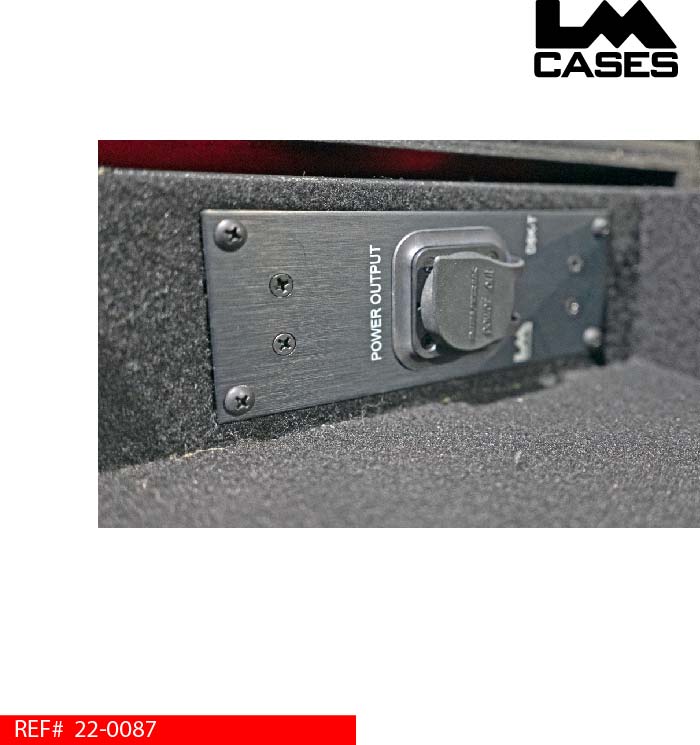

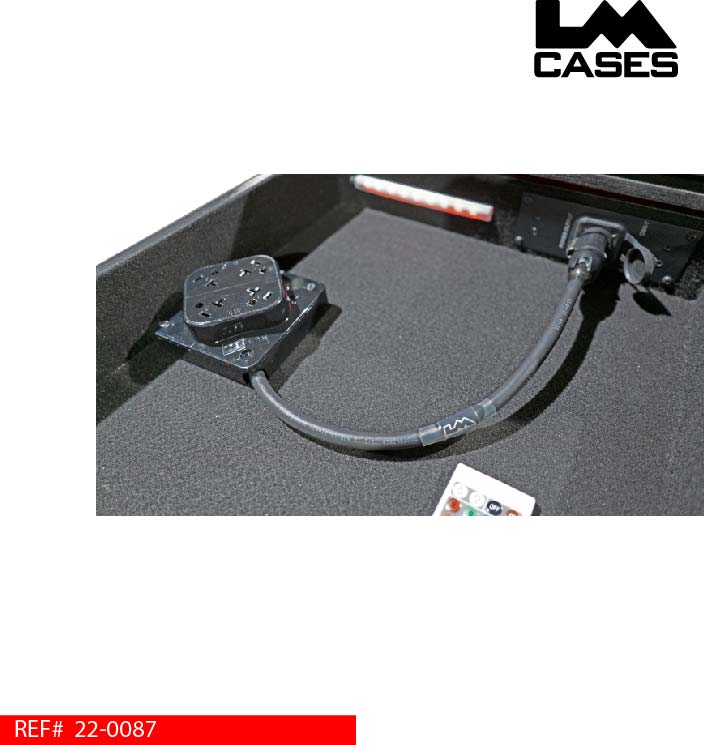

The electrical installation was handled by the LM Cases Custom Integration department. Each drawer features custom cut, color changing LED lights. The lights are wired to a 4 pin XLR jack which allows each drawer to be removed if necessary. The lights are powered by a custom LM Tour Systems power supply built into a 1U enclosure. The top drawer features a DSK-T True1 power outlet and a True1 – 4Plex outlet bank. A modified version of our standard power inlet box is provided. A 5278 – D-Series adapter plate is provided to change the standard Hubbell 5278 flanged inlet punch into a True1 inlet. A 25ft LM Tour Systems True1 – Edison power cable is provided.

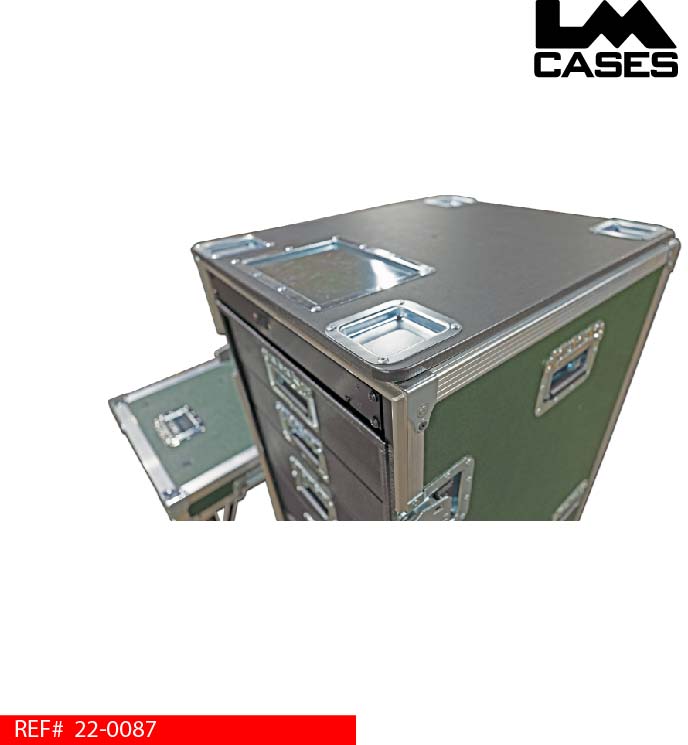

The case exterior is built from ½” plywood laminated with forest green ABS plywood. 12 deep recessed handles are provided. The handles are arranged in a triangular pattern with 2 handles on the bottom with 1 handle centered above. The bottom 2 handles are designed for lifting while the centered top handle is designed for pulling. The case rides on a full sized ¾” caster board with 4” casters. A top caster board built from ½” marine grade plastic is provided with caster wells and a recessed dry erase label dish. The exterior dimensions of the case are 22.5” wide x 30” deep. The top mounted caster wells are designed to accommodate another case that has OD dims of 22.5” x 30”.
