REFERENCE: 26-0071

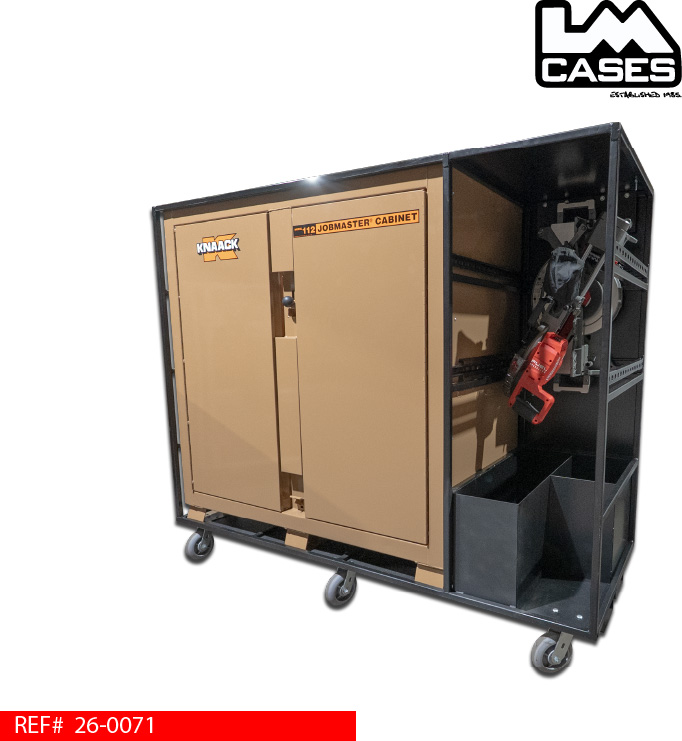

Custom Knaack Touring Set Carpenter Workbox w/Steel Cart, LED Lighting & Power Distribution
Built for World Wrestling Entertainment (WWE), this custom touring set carpenter workbox combines a KNAACK Model 112 Jobmaster steel cabinet with a fully integrated transport, storage, lighting, and power distribution system designed and fabricated by LM Cases.
The project began with a simple objective: transform a traditional jobsite tool cabinet into a complete mobile workstation capable of supporting WWE's set carpenters throughout their touring schedule. LM Cases designed and fabricated a custom welded steel transport frame that surrounds the KNAACK cabinet while providing additional storage, equipment mounting, and the mobility needed for stadium and arena productions.

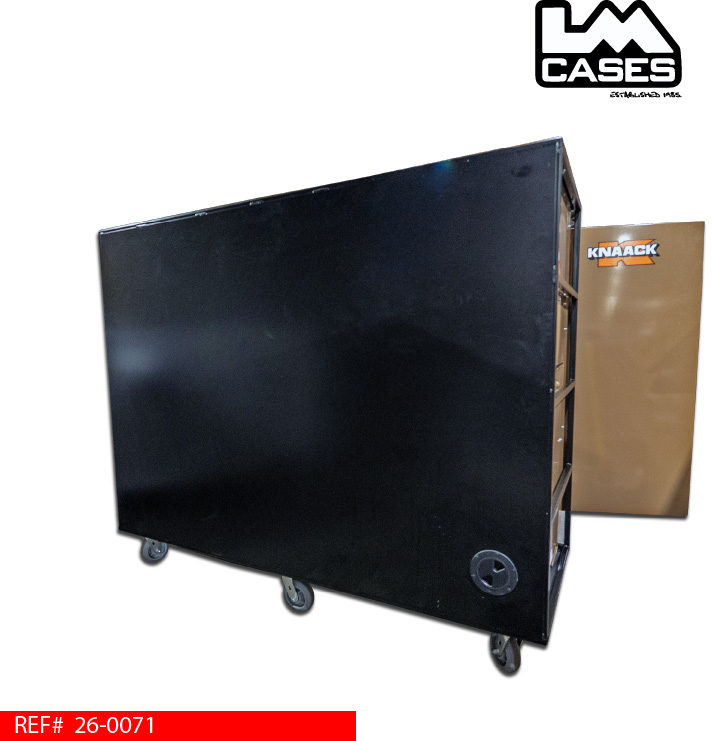

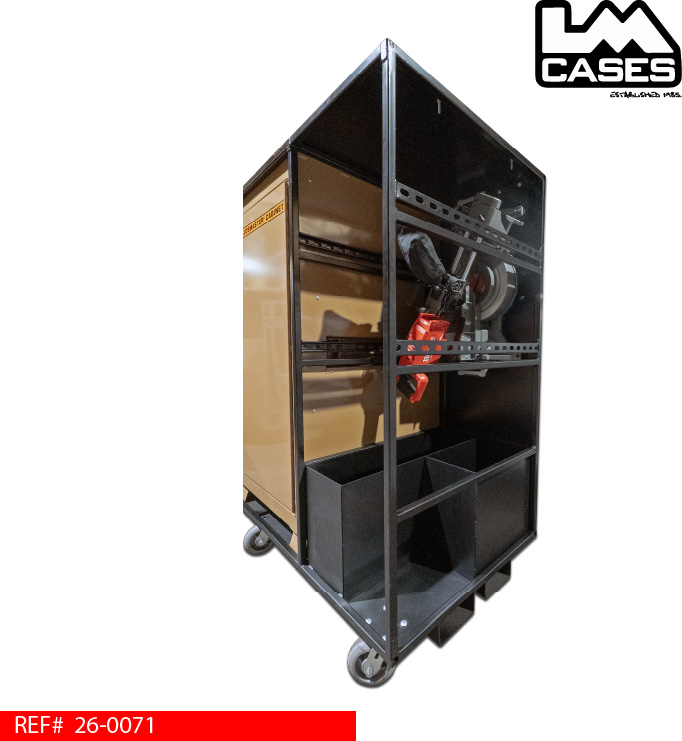

The transport cart is constructed from 1" welded steel box tubing with reinforced structural supports and a durable black powder-coated finish. The cart features 6" casters for mobility and integrated forklift pockets for loading and unloading. An additional side compartment provides a dedicated mounting location for a miter saw, along with open storage bins for ladders, brooms, and other oversized tools and supplies. Integrated mounting rails provide additional options for securing equipment during transport.

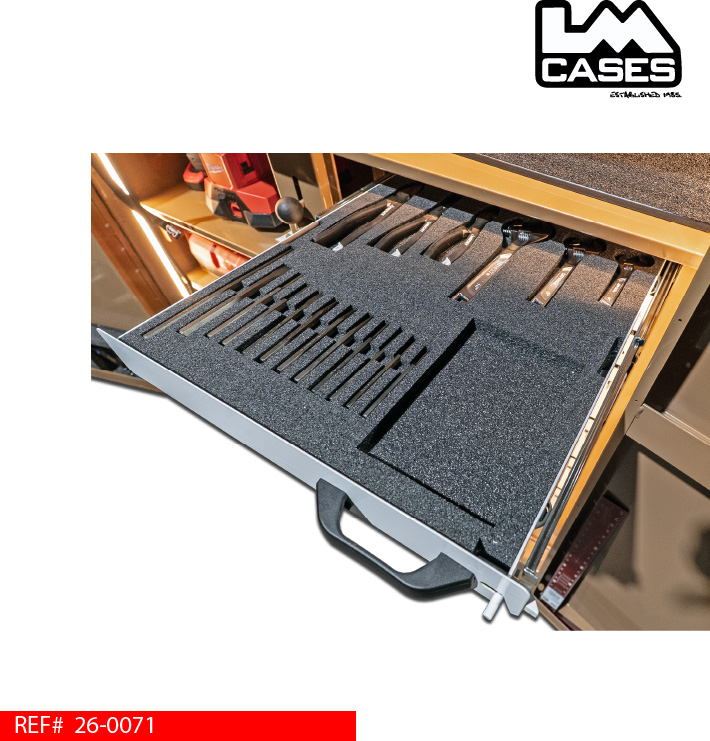

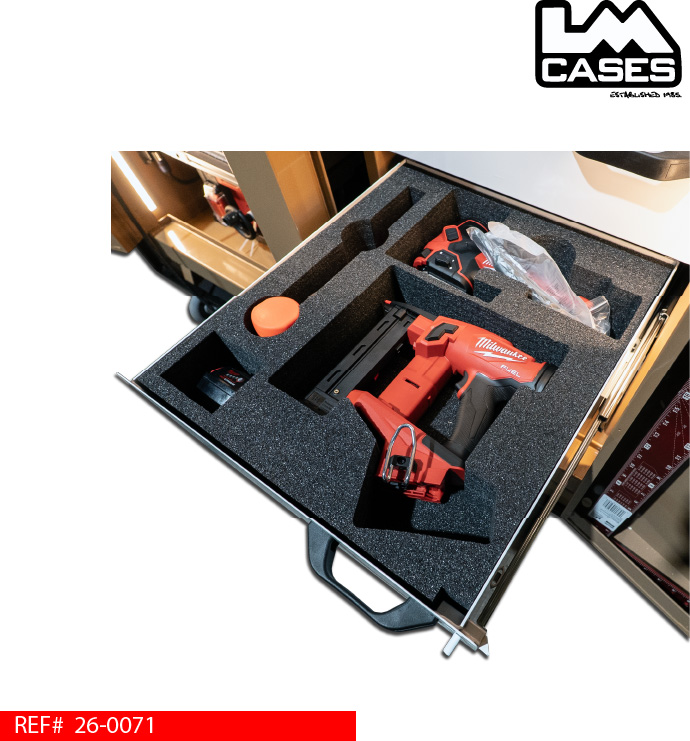

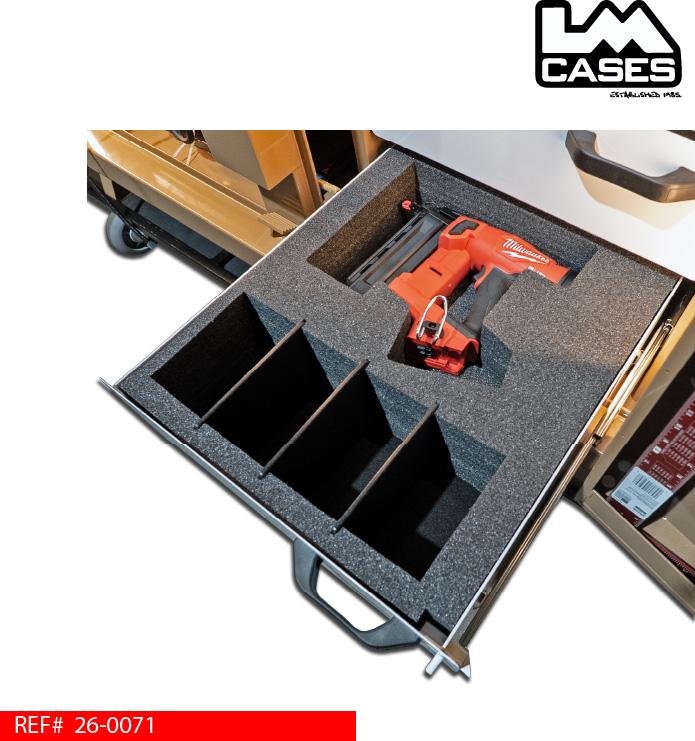

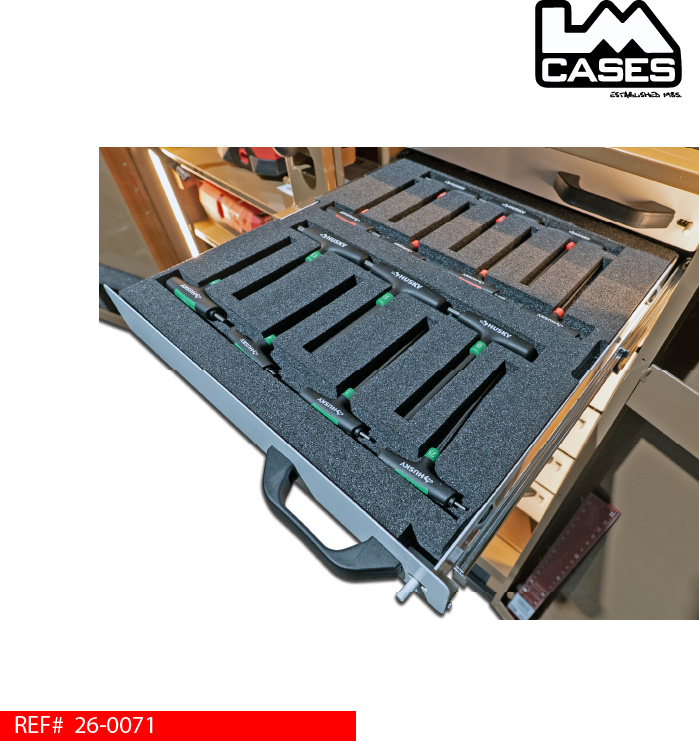

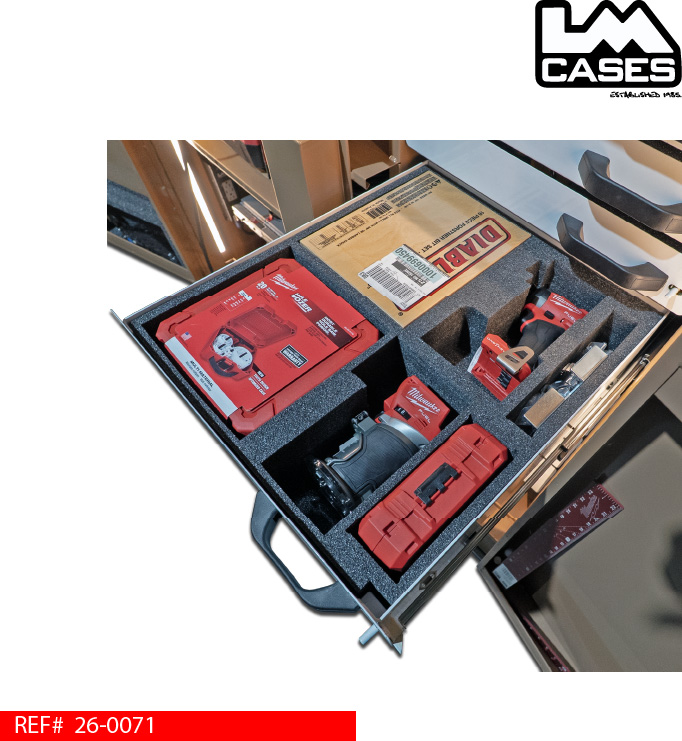

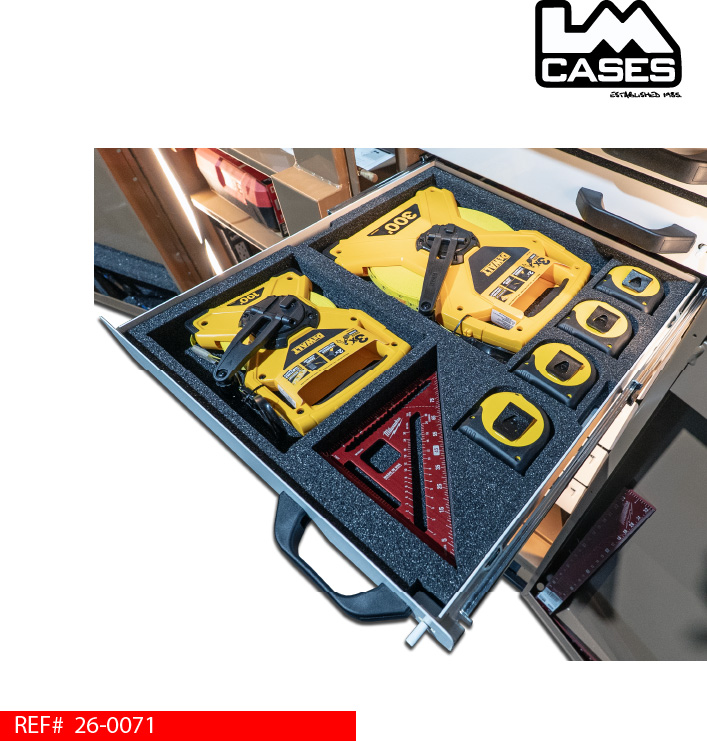

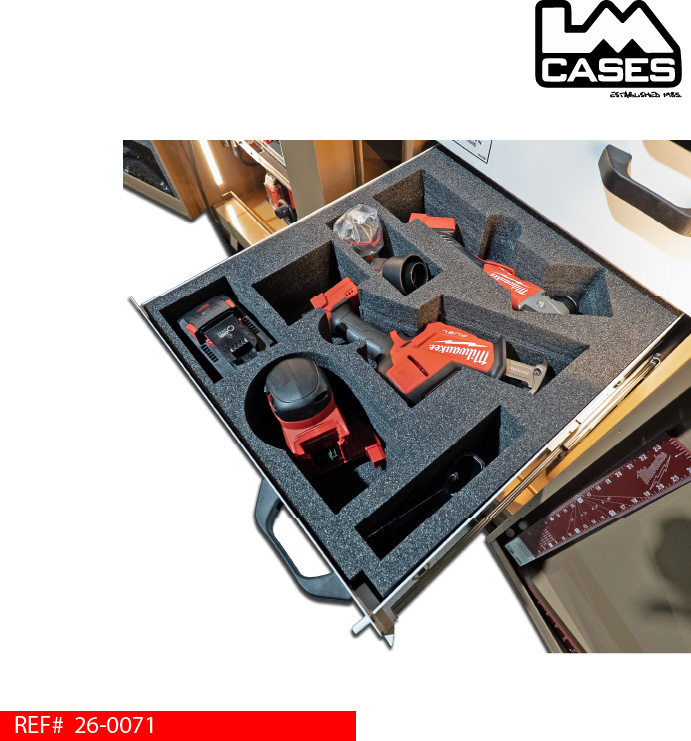

Inside the KNAACK cabinet, LM Cases created a fully customized tool organization system. Each drawer features precision CNC-cut polyethylene foam inserts designed around the customer's specific collection of tools. Dedicated compartments accommodate cordless power tools, pneumatic nailers, hand tools, drill bits, measuring equipment, and accessories. Select drawers feature removable foam trays, maximizing usable storage space while keeping tools organized and readily accessible.

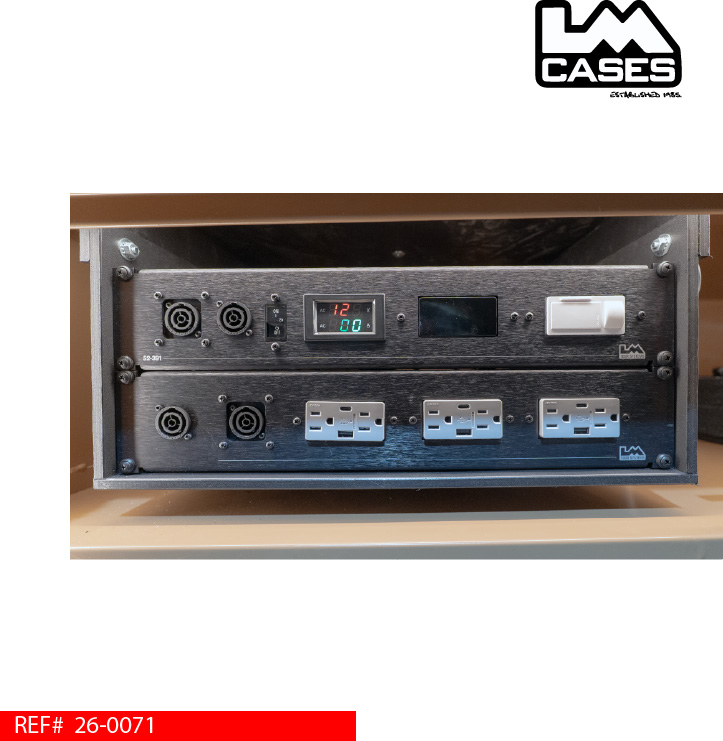

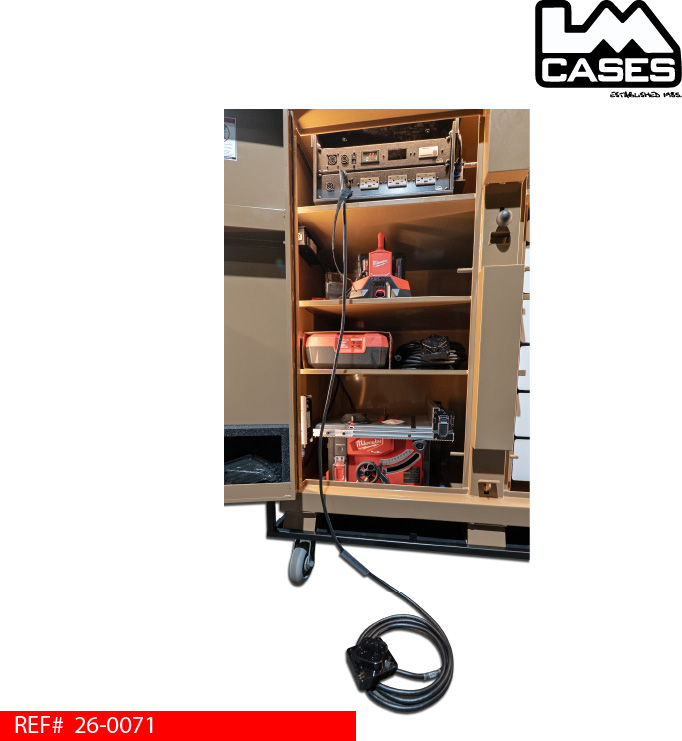

A custom LM Tour Systems power distribution system provides convenient AC power and USB charging throughout the cabinet. The rack-mounted power panels feature integrated voltage and current monitoring, a 20A circuit breaker, Neutrik powerCON TRUE1 connections, and multiple courtesy power outlets. Additional power distribution boxes are installed inside the cabinet for battery chargers and other equipment. An exterior recessed power connection allows the workbox to be connected to shore power, with additional connectivity for distributing power to other equipment.
Integrated LED lighting illuminates the cabinet from the top and sides. The dimmable fixtures are housed in custom marine-grade plastic channels with diffusers for even illumination. An infrared-controlled switching system automatically activates the lighting when the cabinet doors are opened and shuts the lights off after a period of inactivity.
The finished system combines the rugged security and storage capacity of a KNAACK jobsite cabinet with the specialized fabrication, electrical integration, and organizational capabilities of LM Cases. Designed as one of three matching workboxes for WWE, this project demonstrates how LM can transform conventional industrial equipment into a purpose-built touring solution.
Features:
Custom Steel Transport Cart
-
KNAACK Model 112 Jobmaster Steel Cabinet
-
Custom Fabricated 1" Welded Steel Box Tube Frame
-
Reinforced Steel Construction with Black Powder-Coated Finish
-
6" Casters for Mobility
-
Integrated Forklift Pockets for Loading and Transport
-
Removable Steel Top Panel
-

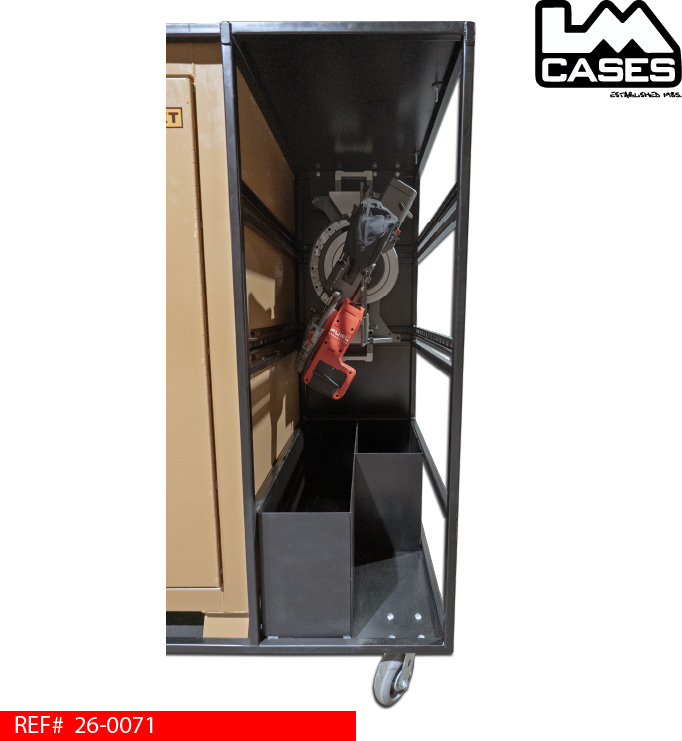

Dedicated Side-Mounted Miter Saw Storage with Retaining Hardware
-

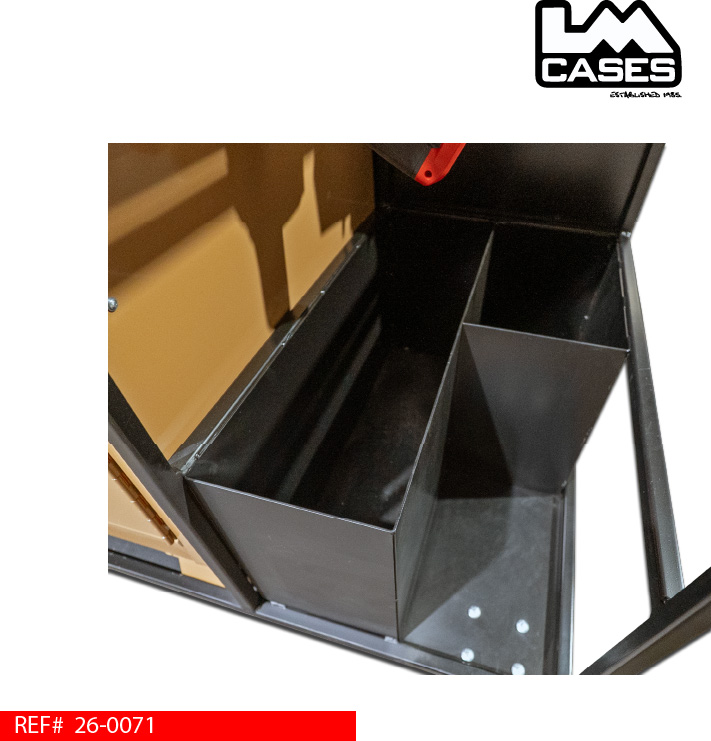

Integrated Steel Storage Bins for Ladders, Brooms, and Accessories
-
Exterior Equipment Mounting Rails
Custom Tool Storage
-
CNC-Cut Polyethylene Foam Inserts for Individual Tools
-
Custom Foam Organization Throughout Cabinet Drawers
-
Removable Foam Tool Trays
-
Dedicated Storage for Cordless Power Tools, Hand Tools, Measuring Equipment, and Accessories
-
Custom Foam Storage for Portable Band Saw
-
Integrated Storage for Table Saw and Battery Chargers
LM Tour Systems Power Distribution
-
Custom Rack-Mounted Power Distribution System
-
Integrated Digital Voltage and Current Monitoring
-
20A Circuit Breaker
-
(4) Neutrik powerCON TRUE1 Courtesy Power Outputs
-
(6) 120V AC Courtesy Receptacles
-
(3) USB-A and (3) USB-C Charging Ports
-

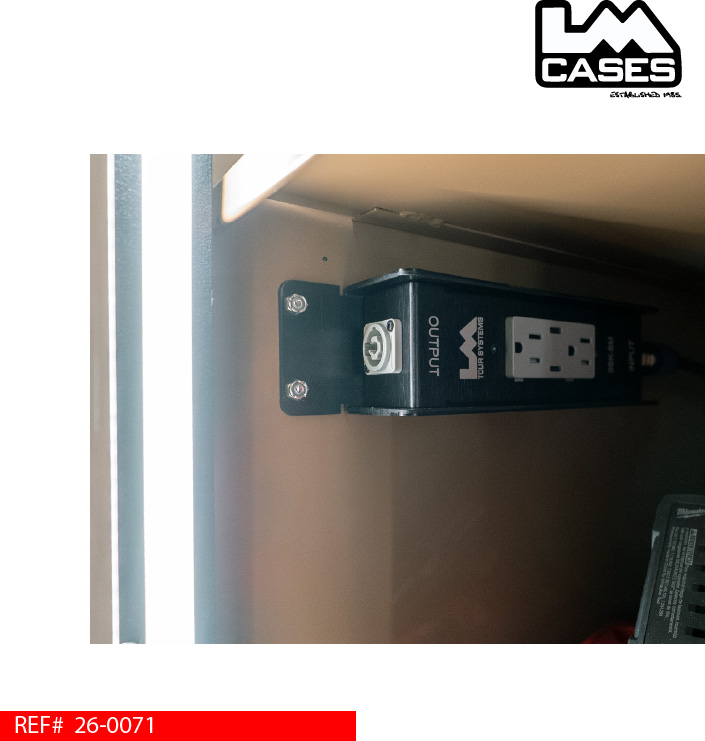

(3) LM Tour Systems DSK-SM Auxiliary Power Boxes with USB-C Charging
-

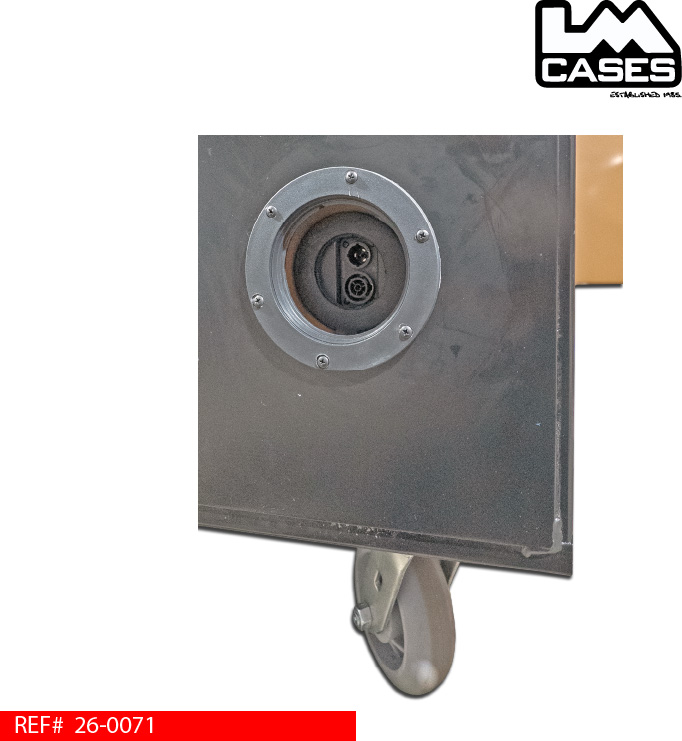

Exterior LM Tour Systems DSK-IT Locking Power Connection
-

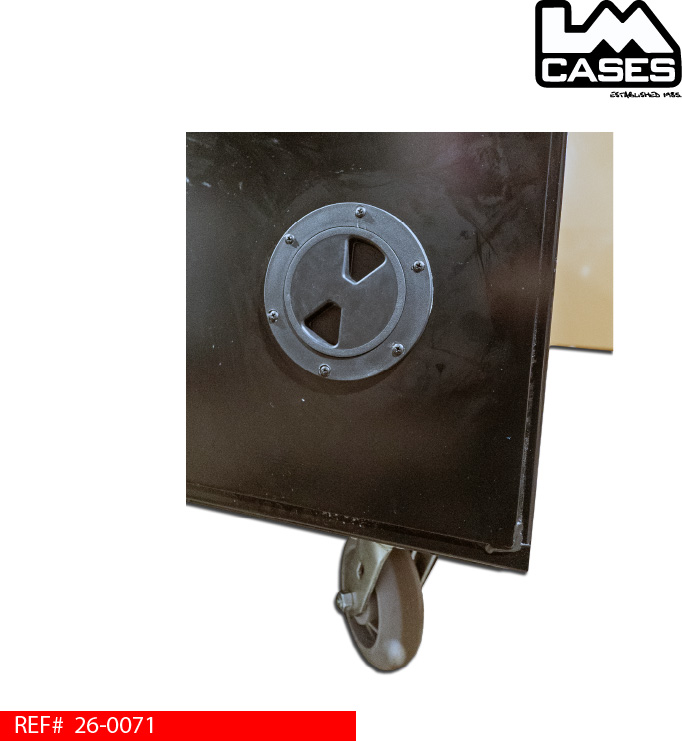

Recessed Exterior Power Access with Protective Cover
-
Supplied powerCON TRUE1 Power and Courtesy Extension Cables
Integrated LED Lighting
-
Dimmable LED Lighting Along Cabinet Top and Sides
-
Custom Marine-Grade Plastic LED Mounting Channels
-
Translucent Diffusers for Even Illumination
-
Infrared-Controlled Automatic Lighting Activation
-
Automatic Shutoff After 15 Minutes of Inactivity
