Portable Refrigerator Road Case w/Antique Bourbon Barrel Laminate
This case was designed for Studio 46 Media. The case features a 4U rack section, storage drawer, custom courtesy power distribution unit, refrigerator and table legs in the lid.

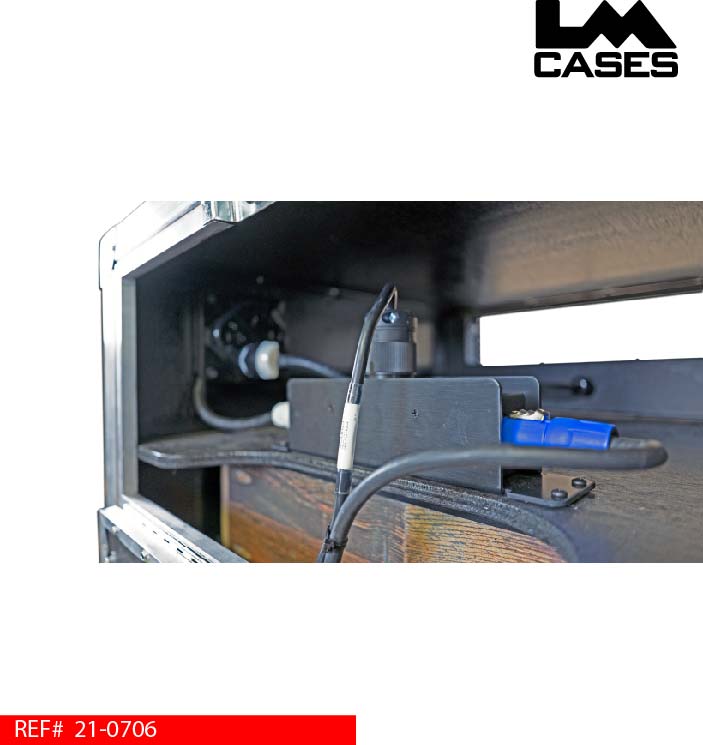

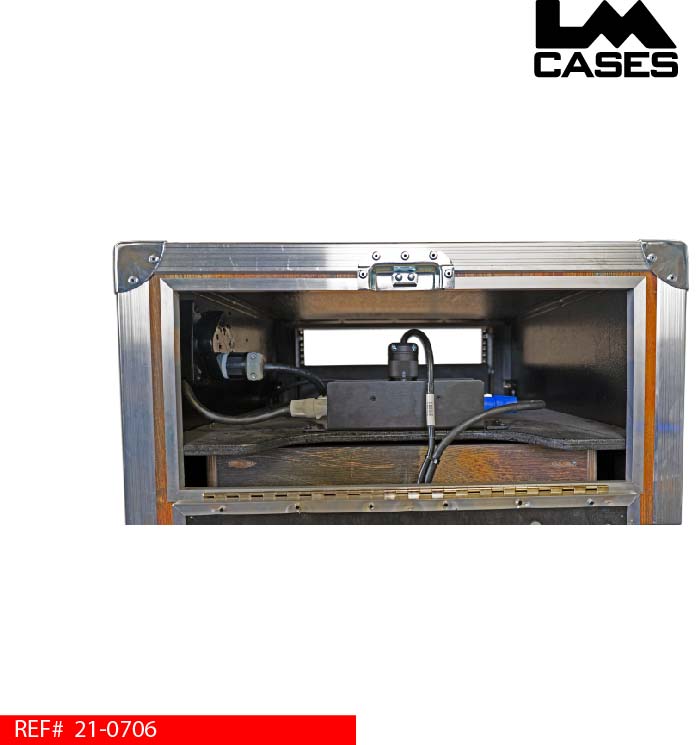

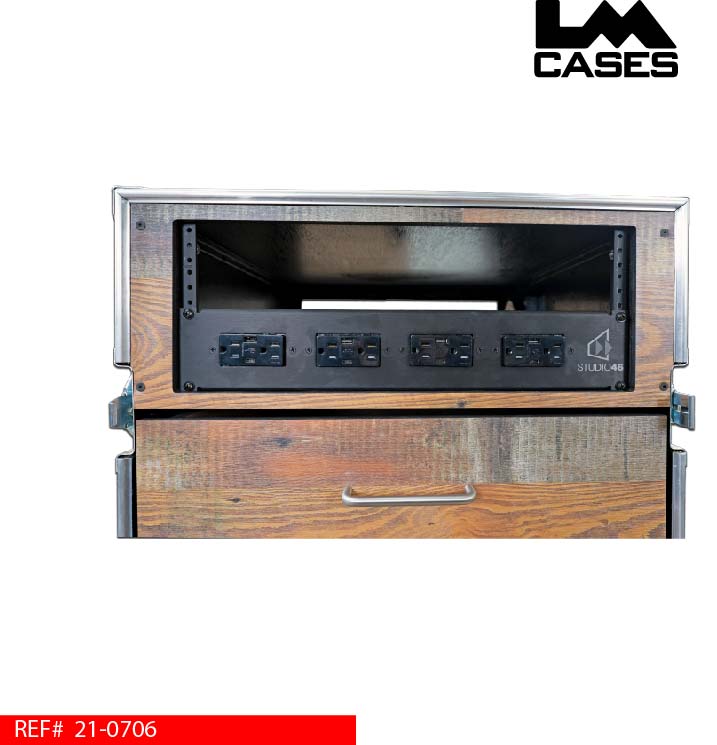

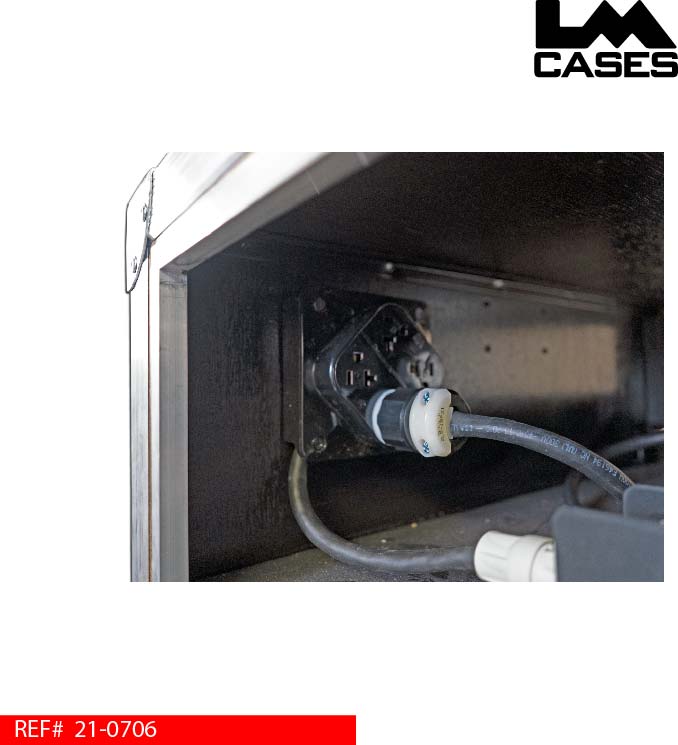

The case is designed to be a portable beverage dispensing solution perfect for events, business waiting rooms and craft services. The case features striking Antique Bourbon barrel laminate. As a Kentucky based company, Studio 46 requested this laminate specifically. The case features a 4-space rack section. A custom courtesy power distribution unit was built that includes 4 duplex outlets complete with USB A & C charge ports. The unit features 8 AC outlets, 4 USB A outlets and 4 USB C outlets. The unit also features a custom laser etched Studio 46 logo. 2 rack units are available for further expansion. The rack section features a LM Tour Systems inline courtesy power box providing power to the refrigerator and a courtesy 4-plex power bank for the rack section. A front fascia panel with the Antique Bourbon Barrel laminate trims the rack section

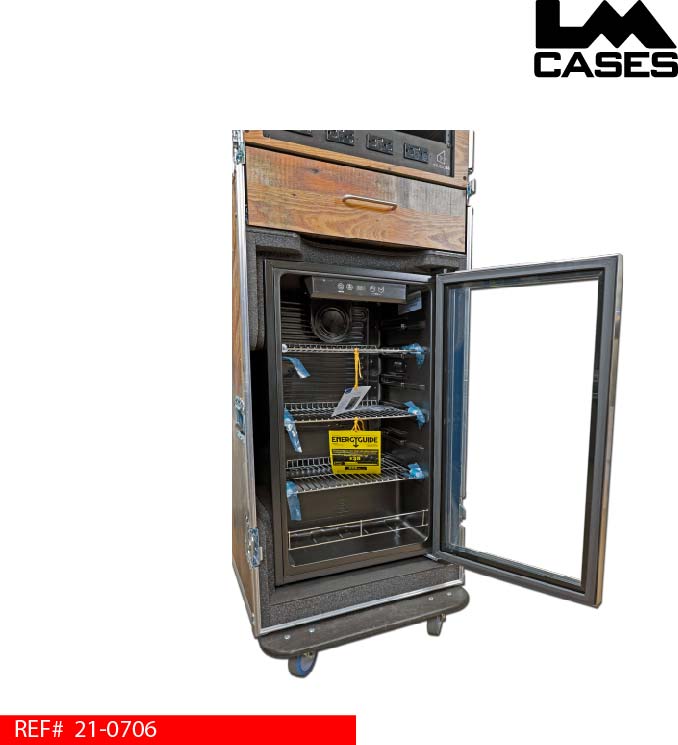

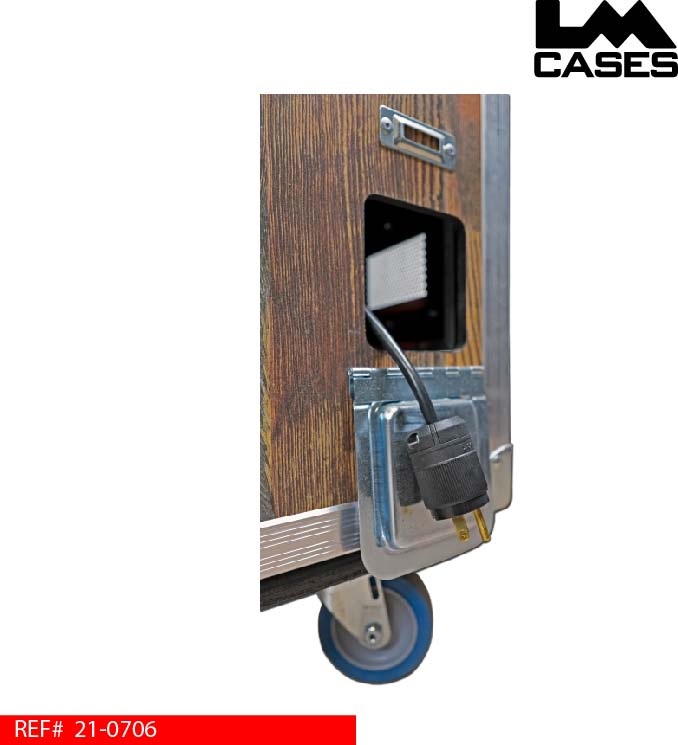

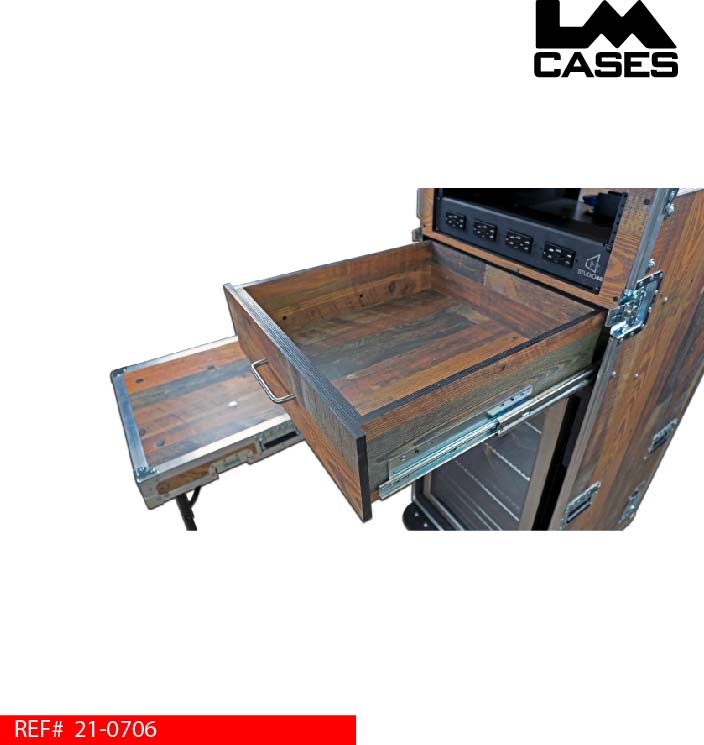

Below the rack section is a HD storage drawer. This drawer is built from ½” Baltic Birch plywood finished with Antique Bourbon Barrel laminate. The drawer features internal dimensions of 19.25” wide x 20” deep x 5.25” tall. The drawer is mounted on HD Accuride glides and features a stainless-steel pull handle. A stainless-steel finished refrigerator is provided. The unit features a glass front door and a blue LED interior light. Power is brought into the case via a retractable 30’ cable reel which eliminates the need for a separate power cable.

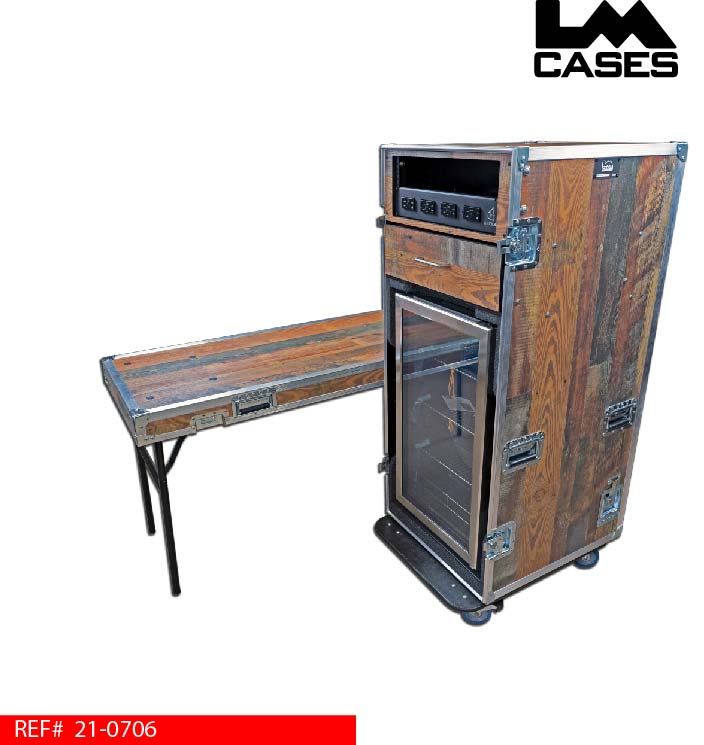

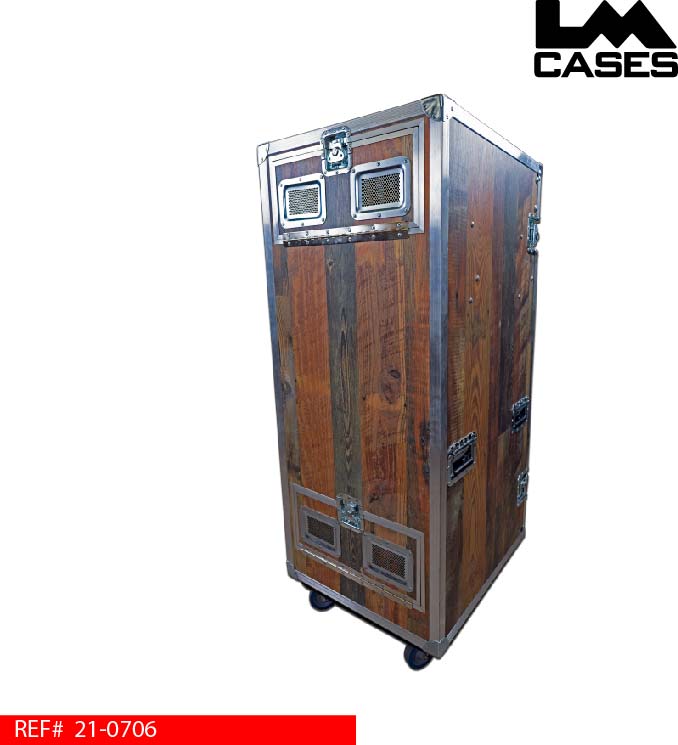

The case exterior is built from 3/8” plywood laminated with Antique Bourbon Barrel Wilsonart laminate. The case features 4 deep recessed handles in the case body and 4 slim recessed handles mounted in the removable front lid. The front lid features HD steel table legs. The back of the case features 2 trap doors for access to the rack and the bottom of the refrigerator. Each trap door includes 2 Penn-Elcom perforated vent dishes. The case rides on 4” Colson casters (2 locking) mounted via a full sized ¾” caster board.
