15amp 2RU Custom Branded Power Input Rack Mount Panel

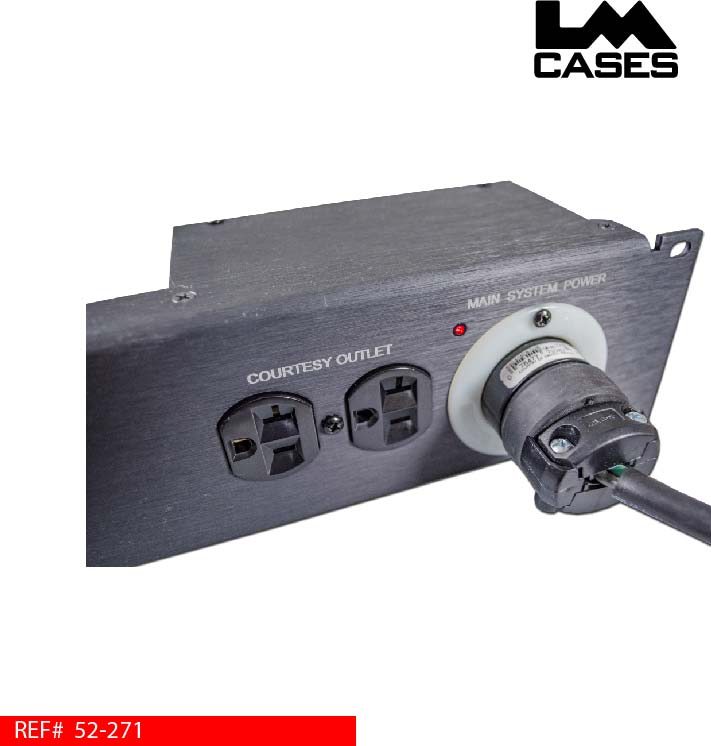

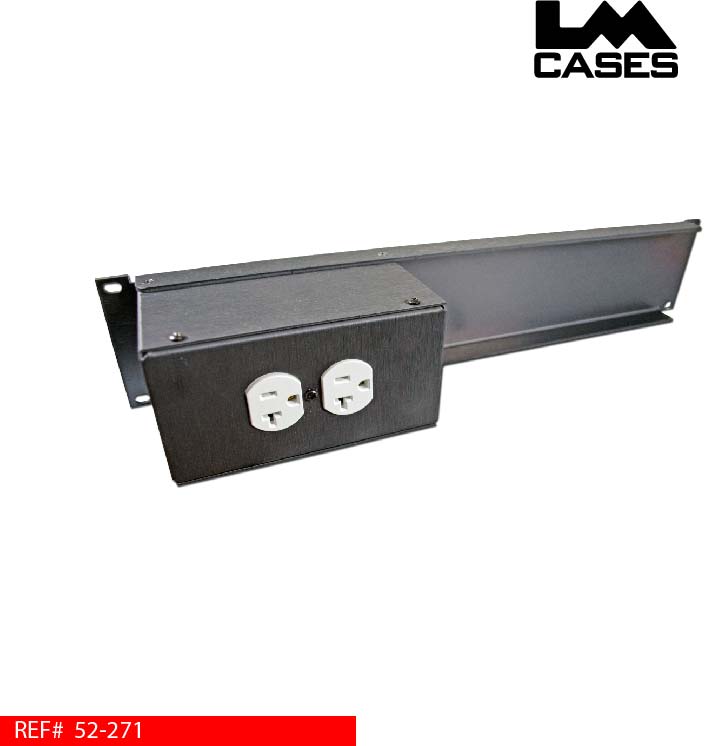

This panel was built for Twist Integration Solutions. The panel is designed to be the main power input source for their integrated systems. Power is brought in via a Hubbell 15amp recessed inlet. A red LED indicator light illuminates when voltage is present. Power is routed to a front mounted courtesy outlet and a white rear mounted outlet.
The panel is built from .125” black anodized aluminum. All electrified items are enclosed in a back box. The front panel features the Twist logo.
- REFERENCE: 52-271
- CATEGORY: Audio/Visual CATEGORY: Custom Integration
Related Products
LM Tour Systems C 1/1 240v - 120v Touring Power Conversion System
The LM Tour Systems C 1/1 Power Conversion System allows North American 120V equipment to operate safely on European 240V power. Built around a custom transformer, it steps down 240V single-phase input to 120V single-phase output with up to 32 amps of capacity. The compact system provides multiple 120V outlet options, integrates seamlessly with True1 infrastructure, and includes a world power adapter kit for broad European compatibility. Housed in a rugged rack shell and protected within a Pelican 1630 case, it’s designed for reliable touring use.
LM Tour Systems D B/1 15 Outlet Power Distribution Briefcase w/USB A & C Charge Ports
The LM Tour Systems D B/1 Power Distribution System is a compact, high-density charging solution designed for video, film, and athletic environments where many low-power devices need to be powered simultaneously from a standard 15-amp outlet. It features multiple AC and USB-A/USB-C outlets with auto-sensing power delivery, built-in overcurrent protection, real-time voltage and amperage metering, and a hydraulic breaker for system safety. Power is supplied via a locking True1 connection, with expansion options available for additional equipment and remote power distribution.
LM Tour Systems ST1 True1 Stage Power Distribution Box
The LM Tour Systems S T/1 True1 stringer box is a heavy-duty power distribution unit designed to supply multiple systems using True1 inlets. It features one NAC3PX-TOP inlet/outlet combo for input linking plus five additional True1 outlets, providing six total outputs. A blue LED indicates when input voltage is present, and clear labeling shows the output voltage. Compatible with both 120V and 220V power, it’s well-suited for touring, sports teams, and international use. The S T/1 also supports permanent installations, with front and rear mounting points for rack bays or road case lids, and optional 1RU rack ears available.
Dual Source Power Distribution Unit For Floating Set Piece
This custom power caddy built by LM Cases was designed to supply cable-free power to a moving set piece used by the Backstreet Boys during their residency at the Sphere in Las Vegas. To maintain the illusion of a floating set piece, the system relies on battery power while airborne, with an EcoFlow Smart Home Panel 2 acting as a transfer switch to seamlessly switch between battery operation and charging when not in use.
The caddy includes a 20U rack section, a 50-amp shore power inlet, multiple True1 power circuits for lighting and lasers, and dedicated 240V power for specialized equipment. Custom breakout panels and internal wiring were handled by LM Cases’ Custom Integration department. Built from heavy-duty Baltic birch with textured finish, reinforced handles, and protective interfaces for loading into the set piece, the caddy is engineered for durability, safety, and seamless show operation.
Dual Source Temporary Site Power System - 15 Amp 1 Phase
The LM Cases Dual Source Temporary Site Power System is designed to provide multiple power outlets such as standard AC, USB and locking Neutrik True1. The system can operate on standard 15-amp AC or be isolated from the electrical grid via its built in generator. Applications for the system include mobile offices, command centers, locker rooms and athletic sidelines.
D 1/1 15-Amp Edison Power Distribution Unit
The LM Tour Systems D 1/1 15-Amp power distribution unit is designed for applications where an Edison AC power is the desired input connector. The D 1/1 has many of the same features of our larger 2 & 3 phase units in a 15-amp single phase version.
L14-30 Power Distro w/True1 Outlets & L5-20 Tails
This custom L14-30 power distribution unit was built as the main power distributer for a video flypack. The distro is built from .125” black anodized brushed aluminum and is 2U tall with a 6” deep chassis.
19 Pin Socapex Rack Mount Break Out Box w/Edison Duplex Outlets
The LM Tour Systems 6 circuit break out box is designed for applications requiring rack mounted duplex outlets within a Socapex infrastructure. The HD black anodized rack mounted chassis features a front mounted Socapex inlet with 6 front mounted duplex outlets. Each outlet is wired with separate grounds allowing for isolation between circuits. Each Hubbell 5362 outlet is labeled 1-6 and shows the corresponding pinouts for troubleshooting. The center Socapex pin is not terminated.
D3/2 3 Phase 30 Amp Rack Mount Power Distro
The LM Tour Systems 3/2 power distribution unit is designed with amplifier racks in mind. The 3-phase distribution unit provides a variety of outlets allowing for multiple uses for a variety of applications. Power is brought into the unit via a Hubbell 2815 flanged inlet using a NEMA L21-30 locking connector. A Hubbell HBL2816 flanged outlet is provided for looping in additional systems or for local courtesy power. 3 LED lights are located behind the flange on the inlet showing when power is present at the inlet.
L15-30 250v / 120v Combination Power Distro
This custom rack mount combination 250v / 120v power distribution module was designed as a main power input point for a mobile MRI power supply rack. The distro features a Hubbell HBL2725ST flanged inlet connector protected by a 3-pole hydraulic breaker. The rack chassis features a Hubbell HBL2726 flanged outlet.
T1 Power Distribution Unit - True1 Locking
The LM Tour Systems T1 power distribution unit is designed for portable applications where locking power distribution is required. Power is brought into the unit via a front mounted Neutrik True1® inlet. A 20amp hydraulic breaker is wired directly after the inlet, with all outlets being wired post breaker. A combination volt/amp display shows available voltage and the current amp draw from devices connected to the distro. A True1® outlet is located on the front panel allowing multiple distros to be linked together. A LM Tour Systems 4-plex or HD pendant power bank can also be specified for additional outlets. In addition to the True1® outlet, a HD 20amp duplex outlet is also provided on the front of the distro.
1U Half Rack Width Power Distribution Unit
This 1RU half rack power distribution unit is designed to work with our half rack width studio rack. The power unit is designed to provide 4 outlets for half width racks. The unit features a front mounted C13 IEC power inlet with an indicator LED to show when power is present. 2 duplex outlets are rear mounted for your equipment. Don’t forget to add a LM Tour Systems Locking IEC power cable!
Socapex Break Out & Switch Panel Set
This custom Socapex panel set was designed for a theatrical application where it was requested for switched control over 6 duplex outlets. Power is fed into the system via Powercon connector and is split evenly through 6 switches, then to 6 outlets. The 46-578 switch panel is designed to be desk mounted allowing for fast access with the 46-479 outlet panel being mounted on the rear rail of a rack. A 3ft Socapex extension cable connects the 2 boxes. Should the user desire to use the outlet panel in a different location, a standard Socapex extension cable can be used. The 46-479 outlet panel can be used with any standard Socapex cable/distro as a breakout.
NPDU Network Power Distribution Unit
This custom rack mounted power distribution is designed with network racks in mind. The 2RU, 6” deep chassis is built from .125” thick brushed aluminum that is black anodized.
GTS10A Generator / Land Power Transfer Switch Module
The LM Tour System GTS10A transfer module is designed to easily switch between 2 power sources. The panel features a 3-position switch to toggle between “off” and the 2 power sources. LED lights are provided to show when voltage is present on the generator and land sides of the switch.
1:3 L5-30 Power Distribution 2RU Enclosure
This 1:3 L5-30 splitter panel is designed to take a single L5-30 input and distribute power to 3 L5-30 outlets. This distribution box is perfect for server racks that need to split input power to multiple PDUs or uninterruptable battery backups. The front HBL2615 inlet features a LED light to show when power is present. 3 HBL2616 outlets are provided for power output. The front face panel is built from HD .125” thick black anodized aluminum. The panel is 2U tall, with a 6” deep back box. Add a LM Tour Systems L5-30 custom built power cable to your enclosure for a turn key system!
Dual Circuit True1 Power Distribution Unit w/Hydraulic Breakers
This is a perfect power input panel for systems requiring dual 20amp power inputs from separate sources, the panel can also be beneficial as a master power switch for 2 separate systems when utilizing the breakers as “on/off” switches. Power enters the panel via the True1 jack and is routed through the breaker, then to 2 duplex outlets. The 20amp breaker protects the system from over drawing and or power surges.
The rack chassis is built out of thick .125” brushed aluminum and black anodized. All labels are laser etched.
Check out LM Tour Systems line of custom True1 power cables to compliment your new distro!
LM Tour Systems LMAB 12v, 2RU LED Rack Light Enclosure w.Flexible Task Light
This power supply is built by the LM Cases Custom Integration department to provide a central source for lighting and control in integrated systems. The front panel features an 18” dimmable, flexible, LED task light. 2 switches are provided to allow switched control over 2 banks of lights.
DSK-ES Switched Desktop Courtesy Power Box w/True1 Connectors
The LM Tour Systems DSK-ES desktop courtesy power panel is designed to be a central power panel for racks, and workstations that may not have room for rack mount power distribution. Other applications include separate switched outlets for monitors, or speakers that need to be switched off independently.
L21-30 3 Phase Testing Distribution Panel
This custom power test panel is designed to split 3 phase power via a L21-30 connector into a variety of output connectors. The intended purpose is providing a central power source to allowing different systems to be electrified and tested before leaving a rental/integration shop.
