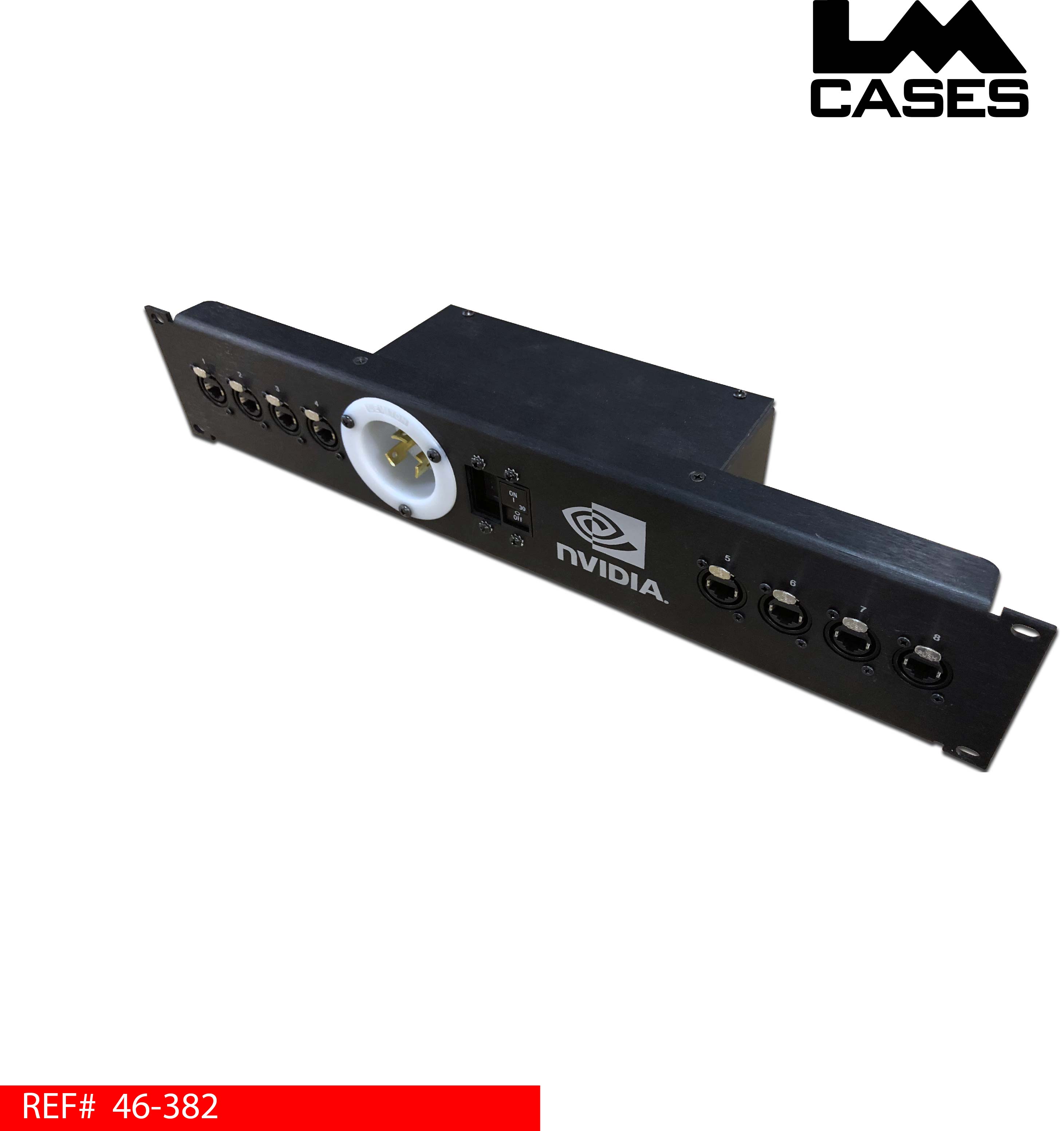

2RU L6-30 Server Rack Power Input Panel

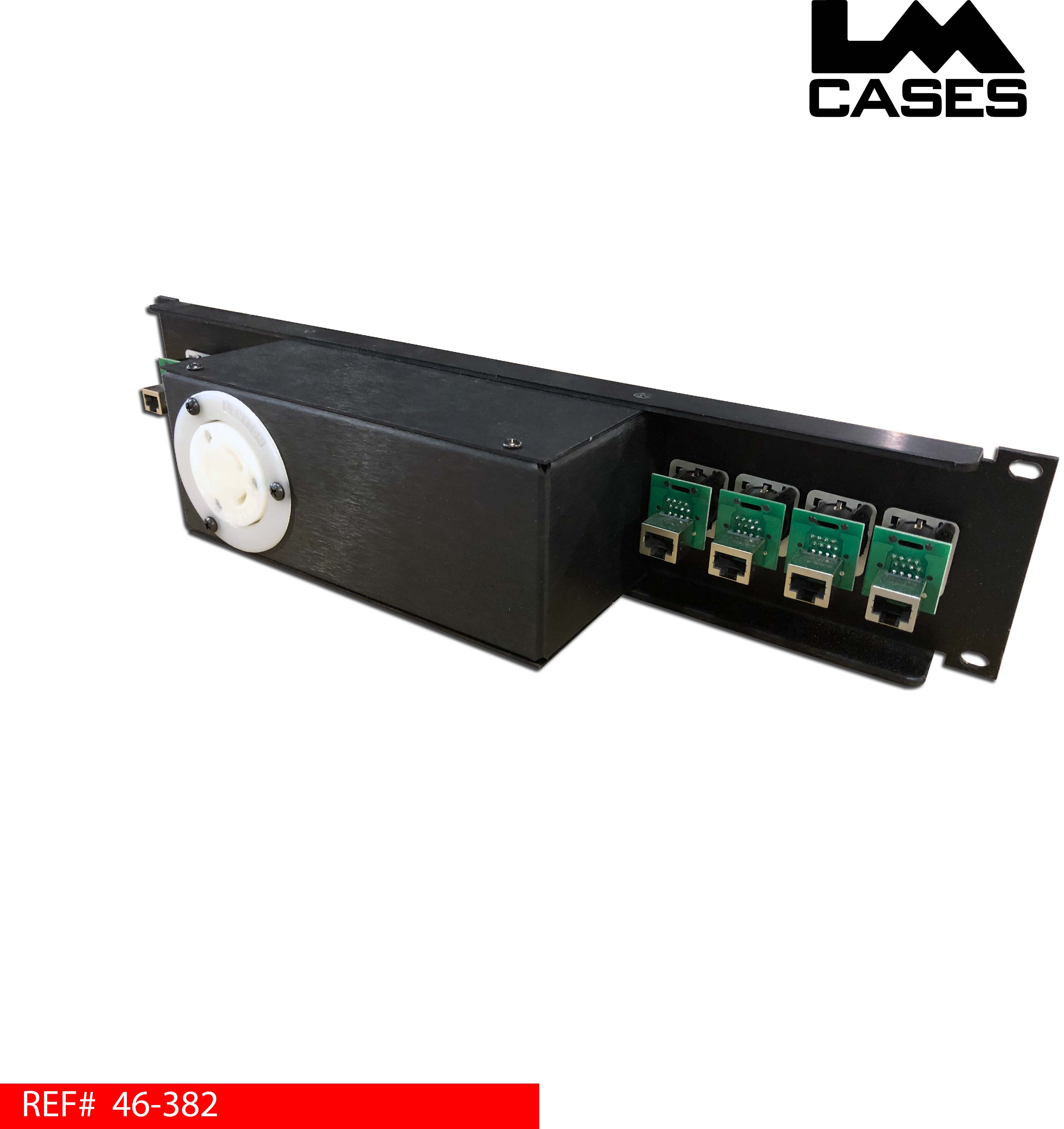

This panel was built for Nvidia as a main power input for a portable server rack. The panel acts as a main input source for the server rack, all in/out connections are addressed at this panel. The panel features a L6-30 208v power input inlet with a 30 amp hydraulic breaker in line, wired to an L6-30 outlet on the rear of the panel. All power is enclosed in a back box mounted to the panel flanges. The panel also features 8 – Neutrik NE8FDP-B Cat 5 jacks.
The panel is built from .125” thick brushed aluminum that is black anodized. All labels and logos are laser etched.
Special thanks to Nvidia!
- REFERENCE: 46-382
- CATEGORY: Custom Integration
