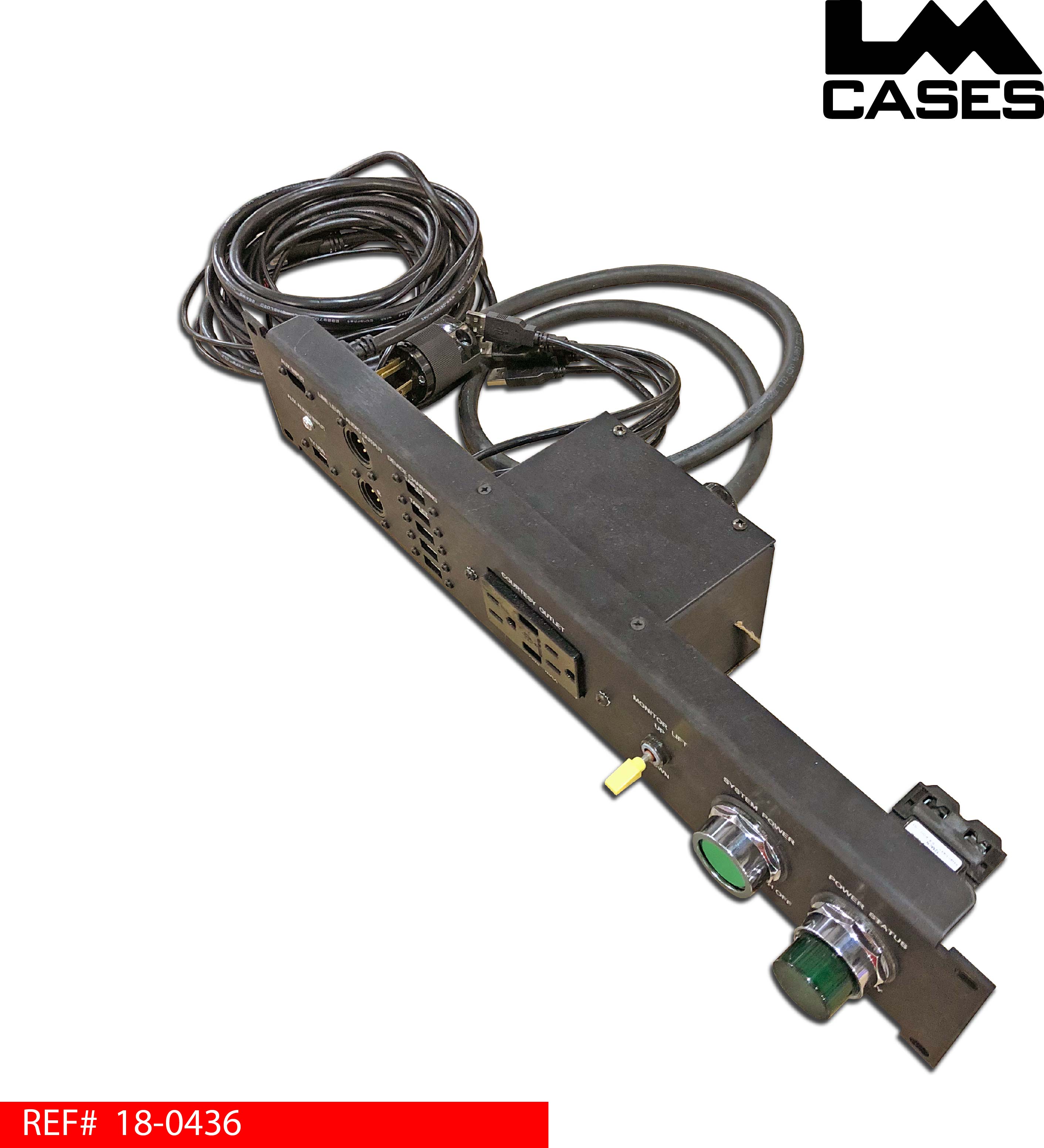

2RU Mobile Entertainment Center Control Rack Panel
This 2RU rack mount panel was designed to be the control center of a mobile entertainment system. The panel is built from .125” thick black anodized aluminum with all labels being laser etched. Featured are a Siemens 30mm push button and indicator light. The push button initiates the power sequencer to power up/down all the components of the case. The indicator light is the last element in the power chain; once the sequence has completed the light illuminates. Also featured is a waterproof HD up/down switch that controls an electric lift that a monitor is mounted on. Centered in the panel is a Leviton courtesy outlet that features Edison outlets and 2 USB outlets. 5 USB outlets are provided for device charging. Male XLR jacks are provides for a main output of the system to an additional set of speakers. Input signals are handled through Datapro brand panel mount HDMI, 3.5mm audio jack and a USB 3.0 jack. All Datapro input jacks feature recessed milling on the rear of the panel.
- REFERENCE: 18-0436
- CATEGORY: Custom Integration
