48 Point SDI Rack Mount Hinged Patch Panel

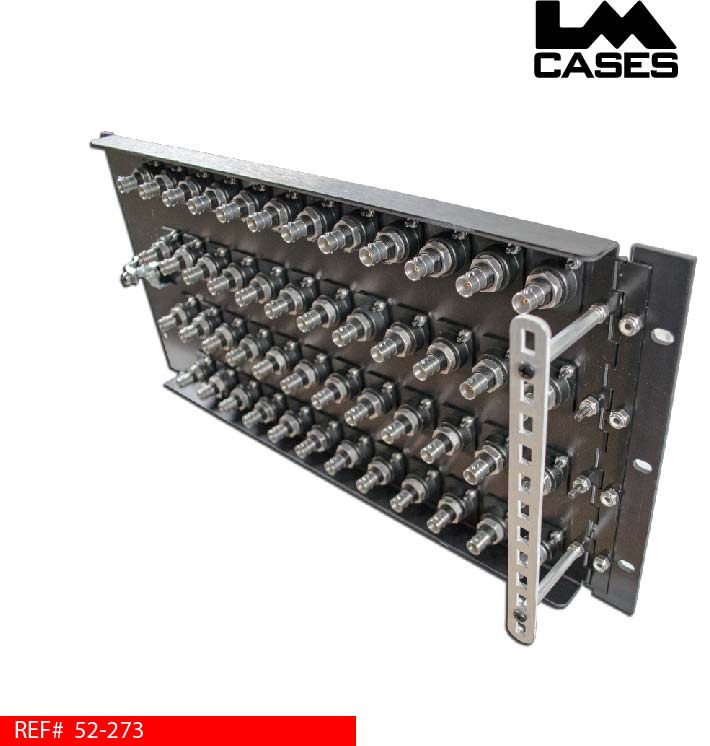

This panel is designed to handle 48 BNC jacks for video applications. The panel features 48 Neutrik NBB75DFIB-B jacks installed into a 5RU hinged panel. The panel features an integrated rear lacing bar to secure cabling. A twist latch is provided to secure the panel to rack rails. Mounting holes are also provided should the user require them. The panel is built from .125” black anodized brushed aluminum.
To purchase this panel from our online store, CLICK HERE.
- REFERENCE: 52-273
- CATEGORY: Custom Integration
Related Products
Confidence Monitor I/O Enclosure Box w/2 Blank Punches
This is the standard IO box we use for our confidence monitor caddies. The box is designed for customers who are only using a single video input source with their system. The box features a laser etched, text “video” label above the left d-punch. The right punch features a white blank box allowing users to either write a label or use a label machine to notate the connector. The right punch comes standard with an anodized blank plate. D-series connectors are available from LM. Don’t forget to complete your system with a HD LM Tour Systems power cable!
3RU Heater Control Rack Mount Panel
This panel is designed to be the master control center for a football heater case. The panel is 3RU tall and built from .125” brushed aluminum. The system has 2 temperature zones controlled by 2 thermostats. Each thermostat is back mounted to the panel via a custom bracket designed to fit into the thermostats DIN rail mount brackets. Standoff’s are provided to firmly mount and secure each thermostat’s temperature probe wire.
2RU Half Rack Width Thunderbolt & USB Desktop IO Panel
This panel is designed to provide USB A, C, Thunderbolt and AC power connections for work surfaces in a half rack format. The panel includes 2 – panel mounted USB 3.0 A-A jacks with 6ft tails and 2 – panel mounted USB C A-A jacks with 3ft tails. A 6ft Thunderbolt cable (USB C Ends) is mounted through a strain relief compression fitting. The compression fitting allows the cable to be fed in and out of the panel without damaging the fragile cable. A duplex outlet with 2 USB A jacks is provided for courtesy power. The duplex outlet is fully enclosed with a back box. A 6ft HD power cable with a standard Edison plug is provided to provide power to the panel. The panel is 3.5” (2RU) tall, 10.5” wide, and requires 7” of depth to accommodate the cable bundle.
Dante/Network Power Inlet Box
This inlet box is designed to be a main signal point for work stations and racks using the Dante protocol. The box features 3 Neutrik NE8FDP-B Cat5 jacks labeled “primary”, “secondary”, and “network”. The jacks are intended to bring Dante Primary, Secondary, and a main network signal into a work station. The power portion of the box features a recessed Hubbell inlet wired to a duplex outlet. This box can be mounted behind a Penn D0047Z cable hatch. The box provides a neat “all in one” location for portable systems.
Custom Speakon/RF Output Panel
This panel was designed for Briarcrest Christian School to provide a central location for their amplifier and RF antennae outputs. The panel features 2 NL4 outputs allowing the left and right speakers to be run down a single cable run. Each connector is labeled using simple terms allowing students to use the panel without confusion. The Speakon connectors are also labeled with the pin out to help with troubleshooting. Dual XLR’s are provided for a record feed. BNC’s are provided to send signal to the separate antennae needed for microphones and IEM’s. Two Cat5 jacks are spec’d for network input/output.
D&B D80 Amp Rack Breakout Panel
This panel was built for Headline Productions to provide central connection point for their D&B D80 amp racks.
