Custom Speakon/RF Output Panel

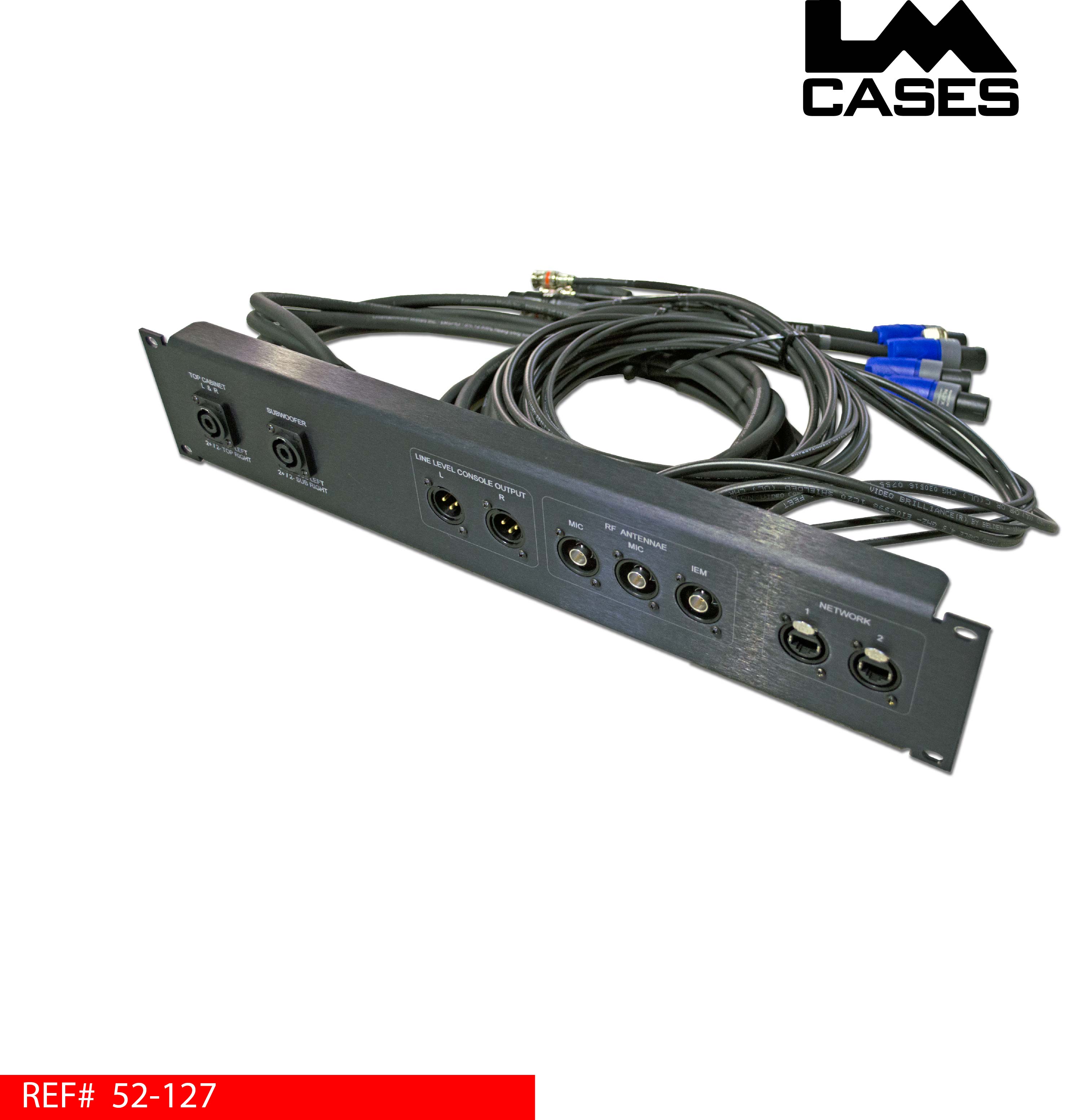

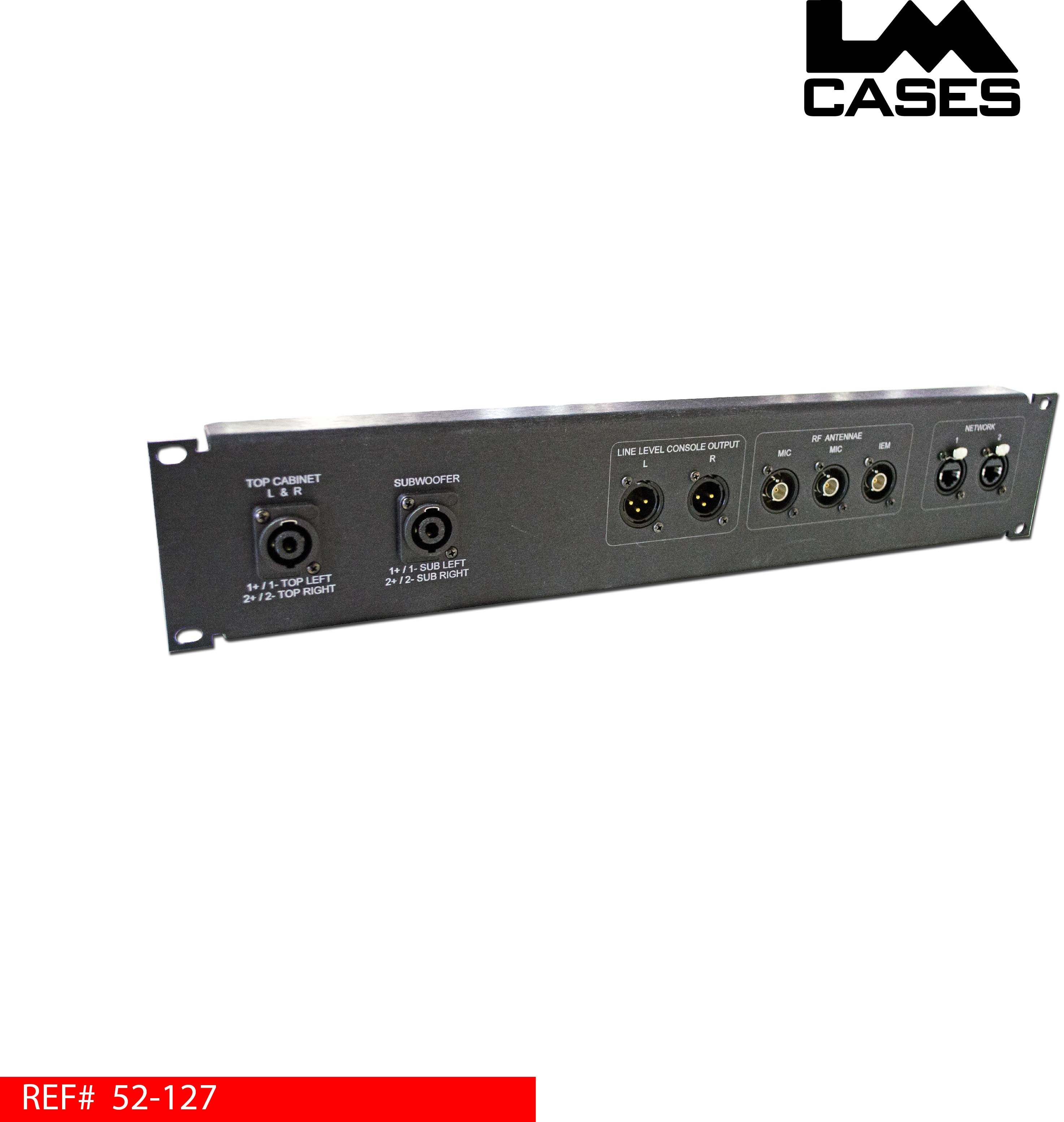

This panel was designed for Briarcrest Christian School to provide a central location for their amplifier and RF antennae outputs. The panel features 2 NL4 outputs allowing the left and right speakers to be run down a single cable run. Each connector is labeled using simple terms allowing students to use the panel without confusion. The Speakon connectors are also labeled with the pin out to help with troubleshooting. Dual XLR’s are provided for a record feed. BNC’s are provided to send signal to the separate antennae needed for microphones and IEM’s. Two Cat5 jacks are spec’d for network input/output.
