Yamaha
Yamaha TF1 Installed FOH Workstation
This custom installed workstation was designed for a Yamaha TF1 console. The workstation features all black hardware and is used in a front of house application in a church.
Yamaha DM3 Console Road Case
This case is designed for the Yamaha DM3 console. The case features custom cut PE foam that contours the shape of the console. The case exterior is built from light weight ¼” plywood laminated with your choice of ABS plastic colors. The case features 3 deep recessed handles.
Yamaha CS-R5 Rivage PM5 Road Case w/Doghouse
This custom case was built for Mohegan Sun casino for the Yamaha Rivage CS R5 Control Surface. The case interior is lined with custom CNC cut foam that contours the unique shape of the console. The console is held in place from the bottom and back in a Baltic Birch enclosure. The rear of the console is hidden by a doghouse. Built from ¾” Baltic Birch, the doghouse features a double hinged top lid and 2 removable rear vented panels with Southco latches.
Yamaha DM3 Tour Grade Mixing Console Road Case
This heavy duty, tour grade case is designed for the Yamaha DM3 audio console. The custom case’s foam lined interior features angled foam blocks the contour the console shape. A doghouse is provided to hide all rear console connections. The doghouse is built from ½” Baltic birch and features a double hinging design for full access. The doghouse is finished in black textured coating.
Yamaha DM3 Mixing Console Case - Waterproof
This waterproof case is designed for the Yamaha DM3 mixing console. The console is held in a custom CNC cut; PE foam lined interior. The console is supported by the top of the chassis by the screen and with a Crosslink foam block that extends down from the lid to touch the console’s palm rest. An accessory compartment is provided below the console for its power supply. The waterproof SKB iSeries case provides a durable, lightweight transportation solution for this compact console.
Yamaha CL3 Mixing Console Case
This custom road case is designed for the Yamaha CL3 console. The console is protected by 2” foam blocks at all key stress points. Custom Crosslink foam pieces are located in the nose lid that contour the shape of the console’s palm rest. A custom doghouse covers the I/O section of the console. The doghouse is built from ¾” Baltic Birch plywood and is finished with black texture coating. The lid features double hinges allowing it to swing fully back for full access to all connections.
Installed Yamaha QL5 Mixing Console Work Station Desk
This case was built for a church to provide a front of house work station to hold their Yamaha QL5 mixer, and provide storage for production equipment.
Yamaha PM10 Rivage Mixing System Case Set
The console case is designed to hold the Yamaha CS-R-10 control surface, which is part of the PM10 Rivage system. The case holds the control surface on a ½” Baltic birch internal structure that traps the surface by its feet. The internal structure supports a slide out keyboard shelf at the front and a doghouse at the back. The control surface is supported by 2” PE foam at all points. CNC cut foam blocks that match the contour of the console are provided to ensure that all parts are supported during transport. The back of the control surface is covered and supported by a custom doghouse. The doghouse is built out of ¾’ Baltic birch and features a top lid that hinges flat against the back of the doghouse. The back of the doghouse also features 2 removable vented panels that secure with HD Southco slam latches.
Yamaha TF1 Mixer Case With Doghouse
This case was built for Audible Difference Inc. to hold a Yamaha TF1 mixing console. The console is held in a custom designed 2” foam interior. Holding the console in place in the case tray is a custom CNC cut 2” PE foam insert. The foam insert follows the tapered shape of the console allowing it to be supported along all points, not just the widest point. Cable connections to the console are hidden behind a custom doghouse. The doghouse is built out of ¾” Baltic Birch plywood and finished with black texture coating.
Yamaha QL1 Mixing Console Case With Doghouse
This case was designed for Mohegan Sun Casino to hold a Yamaha QL1 digital mixing console. The case features a 1" PE foam lined interior with a custom doghouse built out of 3/4" Baltic Birch plywood.
Yamaha LS9-16 Case With Doghouse
This case was designed for VAE to house a Yamaha LS916 console. The case features a 1” Ester foam lined interior with custom blocking at the palm rest and by the integrated screen. A 8” deep doghouse built out of high quality 3/4” Baltic Birch finished with black texture coating hides the I/O section of the console for a sleek finished look perfect for corporate events. The exterior case is built out of 3/8” plywood laminated with your choice of ABS plastic and features 3 recessed handles and 3.5” casters with a full 3/4” Birch caster pad.
Klondike Sound Custom Yamaha QL5 Case
This case was designed for Klondike Sound. The case is a 3 piece design and features a custom 12" doghouse with an inset lid.
Yamaha QL5 Mixer Case
This case was designed for the Yamaha QL5 console. The case is a 3 piece design allowing the console to sit in the case tray during use.
Yamaha CL5 Case
The case features a strategic foam lined interior, all surfaces not covered in foam are treated with our black textured coating. Foam touches the console only at specific points allowing for substantial cost and weight savings. The consoles wood arm rest is cradled in a custom CNC cut Crosslink foam insert holding it in place and also protecting it from scraching. Operation manuals, Littlelites and cables are held on either side of the "Yamaha" foam block under the console. The rear of the console is covered by an 8" Baltic Birch doghouse that black texture coated.

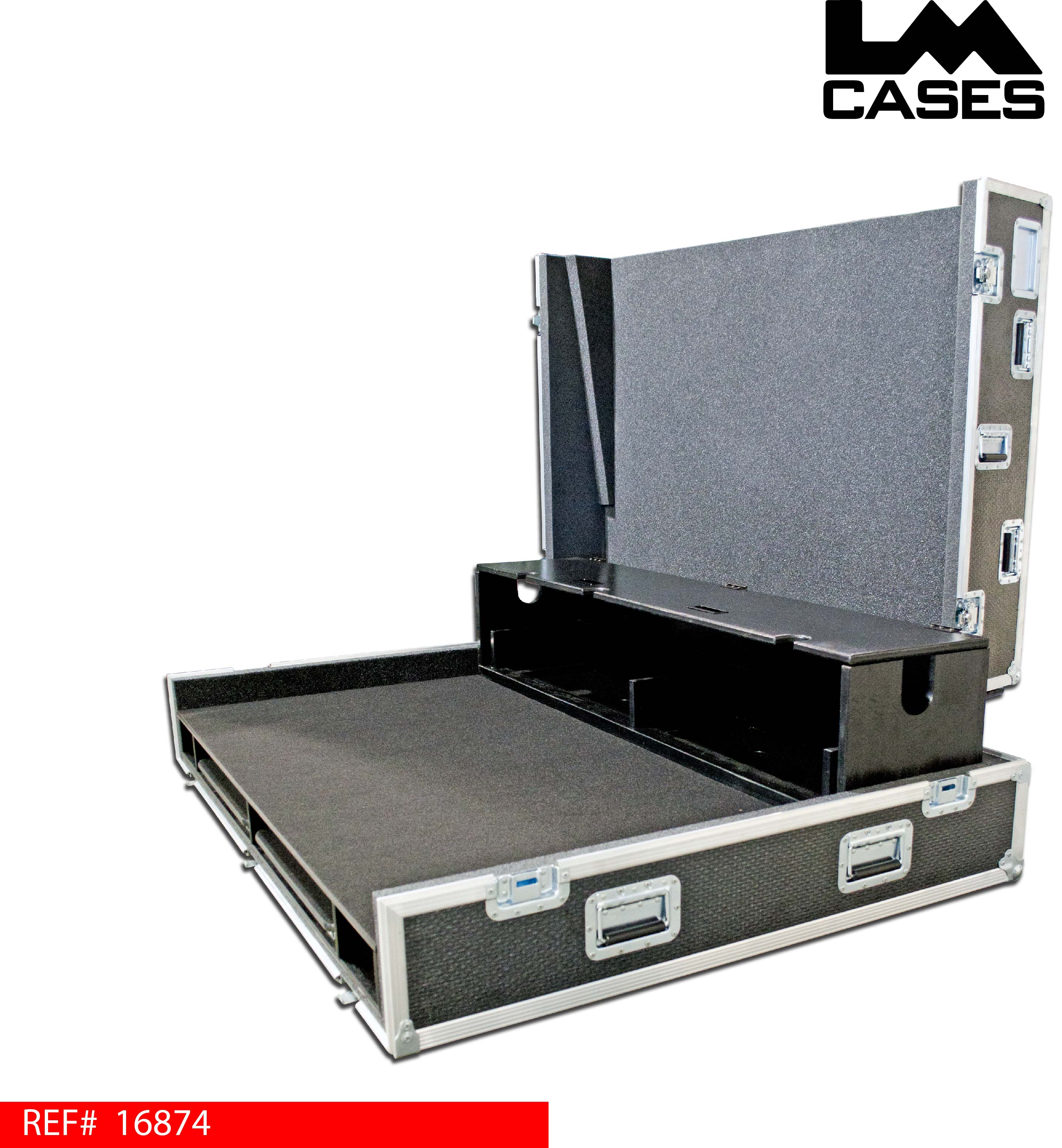

Yamaha PM5D Road Case
This case was designed for Maryland Sound International. The case is built out of 1/2" plywood laminated with Armor-Tuf fiberglass. The case features a 10" Birch doghouse, 2 slide out keyboard shelves mounted on Accuride glides, 14 Handles, 4" x 2" HD casters, a recessed PAL label dish, recessed asset bar code dishes and a custom silkscreen of the MSI logo.
