Half Rack Width Quad Fiber / Powercon / Cat 6 IO Panel
This custom half rack width IO panel was built for Disney to provide external connectivity to an audio rack.

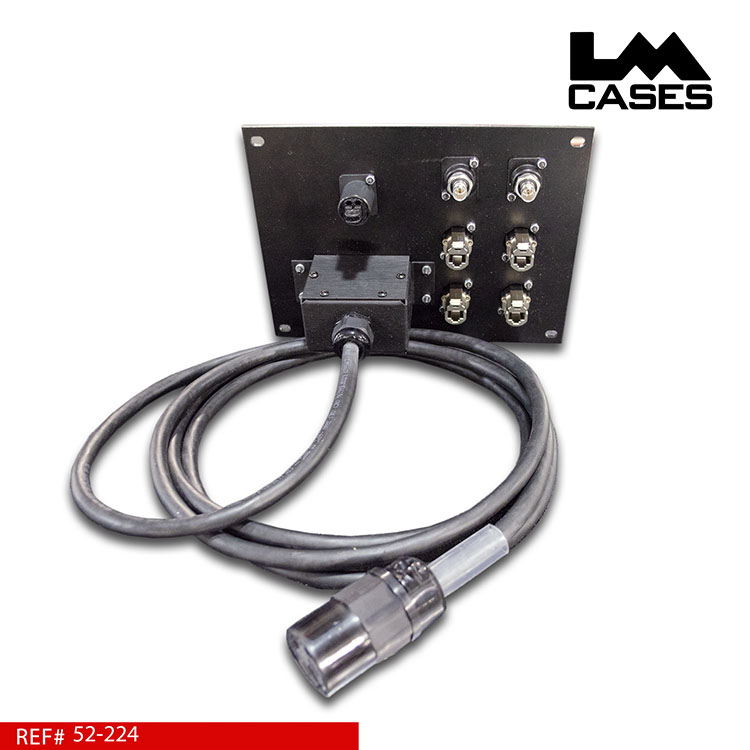

The panel is built from .125” thick brushed aluminum that is anodized black with custom laser etched labels. The panel is loaded with 4 Neutrik NE8FDX-P6-B feed through Cat6 jacks, 2 Neutrik NBB75DFIB-B BNC jacks, and a Neutrik NO4FDW-A quad fiber connector. Powercon in and out jacks are provided for input and output power. The power jacks are enclosed in a custom built back box. A 12awg power cable with a female Edison receptacle is provided to supply power to the rack.
- REFERENCE: 52-224
- CATEGORY: Custom Integration
