Large Format Event Tech Workbox
This workbox was designed for Studio 46 as a configurable way to store tools and equipment for large events. The workbox features 8 drawers with 4 unique heights. A 6-lid storage unit is mounted in the lid for smaller items.

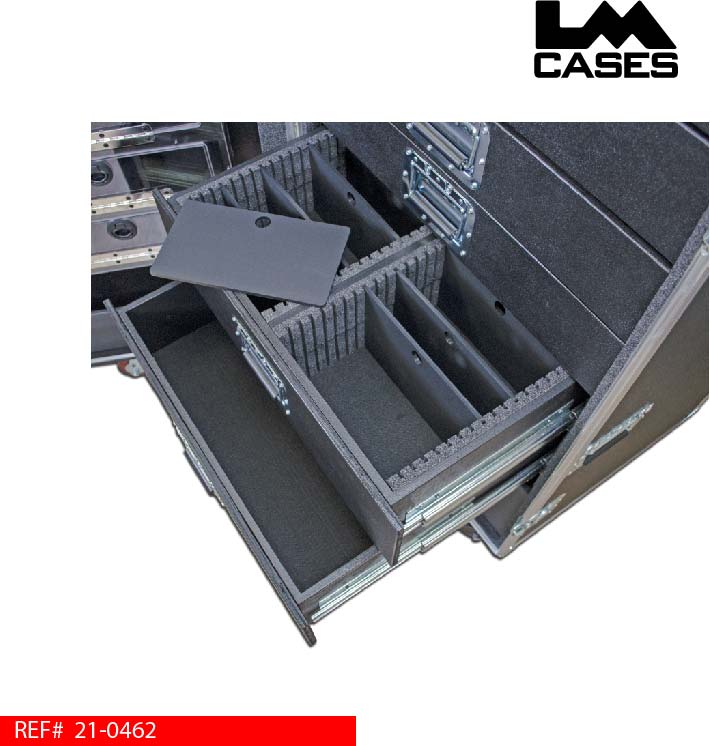

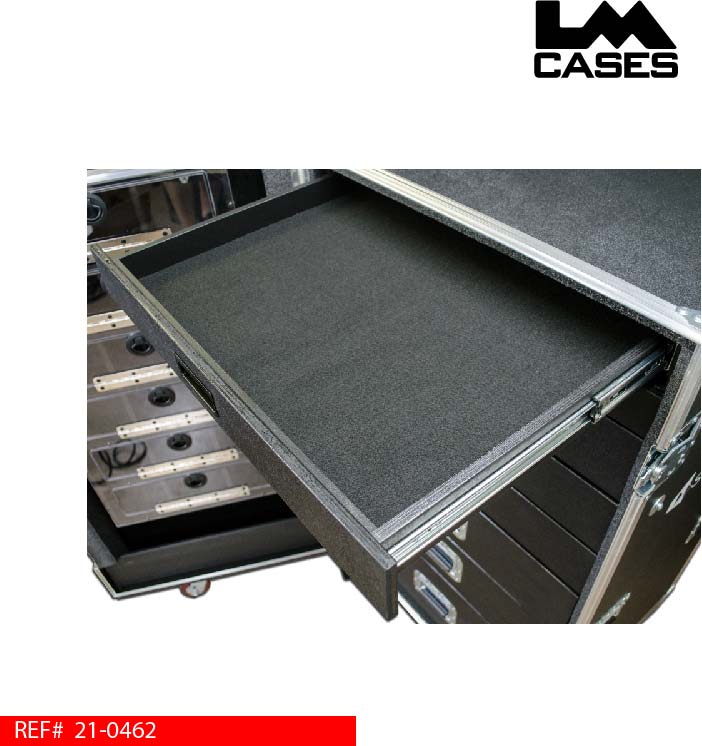

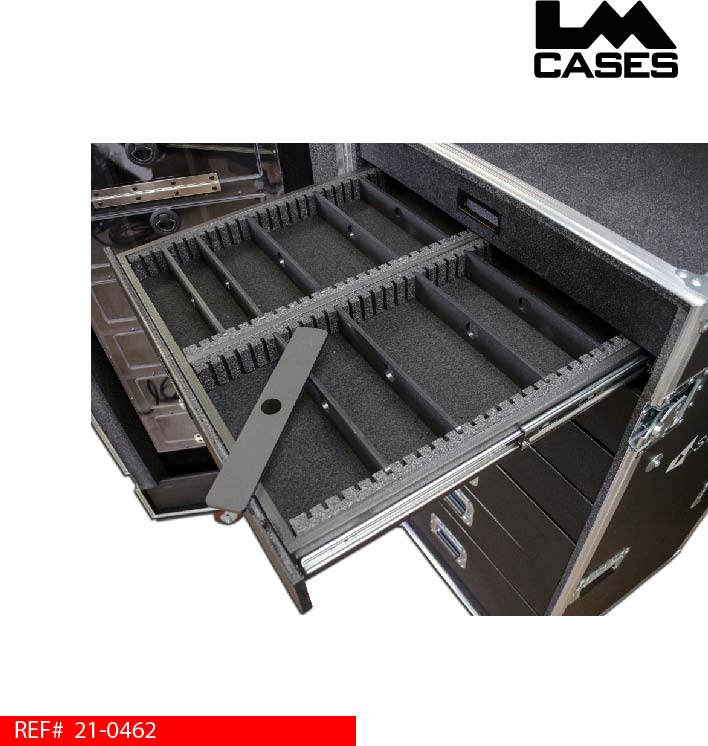

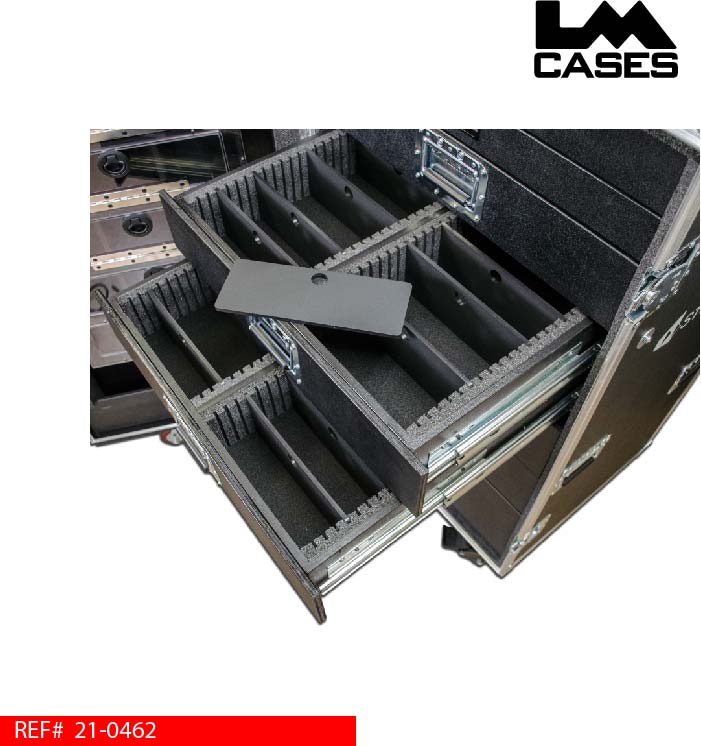

The drawers are built into an independent ½” structure, which separates the drawer unit from the exterior case. Each drawer is built from ½” Baltic Birch, mounted on HD Accuride glides, and finished with black texture coating. The drawers share common dimensions of 23.75” wide x 21” deep. The heights vary from 1.75” to 9.75” usable heights. To create the adjustable dividers, PE foam with dado slots line the sides of the drawers. ¼” marine grade plastic dividers, with finger slots are provided to create the partitions.

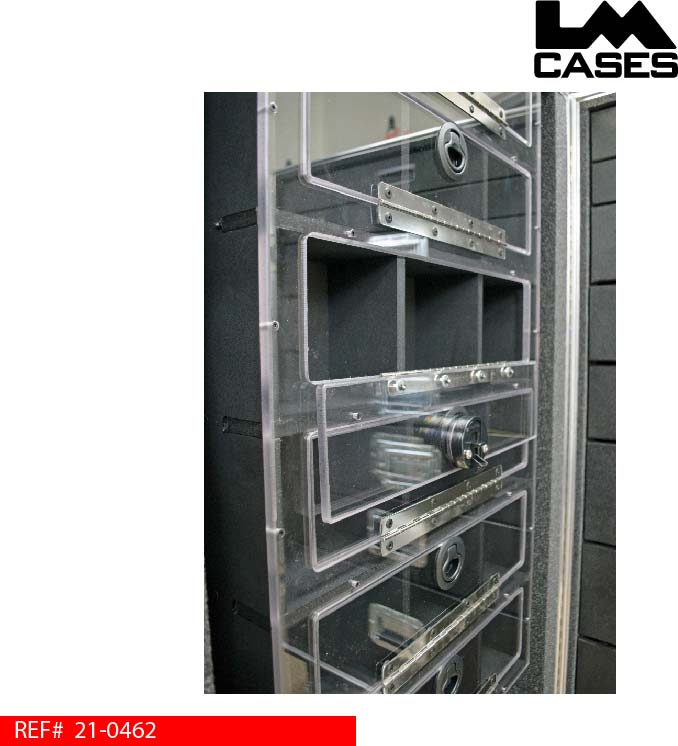

A custom-built storage compartment is provided in the lid for smaller items. The unit is built from clear 3/8” Lexan plastic. The clear Lexan plastic combined with the 6 front mounted slam doors create a high visibility, quick access, storage solution. Each of the 6 individual compartments is split into 3 sections that are 5.875” wide x 3.75” deep x 5.5” tall. Below the storage compartment is a separate area for bottles and aerosol cans.

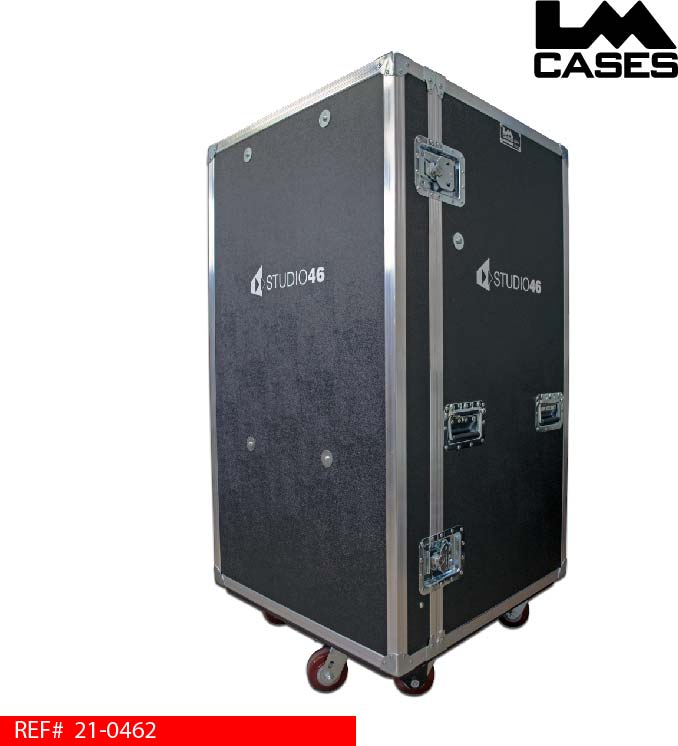

The exterior case is built from 3/8” plywood laminated with black ABS plastic. The case features 2 prints of the Studio 46 logo, in addition to 4 deep recessed handles, and 4” x 2” HD Colson casters.
Special thanks to Ethan and the Studio 46 team for a great project!
