24 Space Insert / Surround Rack Set

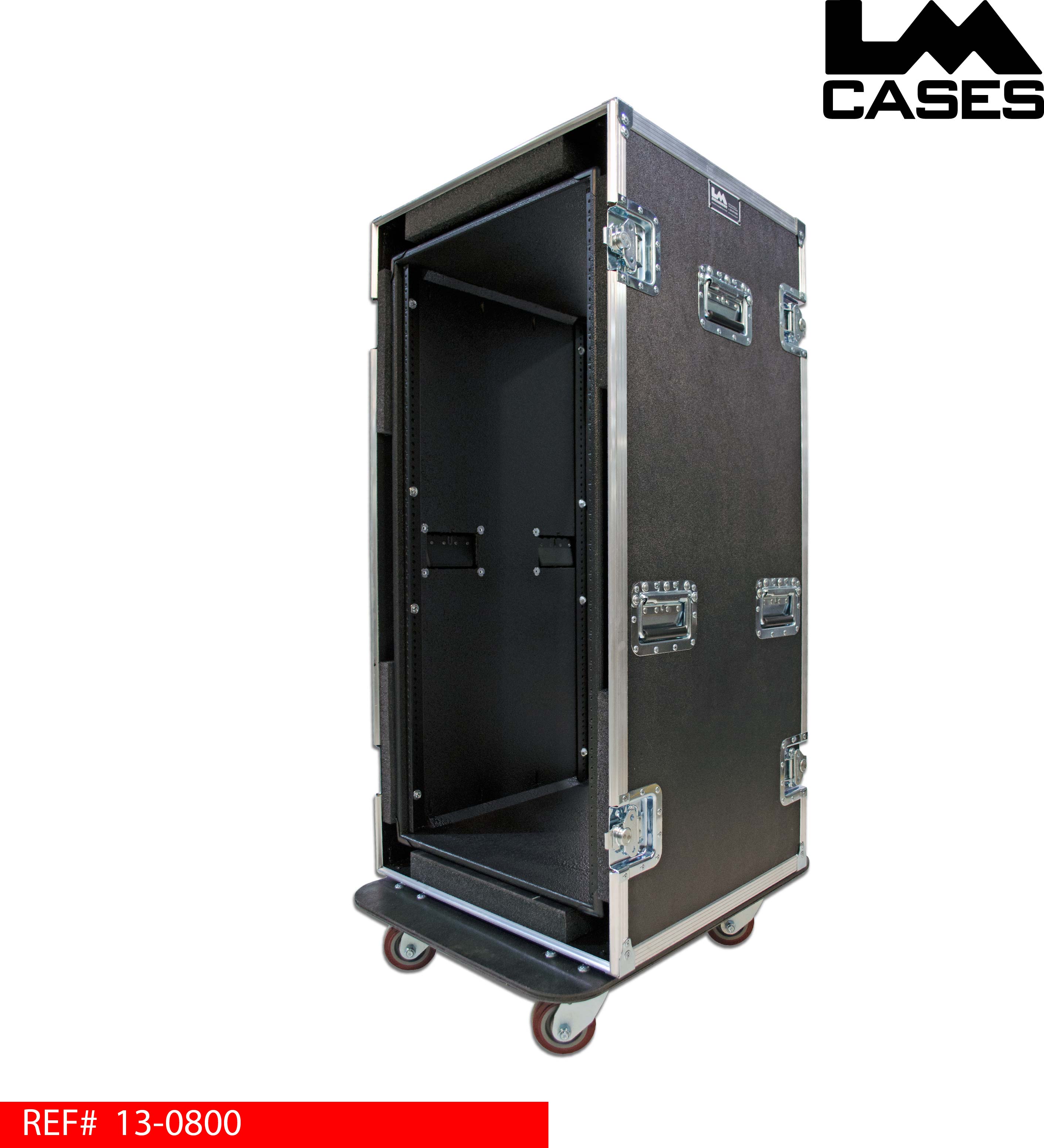

This case set was built for PRG. The case features a removable 24RU inner rack shell and a custom exterior case.

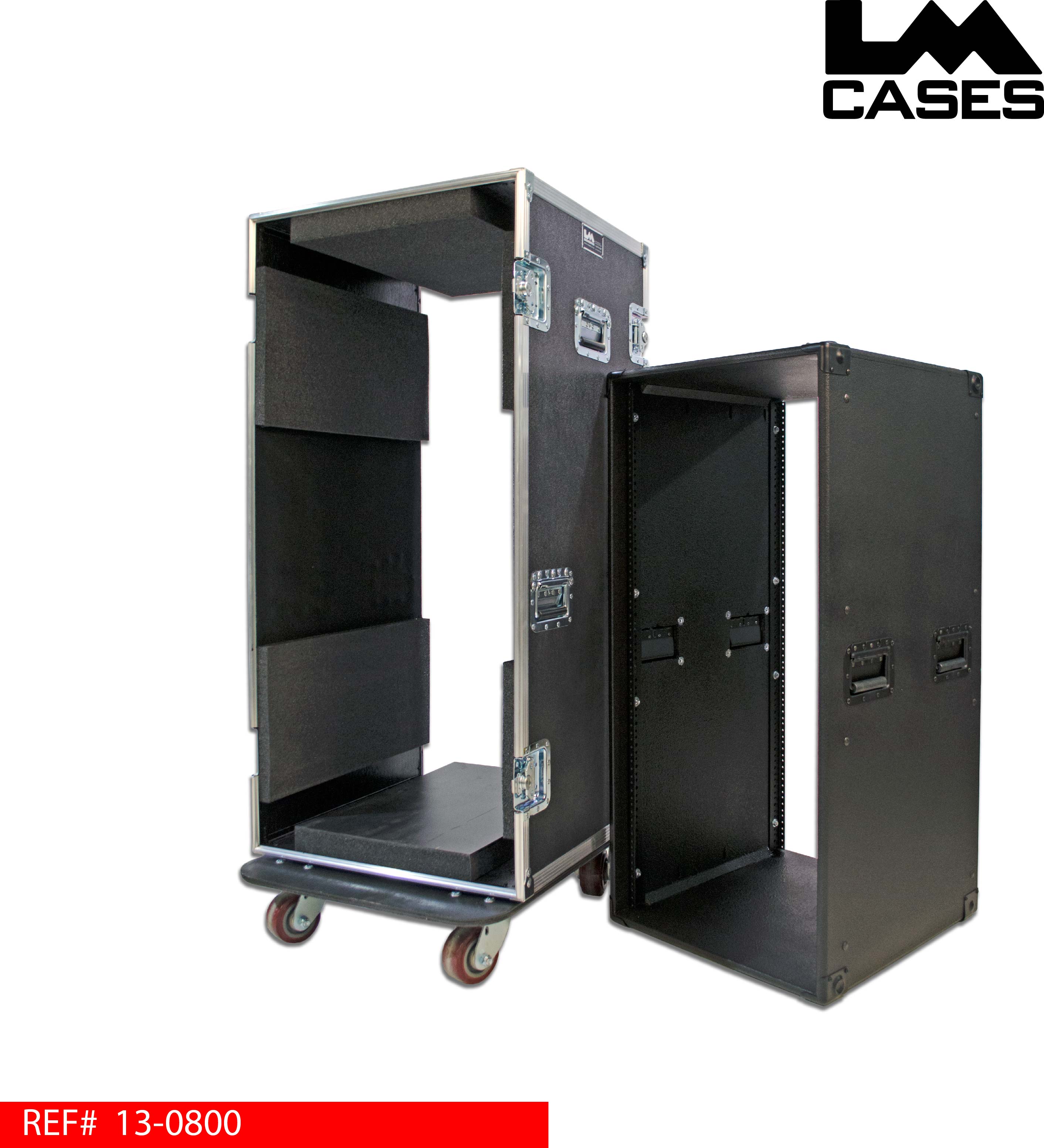

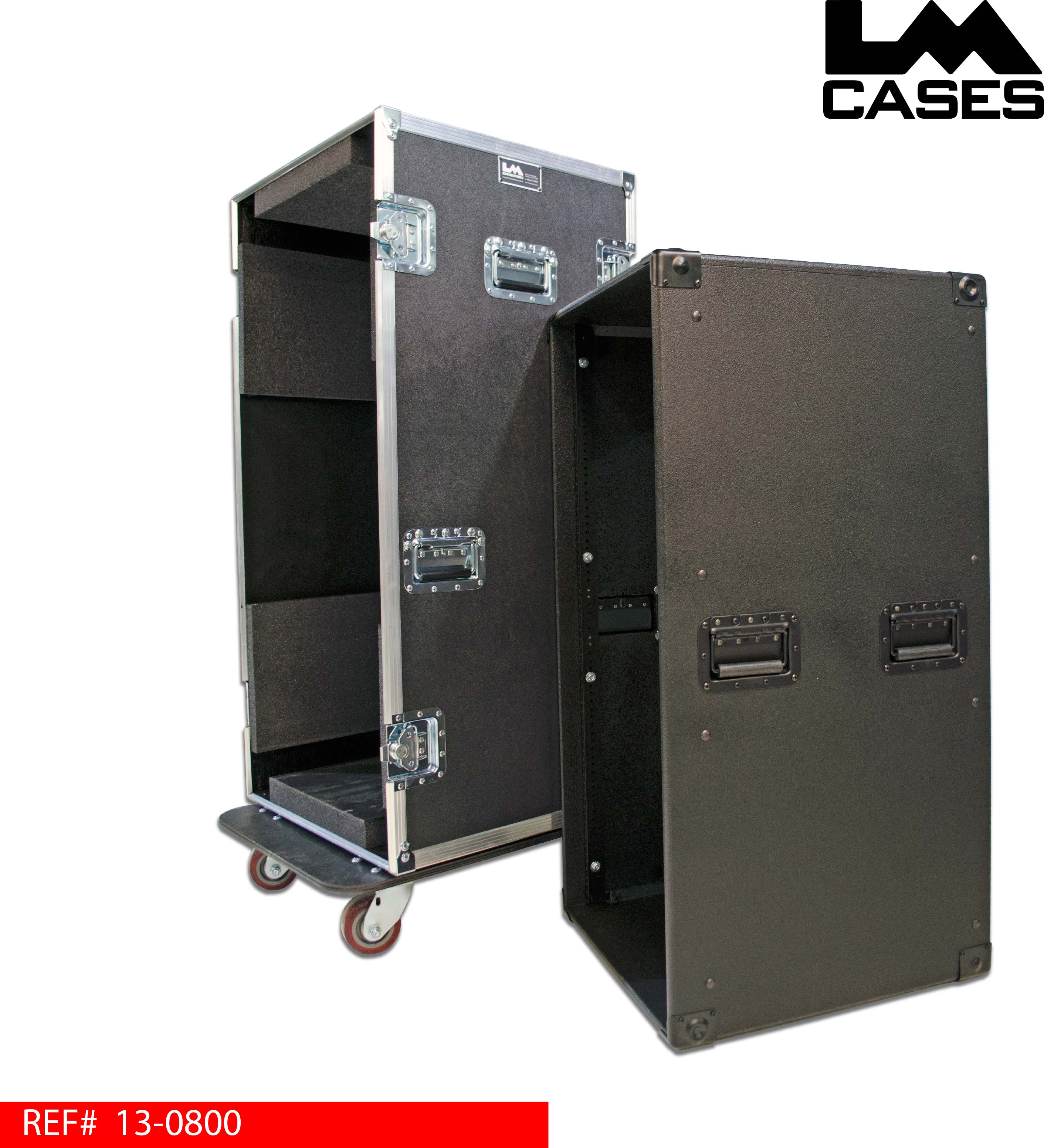

The interior removable rack shell is built out of ¾” Baltic Birch plywood and finished with black texture coating. The shell features 1.5” front rail recess with ½” rear rail recess. The shell’s hardware includes 4 black recessed spring loaded handles and stacking black corners.

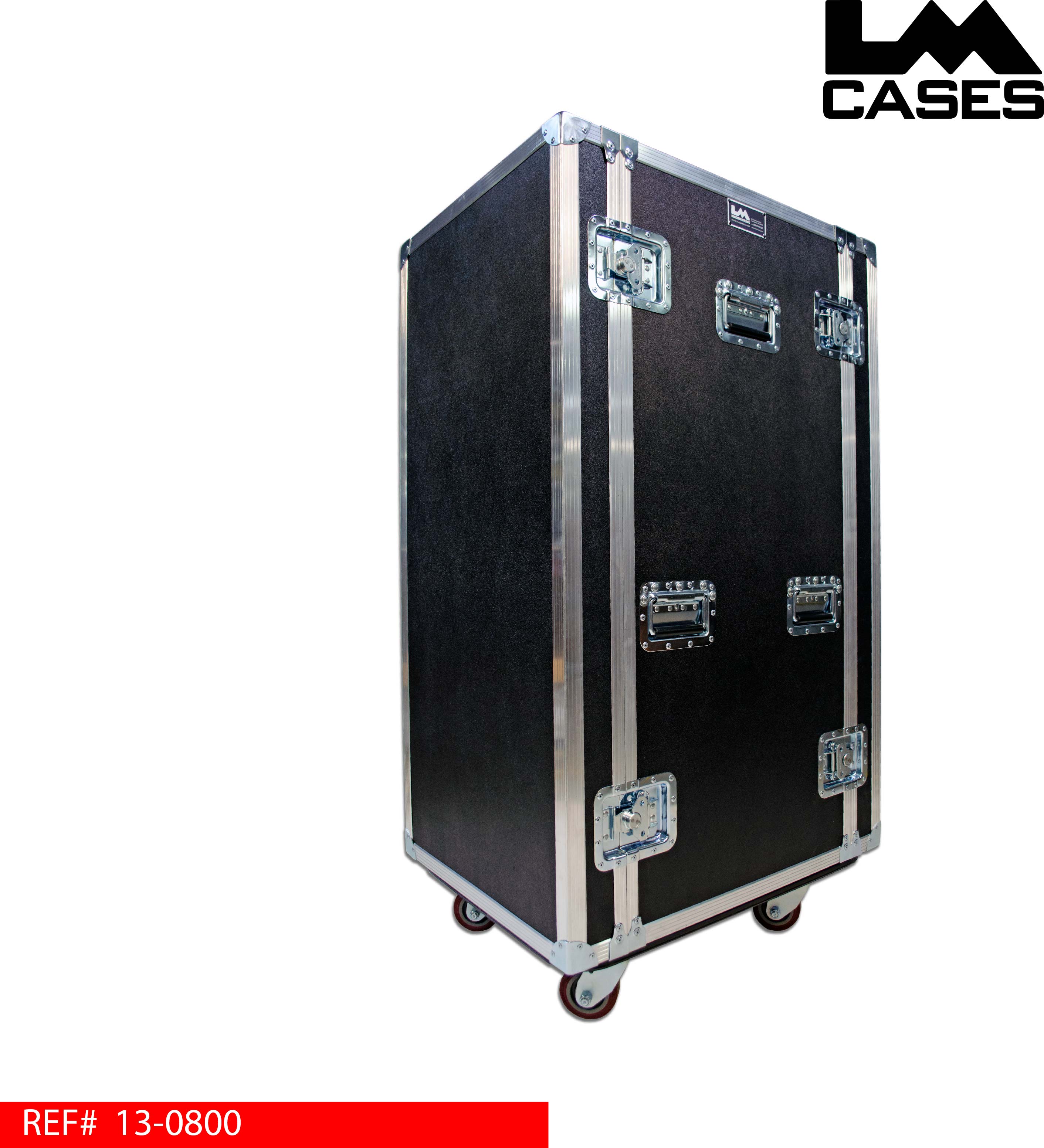

The exterior case is built from ½” plywood laminated with black ABS plastic. The interior is black painted with strategically placed foam blocks to protect the inner rack. A 2” PE foam block is placed under the rack with a ¼” marine grade plastic laminated top cap to help with loading/unloading. The hardware set includes 6 deep recessed handles and 4” x 2” Colson casters mounted on a full ¾” plywood caster board.
- REFERENCE: 13-0800
- CATEGORY: Audio/Visual
