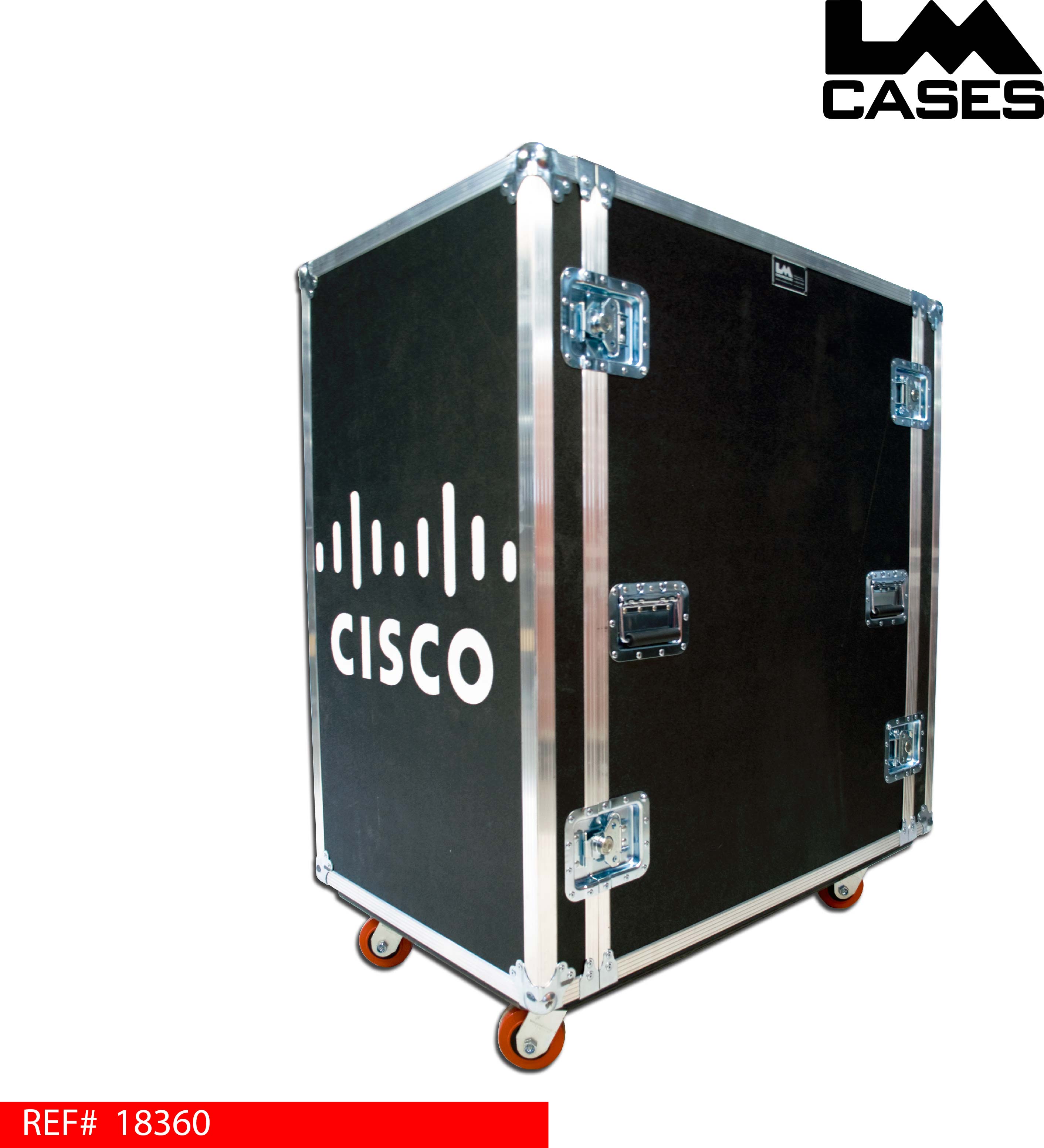

Cisco Chooses LM Cases For Their Mobile Server Rack
This case was designed to house Cisco servers used in mobile applications. The case is built out of 1/2" plywood, and features a 1/2" inner rack shell mounted in 2" of foam to provide shock protection. The rack holds 21RU of gear features a 33" deep shell to accommodate the extra deep servers. The case features all recessed hardware and 4" x 2" HD casters mounted on a Birch pad. Special thanks to Cisco!
- REFERENCE: 18360
- CATEGORY: Audio/Visual
