REFERENCE: 14-0934

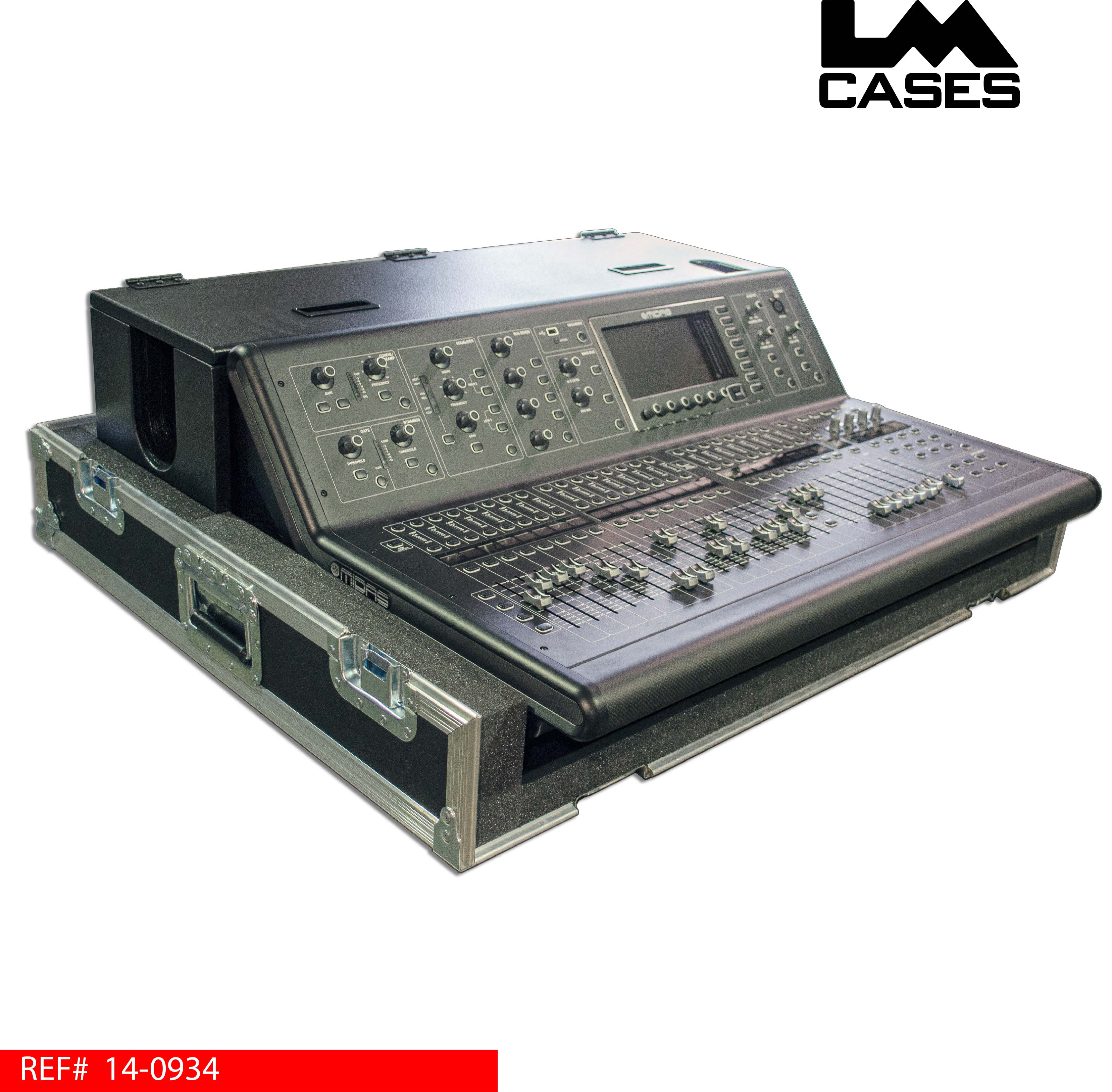

Custom Midas M32 Case

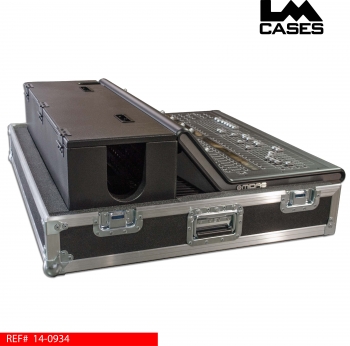

This case was designed for Image Of God Ministries for a Midas M32 console. The case is a 3 piece design that features a removable front and top lid in addition to a doghouse for cable management.

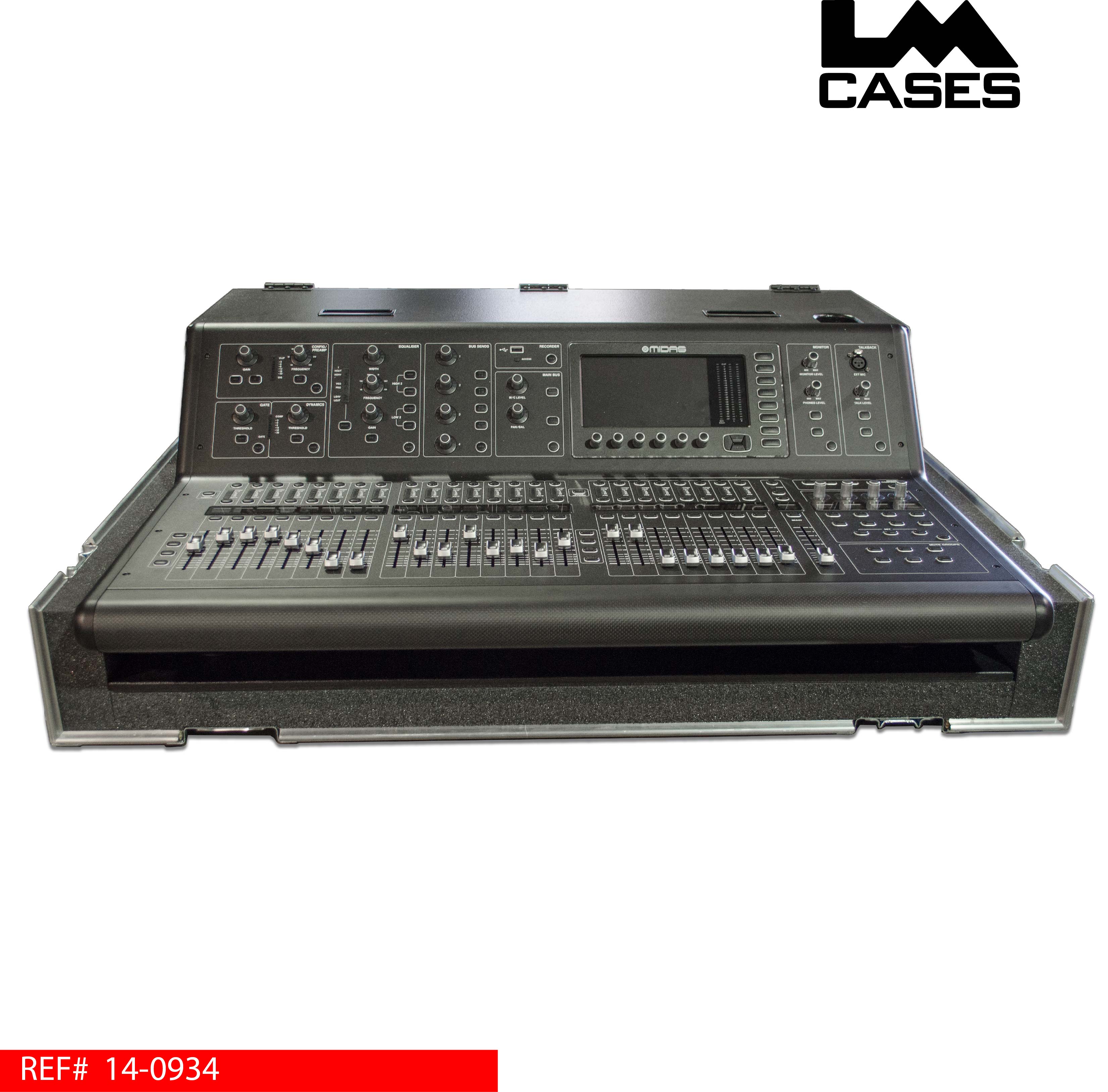

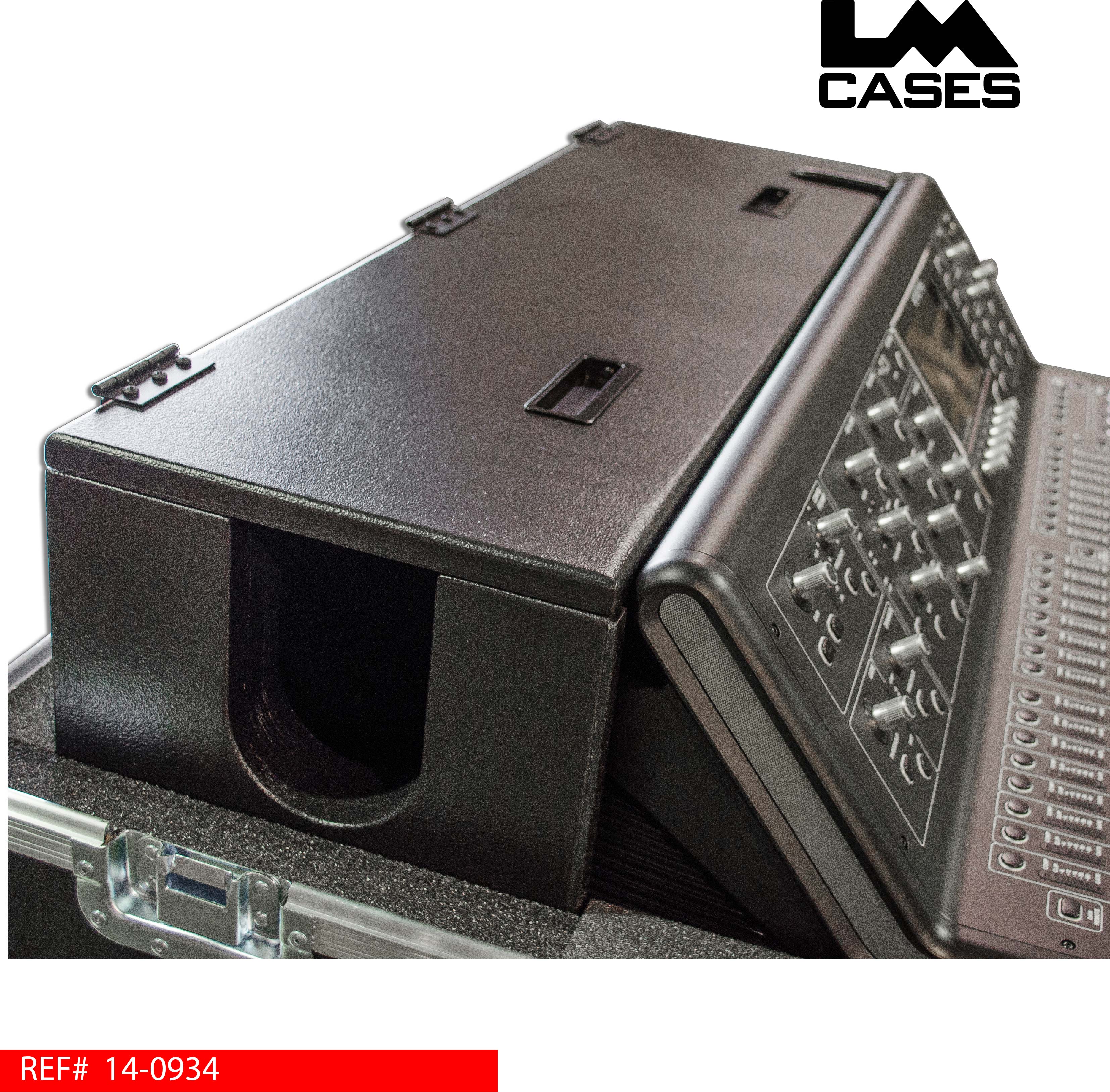

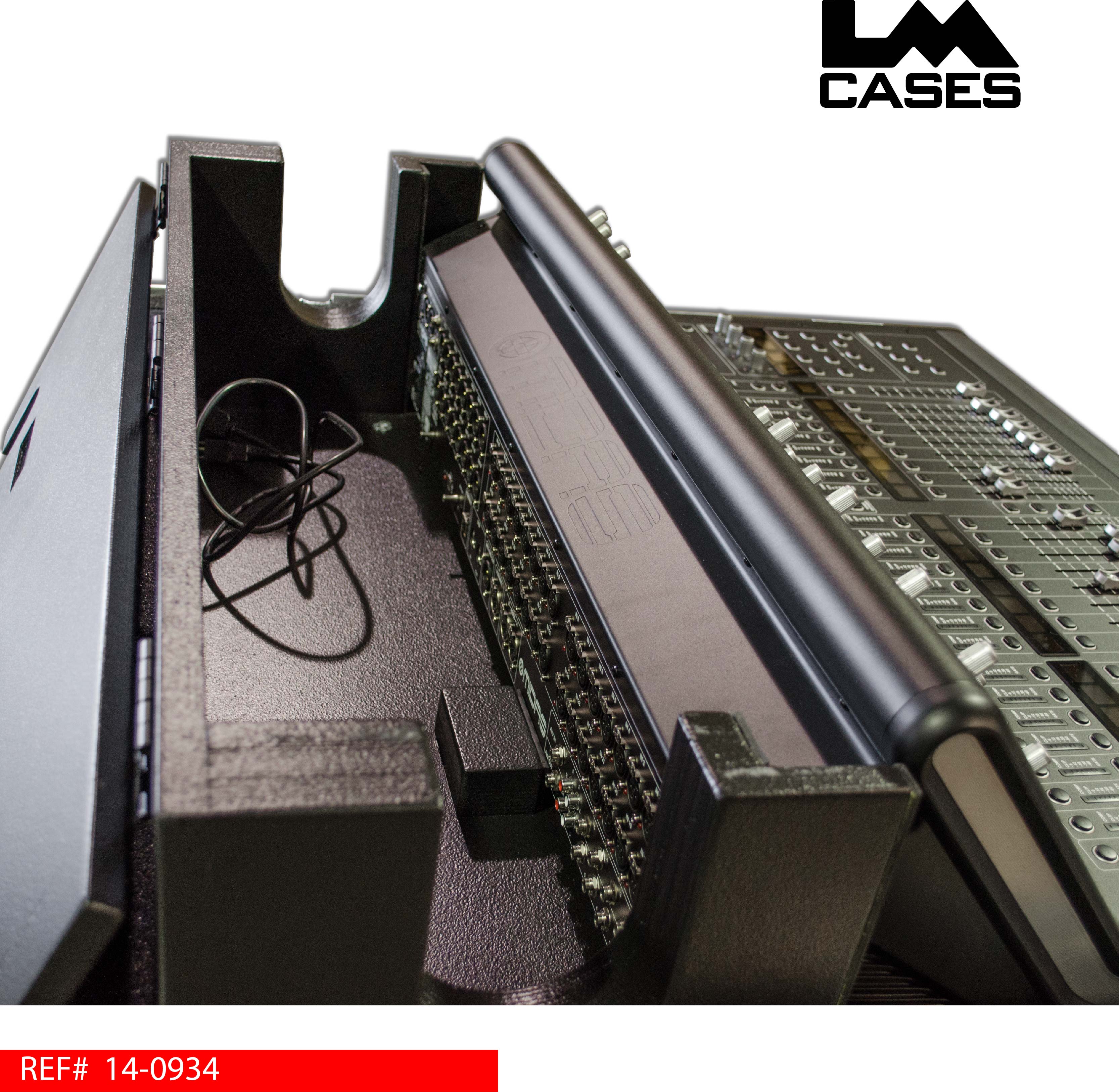

The case interior is lined with PE foam that custom contours the shape of the console. Mounted behind the console is a doghouse that is 8" deep and built out of 3/4" Baltic Birch that is finished with black textured coating

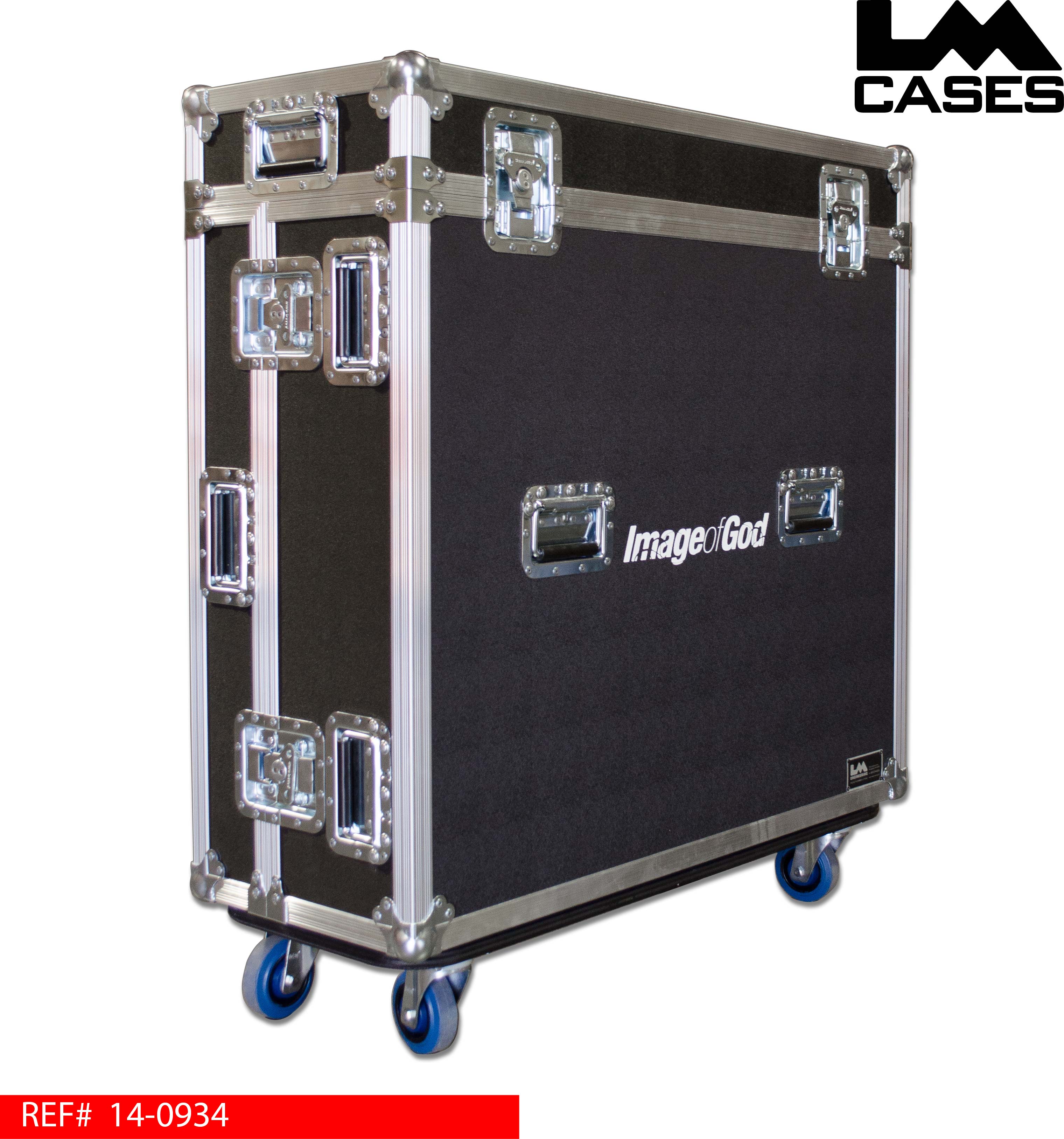

The case exterior features 14 handles, 4" Casters and a custom silkscreen of the Image Of God logo.
Special thanks to Image Of God Ministries!
- REFERENCE: 14-0934
- CATEGORY: Audio/Visual
